Summary of Contents for Olympia DECT 5000

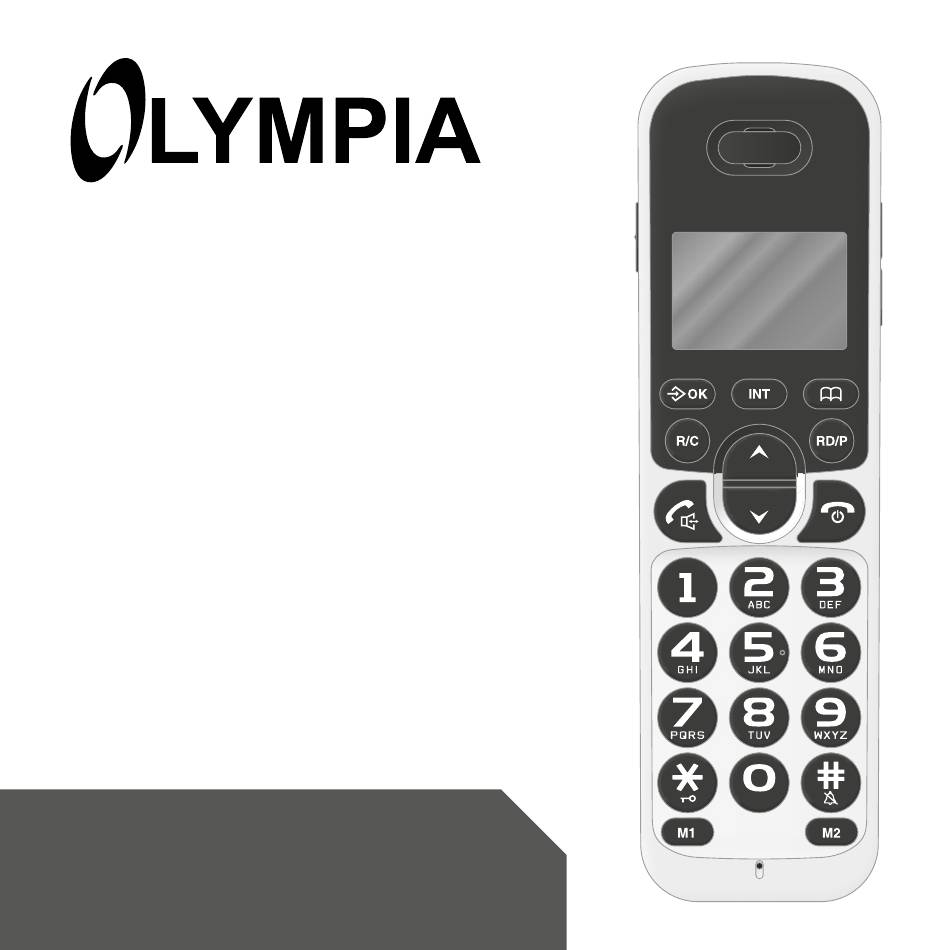

- Page 1 DECT 5000 Cordless Telephone...
-
Page 3: Table Of Contents
ontents Functions Available on the Telephone � 22 For Your Safety � � � � � � � � � � � � � � � � � � � � � 4 Observe Safety Instructions � � � � � � � � � � � � 4 Settings �... -
Page 4: For Your Safety
WARNING! Risk of suffocation! Risk to health through packaging material and protective foil! Keep packaging material and protective foil out of reach of children� Small children can swallow small parts� DECT 5000... - Page 5 The phone is not waterproof; therefore, keep it dry� IMPORTANT! Only use original accessories� Only connect accessories approved by the manufacturer� IMPORTANT! Repairs to the phone may only be completed by properly qualified service personnel� DECT 5000...
-
Page 6: Intended Use
For Your Safety INTENDED USE Intended Use The DECT 5000 cordless telephone is suitable for telephoning within a public telephone network system. Any other use is considered unintended use. Unauthorised modification or reconstruction is not permitted� Only use the phone indoors�... -
Page 7: Telephone In Detail
Telephone in Detail FRONT AND REAR SIDES (HANDSET) Telephone in Detail Front and Rear Sides (Handset) DECT 5000... - Page 8 R/C key On-hook key Navigation keys Hash / Muting key Call key Dial favourite (M2) Loudspeaker Keypad (active for Handsfree function) Battery compartment cover Star / Key lock key (not illustrated) Dial favourite (M1) Battery compartment Microphone Charge contacts DECT 5000...
-
Page 9: Front And Rear Sides (Base Station)
Telephone in Detail FRONT AND REAR SIDES (BASE STATION) Front and Rear Sides (Base Station) Significance No. Significance Charge contacts Base pads Paging key Power adapter connection socket Telephone line connection socket DECT 5000... -
Page 10: Display
Signal strength between the handset and base station (flashes when moving out of range; goes out when there is no contact with the base station) Navigate in the menu Handsfree function has been switched on Voice messages have been recorded but not played back Ringing tone has been deactivated DECT 5000... - Page 11 Current battery charge status An internal call is in progress A call is in progress An external call is in progress View phone book entries A call has been received Several calls from one number have been missed DECT 5000...
-
Page 12: Putting The Telephone Into Operation
Putting the Telephone into Operation CONNECTING THE BASE STATION Putting the Telephone into Operation The DECT 5000 cordless telephone is comprised of a base station and a handset� Connect the base station and handset as described in this section� Connecting the Base Station Well deciding on the installation location, take the range of the base station into account�... -
Page 13: Inserting The Rechargeable Batteries
Replace the battery compartment cover on the handset� The battery compartment cover latches audibly in place� CAUTION! Risk of explosion through improper replacement or removal of the batteries! Only use the rechargeable batteries supplied and only replace the rechargeable batteries with a type approved by the manufacturer� DECT 5000... -
Page 14: Charging The Rechargeable Batteries
This is not a source of danger� Switching the Handset On and Off Press and hold the key for three seconds� After a few seconds, the signal strength, battery charge status and name of the handset appear in the display� DECT 5000... -
Page 15: Using The Telephone
(network-dependent)� If the caller is entered in the phone book, the name entered for the person also appears� When you want to take, end or reject calls, use the following keys: Take an incoming call� End a call in progress or reject an incoming call� DECT 5000... -
Page 16: Navigating In The Menu
(on the start screen) Open the menu / Confirm input (during a call) Mute the microphone (during a call) Switch Handsfree function on and off Open the phone book (during a call) Increase the call volume (on the start screen) View the last call received DECT 5000... - Page 17 Switch the key lock on/off / Star (keep pressed) Activate muting / Hash Make an internal call / Forward a call / Conference call Call a favourite (on the base station) Page the handset / Register a handset Volume boost DECT 5000...
-
Page 18: Functions Available On The Telephone
Select your base station using the Navigation keys� Confirm by pressing the key� Press the key on the base station. The LED on the base station flashes red. The handset is registered on the base station� This process can take a short time� DECT 5000... - Page 19 Language If necessary, select the language you require for the handset: Navigate to the HS SETTINGS è LANGUAGE menu� Confirm by pressing the key� Select the required language using the Navigation keys� Confirm by pressing the key� DECT 5000...
- Page 20 Navigate to the HS SETTINGS è SET RINGTONE è INTERNAL RING or EXTERNAL RING è VOLUME menu� Confirm by pressing the key� Use the navigation keys to set the required volume for the ringing tone� Confirm by pressing the key� DECT 5000...
- Page 21 You can define whether an acoustic alert signal should be issued when the handset is out of range of the base station: Navigate to the HS SETTINGS è TONE SETUP è RANGE ALARM menu� Confirm by pressing the key� Select the required setting using the Navigation keys� Confirm by pressing the key� DECT 5000...
- Page 22 You can adjust the display contrast setting to suit your individual needs: Navigate to the HS SETTINGS è CONTRAST menu� Confirm by pressing the key� Select the required setting using the Navigation keys� Confirm by pressing the key� DECT 5000...
- Page 23 Set the alarm clock using the Navigation keys� Confirm by pressing the key� Also activate the SNOOZE function if the alarm should ring again every 6 minutes before you finally switch the alarm clock off. Use the key to do this� DECT 5000...
- Page 24 Use the navigation keys to select a memory location� Confirm by pressing the key� Use the keypad to enter the first four digits of the phone number or access code to be barred� Confirm by pressing the key� DECT 5000...
- Page 25 On resetting the base station to activate the factory settings again, ALL you person- ally defined settings are deleted. Navigate to the BS SETTINGS è BS DEFAULT menu� Confirm by pressing the key� Use the keypad to enter the PIN� Confirm by pressing the key� DECT 5000...
-
Page 26: Phone Book
Confirm by pressing the key� Calling Contacts You can call contacts stored in the phone book: Navigate to the PHONE BOOK menu� Confirm by pressing the key� Use the Navigation keys to select the required contact� Press the key� DECT 5000... - Page 27 If you want to delete all the contacts, select the DELETE ALL option and confirm it by pressing the key� Memory Status Information appears regarding the number of contacts stored and storage locations available: Navigate to the PHONE BOOK è MEM STATUS menu� Confirm by pressing the key� DECT 5000...
-
Page 28: Call Lists
Use the Navigation keys to select the required contact� Use the navigation keys to select the DELETE option� Confirm by pressing the key� If you want to delete all the contacts, select the DELETE ALL option and confirm it by pressing the key� DECT 5000... -
Page 29: Dialling A Favourite (M1 / M2)
When the start screen is in the display, press the navigation key to view the numbers of the last calls missed� Use the navigation keys to navigate through the last thirty phone numbers� When the phone number required appears in the display, press the key� DECT 5000... -
Page 30: During A Call
You can use the volume boost to increase the volume of the caller even more (+15 dB) at the press of a key� Press the key once� When the call is ended, the volume boost is automatically switched off� DECT 5000... -
Page 31: Internal Functions
While a call is in progress, press the key� Use the keypad to enter the number of the handset you require� Press the key of the second handset to answer� Press the key of the initial handset to start the conference� DECT 5000... -
Page 32: Key Lock
Press the key after entering the number following which the dialling pause should be inserted� A "P" appears in the display to represent the pause� A dialling pause can also be programmed for entries in the phone book� Press the key to insert a dialling pause� DECT 5000... -
Page 33: Other Important Information
Approx� 12 hours until fully charged Charging time Up to 100 hours Standby Up to 10 hours Max. talk time 5 °C to 35 °C at 25 to 85% relative humidity Permissible ambient conditions Subject to change without notice! DECT 5000... -
Page 34: Frequently Asked Questions (Faq)
Charge on Page 21), you will hear an alert signal when the handset is moved out of range of the base station� Check the cabling of the base station� Further information is provided in Section Putting the Telephone into Operation on Page 12� DECT 5000... - Page 35 How do you enter letters in order to define names for contacts in the phone book, for example. The letters on the keys correspond to the standard character set� Refer to the following page for the range of characters in the code page� DECT 5000...
- Page 36 Other Important Information FREQUENTLY ASKED QUESTIONS (FAQ) ÷ �� Space If the proposed solutions above do not lead to the mobile phone working as expected: Refer to the FAQs in the Internet under www.olympia-vertrieb.de or contact our Service department� DECT 5000...
-
Page 37: Care Instructions
Packaging materials must be disposed of according to local regulations� DECT 5000... -
Page 38: Information On Conformity
Other Important Information INFORMATION ON CONFORMITY Information on Conformity Olympia Business Systems Vertriebs GmbH, Zum Kraftwerk 1, 45527 Hattingen, hereby declares that this telephone fulfils the basic requirements and other relevant provisions stipulated in the Directive 2014/53/EC� The CE mark on the telephone confirms its conformity. The Declaration of Conformity for this product is available at http://productip.com/?f=60063... - Page 40 Subject to change without prior notice� Art� No� 2271 / Version 2017�07 Operating Manual DECT 5000 Cordless Telephone...
