Toshiba S15 Application Manualline

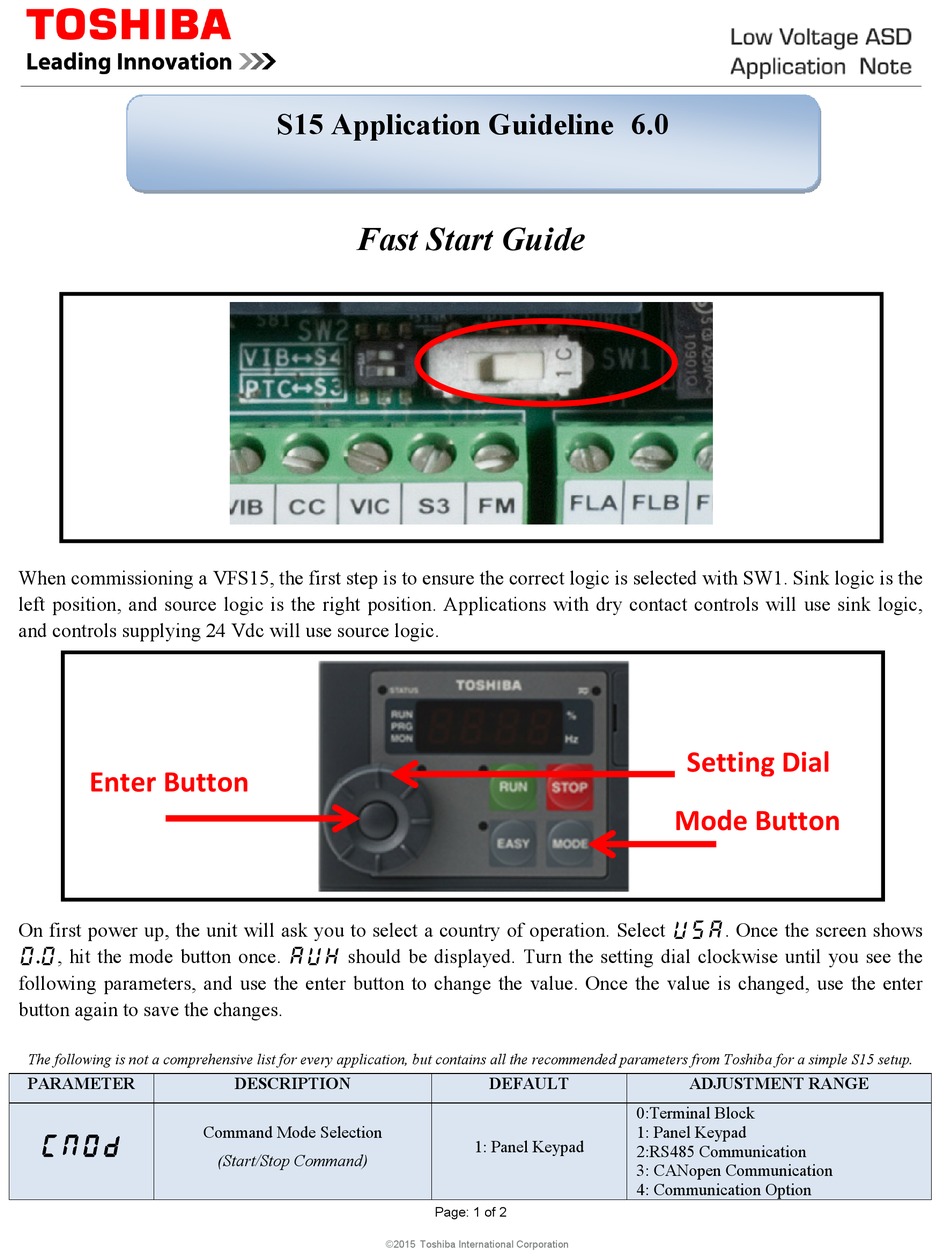

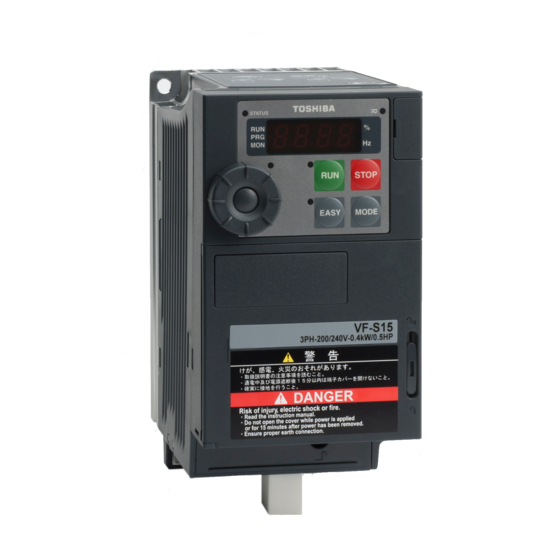

When commissioning a VFS15, the first step is to ensure the correct logic is selected with SW1. Sink logic is the
left position, and source logic is the right position. Applications with dry contact controls will use sink logic,
and controls supplying 24 Vdc will use source logic.
Enter Button
On first power up, the unit will ask you to select a country of operation. Select usa. Once the screen shows
0.0, hit the mode button once. auh should be displayed. Turn the setting dial clockwise until you see the
following parameters, and use the enter button to change the value. Once the value is changed, use the enter
button again to save the changes.
The following is not a comprehensive list for every application, but contains all the recommended parameters from Toshiba for a simple S15 setup.
PARAMETER
cmod
S15 Application Guideline 6.0
Fast Start Guide
DESCRIPTION
Command Mode Selection
(Start/Stop Command)
DEFAULT
1: Panel Keypad
Page: 1 of 2
©2015 Toshiba International Corporation
Setting Dial
Mode Button
ADJUSTMENT RANGE
0:Terminal Block
1: Panel Keypad
2:RS485 Communication
3: CANopen Communication
4: Communication Option
