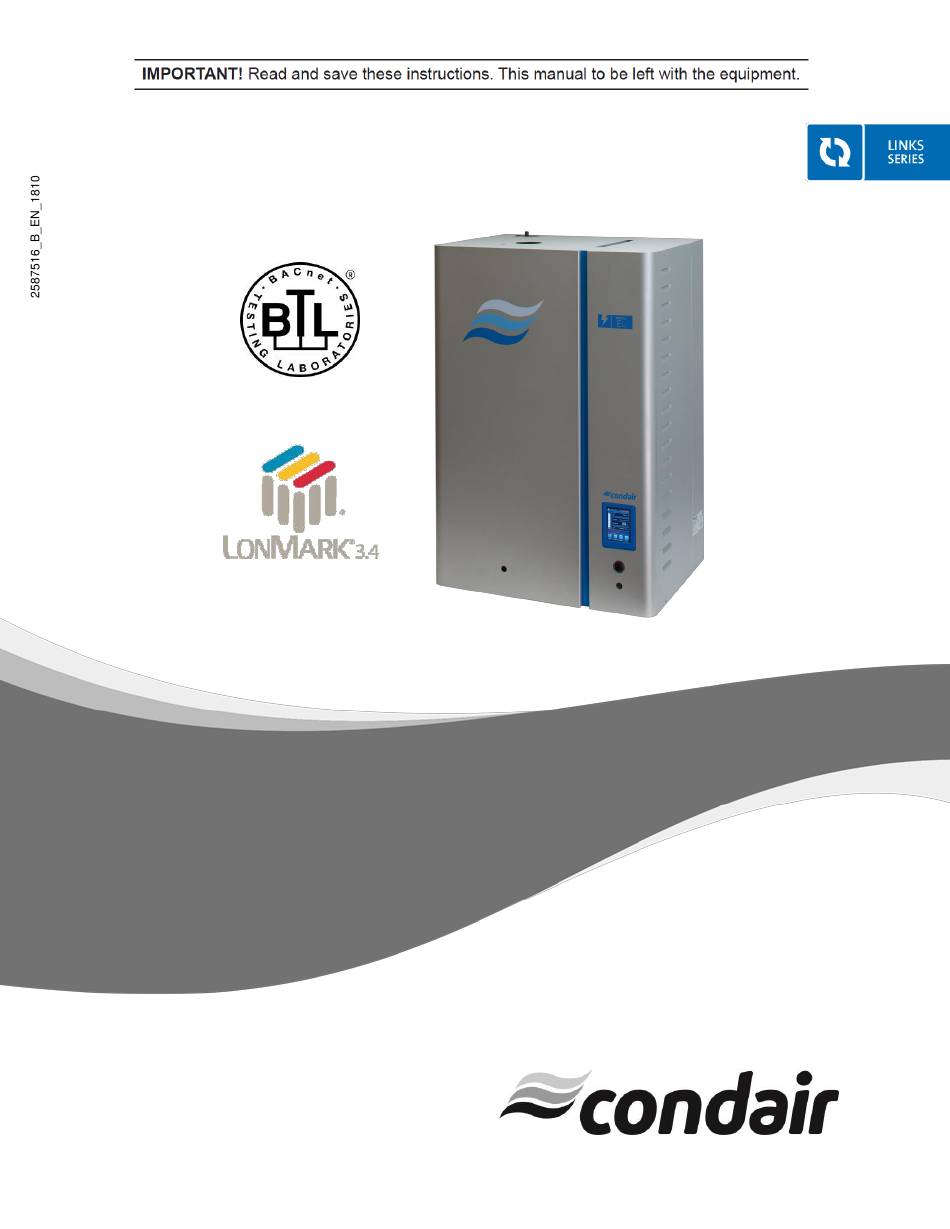

- Page 1 INSTALLATION AND OPERATION MANUAL ProtoCessor FPC-ED2 and ProtoCessor FPC-ED4 Condair LINKS...
-
Page 2: Technical Support
Thank you for purchasing the ProtoCessor for Condair. Please call Condair for Technical support of the ProtoCessor product. Sierra Monitor Corporation does not provide direct support. If Condair needs to escalate the concern, they will contact Sierra Monitor Corporation for assistance. -
Page 3: Installation And Operation Manual
INSTALLATION AND OPERATION MANUAL Condair LINKS ProtoCessor FPC-ED2 and ProtoCessor FPC-ED4 2587516_B_EN_1810... - Page 4 Proprietary Notice This document and the information disclosed herein are proprietary data of Condair Ltd. Neither this docu- ment, nor the information contained herein shall be reproduced, used, or disclosed to others without the written authorization of Condair Ltd., except to the extent required for installation, operation or maintenance of the customer's equipment.
-
Page 5: Table Of Contents
Instructions to Download XIF File from ProtoCessor FPC-ED4 Using Browser..26 Troubleshooting ......................Lost or Incorrect IP Address .................... Viewing Diagnostic information ..................Check Wiring and Settings ..................... LED Diagnostics for Communications Between ProtoCessor and Device ..... Take Diagnostic Capture With the FieldServer Utilities ..........Condair LINKS 2587516_B_EN_1810... - Page 6 ......................BACnet: Setting Network_Number for more than one ProtoCessor on Subnet ..... Securing the ProtoCessor with Passwords ..............viii Vendor Information - Condair ................... viii NHEL Modbus RTU Mappings to BACnet, Metasys N2 and LonWorks ....... viii GS Modbus RTU Mappings to BACnet, Metasys N2 and LonWorks ......
-
Page 7: Quick Start Guide
Configurator to change the IP Address. No changes to the configuration are necessary. (Section 6.4) 8. LonWorks (FPC-ED4): The ProtoCessor must be commissioned on the LonWorks Network. This needs to be done by the LonWorks administrator using a LonWorks Commissioning tool. (Section 9) Condair LINKS 2587516_B_EN_1810... -
Page 8: Certifications
LonMark devices work together. Sierra Monitor has more LonMark Certified gateways than any other gateway manufacturer, including the ProtoCessor, ProtoCarrier and ProtoCessor for OEM applications and the full featured, configurable gateways. 2587516_B_EN_1810 Condair LINKS... -
Page 9: Introduction
Introduction ProtoCessor Gateway ProtoCessor is an external, high performance Building Automation multi-protocol gateway that is preconfigured to automatically communicate between Condair’s products (hereafter called “device”) connected to the ProtoCessor and automatically configures them for BACnet ®1 MS/TP, ®2 ®3 BACnet/IP, Metasys N2 by JCI or LonWorks It is not necessary to download any configuration files to support the required applications. -
Page 10: Setup For Protocessor
Set the serial device that the ProtoCessor is plugged into to have the same Baud Rate, Data Bits, Stop Bits, and Parity settings as the ProtoCessor. Table 4: COM Settings specifies the device serial port settings required to communicate with the ProtoCessor. 2587516_B_EN_1810 Condair LINKS 10 |... -
Page 11: Set Modbus Rtu Node-Id For The Device
The Modbus Node-ID assigned is used for designating the Device Instance for BACnet/IP and BACnet MS/TP The Metasys N2 and Modbus TCP/IP field protocol Node-IDs are automatically set to be the same value as the Node-ID of the Modbus RTU device. Condair LINKS 2587516_B_EN_1810 I 11... -
Page 12: Interfacing Protocessor To Device
Interfacing ProtoCessor to Device ProtoCessor FPC-ED2 and FPC-ED4 Mounted onto Board Figure 1: Mounted ProtoCessor BACnet FPC-ED2 (upper) and ProtoCessor FPC-ED4 (lower) 2587516_B_EN_1810 Condair LINKS 12 |... -
Page 13: Protocessor Fpc-Ed2 And Fpc-Ed4 Showing Connection Ports
ProtoCessor FPC-ED2 and FPC-ED4 Showing Connection Ports Figure 2: ProtoCessor FPC-ED2 (upper) and ProtoCessor FPC-ED4 (lower) Condair LINKS 2587516_B_EN_1810 I 13... -
Page 14: Bacnet Ms/Tp Or Metasys N2: Wiring Field Port To Rs-485 Network
LonWorks (FPC-ED4): Wiring Field Port to LonWorks Network Connect ProtoCessor to the field network with the LonWorks terminal using approved cable per the FT-10 installation guidelines. LonWorks has no polarity. Figure 5: LonWorks Terminal Connector 2587516_B_EN_1810 Condair LINKS 14 |... -
Page 15: Use Protocessor Web Configurator To Setup The Gateway
Right-click on Local Area Connection > Properties Highlight > For Windows 7: Go to > > > > Right-click on Local Area Connection > Properties Highlight > For Windows XP and Windows 7, use the following IP Address: Click twice. Condair LINKS 2587516_B_EN_1810 I 15... -
Page 16: Connecting To Protocessor Web Configurator
This will present a drop-down box underneath the Current Profile column that lists all the available profiles. ( Figure 7) For every device that is added, assign a unique Modbus Node-ID. This specification must match the device’s network settings. 2587516_B_EN_1810 Condair LINKS 16 |... - Page 17 Figure 6: Web Configurator Showing no Active Profiles Once the Profile for the device has been selected from the drop-down list, enter the value of the device’s Modbus Node-ID which was assigned in Section 4.3.2. Condair LINKS 2587516_B_EN_1810 I 17...
- Page 18 Figure 7: Web Configurator Showing Available Profiles for Selection Then press the “Submit” button to add the Profile as a device to be configured. Completed additions will be listed under “Active Profiles” as shown in Figure 8. 2587516_B_EN_1810 Condair LINKS 18 |...
-
Page 19: Bacnet/Ip Setting Ip Address For Field Network
PC and enter the IP Address of the ProtoCessor; the default address is 192.168.168.243. The Web Configurator is displayed as the landing page. (Figure 9) To access the Web GUI, click on the “Diagnostics & Debugging” button in the bottom right side of the page. Condair LINKS 2587516_B_EN_1810 I 19... - Page 20 IP Address of that router. Reset ProtoCessor. Unplug Ethernet cable from PC and connect it to the network hub or router. Record the IP Address assigned to the ProtoCessor for future reference. 2587516_B_EN_1810 Condair LINKS 20 |...
-
Page 21: Select Field Protocol
Then click “System Restart” to bring up options to configure the desired protocol. For ED4 – There are no device details to be entered for this protocol combination. 6.5.1 BACnet MS/TP Configuration Enter the appropriate details for BACnet MS/TP ( Figure 11): Condair LINKS 2587516_B_EN_1810 I 21... -
Page 22: Bacnet/Ip Configuration
Figure 11: Web Configurator Showing BACnet MS/TP Configuration 6.5.2 BACnet/IP Configuration Enter the appropriate details for BACnet/IP (Figure 12): 2587516_B_EN_1810 Condair LINKS 22 |... -
Page 23: Metasys N2 Configuration
Figure 12: Web Configurator Showing BACnet/IP Configuration 6.5.3 Metasys N2 Configuration Enter the appropriate details for Metasys N2 (Figure 13): Condair LINKS 2587516_B_EN_1810 I 23... - Page 24 Figure 13: Web Configurator Showing Metasys N2 Configuration 2587516_B_EN_1810 Condair LINKS 24 |...
-
Page 25: Bacnet Ms/Tp And Bacnet/Ip: Setting Node_Offset To Assign Specific Device Instances
NOTE: The Node_Offset value will be applied to the device. o Device Instance will then be = 1,000 + Modbus Node_ID = 1,000 + 1 = 1,001 Click “Submit” once the desired value is entered. Figure 14: Active Profiles with Node-ID Condair LINKS 2587516_B_EN_1810 I 25... -
Page 26: How To Start The Installation Over: Clearing Profiles
At the bottom-left of the page, click the “Clear Profiles and Restart” button. Once restart is complete, all past profiles discovered and/or added via Web configurator are deleted. The unit can now be reinstalled. 2587516_B_EN_1810 Condair LINKS 26 |... -
Page 27: Lonworks (Fpc-Ed4): Commissioning Protocessor On A Lonworks Network
255.255.255.0. If the PC and ProtoCessor are on different IP Networks, assign a static IP Address to the PC on the 192.168.1.xxx network. For Windows XP: Go to > > Right-click on Local Area Connection > Properties Highlight > Condair LINKS 2587516_B_EN_1810 I 27... - Page 28 If the web browser prompts to save the file, save the file onto the PC. If the web browser displays the xif file as a web page, save the file onto the local PC as “fserver.xif”. Figure 16: Sample of Fserver.XIF File Generated 2587516_B_EN_1810 Condair LINKS 28 |...
- Page 29 This page intentionally left blank Condair LINKS 2587516_B_EN_1810 I 29...
-
Page 31: Atroubleshooting
Connect a standard CAT5 Ethernet cable between the PC and ProtoCessor. Double click on the FS Toolbox Utility. Check IP Addresses from the Device listings. Correct IP Address(es) by right clicking the settings icon and changing the IP Address. Condair LINKS 2587516_B_EN_1810 Appendix I i... -
Page 32: Viewing Diagnostic Information
Check baud rate, parity, data bits, stop bits o Check device address o Verify wiring Field COM problems: o Visual observations of LEDs on ProtoCessor (A.4) o Check dipswitch settings (using correct baud rate and device instance) 2587516_B_EN_1810 Condair LINKS ii | Appendix... -
Page 33: Led Diagnostics For Communications Between Protocessor And Device
Figure 19: Diagnostic LEDs Table 5 :Diagnostic LEDs Description The Run LED will start flashing 20 seconds after power indicating normal operation. The Heat Beat LED has the same functionality but flashes more rapidly. Condair LINKS 2587516_B_EN_1810 Appendix I iii... -
Page 34: Take Diagnostic Capture With The Fieldserver Utilities
ProtoCessor is powered. Take Diagnostic Capture With the FieldServer Utilities Once the Diagnostic Capture is complete, email it to na.info@condair.com. The Diagnostic Capture will accelerate diagnosis of the problem. Ensure that FieldServer Toolbox is Loaded on the PC that is currently being used, or download FieldServer-Toolbox.zip on the Sierra Monitor webpage, under Customer Care:... - Page 35 Select “Full Diagnostic" NOTE: If desired, the default capture period can be changed o Click on “Start Diagnostic” Condair LINKS 2587516_B_EN_1810 Appendix I v...
- Page 36 Once the diagnostic test is complete, a .zip file will be saved on the PC o Click “Open” to launch explorer and have it point directly at the correct folder, then email the diagnostic zip file to na.info@condair.com 2587516_B_EN_1810 Condair LINKS vi | Appendix...
-
Page 37: Update Firmware
Network_Number values. On the main Web Configuration screen, update the Network Number with the “network_nr” field and click submit. The default value is 50. Figure 21: Configuration Parameters – Setting Network Number for BACnet Condair LINKS 2587516_B_EN_1810 Appendix I vii... -
Page 38: Securing The Protocessor With Passwords
Access the ProtoCessor to set a new password. VENDOR INFORMATION - CONDAIR Nortec NHEL Modbus RTU Mappings to BACnet, Metasys N2 and LonWorks BACnet BACnet 2Data... - Page 39 Type SNVT_lev_per nvoStatus nvoStatus_XXX cent nvi/nvoSigSource_X SNVT_lev_per nviSigSource cent nvi/nvoCtrlMode_XX SNVT_lev_per nviCtrlMode cent SNVT_lev_per nviCtrlChannel nvi/nvoCtrlCh_XXX cent nvi/nvoBMStmeout_ SNVT_time_se nviBMStimeout SNVT_time_ho nvoHourOpt_A nvoHrOpt_A_XXX SNVT_time_ho nvoHourWeight_A nvoHrWght_A_XXX SNVT_lev_per nvoRHDem_A1 nvoRHDem_A1_XXX cent SNVT_lev_per nvoRHDem_A2 nvoRHDem_A2_XXX cent Condair LINKS 2587516_B_EN_1810 Appendix I ix...
- Page 40 SNVT_lev_per nvoRHDem_A1 nvoRHDem_A1_XXX cent SNVT_lev_per nvoRHDem_A2 nvoRHDem_A2_XXX cent SNVT_lev_per nvoSysDem_A nvoSysDem_A_XXX cent nvi/nvoManCap_A_X SNVT_lev_per nviManCapacity_A cent nvi/nvoSetPnt_A1_X SNVT_lev_per nviSetPoint_A1 cent nvi/nvoSetPnt_A2_X SNVT_lev_per nviSetPoint_A2 cent nvi/nvoDRHDem_A1 SNVT_lev_per nviDRHDem_A1 _XXX cent nvi/nvoDRHDem_A2 SNVT_lev_per nviDRHDem_A2 _XXX cent 2587516_B_EN_1810 Condair LINKS x | Appendix...
- Page 41 SNVT_count MI_HumType nvoHumType_XXX SNVT_count MI_NomVoltage nvoNomVolt_XXX SNVT_count MI_LevelA nvoLevelA_XXX SNVT_count MI_LevelB nvoLevelB_XXX SNVT_count AI_ErrorCode nvoErrorCode_XXX SNVT_count SNVT_time_ho AI_OperatHours nvoOperatHr_XXX SNVT_time_ho AI_HoursToServA nvoHrToServA_XXX SNVT_time_ho AI_HoursToServB nvoHrToServB_XXX AI_SystemDemandA nvoSysDem_XXX SNVT_count AI_InputA1 nvoInputA1_XXX SNVT_count AI_InputA2 nvoInputA2_XXX SNVT_count Condair LINKS 2587516_B_EN_1810 Appendix I xi...
- Page 42 SNVT_switch BI_InletB1 nvoInletB1_XXX SNVT_switch BI_InletA2 nvoInletA2_XXX SNVT_switch BI_InletB2 nvoInletB2_XXX SNVT_switch BI_DrainA1 nvoDrainA1_XXX SNVT_switch BI_DrainB1 nvoDrainB1_XXX SNVT_switch BI_DrainA2 nvoDrainA2_XXX SNVT_switch BI_DrainB2 nvoDrainB2_XXX SNVT_switch BI_FanA nvoFanA_XXX SNVT_switch BI_FanB nvoFanB_XXX SNVT_switch BI_FlushValveA nvoFlushVlvA_XXX SNVT_switch BI_FlushValveB nvoFlushVlvB_XXX SNVT_switch 2587516_B_EN_1810 Condair LINKS xii | Appendix...
-
Page 43: Creference
If the unit is to be installed in an operating environment with a temperature above 65 °C, it should be installed in a Restricted Access Area requiring a key or a special tool to gain access. This device must not be connected to a LAN segment with outdoor wiring. Condair LINKS 2587516_B_EN_1810 Appendix I xiii... - Page 44 Page intentionally left blank 2587516_B_EN_1810 Condair LINKS xiv | Appendix...
- Page 45 Warranty Condair Inc. and/or Condair Ltd. (hereinafter collectively referred to as THE COMPANY), warrant for a period of two years after installation or 30 months from manufacturer’s ship date, whichever date is earlier, that THE COMPANY’s manufactured and assembled products, not otherwise expressly warranted, are free from defects in material and workmanship.
- Page 46 Consulting, Sales and Service: U.S.A. 835 Commerce Park Ave Ogdensburg, NY 1366-2209 CANADA 2740 Fenton Road Ottawa, ON, K1T 3T7 Tel: 1.866.667.8321 Fax: 613.822.7964 Email: na.info@condair.com Website: www.condair.com...
