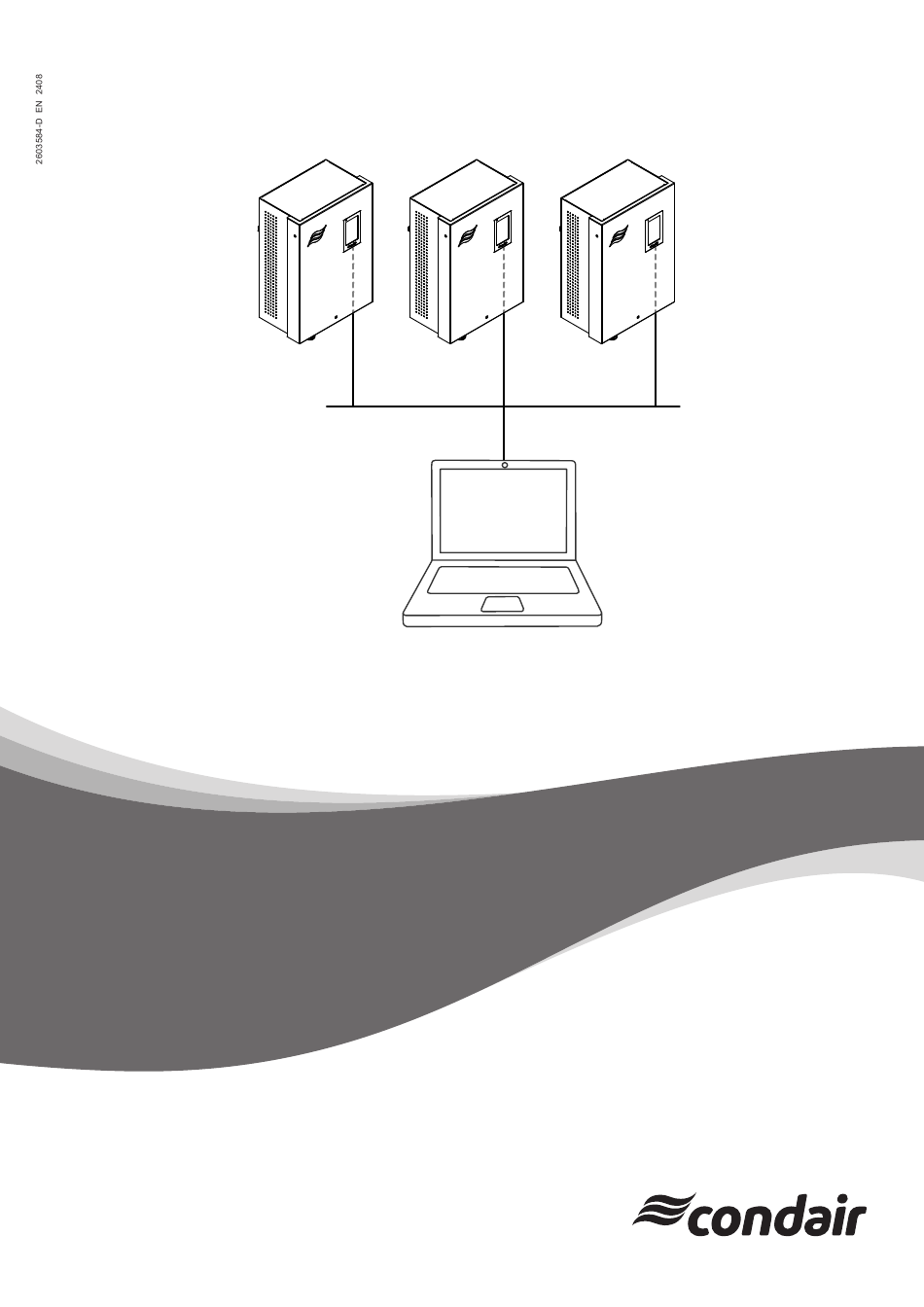

Gateway Board for BACnet and LonWorks Addendum manual for installation and operation for use with DL II, ME II and RS II Humidification, Dehumidification and Evaporative Cooling...
Principle LonWorks network Installation work 3.2.1 Installing the BACnet/LonWorks gateway board on the Integrated Controller 3.2.2 Wiring Configuration 3.3.1 Configuring the Condair Integrated Controller 3.3.1.1 Signal settings 3.3.1.2 Monitoring of bus communication 3.3.1.3 Modbus settings 3.3.2 Gateway configuration (BACnet or LonWorks) 3.3.2.1...
Introduction Notes on this addendum manual Condair devices equipped with an Integrated Controller can either be connected via the corresponding interface on the Integrated Controller (BACnet on-board) to a BACnet IP network or a BACnet MS/TP network or via the optional LonWorks or BACnet gateway boards (ProtoCessor gateway) to a LonWorks, BACnet IP or BACnet MS/TP network to a building management system.
If the documentation gets mislaid, please contact your Condair representative for replacement. Language versions This addendum manual is available in various languages. Please contact your Condair representative for information. 2603584-D EN 2408...
For safety and warranty reasons any action beyond the scope of this manual must be carried out only by qualified personnel authorised by the manufacturer. It is assumed that all persons working with the Condair Integrated Controller are familiar and comply with the appropriate local regulations on work safety and the prevention of accidents.
Page 7
Safety reporting All persons working with the Condair Integrated Controller are obliged to report any alterations to the system that may affect safety to the owner without delay and to secure such systems against ac- cidental power-up. Prohibited modifications to the unit No modifications must be undertaken on the optional LonWorks or BACnet gateway boards and on the Condair Integrated Controller without the express written consent of the manufacturer.
3.1.1 Overview The optional LonWorks or BACnet gateway boards allow the integration of the Condair Integrated Con- troller into a BACnet IP, BACnet MS/TP or a LonWorks network. The optional LonWorks or BACnet gateway boards feature a serial-interface gateway which converts the information from the host Modbus RTU protocol to a specified secondary protocol.
3.1.2 Principle Network diagrams 3.1.2.1 Principle BACnet network The principle diagram below shows the connection of the Condair Integrated Controller to a BACnet IP network. Principle BACnet IP network Ethernet (BACnet IP) CAT6A cable (or higher) with RJ45 termination BACnet gateway board...
Page 10
Principle BACnet MS/TP network Ethernet (BACnet IP) BACnet MS/TP to BACnet IP Router RS485 Network (BACnet MS/TP) Shielded twisted-pair cable: – 120 Ohm impedance – Terminate shield at one end only – BACnet gateway board (connected to integrated controller inside control unit) CR2032 Abb.
3.1.2.2 Principle LonWorks network This principle diagram below shows the connection of the Condair Integrated Controller to a LonWorks network via a shielded twisted-pair cable. LonWorks LonWorks LonWorks Device Device Router Network via shielded twisted-pair cable Shielded twisted-pair cable: – 120 Ohm impedance –...
For more information, refer to ANSI/ESD-S20.20. 3. Open the control unit inner swing door. 4. Fix BACnet or LonWorks gateway board to the TTL interface on the Condair Integrated Controller. Important: Ensure pin alignment when fixing. 5. Set Jumper on "JP8".
3.2.2 Wiring 1. Lead the network cable through the rectangular cable lead-through into the control unit. Inside the control unit run the cable to the BACnet or LonWorks gateway board, respectively. 2. Connect network cable according to the following wiring diagrams. BACnet To network via CAT6A cable (or higher) with RJ45 termination...
Note: If you want the Condair Integrated Controller to be controlled via a hardwired analog control signal set "Source" to "Analog" and set the other control settings as required (see "Operation Manual" of the corresponding device for details).
Signal Timeout: With this setting you determine the timeout period for the signal transmission. If communication via BACnet or LonWorks fails for longer than the set time, warning "W35 - Signal Timeout" is triggered and the Condair DL is stopped. Factory setting: 300 s Setting range: 1 ...
3.3.1.3 Modbus settings To allow the Condair Integrated Controller to communicate via the optional BACnet or LonWorks gateway board the Condair Integrated Controller must be configured as follows: 1. Switch on control unit (if not already switched on). 2. Select "Modbus Settings" (Path: "Menu > Password: 8808 > Network > Modbus Settings"). The Modbus setting parameters appear.
3.3.2 Gateway configuration (BACnet or LonWorks) The protocol configuration is made at the factory, prior to final testing. The following values are set ex factory (adjustable values see Section 3.3.2.2 Section 3.3.2.3): BACnet Protocol Baud rate BACnet MS/TP Node ID Parity MAC Address BACnet IP...
IP address to your PC. 3. Switch on Condair Integrated Controller unit in order to power up the gateway board. 4. Open your internet browser and enter the IP address of the gateway board (according table above), then confirm the entry with the Enter key.
Page 19
5. Depending on the FS-GUI version either the start screen or the login screen appears: • If the start screen appears: Press the <Diagnostics & Debbuging> button at the bottom right of the screen. • If the login screen screen appears: Enter "admin" as the username and the password (can be found on the sticker of the gateway board).
Page 20
6. Select the menu point "Setup > User Management / Password" in the "Navigation Tree". Enter the new password and confirm it with the <Confirm> button. CAUTION! Remember the new password. The password on the sticker of the gateway board is no longer valid after the alteration.
Page 21
8. Select the menu point "Setup > User Management" in the "Navigation Tree" in order to define the users having access to the FS-GUI. • Press the <Create User> button. • Enter a "Username". • Select the security group under "Security Groups": –...
Page 22
9. Select the menu point "Setup > Network Settings" in the "Navigation Tree". Enter the appropriate IP Address, Netmask (Subnetmask), Gateway (Default Gateway) Domain Name Server 1 (optional) and Domain Name Server 2 (optional). If you would like the "IP Address", "Netmask", "Gateway", "Domain Name Server 1" and "Domain Name Server 2"...
3.3.2.3 Modifying the BACnet configuration 1. Enter the (new) IP address of the gateway board in your internet browser and confirm the entry with the Enter key. The FS-GUI will be started. 2. Select the menu point "Setup > File Transfer" in the "Navigation Tree". Then, click in the "Retrieve" section on the link "config.csv"...
Page 24
BACnet MS/TP settings: 3b. Open the configuration file "config.csv" with a text editor. • Change in the section "Bridge" of the window the "System_Station_Address" (= MAC address) to the appropriate value. Default MAC address: 127, Range: 1...127 (Master) or 1...254 (Slave). Bridge Title,System_Station_Address BMS DL II BACnet MSTP,127...
Page 25
Upload config.csv file: 4. Select the menu point "Setup > File Transfer" in the "Navigation Tree". Click in the "Update" sec- tion on the button <Choose Files> and select the configuration file you have modified. Then, click on the button <Submit> in order to upload the configuration file into the gateway board. As soon as the update is finished a corresponding message appears in the upper part of the window.
Communication tables The following table shows the variables and their BACnet / LonWorks equivalents. DL - BACnet Read (R) Object Name Description Range Object-Type Object-ID Write (W) Virtual_BCU_DL Humidifier DL –– (see –– Section 3.3.2) 1 = Initializing / Offline 2 = Diagnostic 3 = Stopped 4 = Flushing...
Page 27
Read (R) Object Name Description Range Object-Type Object-ID Write (W) AV_SetPointHum Setpoint 0 - 95 % AV_PropBand P-Band 6 - 65 % AV_IntTime I-Time 1 - 60 min AV_CapLimit Capacity Limitation 20 - 100 % Read: = Off 0-100 = Progress flushing in % AV_RemoteFlush Remote Flush...
Page 28
Node Status 1 = Node Online optional According to the settings <Imperial> or <Metric> in the DL controller software Refer to malfunction list in the Condair DL operation manual for a description of the malfunction codes Communication tables 2603584-D EN 2408...
DL - LonWorks Variable Name Description Range SNVT #SNVT Index nviRequest Requesting the status SNVT_obj_request nvoStatus Current status SNVT_obj_status 0 = Initializing / Offline 1 = Diagnostic 2 = Stopped 3 = Flushing 4 = Standby 5 = Humidifying 6 = Ready nvoHumStatus Device Status SNVT_count...
Page 30
Variable Name Description Range SNVT #SNVT Index nvoPropBand P-Band 6 - 65 % SNVT_lev_percent nviPropBand nvoIntTime I-Time 1 - 60 min SNVT_time_min nviIntTime nvoCapLimit Capacity Limitation 20 - 100 % SNVT_lev_percent nviCapLimit Read: = Off 0-100 = Progress flushing nvoRemoteFlush in % Remote Flush SNVT_count...
Page 31
SNVT_switch 1 = Node Online optional According to the settings <Imperial> or <Metric> in the DL controller software Refer to malfunction list in the Condair DL operation manual for a description of the malfunction codes 2603584-D EN 2408 Communication tables...
ME - BACnet Read (R) Object Name Description Range Object-Type Object-ID Write (W) Virtual_BCU_ME Humidifier ME –– (see –– Section 3.3.2) 1 = Initializing 2 = Diagnostic 3 = Stopped 4 = Humidifying 5 = Cooling 6 = Holding 7 = Draining 8 = Refreshing 9 = Filling MI_HumStatus...
Page 33
Read (R) Object Name Description Range Object-Type Object-ID Write (W) Water capacity 1.0 - 360.0 kg/h AI_Stage6Cap stage 6 2.2 - 793.7 lb/hr AI_Stage7Cap Water capacity 1.0 - 360.0 kg/h stage 7 2.2 - 793.7 lb/hr AI_SpeedPump1 Actual speed pump 1 0 - 100 % AI_SpeedPump2 Actual speed pump 2...
Page 34
Read (R) Object Name Description Range Object-Type Object-ID Write (W) AV_SetPointHum Setpoint humidity control 0 - 95 % Proportional band hu- AV_PropBandH 6 - 65 % midity control Integral time AV_IntTimeH 1 - 60 min humidity control Setpoint temperature 0 - 40 °C AV_SetPointTmp control 32 - 104 °F...
Page 35
Read (R) Object Name Description Range Object-Type Object-ID Write (W) 0 = Open BI_ExtSChLSta Safety loop 1 = Closed (ok) 0 = Empty BI_DosLvl WET tank level 1 = Ok 0 = Leakage BI_Leak Leakage sensor 1 = Ok 0 = Open BI_DrainValLp Drain valve 1 = Closed...
Page 43
Node Status 1 = Node online optional According to the settings <Imperial> or <Metric> in the RS controller software Refer to malfunction list in the Condair RS operation manual for a description of the malfunction codes 2603584-D EN 2408 Communication tables...
RS - LonWorks Variable Name Description Range SNVT #SNVT Index nviRequest Requesting the status SNVT_obj_request nvoStatus Current status SNVT_obj_status 0 = Initializing 1 = Diagnostic 2 = Stopped 3 = Break 4 = Level Test Actual device status 5 = Standby nvoUnitStatusA SNVT_count cylinder A...
Page 45
Variable Name Description Range SNVT #SNVT Index nvoOperatHours Operating Hours 0 - 1'200'000 h SNVT_time_hour nvoOpHoursCylA Operating Hours Cyl. A 0 - 6000 h SNVT_time_hour nvoOpHoursCylB Operating Hours Cyl. B 0 - 6000 h SNVT_time_hour nvoSystemDemandA System Demand 0 - 100 % SNVT_lev_percent Actual humidity or nvoInputA1...
Page 47
SNVT_switch 1 = Node online optional According to the settings <Imperial> or <Metric> in the RS controller software Refer to malfunction list in the Condair RS operation manual for a description of the malfunction codes 2603584-D EN 2408 Communication tables...
Check that "Signal Source" in the controller settings is con- signal connected to the driver board. figured for "Analog" control. Note: If the "Signal Source" is set to "Modbus", the Condair Integrated Controller will look for a control value sent via the gateway board.
Page 49
Humidifier type is not shown on top – Probably the configuration has not been uploaded into the of the navigation tree of the FS-GUI. gateway board. Contact Condair Technical Services for ad- ditional support. More variables or additional infor- –...
LED functions RS-485 RX END OF LINE TERMINATION ERROR RS-485 TX NODE OFF-LINE HEART BEAT ETHERNET PORT Abb. 8: BACnet IP / BACnet MS/TP LED's Description HEART BEAT The system indicator LED as indication that the operating system is running (amber) ERROR The ERROR LED lights up on power up and goes off 15 seconds after power...
Page 51
LON SERVICE LED LON SERVICE PIN LON RX ERROR NODE OFF-LINE LON TX HEART BEAT ETHERNET PORT Abb. 9: LonWorks LED's Description HEART BEAT The system indicator LED as indication that the operating system is running (amber) ERROR The ERROR LED lights up on power up and goes off 15 seconds after power (red) up.
Page 52
Description LON-TX LED On normal operation of the board, the TX LED will flash when a message is sent on the Lon port of the board. LON-RX LED On normal operation of the board, the RX LED will flash when a message is received on the Lon port of the board.
Appendix Object abbreviations AI = Analog Input Analog value, readable AO = Analog Output Analogue control signal, readable and writable (with priority) AV = Analog Value Analogue setting, readable and writable BI = Binär Input Binary state value, readable BV = Binär Value Binary value, readable and writable MI = Multistate Input Multistate status value, readable...
