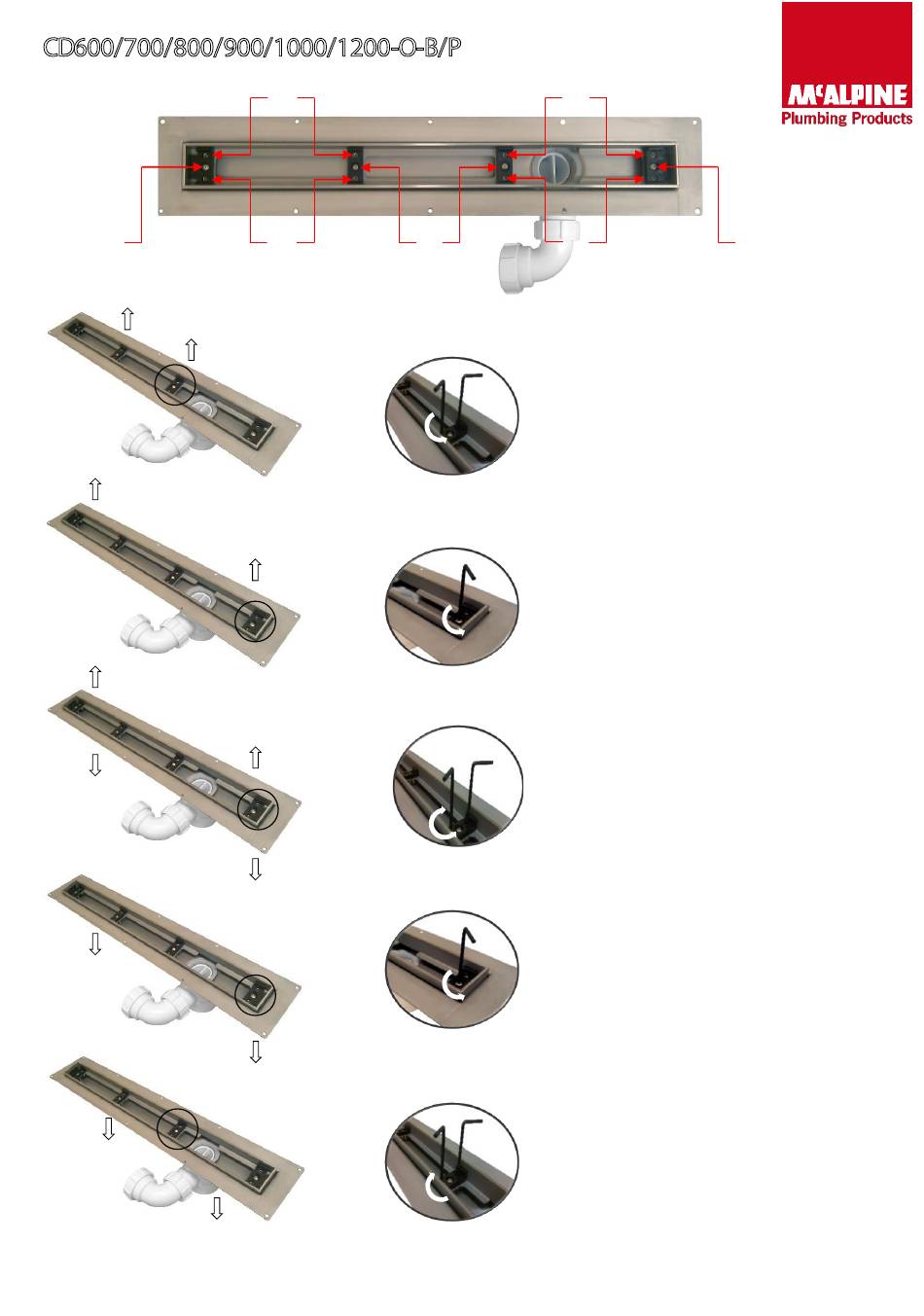

CD600/700/800/900/1000/1200-O-B/P – Adjustment Instructions
C
D
A
D
A
B
A
D
A
B
D
Step 1
Screw up / Raise to the limit but without removing
the 4 screws 'A'.
Step 2
Loosen to the limit but without removing the 2
screws 'B' and 2 screws 'C'.
Step 3
Depending on the thickness of the tile, adjust the
4 screws 'D' to the correct height.
Step 4
Fix the frame by tightening the 2 screws 'B' and 2
screws 'C'.
Step 5
Screw down the 4 screws 'A' until you feel that
they have made contact with the drain bottom.
These screws are only designed for supporting the
frame.
Attention!!
Over tightening of these screws may
cause distortion of the frame and cover.
C
Advertisement
Table of Contents
Related Manuals for McAlpine CD600-O-B
Summary of Contents for McAlpine CD600-O-B
- Page 1 CD600/700/800/900/1000/1200-O-B/P – Adjustment Instructions Step 1 Screw up / Raise to the limit but without removing the 4 screws ‘A’. Step 2 Loosen to the limit but without removing the 2 screws ‘B’ and 2 screws ‘C’. Step 3 Depending on the thickness of the tile, adjust the 4 screws ‘D’...
- Page 2 Installation Guidelines Slimline Channel Drain The following instructions refer to the installation of the channel drain only. They do not include Floor tiles information regarding installation of other elements of the shower cabin, such as sealing the connections between the shower walls and floor, or waterproofing - commonly known as room tanking.
