Summary of Contents for FERREX FAB 20-Ib

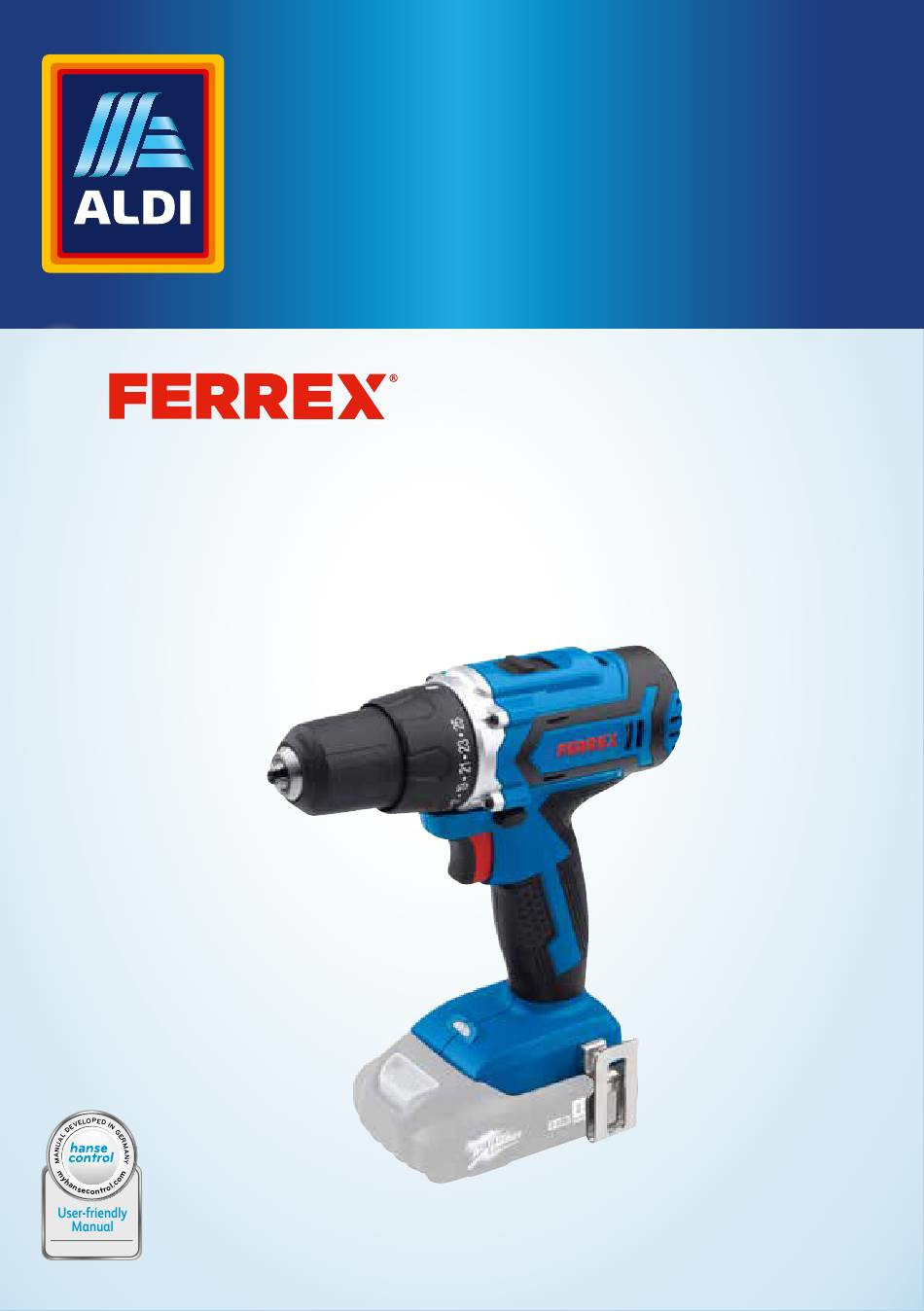

- Page 1 User Manual 20 V LI-ION CORDLESS DRILL FAB 20-Ib Original instructions ID: #05007...
-
Page 2: Table Of Contents
Contents Overview ..................3 Use ....................4 Package contents/device parts ..........5 General information ..............6 Reading and storing the user manual ...........6 Explanation of symbols ..............6 Safety ................... 7 Proper use ................... 7 Residual risks ..................7 General power tool safety instructions ..........8 Safety instructions for all operations .......... -
Page 5: Package Contents/Device Parts
Package contents/device parts Package contents/device parts Quick-action drill chuck Torque adjustment ring Gear switch Right-handed/left-handed rotation selector Belt clip Battery holder LED work light On/Off switch (with speed control) Drill bit (HSS spiral drill bit), 8× Magnetic bit holder Bit, 8×... -
Page 6: General Information
General information General information Reading and storing the user manual This user manual accompanies this 20 V Li-Ion cordless drill FAB 20-Ib (referred to below only as the ‘drill’). It contains important information on safety, usage and care. Read the user manual carefully before using the drill. Pay particular attention to the safety notes and warnings. -
Page 7: Safety
Safety Safety Proper use The drill is only suitable for private use for hobby and DIY tasks for drilling and driving screws into wood, plastic and metal. Any other applications are expressly prohibited and are deemed improper use. This drill does not come supplied with batteries or a charger. These must be bought separately: The drill can be operated using a 20 V battery or with a 20/40 V Activ Energy®... -
Page 8: General Power Tool Safety Instructions
Safety General power tool safety instructions WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or severe injury. Save all warnings and instructions for future reference. The term “power tool”... - Page 9 Safety f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock. Personal safety a) Stay alert, watch what you are doing and use common sense when operating a power tool.
- Page 10 Safety Power tool use and care a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off.
-
Page 11: Safety Instructions For All Operations
Safety b) Only use the rechargeable batteries designated for use in power tools. Using other rechargeable batteries may result in injury and a risk of fire. c) Keep the unused rechargeable battery away from paper clips, coins, keys, nails, screws or other small metallic objects that could bridge the contacts. -
Page 12: Supplementary Safety Instructions
Safety c) Brace the tool properly before use. This tool produces a high output torque and without properly bracing the tool during operation, loss of control may occur resulting in personal injury. d) Hold the power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. -
Page 13: Preparation
Preparation NOTICE! Risk of damage! Improper handling of the drill may result in damage. − Take the battery out of its compartment when you are no longer using the drill. This avoids damage that could be caused by battery leakage. −... -
Page 14: Using The Battery
Using the battery WARNING! Risk of injury! Incorrect use of the rechargeable battery and charger can cause injury. − This drill does not come supplied with batteries. Only use the batteries specified in the chapter “Technical data” for the drill. Do not operate the drill with batteries from other manufacturers. -
Page 15: Inserting Tools
CAUTION! Risk of injury while drilling! While drilling, you could inhale dust and possibly wood chips that could harm yourself and other persons as a result. When drilling, the loud drilling noises could damage your hearing. Noise may cause hearing loss. −... -
Page 16: Screwing And Drilling
Screwing and drilling 1. If you would like to drill or screw into soft wood, mark the applicable area. 2. Insert the battery if applicable (see chapter section “Using the battery”). 3. Insert a drill bit 9 or the magnetic bit holder ... - Page 17 8. Observe the following notes on screwing and drilling: Screwing • You can drive screws into soft wood without drilling a hole in advance. • Pre-drill when screwing into hard wood and driving in large screws. • Countersink the drill hole for countersunk screws. •...
-
Page 18: Removing A Blockage
After use 14. Let the drill cool off completely once you have finished work. 15. Remove the drill bit or the bit (see chapter “Removing tools”). 16. Remove the battery (see chapter “Using the battery”). Removing a blockage Follow the steps below to remove a blockage: 1. -
Page 19: Cleaning
Storage NOTICE! Risk of damage! Improper handling of the drill may result in damage to the drill. − Do not use any aggressive cleaners, brushes with metal or nylon bristles, or sharp or metallic cleaning utensils such as knives, hard scrapers and the like. -
Page 20: Transport
Technical data Drill information Article number: 97661 Model: FAB 20-Ib Model number: 5420053/5420054 Idle speed: 1. gear: 0 to 400 rpm 2. gear: 0 to 1500 rpm Quick-action drill chuck capacity: 13 mm Extension cord (not included in the... -
Page 21: Battery And Charger Information
Noise/vibration information Battery and charger information Use the product only in combination with Activ Energy® batteries and chargers with the following technical specifications: Suitable for Activ Energy® Battery type: 20 V / 36 Wh/ Li-Ion Models: AEB 20-2.0I / AEB 20-2.0N XYZ561 Charging time: 20 V... - Page 22 Noise/vibration information Total vibration value • Drilling in metal a 1.8 m/s² • Uncertainty K: 1.5 m/s² The specified vibration total value and noise emission values have been measured on the basis of a standardised test procedure (EN62841-1/EN62841-2-1) and can be used to compare power tools with one another.
-
Page 23: Disposal
Disposal Disposal Disposing of the packaging Dispose of the packaging separated into single type materials. Dispose of paperboard and cardboard with waste paper and plastics with recyclable waste. Widely Recycled Disposing of the drill (Applicable in the European Union and other European states with systems for the separate collection of reusable waste materials) The device and its accessories are made of different materials such as metal and plastic. -
Page 24: Declaration Of Conformity
Germany EC Declaration of Conformity We declare with sole responsibility, 20 V LI-ION CORDLESS DRILL that the product listed below … FAB 20-Ib 5420053/5420054 • 97661 • 05/2019 … meets all of the requirements 2011/65/EU (RoHS) of the listed directives. - Page 25 ALDI STORES LTD. PO BOX 26, ATHERSTONE WARWICKSHIRE, CV9 2SH. ALDI STORES (IRELAND) LTD. PO BOX 726, NAAS, CO. KILDARE. Visit us at www.aldi.com AFTER SALES SUPPORT 97661 00800 34 99 67 53 meister-service@conmetallmeister.de YEAR MODEL: WARRANTY FAB 20-Ib / 5420053/5420054 05/2019...
