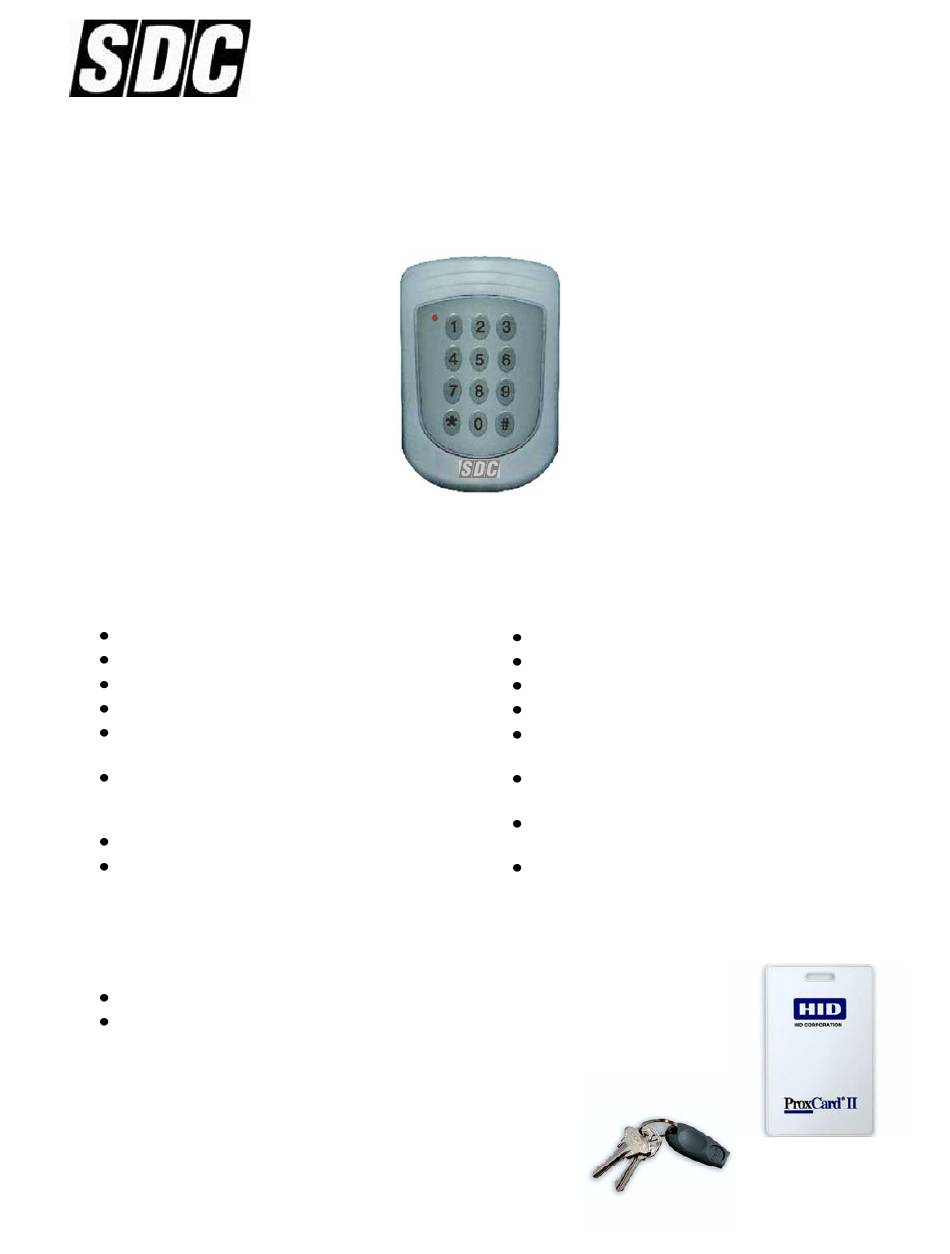

The E4KP EntryCheck™ is a fully self-contained proximity access control reader. It is keypad programmable and
does not require software or a PC connection.
Features
HID compatible Proximity Reader
Up to 3" read range with ProxCard II
Weather resistant reader enclosure
Memory capacity stores up to 650 user cards
Cost-effective solution for access control and
personnel management
Access mode selectable
1. Proximity card only
2. Proximity card + PIN
Master code for programming functions
Main password function
Optional Cards & Key Fobs
Part# HID1326-10 – (10) Prox Cards, HID ProxCard II
Part# HID1346-10 – (10) Prox Key Fobs, HID ProxKey II
HID ProxCard® II & ProxKey® II are registered trademarks of HID Corporation
P:\INSTALLATION INST\Access Controls\INST-E4KP\INST-E4KP.vsd
Security Door Controls
INSTALLATION/PROGRAMMING INSTRUCTIONS
E4KP ENTRYCHECK
Rev C
™
Security password function
Forced entry alarm
Door prop alarm
Duress output
User card can be registered/deleted in single
or batch mode (with consecutive numbers)
Reader Lockout activated when the wrong card is
presented more than five times
Lock and alarm output relays programmable
1-99 seconds or on-off latching
Separate remotely located relay module for
for higher security
10-09
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E4KP ENTRYCHECK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SDC E4KP ENTRYCHECK

Summary of Contents for SDC E4KP ENTRYCHECK

  • Page 1 • E-mail: service@sdcsecurity.com INSTALLATION/PROGRAMMING INSTRUCTIONS ™ E4KP ENTRYCHECK The E4KP EntryCheck™ is a fully self-contained proximity access control reader. It is keypad programmable and does not require software or a PC connection. Features HID compatible Proximity Reader Security password function Up to 3"...

  • Page 2: Factory Defaults

    FACTORY DEFAULTS System Setup Password…………………………………………………………………...…………………111111 (6 digits) Door Open Password...…………………………………………………………………………...……………1234 (4 digits) Door Open Mode……………………………………………………………………………………………………..Read card Reading Card Data Format…………………………………………………………………………………..Low weight 24Bits Patrol Password………………………………………………………………………………...…………….1234567 (7 digits) Duress Password………………………………………………………………..…Door open password or PIN + 9 (5 digits) Shunt Function………………………………………………………………………………..………………….……….Disabled Anti-Duress Function………………………………………………………………………………………..…………...Disabled Patrol function…………………………………………………………………………………………………………….Disabled Force Entry Alarm…...…………………………………………………………………………………………...………Disabled Door Prop Alarm Detection Time..……………………………………………..……………………..0 SEC (00 = Disabled)

  • Page 3: Basic Programming

    BASIC PROGRAMMING Entering Programming Mode Before ANY cards have been enrolled, Enter the System Setup Password + # {Alternating Red & Green LED} NOTE: Default System Setup Password is 111111 After a card or card number has been enrolled, (First card programmed is your programming card) Enter the System Setup Password + # {Fast flashing Red} Present first card programmed (programming card OR (Enter programming card number + #) {Alternating Red &...

  • Page 4: Programming Options

    PROGRAMMING OPTIONS Set Alarm Relay Time (Default = 5 sec) Enter Programming Mode {Alternating Red & Green LED} Press 2 + [00-99 seconds] + # {Alternating Red & Green LED} Press # to exit Programming {Solid Red LED} NOTE: The Alarm Relay is used for Forced Door & Door Prop alarms. 00 = Non-stop alarm – Reset by using a valid card. Enable Forced Door Alarm Relay (Default = Force Door Disabled) Enter Programming Mode {Alternating Red &...

  • Page 5: Specifications

    PROGRAMMING OPTIONS (CONTINUED) Change a User’s PIN (Entry Mode 2 Only) Press + 2 + # + Present Card OR (Enter Card Number + #) {Flashing Red LED} Enter old 4-digit PIN + # {Flashing Red LED} Enter new 4-digit PIN + # {Solid Red LED} NOTE: It is NOT required to enter Programming Mode to change a PIN.
  • Page 6 TYPICAL WIRING DIAGRAM USE WITH USE WITH 12vdc LOCKS 24vdc LOCKS NOTE: 600 SERIES POWER POWER 600 SERIES KEYPAD POWER IS 12V DC ONLY. POWER SUPPLY SUPPLY SUPPLY POWER SUPPLY 12VDC 24VDC WITH Dual voltage power supplies should be CONNECTING A HIGHER VOLTAGE OR AC (+) (-) 12VR MODULE (+) (-)
