SDC 950 ENTRYCHECK Installation & Programming Instructions

3580 Willow Lane, Westlake Village, CA 91361-4921 • (805) 494-0622 • Fax: (805) 494-8861
www.sdcsecurity.com • E-mail: service@sdcsecurity.com
™

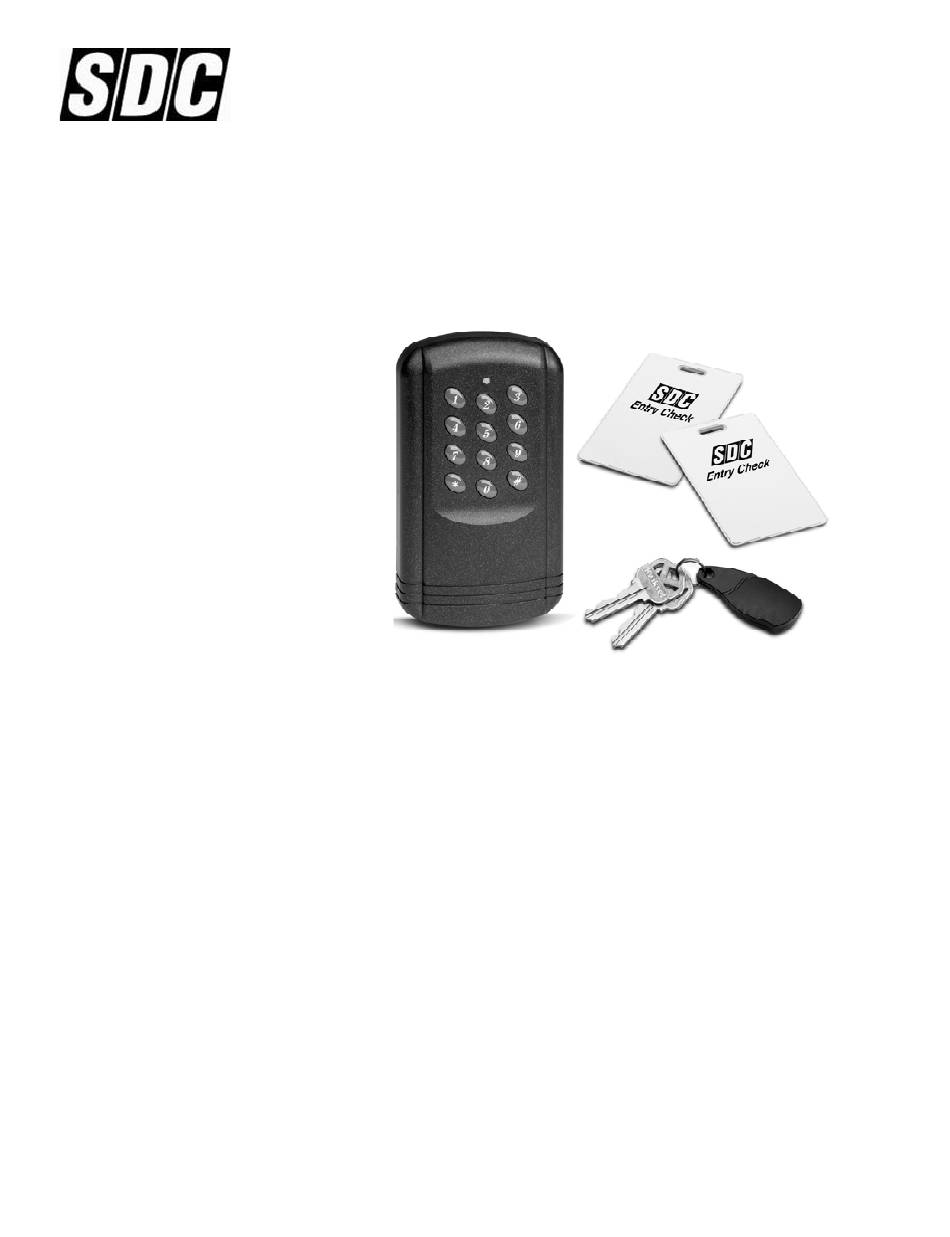

The EntryCheck incorporates all
the logic necessary to control a
single door. All Unit Programming
is performed by using the built-in
keypad. Proximity cards, key fobs
and PIN entries can be added and
deleted with the keypad using the
master code or programming card.
The lock relay and alarm relay
outputs can be set for 1-99
seconds.
CHOICE OF ENTRY MODE
™
The SDC EntryCheck provides a
choice of three programmable entry
modes:
• Proximity Reader Only
• Proximity Reader or PIN Code
• Proximity Reader and PIN Code
WALL OR GLASS MOUNTED
The weather resistant unit is easily
surface mounted to the wall either
inside or outside. An optional glass
mounting kit is available. When the
™
EntryCheck is mounted to the
interior side of a glass sidelight or
store front, the proximity reader may
be activated from the exterior
through the glass.
P:\INSTALLATION INST\Access Controls\INST-950\INST-950.vsd
Security Door Controls
INSTALLATION/PROGRAMMING INSTRUCTIONS
950 ENTRYCHECK
FEATURES
• Up to 500 Cards and/or PIN Codes
• Choice of three entry modes:
Proximity Reader only
Proximity Reader or PIN Code
Proximity Reader and PIN Code
• Up to 6 inch (152 mm) reader range
• Add / change / delete cards and
PINs
• Programmable door unlock
time from 1 - 99 seconds
• Tamper alarm and reader/PIN
lockout
• Request-To-Exit input
• Two outputs, lock relay and
alarm relay
• LED and audible tone for
operation ease.
• Weather resistant
REV G 0605
™
Page 1
ORDERING INFORMATION
950C Prox / PIN reader w/10 cards
950K Prox / PIN reader w/10 key fobs
C10 Ten SDC prox cards
K10 Ten SDC key fobs
950GL-KIT Interior glass mounting kit
TR12 12VDC Plug-in power supply with
AC ground and two fused outputs.
Access control output: 150 mA filtered /
regulated. Lock output: 780 mA filtered.
USER INFORMATION
To open door using card and PIN
Present Card (LED flashing red)
Enter PIN (LED green)
To open door using PIN only
Enter PIN number (LED green)
To open door using card only
Present card to reader (LED green)
Any suggestions or comments to this instruction or
product are welcome. Please contact us through
our website or email engineer@sdcsecurity.com
