SDC 923PW EntryCheck Installation Instructions

801 Avenida Acaso, Camarillo, Ca. 93012 • (805) 494-0622 •
www.sdcsecurity.com • E-mail: service@sdcsecurity.com

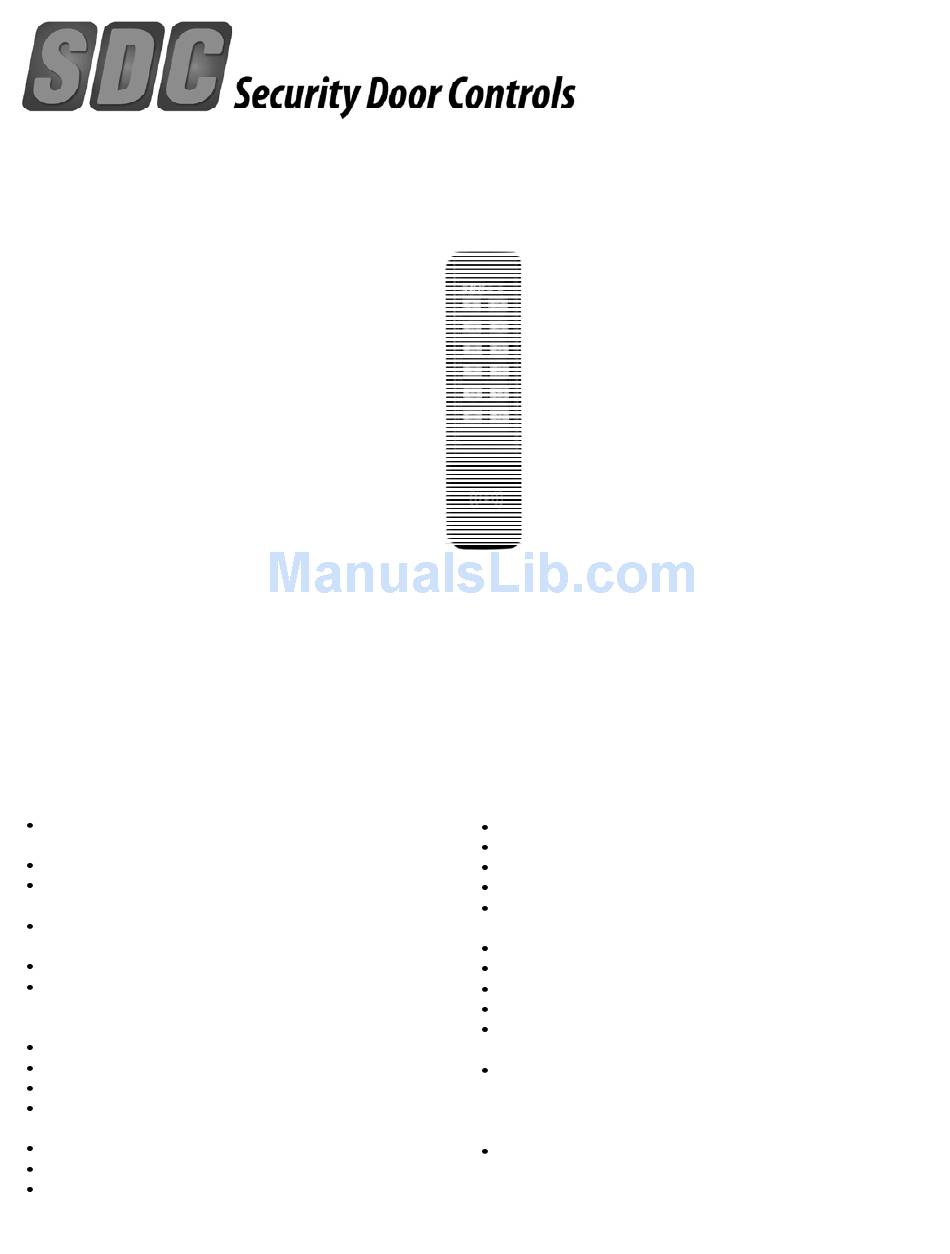

The EntryCheck™ 923PW narrow indoor/outdoor Wiegand proximity reader with integral digital keypad is designed to interface with
most Access Control Systems. It offers a 125KHz HID-compatible proximity reader with standard 26-bit Wiegand output. The built-in
keypad may be programmed to output 26-bit Wiegand data, or a 4-bit word for high-security applications that require dual
authentication (Card + PIN).
The backlit keys are bright and easy-to-read. A heavy cast, vandal resistant housing design with narrow mounting plate allows the
923PW to be mounted on a rugged surface, mullion, or on a recessed single-gang electrical box.
Two long lasting solid state LED indicators show the status of the system. The left bi-color indicator lights red to indicate power, or
green to indicate an authorized access (controlled externally by host). The right indicator flashes yellow to indicate that the keypad is
in programming mode.
Features
12 key illuminated 2x6 digital keypad with configurable
illumination: always on, timed, off
HID-compatible (125KHz RFID) proximity reader
Suitable for Indoor/Outdoor use: Weather & vandal
resistant
Standard 26-bit Wiegand output for universal
compatibility
Programmable Site Code
Programmable Keypad Operation:
- 26-bit Wiegand, or
- 4-bit word
Surface, mullion, or recessed single-gang mount
Built-in tamper switch
Two LED status indicators
Audible annunciation of keystrokes with adjustable
sound level: normal, low, off
Tactile metal keys
Includes wiring harness
Optional privacy & rain shroud available
P:\INSTALLATION INST\Access Controls\INST-923\INST-923PW.vsd
INSTALLATION INSTRUCTIONS
923PW EntryCheck
Specifications
Rev A 09-17 Page 1
TM
Operating Voltage: 5 - 16 Volts DC
Current Consumption: 30mA (typical), 60 mA (max)
Operating Temperature: -4° to 140°F (-20° to 60°C)
Humidity: 5% to 95% non-condensing
Dimensions (H x W x D): 7.3125" x 1.75" x 1.375",
(1.4375" wall projection)
Housing: Weather-resistant cast metal
Cabling: 6" wiring harness
Reader Output: 26-bit Wiegand
Keypad Output: 26-bit Wiegand or 4-bit word
Max. Cable Distance to Host: 328ft (100m) @12VDC,
100ft (30m) @ 5VDC, using 18AWG cabling
Recommended cable (shielded, multi-conductor) or
equal:
-Belden 5504FE (6 Cond)
-Belden 5506FE (8 Cond, for Tamper Switch)
Tamper switch: Form "C", 1A @ 30VDC
