SECURITY DOOR CONTROLS
801 Avenida Acaso, Camarillo, Ca. 93012 • (805) 494-0622 • Fax: (805) 494-8861
www.sdcsecurity.com • E-mail: service@sdcsecurity.com
™

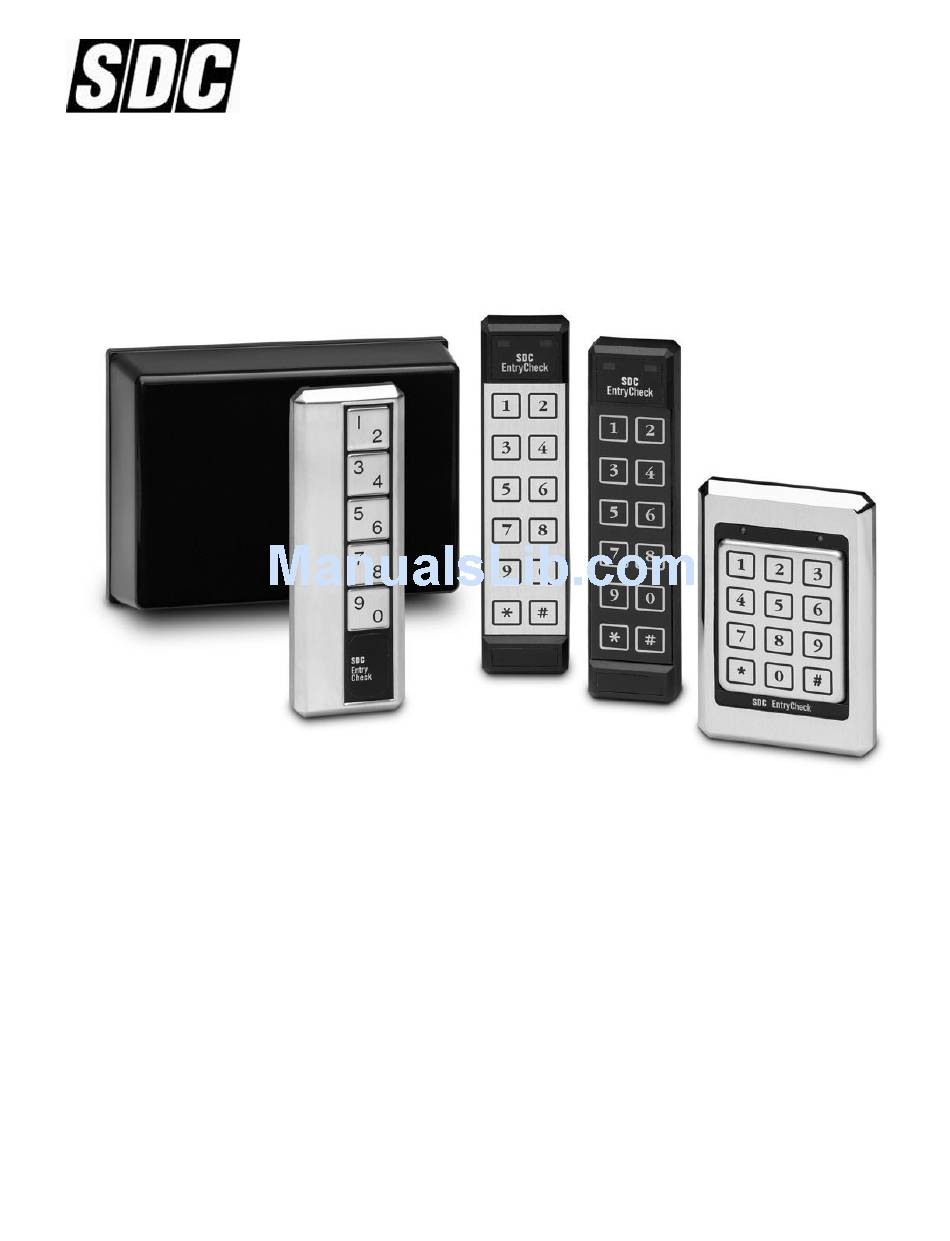

The 931 EntryCheck
is an easy to program, easy to use, stand alone, self-contained system with features suitable
for basic access control requirements. Providing either a voltage output or dry contact closure, the 931 is designed
to control any fail-safe or fail-secure electric locking device.
™
The 931 EntryCheck
features one master code and five user codes. Two relay outputs are available to provide a
variety of access control configurations including single door operation with an auxiliary output for a CCTV/Light
Controller, Gate/Garage Door controller or Doorbell activation.
P:\INSTALLATION INST\Access Control\INST-931.vsd
INSTALLATION INSTRUCTIONS
Model 931 EntryCheck
0505
Page 1
™
Any suggestions or comments to this instruction or
product are welcome. Please contact us through
our website or email engineer@sdcsecurity.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SDC EntryCheck 931-KP-4U
Summary of Contents for SDC EntryCheck 931-KP-4U
- Page 1 SECURITY DOOR CONTROLS 801 Avenida Acaso, Camarillo, Ca. 93012 • (805) 494-0622 • Fax: (805) 494-8861 www.sdcsecurity.com • E-mail: service@sdcsecurity.com INSTALLATION INSTRUCTIONS ™ Model 931 EntryCheck ™ The 931 EntryCheck is an easy to program, easy to use, stand alone, self-contained system with features suitable for basic access control requirements.
-
Page 2: Table Of Contents
TABLE OF CONTENTS SYSTEM SPECIFICATIONS INPUT REQUIREMENTS OUTPUT CAPABILITIES OPERATING TEMPERATURES PREPARING FOR INSTALLATION SYSTEM COMPONENTS THE INSTALLATION PROCEDURE REQUIRED TOOLS PREPARE THE KEYPAD FOR INSTALLATION INSTALL THE WIRING CABLE MOUNT THE KEYPAD PREPARE THE DOOR FOR THE ELECTRIC STRIKE INSTALLING THE CONTROL MODULE CONNECTING THE LOCKING DEVICE BATTERY BACK-UP... -
Page 3: System Specifications
SYSTEM SPECIFICATIONS Input Requirements: 12 to 24V AC/DC 10 mA Standby Current Draw: 25mA 2 SPDT Relay contacts at 6 Amps (120VAC) Outputs: Voltage or Dry Contact Fail Safe or Fail Secure Replay Configuration Programmable Output 1 to 120 seconds Default 5 seconds (Door Open Time) -
Page 4: Input Requirements
INPUT REQUIREMENTS ™ The 931 EntryCheck accepts 12 to 24 volts AC/DC. System current draw (maximum): Standby: 10mA at 12 volts, 25mA at 24 volts During Operation: 250mA max (with illuminated Keypad) IMPORTANT: The maximum output current allowed is 1 Amp. Check the specifications of your locking device. Make sure that the locking device and the 931 (250mA) combined draw less than 1 Amp. -
Page 5: Preparing For Installation
PREPARING FOR INSTALLATION SYSTEM COMPONENTS There are four primary components to be installed: ™ 1. The 931 EntryCheck should be mounted on the wall adjacent to the door. It should be on the same side as the door strike and about 4 feet above the floor. 2. - Page 6 Mounting Instructions 5 Pad Non Illuminated: KP-2U 1. Select flat mounting surface 3" X 7". 2. Use “Template A” (included with the Keypad) to mark locations of holes A, B, and C. 3. Locate and drill the large hole marked “A”. Hole must be at least ⅞" (22mm) diameter. 4.
-
Page 7: Install The Wiring Cable
“EARTH” screw on Terminal “A” BATTERY BACKUP Battery backup is NOT required for User Code retention, however, you may wish to connect a SDC Power Supply with battery backup to provide operation during a power interruption. -
Page 8: System Hardware Setup
SYSTEM HARDWARE SETUP REMOTE BY-PASS In some cases, it may be necessary to control the door from a remote area such as a security station or reception ™ desk. The 931 EntryCheck provides for a Remote By-Pass (Exit Switch) or Keypad override. This can be accomplished by connecting a normally open switch to the “REMOTE”... -
Page 9: Tamper Alarm Lockout
USER UNLOCK AUTHORIZATION Placing jumpers across the first 3 sets of pins (MASTER UNLOCK, 1,2 UNLOCK or 3,4,5 UNLOCK) determines which relay (if any) each User Group is authorized to activate. When a valid code is entered, the door will remain unlocked for the programmed Door Open Time. -
Page 10: System Programming
SYSTEM PROGRAMMING OVERVIEW OF SYSTEM CODE PROGRAMMING ™ 1. There are TWO levels of codes for the 931 EntryCheck system. The Master Code (used to open the door and for programming User Codes) User Codes (used by personnel to open the door) 2. -
Page 11: Programming User Codes
PROGRAMMING USER CODES To Program a New User Code or Change an Existing User Code: 1. Choose a new 3 to 8 digit code that will be used for this User Code. ___ ___ ___ ___ ___ ___ ___ ___ 2. -
Page 12: Troubleshooting
These are a few troubleshooting suggestions to help assist with any problems you may experience. If the problem continues or is not answered here, please call Security Door Controls (SDC) technical support at (800) 413-8783. You can also visit SDC anytime at www.sdcsecurity.com. -
Page 13: Appendix A - Circuit Board Layout
APPENDIX A – CIRCUIT BOARD LAYOUT P:\INSTALLATION INST\Access Control\INST-931.vsd 0505 Page 13... -
Page 14: Appendix B - Typical Wiring Diagrams
APPENDIX B – TYPICAL WIRING DIAGRAMS Note: Some low current strikes or relays will cause relay chatter due to inductive kickback. Attach MOV across strike or relay to eliminate chatter. Fail Secure Lock Fail Safe Lock Controlled by KE-265 Controlled by KE-265 CCTV/DOORBELL and Fail Secure Lock Garage Door/Gate Drive... -
Page 15: Notes
NOTES User Name__________________________ Master Code __ __ __ __ __ __ __ __ User Name__________________________ Master Code 1 __ __ __ __ __ __ __ __ User Name__________________________ __ __ __ __ __ __ __ __ Master Code 2 Master Code 3 User Name__________________________ __ __ __ __ __ __ __ __ Master Code 4...
