Summary of Contents for Iiyama PROLITE LH3246HS
-

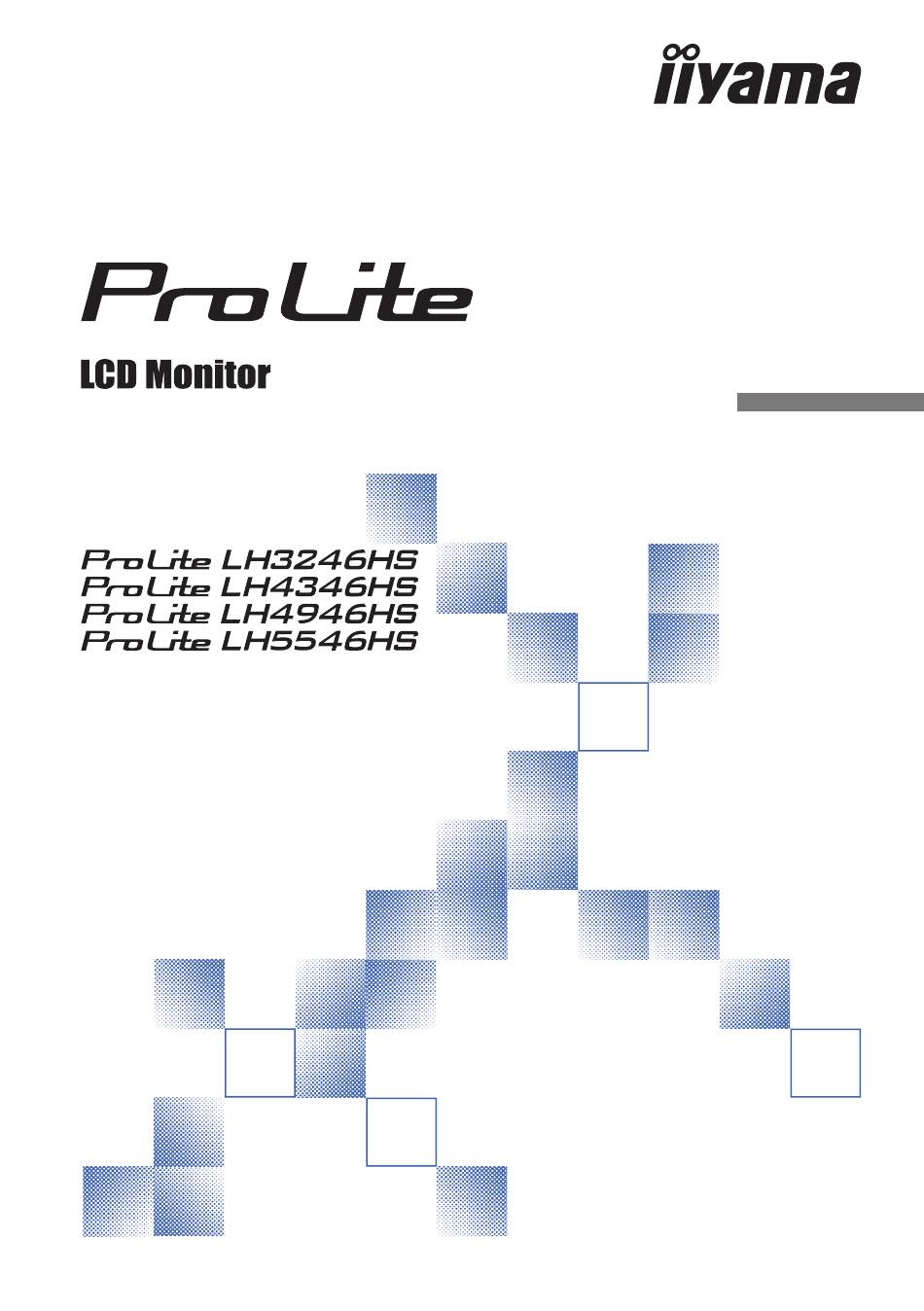

Page 1: User Manual
USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read this comprehensive manual carefully before installing and switching on the monitor. Please keep this manual in a safe place for... -
Page 3: Ce Marking Declaration Of Conformity
Model No. : PL3246H/PL4346H/PL4946H/PL5546H mark: Equipment protected throughout by Double insulation or Reinforced insulation. We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com You can access the Web page of different countries from there. -
Page 4: Table Of Contents
INSTALLATION ................12 CONTROLS : REMOTE CONTROL ..........13 PREPARING THE REMOTE CONTROL........14 ID REMOTE CONTROL ..............15 BASIC OPERATION ..............16 CONNECTING YOUR MONITOR : ProLite LH3246HS ....19 CONNECTING YOUR MONITOR : ProLite LH4346HS / ProLite LH4946HS ........21 ProLite LH5546HS ...............21 COMPUTER SETTING ..............27 OPERATING THE MONITOR .............28... -
Page 5: For Your Safety
DO NOT PUT ANY OBJECT INTO THE MONITOR Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fire, electric shock or damage. - Page 6 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fire, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located. Please also ensure that you do not place any heavy objects on the monitor, and that all cables are routed such that children may not pull the cables and possibly cause injury.
-
Page 7: Special Notes On Lcd Monitors
SPECIAL NOTES ON LCD MONITORS The following symptoms are normal with LCD monitors and do not indicate a problem. NOTE - When you first turn on the LCD monitor, the picture may not fit in the display area because of the type of computer that is used. In this case, adjust the picture position to the correct position. - You may find slightly uneven brightness on the screen depending on the desktop pattern you use. - Page 8 1 hour and there is evidence of a residual or “ghost” image, you should turn off the monitor for 1 hour in order to clear the residual image. For all LFD products, iiyama recommends displaying moving images and utilising a moving screen saver at regular intervals whenever the screen is idle. You could also turn off the monitor when not in use to assist the prevention.
-
Page 9: Customer Service
If you drop any materials or liquids such as water into the monitor when cleaning, WARNING unplug the power cable immediately and contact your dealer or iiyama service center. For safety reasons, turn off the power switch and unplug the monitor before you CAUTION clean it. -
Page 10: Before You Operate The Monitor
CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama office. Power Cable* ... -
Page 11: Controls And Connectors : Monitor
CONTROLS AND CONNECTORS : MONITOR <Front> <Back: Back Controller> Power Button MUTE Mute Button Enter / Input INPUT Select Button + Button – – Button Up Button Down Button MENU Menu Button <Back: Remote sensor and power indicator - location> 1. - Page 12 ● ProLite LH3246HS <Back> Green Normal Operation If turn off the Power Button on the Remote Control and the Back Controller. (Monitor Power Off) Power Indicator If turn off the Power Button on the Remote Control and the Back Controller. Power Management (Monitor Orange Standby) Main Power Off Remote Sensor Remote Sensor (ON) / (OFF) MAIN POWER Main Power Switch AC SWITCH (AC IN) AC-INLET AC Connector ( : Alternating current)
- Page 13 ● ProLite LH3246HS USB 5V/2A USB Connector DVI IN DVI-D DVI-D Connector DVI OUT DVI-I DVI-I Connector DP IN DisplayPort DisplayPort Connector DP OUT DisplayPort DisplayPort Connector D-Sub VGA Connector PC LINE IN Mini Jack Audio Connector SPEAKERS Speakers MICRO USB...
- Page 14 ● ProLite LH4346HS / ProLite LH4946HS / ProLite LH5546HS <Back> Not available on this model. Green Normal Operation If turn off the Power Button on the Remote Control and the Back Controller. Power Management (Monitor Power Off) Power Indicator If turn off the Power Button on the Remote Control and the Back Controller. Power Management (Monitor Orange Standby) Main Power Off Remote Sensor Remote Sensor (ON) / (OFF) MAIN POWER Main Power Switch...
- Page 15 ● ProLite LH4346HS / ProLite LH4946HS / ProLite LH5546HS USB 5V/2A USB Connector PC LINE IN Mini Jack Audio Connector DVI IN DVI-I DVI-I Connector DVI OUT DVI-I DVI-I Connector DP IN DisplayPort DisplayPort Connector DP OUT DisplayPort DisplayPort Connector MICRO USB MICRO-B Micro USB Connector MICRO SD...
-
Page 16: Installation
INSTALLATION CAUTION Follow the manual instructions for the type of mount you have selected. Refer all servicing to qualified service personnel. Moving the monitor requires at least two people. Before installing, please make sure the wall is strong enough to hold the necessary weight of the monitor and the mount. -
Page 17: Controls : Remote Control
CONTROLS : REMOTE CONTROL Turn the monitor ON and OFF. Control playback of media files. : Play : Stop : Pause [PLAY] : Quick-Return : Fast-Forward Select the source. Press or button to select from Displayport, DVI-D, VGA, HDMI1, SOURCE HDMI2, Media Player, Browser, PDF Player or Custom. -
Page 18: Preparing The Remote Control
PREPARING THE REMOTE CONTROL To use the remote control, insert the two dry batteries. CAUTION Do not use any other batteries other than those specified in this manual for the Remote Control. Do not insert old and new batteries together in the Remote Control. Make sure that the terminals match the "+" and "–" indications in the battery compartment. Burst batteries or the electrolyte from these batteries may cause stains, fire or injury. -
Page 19: Id Remote Control
ID REMOTE CONTROL You can set the remote control ID when you want to use the remote control on specific monitors. ID Mode (To enter ID Mode) : Press and hold the ID button until the red LED blinks twice. Normal Mode (To leave ID Mode) : Press and hold the Normal button until the green LED blinks twice. Programming ID Mode To assign an ID to a remote control. 1. Enter ID Mode. 2. Press and hold the ID SET button until the red LED lights up. 3. Using the number button, input the desired ID. (01 - 255) 4. Press the ENTER button to confirm ID. 5. The red LED will blink twice when ID has been confirmed. -
Page 20: Basic Operation
BASIC OPERATION Turning the monitor ON The monitor is turned On and the Power Indicator turns to Green when you press the POWER button on the monitor or the Remote Control. The monitor is turned Off and the Power Indicator turns to Orange when you press the POWER button on the monitor or the Remote Control. Press again to turn On the monitor. - Page 21 Move the cursor vertically Select adjustment by pressing the button on the monitor or the button on the remote control while the menu page is displayed on the screen. [Monitor] [Remote Control] Move the cursor horizontally Select menu or setting, or perform the adjustment by pressing the + / – button on the monitor or button on the remote control while the menu page is displayed on the screen.
- Page 22 Adjust the volume of sound Press the + / – button on the monitor or the remote control to adjust the volume of sound when the menu page is not displayed on the screen. [Monitor] [Remote Control] Switch the input signal This is activated when you successively press the INPUT button on the monitor or the SOURCE button on the remote control.
-
Page 23: Connecting Your Monitor : Prolite Lh3246Hs
An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama office. - Page 24 [ Connection example with the peripheral device ] CAUTION Turn off the power switch and unplug the monitor and peripherals before connection to avoid an electric shock or a damage. NOTE Refer to the user manual of peripherals at the same time. ...
-
Page 25: Connecting Your Monitor : Prolite Lh4346Hs / Prolite Lh4946Hs
An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama office. - Page 26 [ Connection example with the peripheral device ] CAUTION Turn off the power switch and unplug the monitor and peripherals before connection to avoid an electric shock or a damage. NOTE Refer to the user manual of peripherals at the same time. ...
- Page 27 [ About the daisy chain ] Monitor control connection RS-232C MONITOR1 MONITOR2 [RS-232C] [RS-232C IN] [RS-232C OUT] [RS-232C IN] BEFORE YOU OPERATE THE MONITOR 23...
-
Page 28: Digital Video Connection
Digital video connection MONITOR1 MONITOR2 [DVI] [DVI IN] I DisplayPort MONITOR1 MONITOR2 [DP] [DP IN] O P HDMI DVD / VCR / VCD MONITOR1 MONITOR2 [HDMI] [DVI IN] 24 BEFORE YOU OPERATE THE MONITOR... - Page 29 Analog video connection : ProLite LH3246HS MONITOR1 MONITOR2 [VGA] [DVI OUT] [VGA IN] [VGA IN] Analog video connection : ProLite LH4346HS / ProLite LH4946HS / ProLite LH5546HS MONITOR1 MONITOR2 [VGA] [DVI OUT] [DVI IN] [DVI IN] BEFORE YOU OPERATE THE MONITOR 25...
- Page 30 [ To setup the network ] 1. Switch on the router and switch on its DHCP setting. 2. Connect the router to this monitor and your computer with an Ethernet cable. 3. Press HOME button on the remote control, then select Setup. 4.
-
Page 31: Computer Setting
Change to the desired signal timing listed on page 63: COMPLIANT TIMING. Windows XP/Vista/7/8/8.1/10 Plug & Play The iiyama LCD monitor complies with DDC2B of VESA standard. The Plug & Play function runs on Windows XP/Vista/7/8/8.1/10 by connecting the monitor to DDC2B compliant computer with the Signal Cable supplied. -
Page 32: Operating The Monitor
OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 63. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 51 for SCREEN ADJUSTMENTS. - Page 33 NOTE The BACK button on the remote control or the MENU button on the monitor can be used to return to the previous menu item. Any changes are automatically saved in the memory when the On Screen Display disappears. Turning off the power should be avoided while using the Menu.
-
Page 34: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS The buttons to press that are described in this chapter are located on the remote control, unless specified otherwise. Picture Brightness Picture Contrast Sharpness Screen Black level Tint Audio Color Noise reduction Medium Native Gamma selection Native Color temperature Configuration1 Color control Adjustment Item... -
Page 35: Color Control
Picture Brightness Picture mode Standard Picture Picture Contrast Overscan Sharpness Picture reset Action Screen Screen Black level Tint Audio Audio Color Noise reduction Medium Native Gamma selection Color temperature Native Configuration1 Configuration1 Color control Adjustment Item Problem / Option Button to Press Set user color. - Page 36 Screen H position Picture V position Clock Screen Clock phase Zoom mode Full Audio Custom zoom Zoom Auto adjust Action Screen reset Action Configuration1 Adjustment Item Problem / Option Button to Press Too left H position* Too right Too low V position* Too high Too narrow...
- Page 37 Audio Balance Audio reset Action Picture Picture Treble Bass Screen Screen Volume Audio out (line out) Audio Audio Maximum volume Minimum volume Mute Audio source Digital Configuration1 Configuration1 Sync. Volume Adjustment Item Problem / Option Button to Press Left side speaker is louder. Balance Right side speaker is louder.
- Page 38 PIP* Sub mode Picture PIP size Small PIP position Bottom-Right Screen PIP change Action PIP source Audio PIP audio Main PIP reset Action Configuration1 Adjustment Item Problem / Option Sub mode is turned off. Sub win1 Sub mode input Quick swap Swap the Main/Sub screens. Small Reduce the size of the Sub screen.
- Page 39 Configuration1 Switch on state Last status Picture Panel saving Action RS232 routing RS232 Screen Boot on source Action Audio Light sensor Human sensor Power LED light Configuration1 reset Action Configuration1 Factory reset Action Adjustment Item Problem / Option The display will remain off when the power cord is Power off connected to a wall outlet.
- Page 40 Configuration1 Switch on state Last status Picture Panel saving Action RS232 routing RS232 Screen Boot on source Action Audio Light sensor Human sensor Power LED light Configuration1 reset Action Configuration1 Factory reset Action Adjustment Item Problem / Option Cancel Return to Menu. Configuration1 reset Reset Configuration1 setting will be restored to factory-preset data.
- Page 41 Set the period of time the information OSD is Information OSD displayed on the upper right corner of the screen. Off / 1 - 60 seconds iiyama Logo does not display when the display is turned on. Logo iiyama Logo displayed when the display is turned on.
- Page 42 Configuration2 Window selection Main Configuration2 Rotation Action Language English Advanced option Configuration2 reset Action Adjustment Item Problem / Option Select the window you want to adjust or configure. The default is set to Window selection* Main. Main / Sub 1 Auto rotate is turned off. Auto rotate All windows are rotated automatically to match the monitor’s rotation. Landscape The OSD menu will be shown in landscape.
-
Page 43: Advanced Option
Advanced option Input resolution Auto Configuration2 IR control Action Keyboard control Action Advanced option Tiling Action Off timer Date and time Action Schedule Action HDMI with One Wire Auto signal detection Action Mode 1 Power save Adjustment Item Problem / Option Set the VGA input resolution only when the monitor can not detect the VGA input resolution correctly. - Page 44 Advanced option Input resolution Auto Configuration2 IR control Action Keyboard control Action Advanced option Tiling Action Off timer Date and time Action Schedule Action HDMI with One Wire Auto signal detection Action Mode 1 Power save Adjustment Item Problem / Option Sets the number of monitors used in the horizontal H monitors position.
- Page 45 Advanced option Input resolution Auto Configuration2 IR control Action Keyboard control Action Advanced option Tiling Action Off timer Date and time Action Schedule Action HDMI with One Wire Auto signal detection Action Mode 1 Power save Adjustment Item Problem / Option Set when turn off the display.
- Page 46 Advanced Input resolution Scalar FW Update Action Auto option Configuration2 Configuration2 IR control Action USB cloning Action Action Keyboard control Action Advanced option reset Advanced option Advanced option Tiling Action Off timer Date and time Action Schedule Action HDMI with One Wire Auto signal detection Action Mode 1...
- Page 47 APPLICATION Press the HOME button and number 1668 on the remote control. Settings: To access the Settings application. Apps: To view all applications installed. Network: To view the network setting status. OPERATING THE MONITOR 43...
- Page 48 Custom app* The Boot Logo is only available when you select “User” of Logo function in the OSD menu "Configuration2". For details, refer to download the Custom Boot Animation manual on the IIYAMA web site. There are additional functions for this item. (see below.) Cancel: Close without saving...
- Page 49 Not available on this model. When you change the system settings, a problem like system Developer options instability may occur. In that case, contact your dealer or iiyama service center for assistance. Main information about: System updates / Android version / Kernel...
- Page 50 <Android> * Android upgrade is not available on this model. • Settings : Go to the application of Settings. • Apps : Show all applications. (Browser / Chromium / File Manager / Media Player / PDF Player / Settings) • Network : Set Ethernet. Preparation for using Media Player and PDF Player 1.
-
Page 51: Media Player
[Media Player] · Play: Select playlist to play · Compose: Edit playlist · Settings: Setting play properties Play Select "Play" on the page. First you select one playlist to play between FILE1 and FILE7. Media Hotkey • Play: To play the media file. •... - Page 52 Settings Select "Settings" on the page. • Repeat mode: Play mode. Repeat once: All files are repeated once. Repeat all: All files in the same folder play repeatedly. • Slideshow Effect: Photo slideshow effect. Right to left: Change from right to left sliding. Fold: Change by rotating horizontally in the center. Corner: Change by enlarging from the upper left corner to the lower right corner.
- Page 53 [PDF Player] Play Select "Play" on the page. First you select one playlist to play between FILE1 and FILE7. Media Hotkey • Play: To play the PDF file. Pause: To pause the PDF file. • • Fast forward: Go to the next page, if the page is end of the file, it will go to next file. • Rewind: Back to previous page, if the page is first of the file, it will back to previous file. Stop: Return to first page of file. • Color Hotkey • Blue key: Zoom in (+10%) •...
- Page 54 [Chromium] Connect the network, and browse the web. [File Manager] Browse the files stored in the internal storage, USB and SD card. [Settings] See pages 44 and 45 for Settings. [Custom] Set up the application for Customer Source. NOTE • Only display user installed application. • Will not appear in the system pre-install application. 50 OPERATING THE MONITOR...
-
Page 55: Screen Adjustments
If the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto adjust, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http://www.iiyama. com). Adjust the image by following the procedure below to get the desired picture. - Page 56 Adjust the Auto adjustment. (Auto adjust) Adjust the image manually by following procedure below when the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto adjust. Adjust the V position so that the top and bottom of the picture frame will fit to the display area.
- Page 57 Adjust the Clock phase to correct horizontal wavy noise, flicker or blur in the zebra pattern. NOTE In case the strong flicker or blurs remain on a part of the screen, repeat steps because the Clock may not be adjusted correctly. Adjust the H position after the Clock phase adjustment if the horizontal position moves during the adjustment.
-
Page 58: Power Management Feature
POWER MANAGEMENT FEATURE The power management feature of this product complies with power saving requirement of VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. There is a power management step the monitor takes as described below. -
Page 59: Trouble Shooting
MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem... -
Page 60: Recycling Information
RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com for monitor recycling. 56 RECYCLING INFORMATION... -
Page 61: Appendix
APPENDIX Design and specifications are subject to change without prior notice. SPECIFICATIONS : ProLite LH3246HS Size Category 32" Panel technology Size Diagonal: 31.5" (80.1cm) Pixel pitch 0.36375mm H × 0.36375mm V Brightness 400cd/m (Typical) Panel Contrast ratio 1100 : 1 (Typical) Viewable angle Horizontal : 178 degrees, Vertical: 178 degrees (Typical) Response time 10ms (Typical, Gray to Gray) Display Colors Approx. 16.7M Analog: Horizontal: 30.0-83.0kHz, Vertical: 50-76Hz Sync Frequency Digital: Horizontal: 30.0-83.0kHz, Vertical: 50-76Hz... -
Page 62: Specifications : Prolite Lh4346Hs
SPECIFICATIONS : ProLite LH4346HS Size Category 43" Panel technology Size Diagonal: 42.5" (108.0cm) Pixel pitch 0.4902mm H × 0.4902mm V Brightness 450cd/m (Typical) Panel Contrast ratio 1100 : 1 (Typical) Viewable angle Horizontal : 178 degrees, Vertical: 178 degrees (Typical) Response time 12ms (Typical, Gray to Gray) Display Colors Approx. 16.7M Analog: Horizontal: 30.0-83.0kHz, Vertical: 50-76Hz Sync Frequency Digital: Horizontal: 30.0-83.0kHz, Vertical: 50-76Hz Maximum Resolution... -
Page 63: Specifications : Prolite Lh4946Hs
SPECIFICATIONS : ProLite LH4946HS Size Category 49" Panel technology Size Diagonal: 48.5" (123.2cm) Pixel pitch 0.55926mm H × 0.55926mm V Brightness 450cd/m (Typical) Panel Contrast ratio 1100 : 1 (Typical) Viewable angle Horizontal : 178 degrees, Vertical: 178 degrees (Typical) Response time 12ms (Typical, Gray to Gray) Display Colors Approx. 16.7M Analog: Horizontal: 30.0-83.0kHz, Vertical: 50-76Hz Sync Frequency Digital: Horizontal: 30.0-83.0kHz, Vertical: 50-76Hz Maximum Resolution... -
Page 64: Specifications : Prolite Lh5546Hs
SPECIFICATIONS : ProLite LH5546HS Size Category 55" Panel technology Size Diagonal: 54.6" (138.8cm) Pixel pitch 0.630mm H × 0.630mm V Brightness 450cd/m (Typical) Panel Contrast ratio 1100 : 1 (Typical) Viewable angle Horizontal : 178 degrees, Vertical: 178 degrees (Typical) Response time 12ms (Typical, Gray to Gray) Display Colors Approx. 16.7M Analog: Horizontal: 30.0-83.0kHz, Vertical: 50-76Hz Sync Frequency Digital: Horizontal: 30.0-83.0kHz, Vertical: 50-76Hz Maximum Resolution... -
Page 65: Dimensions : Prolite Lh3246Hs
DIMENSIONS : ProLite LH3246HS 704.0mm/27.7” 725.0mm/28.5” 37.0mm/1.5” 4xM6 SCREW HOLE 703.5mm/27.7” 56.5mm/2.2” (VESA MOUNT) 200.0mm/7.9” DIMENSIONS : ProLite LH4346HS 913.0mm/35.9” 965.0mm/38.0” 30.0mm/1.2” 4xM6 SCREW HOLE 400.0mm/15.7” 946.0mm/37.2” 45.5mm/1.8” (VESA MOUNT) APPENDIX 61... -
Page 66: Dimensions : Prolite Lh4946Hs
DIMENSIONS : ProLite LH4946HS 1052.0mm/41.4” 4xM6 SCREW HOLE 1097.5mm/43.2” (VESA MOUNT) 30.0mm/1.2” 1078.5mm/42.5” 400.0mm/15.7” 45.5mm/1.8” DIMENSIONS : ProLite LH5546HS 1189.0mm/46.8” 4xM6 SCREW HOLE 1233.5mm/48.6” 30.0mm/1.2” (VESA MOUNT) 1214.0mm/47.8” 400.0mm/15.7” 45.5mm/1.8” 62 APPENDIX... -
Page 67: Compliant Timing
COMPLIANT TIMING Timing 31.469 59.940 25.175 VGA 640x480 37.861 72.809 31.500 37.500 75.000 31.500 WVGA 720x400 31.469 70.087 28.322 37.879 60.317 40.000 SVGA 800x600 46.875 75.000 49.500 48.363 60.004 65.000 XGA 1024x768 60.023 75.029 78.750 VESA WXGA 1280x768 47.776 59.870 79.500 WXGA 1280x800 49.702...
