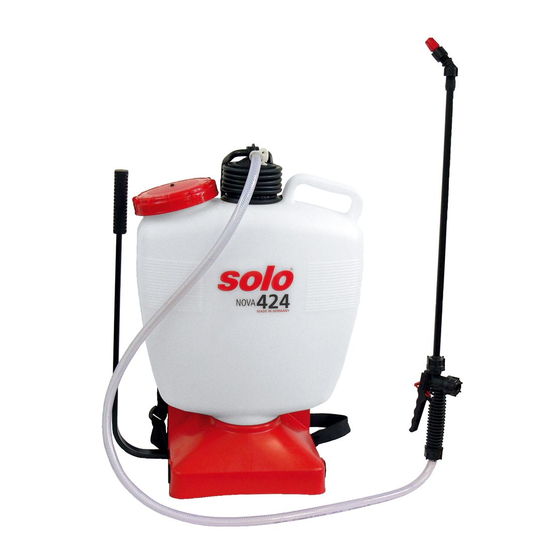

Solo 424 NOVA Instruction Manual

Backpack sprayer
Hide thumbs Also See for 424 NOVA:

Advertisement

Quick Links

Download this manual
Original instructions
Notice originale
Manual original
Attention!
Read this instruction manual
carefully before first operation and
strictly observe the safety regulations!
Attention !
Lire attentivement le présent manuel avant
la première mise en service et observer
impérativement les consignes de sécurité !
Atención!
¡Lea atentamente este manual de empleo antes de
la primera puesta en funcionamiento y respete
imprescindiblemente las prescripciones de
seguridad!
Backpack sprayer
Pulvérisateur à dos
Pulverizador de
mochila
9 424 101
424 NOVA
en
fr
es
12/2017

Advertisement

loading
Need help?

Need help?

Do you have a question about the 424 NOVA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Solo 424 NOVA

Summary of Contents for Solo 424 NOVA

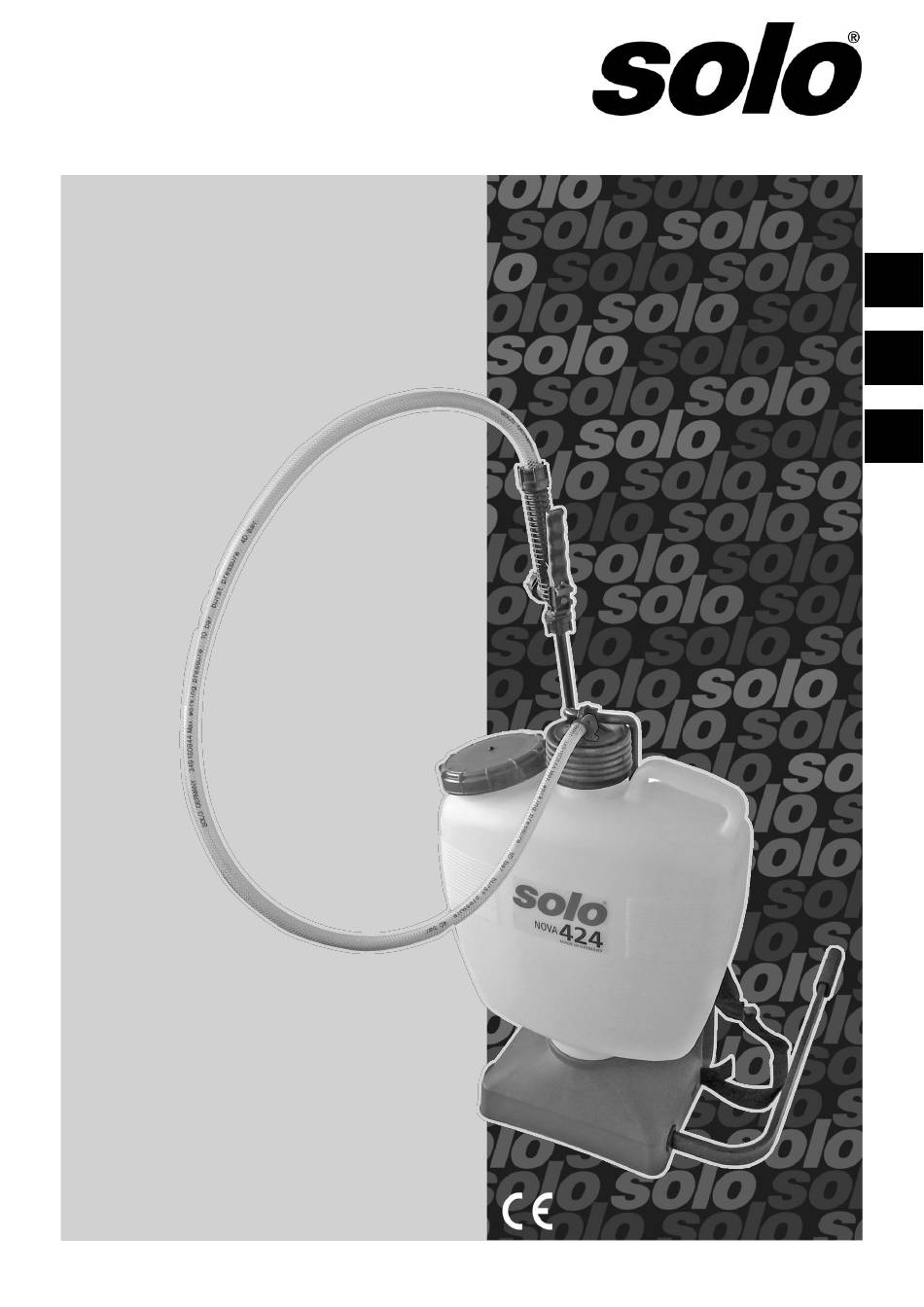

  • Page 1 424 NOVA Original instructions Backpack sprayer Notice originale Pulvérisateur à dos Manual original Pulverizador de mochila Attention! Read this instruction manual carefully before first operation and strictly observe the safety regulations! Attention ! Lire attentivement le présent manuel avant la première mise en service et observer impérativement les consignes de sécurité...
  • Page 3 This warranty is provided in addition to other rights and remedies you have under law: Our goods come with guarantees that cannot be excluded Wolfgang Emmerich, SOLO Kleinmotoren GmbH, under the Australian Consumer Law. You are Stuttgarter Straße 41, D-71069 Sindelfingen...
  • Page 4 • 6 Safety provisions Replace damaged parts without delay. Only use SOLO genuine spare parts. 6.1 Intended use / applications • Only use factory approved accessories and attachments for this sprayer. • Use the sprayer only for the application of liquid •...
  • Page 5 6.5 Work clothing /personal protection equipment (PPE) Suitable and approved protective clothing that protects all body parts from contact with the spray solution must be worn. • Wear firm shoes with good gripping soles. • Wear protective gloves with a slip-proof palm.
  • Page 6 7 Work preparation Fig. 1: Fig. 1 a. Spray tank) b. Tank lid screwed to the filling socket (c) d. Carry handle e. Standing foot f. Pump lever g. Hand valve h. Spray wand i. Nozzle attachment j. Spray tube holder k.
  • Page 7 Assembly carrying belt Assembly of the pump lever (f): The pump lever can be attached to the left or right. Fig. 3 Fig. 5 • Thread the upper loop of the carrying belt (k), • Push the pump lever into the guide (n) at the through one of the three attachment ribs from standing base (e) from the desired side, so that above depending on body size, so that the two...
  • Page 8 7.3 Length adjustment of the carrying straps 9 Use of the backpack sprayer 9.1 Spraying Fig. 7 • Do not use the sprayer in wind or rain. • Check the direction of the air movement before starting work and spray with the air movement, not against it.
  • Page 9 9.2 Disposal of residual spray volume with any hard objects! • Replace the nozzle with a new nozzle and/or Residual spray volumes of less than 100 ml new filter insert. [6.8 oz] are no longer pumped effectively. Either add more spray formula and continue spraying or, Fig.
  • Page 10 10.5 Greasing the piston seal With the pump going stiffly: Fig. 14 Only perform maintenance work when depressurised and with the spraying agent tank empty. Fig. 12 • Reach into the spraying agent tank with one hand and remove the stirrer (s) from the piston. •...
  • Page 11 10.6 Down periods and storage Empty and clean the sprayer according to chap. 10.4. Keep the sprayer protected from sunlight in a dry, frost-free and secure location at a temperature of max. 35 °C [95 °F]. No open fireplaces or similar must be nearby. Prevent unauthorised use –...
