Summary of Contents for Clarke CVT2

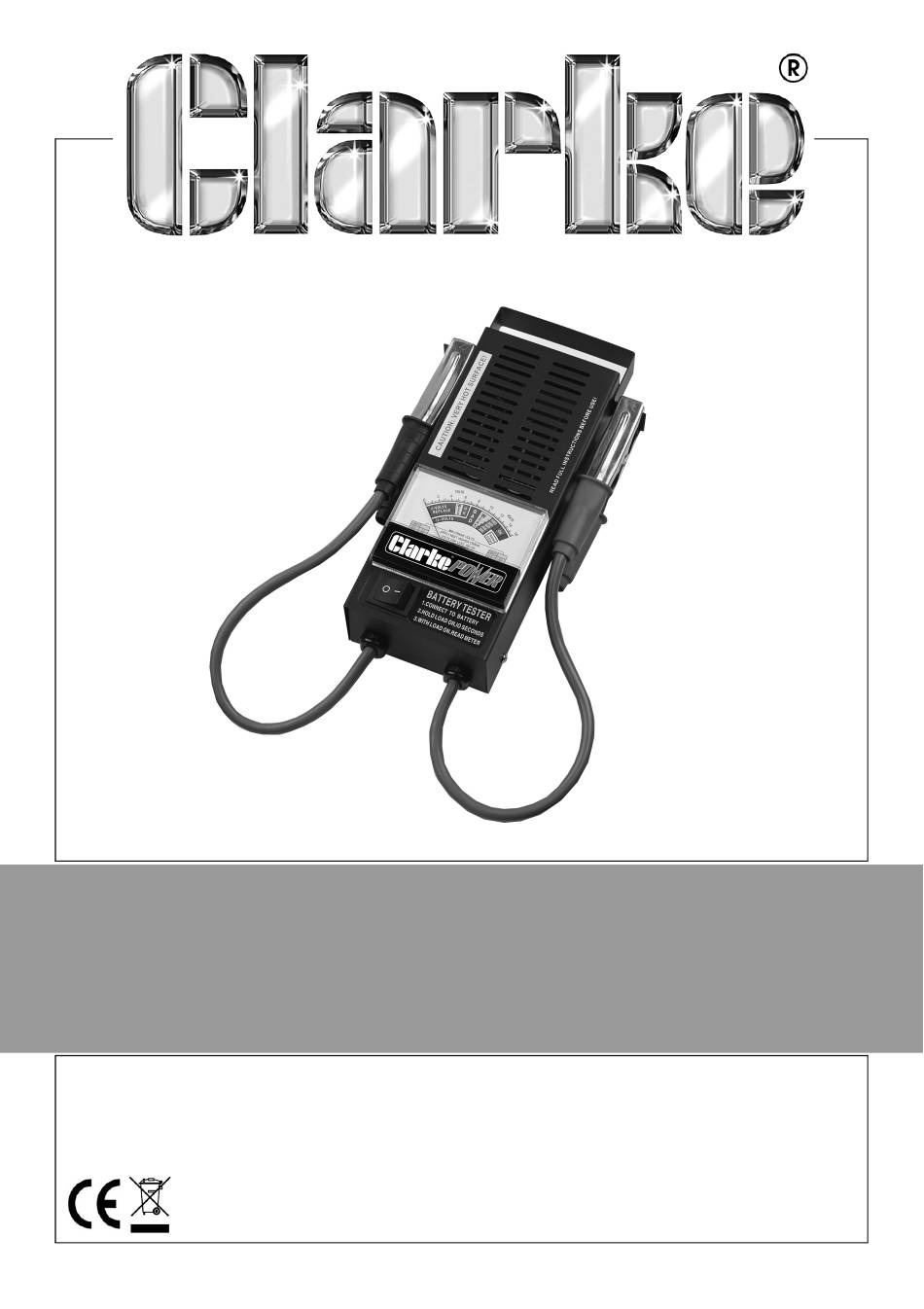

- Page 1 BATTERY TESTER MODEL NO: CVT2 PART NO: 6260103 OPERATION & MAINTENANCE INSTRUCTIONS LS0414...
-
Page 2: Environmental Recycling Policy
INTRODUCTION Thank you for purchasing this CLARKE product. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. -
Page 3: Safety Precautions
SAFETY PRECAUTIONS 1. Always avoid creating sparks in a battery charging environment, as this could cause fire, or even an explosion. Similarly, it is vital to avoid creating sparks when testing a battery in a motor vehicle in situ, as spikes in the system could cause serious damage to the vehicle electronic circuitry. -
Page 4: Battery Analysis
BATTERY ANALYSIS METER READING LOAD TEST BATTERY CONDITION OK (Green) Battery capacity is OK. Battery may or may not be fully charged. Check specific gravity of battery to determine state of charge. If specific gravity is less than full charge, check for electrical drain or possible charging system trouble. -
Page 5: Spare Parts List
SPARE PARTS LIST ITEM DESCRIPTION Crocodile Clip Sleeve Black (handle) - Negative Sleeve Red (handle) - Positive Gauge Assy Gauge Cover LOAD ‘On’ Switch Plastic Grommet MAINTENANCE • As the metal clamps are liable to come into contact with battery electrolyte, it is advisable to wipe them clean and dry after use, and apply a thin film of silicon grease to prevent the possibility of corrosion. -
Page 6: Specification
SPECIFICATION Model Number CVT2 Cable length (including Clamps) 460 mm Product Dimensions: (L x W x H) 280 x 160 x 75 mm Weight 1.1 kg Part Number 6260103 Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 7: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
