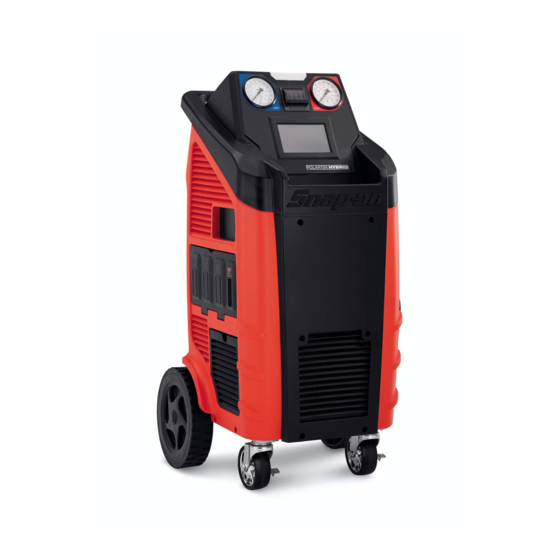

Snap-On POLARTEK HYBRID EEAC332 Manual

R134a refrigerant recovery/recycle/recharge service hybrid and non-hybrid vehicle a/c system
Hide thumbs Also See for POLARTEK HYBRID EEAC332:
Table of Contents

Advertisement

Quick Links

See also: Service Manual

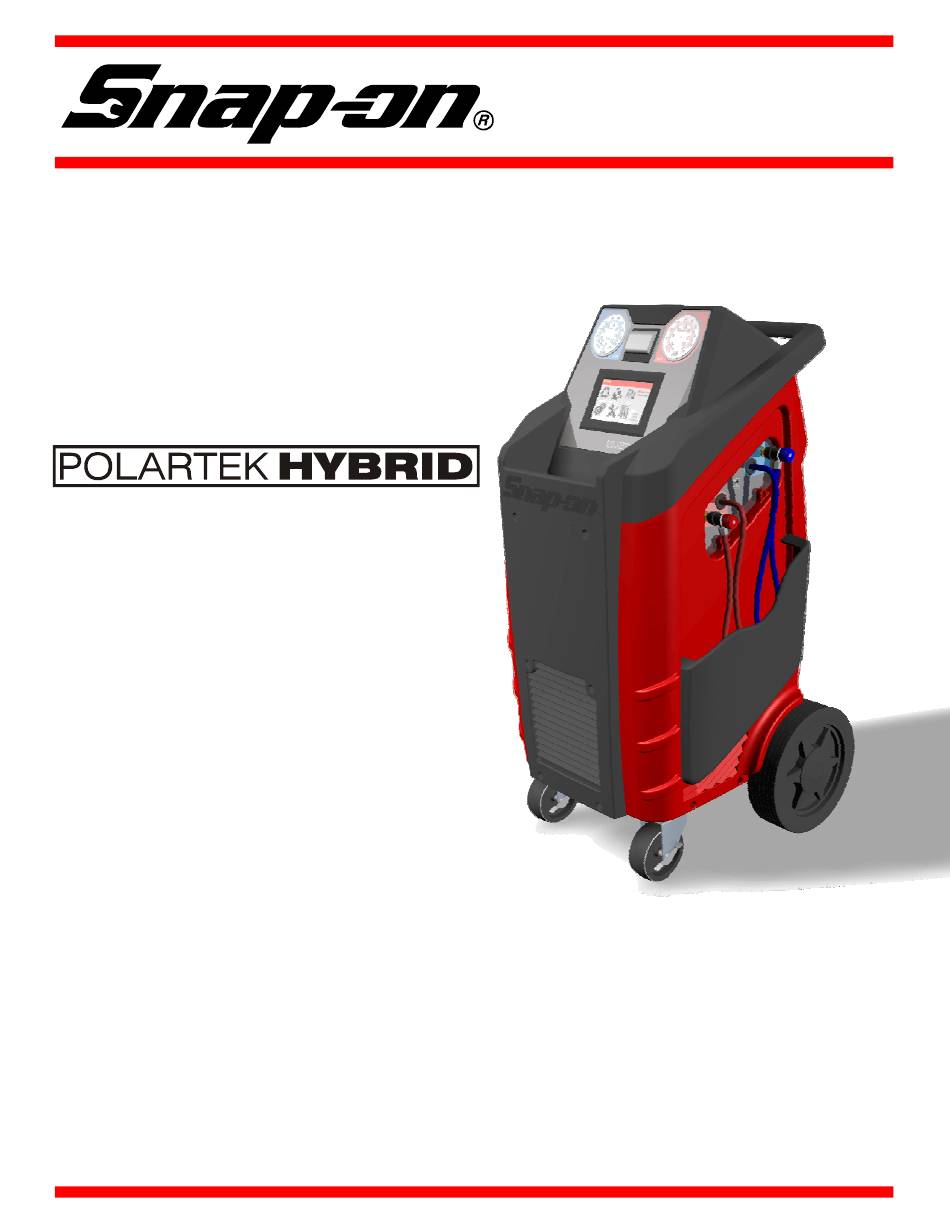

EEAC332
R134a Refrigerant
Recovery / Recycle / Recharge
Service Hybrid and Non-Hybrid
Vehicle A/C System
INTRODUCTION
Snap-on
Model No. EEAC332 is ETL Laboratories approved, in compliance with SAE J2788. We are dedicated to solving the issues
®
surrounding the safe containment and proper management of refrigerants. Your new machine incorporates the latest technology
and state of the art features to aid you in servicing R134a air conditioning and refrigeration systems. We hope you get as much
enjoyment using this equipment as we did designing and building it.
M A N U E E A C . 3 3 2
E D . 8
• 1 •

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POLARTEK HYBRID EEAC332 and is the answer not in the manual?

Questions and answers

Chris Musselman
April 23, 2025

a/c machine will not power up.We do have power at the off and on switch

0
1 comments:
Mr. Anderson
May 11, 2025

If the Snap-On POLARTEK HYBRID EEAC332 A/C machine will not power up despite having power at the switch, the issue could be related to internal components such as connections, fuses, or the control panel. The manual does not provide a specific solution for power-up failure, so detailed inspection of internal wiring and components is necessary.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for Snap-On POLARTEK HYBRID EEAC332

Summary of Contents for Snap-On POLARTEK HYBRID EEAC332

  • Page 1 Service Hybrid and Non-Hybrid Vehicle A/C System INTRODUCTION Snap-on Model No. EEAC332 is ETL Laboratories approved, in compliance with SAE J2788. We are dedicated to solving the issues ® surrounding the safe containment and proper management of refrigerants. Your new machine incorporates the latest technology and state of the art features to aid you in servicing R134a air conditioning and refrigeration systems.
  • Page 2 • 2 •...

  • Page 3: Table Of Contents

    ALARMS .............. 15   INDEX ERROR MESSAGES ..........16   INDEX ..............3   PRELIMINARY OPERATIONS ......17   SAFETY ..............5   AUTOMATIC PROCEDURE ......... 18   SAFETY SIGNAL WORDS ........... 5  SAFETY INFORMATION ............. 5  EDIT VACUUM DATA ............18   ...
  • Page 4 WARRANTY ............40   NOTES ..............41   • 4 •...

  • Page 5: Safety

    requirements also provide a basis for equipment installation, use, SAFETY and service. The following safety information is provided as guidelines to The following safety alert symbols identify important safety help you operate your new system under the safest possible messages in this manual. conditions.

  • Page 6: General Safety Messages

    GENERAL SAFETY MESSAGES FUME HAZARDS Warning Warning Risk of electric shock  Unplug unit before attempting Risk of fume, gas, and vapor hazards maintenance or cleaning.  Avoid breathing A/C refrigerant and  Do not operate unit with damaged cord or lubricant vapor mist.

  • Page 7: Hoses Connection

    Danger REFRIGERANT AND LUBRICANT - Risk of explosion  Ensure that you are only recovering from the PERSONAL PROTECTIVE EQUIPMENT fitting on the AC system. AND PRECAUTIONS  Some car manufacturers on the fuel intake manifold install a connector identical to the Warning A/C low pressure fitting.

  • Page 8: Setup

    LANGUAGE SETUP From the SETUP, select LANGUAGE : From the MAIN MENU: R134a SETUP R134a English Français Espanol PREV AUTOMATIC MANUAL SERVICES PAGE NEXT xxxxxxx PAGE hh:mm LANGUAGE SETUP MAINTENANCE INFO mm/dd/yyyy NOTE: Current language is indicated by red dot. Select the SETUP, the following screen will be displayed: Select a language, the unit will change the language in few R134a...

  • Page 9: Quicksetup

    QUICKSETUP SETUP HEADER PRINT The first time the machine is used, a quick startup guide appears: The printout can be personalized by entering 4 lines containing the operator is guided through the steps described at the start of the workshop’s details (e.g. name, address, telephone number the PRELIMINARY OPERATIONS section.

  • Page 10: Introduction

    ABOUT YOUR AIR CONDITIONING INTRODUCTION SERVICE CENTER Snap-on Model No. EEAC332 is ETL Laboratories approved, in Your machine incorporates a highly accurate electronic scale for ® compliance with SAE J2788. We are dedicated to solving the determining charging weights, etc. Other functions can also be...

  • Page 11: General Information

    GENERAL INFORMATION PRINCIPLES OF OPERATION Machine model information are printed on the data plate (see In a single series of operations, the machine permits recovering Fig. 1). Overall machine dimensions: and recycling R134a refrigerant fluids with no risk of releasing the fluids into the environment, and also permits purging the A/C Height: 47"...

  • Page 12: The Machine

    THE MACHINE Refer to Fig. 4b. PLASTIC COVER 6) Rear body shell Refer to Fig. 4a . Disassembly: Remove rear bottom door, then screw off 1) Upper plastic body 6 screws marked (+) 2) Frontal body shell 7) Left side body shell Disassembly: Screw off 6 screws marked (+) Disassembly: Remove frontal and rear body shell, then screw off 10 screws marked (+)

  • Page 13: Control Panel

    DISPLAY ICONS CONTROL PANEL Refer to Fig. 5: ICON DESCRIPTION 1) Low pressure gauge AUTOMATIC PROCEDURE: Activates a menu 2) High pressure gauge that helps the user set up an automatic 3) Printer recover/vacuum/leak test/charge sequence 4) 7” touch color display MANUAL PROCEDURE: Activates a menu 5) Tool tray that helps the user to perform a manual...

  • Page 14: Basic Components

    BASIC COMPONENTS FIG.7 Refer to Fig. 7, Fig. 8, Fig. 9, Fig. 10: a) Handle b) Rear wheel c) Front swirling wheel d) Filter dryer panel access e) Used oil container Capsizable control panel g) Status light h) Tool tray Ventilation grid Service hoses pocket k) Oil pump filling cap...

  • Page 15: Alarms

    ALARMS FIG.9 HIGH PRESSURE ALARM: Beeper advises when the pressure of the fluid in the circuit is too high 290 psi (20 bar). The recovery operation is automatically interrupted. FULL TANK ALARM: Beeper advises when the tank is filled to more than 80% of maximum capacity, 24 lbs (10.9 kg).

  • Page 16: Error Messages

    ERROR MESSAGES CHECK CONNECTIONS: Error message displayed when the flow rate of charge is too low. SYSTEM LEAKS: Error message displayed when the AC system connections are not tight. Solution: Verify the correct opening of the quick couplers. Make sure that the amount of gas in the refrigerant tank is > 3 lbs (1.36 Solution: Verify the connections between the service hoses and kg), otherwise fill the inner refrigerant tank.

  • Page 17: Preliminary Operations

    PRELIMINARY OPERATIONS Check that the main switch (ref 1, Fig. 11) is set to O. Connect the machine to the electrical supply and switch on. FIG. 11 Check that the oil level in the used oil container is < 6.8 Oz (200 cc).

  • Page 18: Automatic Procedure

    NOTE: select value box, then use the keypad to modify AUTOMATIC PROCEDURE procedure parameters, press ENTER to confirm. In the automatic mode, all the operations are performed EDIT VACUUM DATA automatically: recovery and recycling, oil discharge, vacuum, new oil reintegration, and charging. The values for the quantity Select VACUUM TIME value box.

  • Page 19: Start Automatic Procedure

     R134a AUTOMATIC PROCEDURE LP to fill the refrigerant only from the LP service port. GAS EXTRACTION FROM A/C SYSTEM 1 PHASE Recovered gas START AUTOMATIC PROCEDURE Tank Pressure A/C pressure Tank temperature °F After selected all the procedure data, press ENTER to continue. If plate number is enabled, the following screen will be displayed: R134a AUTOMATIC PROCEDURE...
  • Page 20 However air purge can always be made at any time manually by R134a AUTOMATIC PROCEDURE the AIR PURGE MANUAL selection from MAINTENANCE menu. End Of Procedure Upon completion of the vacuum phase, the system will go on to Gas recovered xxx lb charging with the preset quantity of refrigerant.

  • Page 21: Manual Procedure

    RECOVERY/RECYCLING MANUAL PROCEDURE Before the recovery, start the vehicle engine with the hood In the MANUAL PROCEDURE, all the operations can be closed (the air conditioner must switch OFF) for 10 minutes to performed individually with exception warm the engine. Switch off the vehicle engine. recovery/recycling phase, which is automatically followed by used oil discharge.

  • Page 22: Vacuum

    During the recovery phase, the machine displays the quantity of VACUUM refrigerant recovered. Use the quick-connect couplings to connect the hoses to the A/C Upon completion of recovery, the machine will stop and system, bearing in mind that BLUE must be connected to the low discharge, while automatically displaying the used oil extracted pressure side and RED to high pressure.
  • Page 23 R134a MANUAL PROCEDURE R134a MANUAL PROCEDURE Connect and open HP and LP coupling to A/C system Press ENTER End Of Procedure Vacuum time xxx min Press ENTER to continue VACUUM VACUUM Procedure is now successfully completed. Connect and open the coupling connected to the A/C system, then press ENTER to start the vacuum phase.

  • Page 24: Flushing Hoses

    FLUSHING HOSES CHARGE This operation makes the machine suitable for a service on From the MANUAL PROCEDURE, select CHARGE, the following vehicles equipped with electrically driven compressors (hybrid screen will be displayed: vehicles). R134a MANUAL PROCEDURE From the MANUAL PROCEDURE, select FLUSHING HOSES, the following screen will be displayed: R134a MANUAL PROCEDURE...

  • Page 25: Edit Charge Mode

    R134a MANUAL PROCEDURE EDIT CHARGE MODE Disconnect HP coupling Start A/C system with LP coupling connected and press ENTER Select the connection mode:  HP+LP fill the refrigerant from both HP and LP service ports.  HP to fill the refrigerant only from the HP service port. ...

  • Page 26: Services

    SEARCH BY PLATE SERVICES Selecting SEARCH BY PLATE, the following screen will be The machine keeps track of the operations done on refrigerant displayed: fluid: recovery, system refilling, inner bottle filling. For any operation, a record is made with date, time, type of operation, R134a SERVICE ARCHIVE quantities involved, plate number, inner bottle refrigerant fluid...

  • Page 27: Search By Date

    SEARCH BY DATE EXTRACT ARCHIVE Selecting SEARCH BY DATE, the following screen will be Selecting EXTRACT ARCHIVE, the following screen will be displayed: displayed: R134a SERVICE ARCHIVE R134a SERVICE ARCHIVE SEARCH BY DATE: 2016 Please insert USB key and press ENTER MONTH Insert date to search, then press ENTER: Insert the storage device in the USB port and press ENTER, to...

  • Page 28: Maintenance

    MAINTENANCE A/C PRESSURES CHECK From the MAIN MENU: From MAINTENANCE select A/C PRESSURES CHECK, the following screen will be displayed: R134a R134a MAINTENANCE Connect and open HP and LP coupling to A/C system Press ENTER AUTOMATIC MANUAL SERVICES xxxxxxx hh:mm SETUP MAINTENANCE INFO...
  • Page 29 R134a MAINTENANCE A pop-up message is displayed asking confirmation, press YES to continue: R134a MAINTENANCE Empty hoses Are you sure that you have unscrewed Hoses pressure coupling or couplings without removing them? A/C PRESSURES CHECK A pop-up message is displayed asking confirmation, press YES to EMPTY HOSES continue: R134a...

  • Page 30: Air Purge Manual

    NOTE: If there isn’t air into the tank, the following message is displayed: AIR PURGE NOT NECESSARY. Press ESC to terminate the Air Purging process, and return to the MAINTENANCE menu. CALIBRATION For assistance, call the Snap-on toll-free Technical Support Line 800-225-5786 in the continental U.S. or Canada.

  • Page 31: Change Dryer Filter

    R134a MAINTENANCE CHANGE DRYER FILTER Replace the filter whenever the machine gives the service alarm Verifying gas presence in filter… signals the presence of humidity in the circuit. Before performing any operation, check that the replacement filter is the same type as these installed on the machine. Then proceed as described below: CHANGE DRYER FILTER Wear protective gloves and glasses.
  • Page 32 FIG. 19 FIG. 18 Press ENTER to continue: And press ENTER: R134a MAINTENANCE R134a MAINTENANCE Verify that both o-rings are correctly placed into their seats press enter Continue with vacuum and check for leaks. Press ENTER CHANGE DRYER FILTER CHANGE DRYER FILTER Take the new filter, wet with clean POE oil both o-rings, and Press ENTER to continue with vacuum check: verify that they are correctly placed into their slots, press ENTER:...

  • Page 33: Database

    After few minutes, if no leaks are detected the following screen will be displayed: DATABASE R134a MAINTENANCE From MAINTENANCE, select DATABASE. A list of brand of vehicle will be displayed. Select the brand of vehicle, (use the arrow keys to change page if Pressure check necessary), then select the model of vehicle.

  • Page 34: Maintenance Report

    MAINTENANCE REPORT TANK CELL CHECK From MAINTENANCE, select MAINTENANCE REPORT, the From MAINTENANCE, select TANK CELL CHECK, the following following screen will be displayed: screen will be displayed: R134a MAINTENANCE REPORT R134a MAINTENANCE FILTER CHANGE mm/dd/yy xx lbs mm/dd/yy xx lbs TANK CELL CHECK mm/dd/yy xx lbs...

  • Page 35: Tank Filling

    Press ENTER to start The TANK FILLING: TANK FILLING R134a MAINTENANCE This operation must be performed whenever the available Tank Pressure refrigerant fluid in the tank is less than 6.6 lb (3 kg) and must in Ext. Tank Pressure any case be performed when the “empty tank” alarm is displayed.

  • Page 36: Vacuum Pump Oil Change

    VACUUM PUMP OIL CHANGE VACUUM PUMP From MAINTENANCE, select VACUUM PUMP OIL CHANGE, the Perform the operations listed below on a routine basis in order to following screen will be displayed: ensure good operation of the vacuum pump. When replacing the pump oil, use only the oil recommended by R134a MAINTENANCE the manufacturer.
  • Page 37 Pour in new oil through the filling hole, using a proper funnel (ref 5, Fig. 27), until the level rises to the midpoint on the indicator (ref 3, Fig. 27). FIG. 27 FIG. 24 Unscrew the drain cap (ref 2, Fig. 25). FIG.

  • Page 38: Emptying The Used Oil Container

    EMPTYING THE USED OIL CONTAINER Procedure: Open the upper door on the right side (ref 4, Fig. 37). Press quick connection button (ref 1, Fig. 37) to disconnect the used oil container. Lift the used oil container out of its lodging (ref n, Fig. 37) without exerting pressure on the scale.

  • Page 39: Replacing The Printer Paper

    REPLACING THE PRINTER PAPER INFO Open the print cover (ref 3, Fig. 40), and replace the paper roll From the MAIN MENU: with a new one. R134a Use only heat-sensitive paper of the type described below. Paper width: 2.2 in (58 mm). Maximum paper roll diameter: 1.6 in (40 mm).
  • Page 40 WARRANTY This product is warranted against any defect in materials and/or construction for a period of 2 (two) years from the date of delivery. The warranty consists of free-of-charge replacement or repair of defective component parts or parts considered defective by the Manufacturer. Reference to the machine serial number must be included in any requests for spare parts.
  • Page 41 NOTES • 41 •...
  • Page 42 • 42 •...
  • Page 43 • 43 •...
  • Page 44 Made in USA Snap-on is a trademark of Snap-on Incorporated ©2016 Snap-on Incorporated Printed in USA Snap-on, 2801 80th St., Kenosha, WI 53143 www.snapon.com • 44 •...
