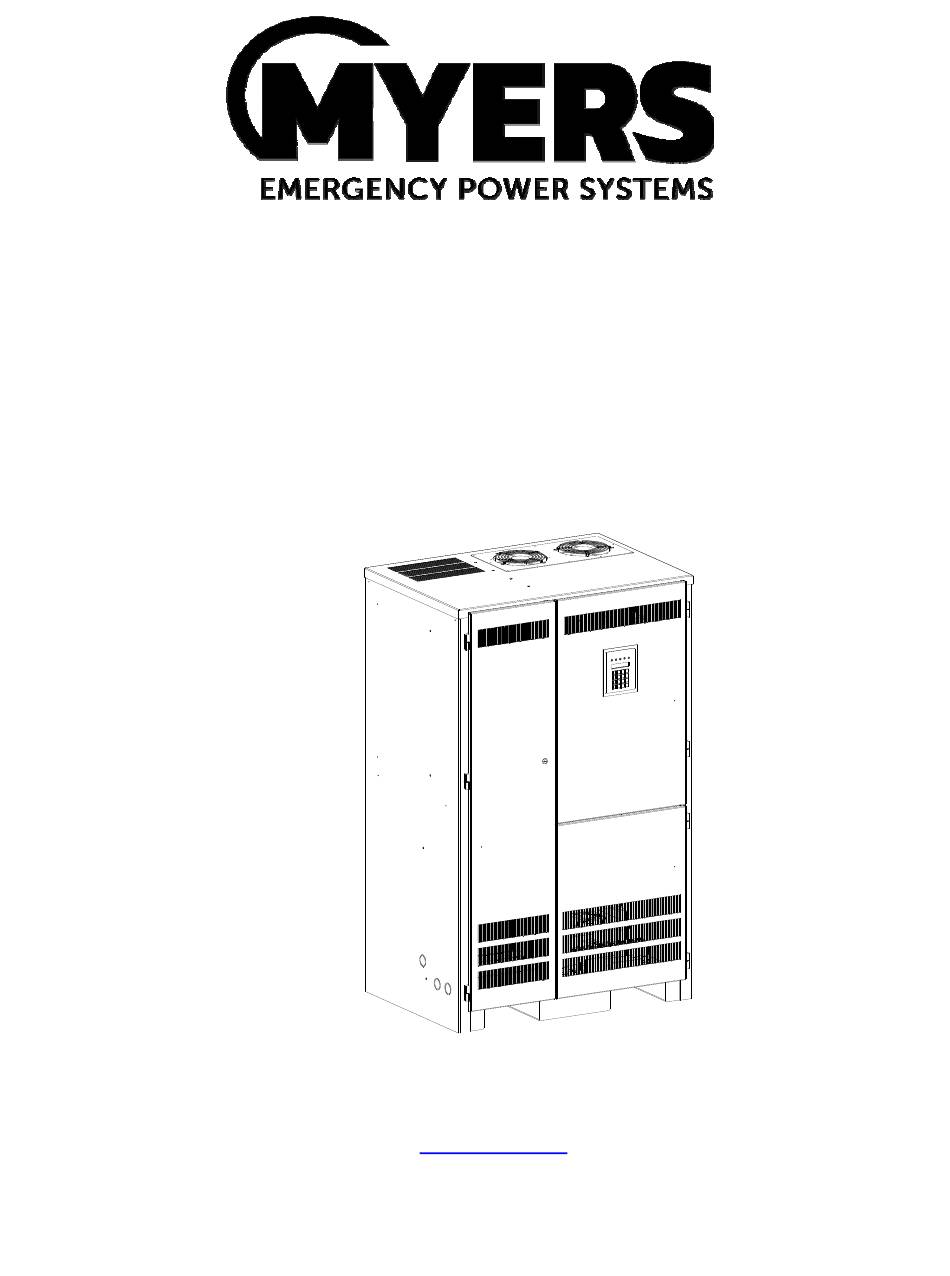

- Page 1 Illuminator System ™ Series CIII 16.7 kW (2hr Run) – 50 kW Installation Guide 44 South Commerce Way, Bethlehem, PA 18017 1-800-526-5088 • (610) 868-3500 • Fax: (610) 868-8686 Service: (610) 868-5400 www.myerseps.com 114201I - System Installation Manual...
-
Page 2: Important Safeguards
This unit contains LETHAL VOLTAGES. All repairs and service should be performed by AUTHORIZED SERVICE PERSONNEL ONLY! There is NO USER SERVICEABLE PARTS inside this unit. IMPORTANT SAFEGUARDS When using electrical equipment, you should always follow basic safety precautions, including the following: READ AND FOLLOW ALL SAFETY INSTRUCTIONS. - Page 3 C A U T I O N READ ENTIRE MANUAL AND REVIEW ALL DOCUMENTATION BEFORE ATTEMPTING SYSTEM INSTALLATION! FOR SERVICE OR INSTALLATION INFORMATION: TELEPHONE: (610) 868-5400 (24 HR. HOTLINE) FAX: (610) 954-8227 FOR YOUR PROTECTION..PLEASE COMPLETE AND RETURN WARRANTY REGISTRATION CARD IMMEDIATELY. 114201I –...
- Page 4 C H A P T E R 1 AFETY ARNINGS Read the following precautions before you install the UPS. IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS. This manual contains important instructions that you should follow during installation and maintenance of the system and batteries. Please read all instructions before operating the equipment and save this manual for future reference.
- Page 5 C H A P T E R 2 NTRODUCTION Please read this manual thoroughly before operating your safety system. Keep this manual and the system User’s Guide in the folder mounted inside the unit’s door. WARNING Only qualified service personnel (such as a licensed electrician) should perform the system and battery installation and initial startup.
-
Page 6: Installing The Unit
C H A P T E R 3 EFORE NSTALLING THE Installation Dimensions and Clearances Figure 3.0 System Dimensions Table 3.1 Dimensions Unit Height Width Depth Electronics 72” 44” 31” 27.75” 24.25” 19.5” 6.75” 9.5” Cabinet (183.0 cm) (112.0 cm) (79.0 cm) (70.48 cm) (62.6 cm) -
Page 7: Location Guidelines
Location Guidelines Keep the following guidelines in mind when choosing the location for your system and batteries: • Verify that the environment meets the requirements in “Storage and Operating Environment” on page 7. The environment can affect the reliability and performance of both the unit and the batteries. -
Page 8: Storage And Operating Environment
Storage and Operating Environment Make sure you store and install the system in a clean, cool, dry place with normal ventilation for human habitation and level floors. Storage Temperature Store the batteries (in the system or battery cabinet) at -18 to 40°C (0 to 104°F). Batteries have a longer shelf life if they are stored below 25°C (77°F). -
Page 9: Installation
C H A P T E R 4 NSTALLATION VERVIEW Figure 4.0 shows typical installations of system Inverter Battery Cabinet Cabinets 44” Wide 48” Wide AC Input & AC Output Figure 4.0 Typical Hardwired Installation 114201I – System Installation Manual... - Page 10 C H A P T E R 5 AC I & AC O NPUT UTPUT NSTALLATION WARNING Only qualified service personnel (such as a licensed electrician) should perform the AC installation. Risk of electrical shock exists. Read the following cautions before you continue. CAUTION •...
- Page 11 Service Panel Voltage = _____________ Input Voltage ___Yes /___No • Does the output voltage on the ID label match the voltage your loads (protected equipment) need? Load Voltage = ______________ Output Voltage ___Yes/___No If you answered NO to either of the preceding questions, call SERVICE. 4.
- Page 12 7. The input circuit breaker in the input service panel provides the means for disconnecting AC to the unit. Only authorized persons shall be able to disconnect AC to the unit [see NEC 700-20 and 700-21(CEC Section 46)]. If you are using the input circuit breaker to disconnect AC, you must make sure that only authorized persons have control of the circuit breaker panel to meet the requirements of NEC 700-20 (CEC Section 46).
- Page 13 Figure 5.0 AC Input and Output Locations 114201I – System Installation Manual...
- Page 14 C H A P T E R 6 DC W NSTALLING ATTERIES AND IRING WARNING Only qualified service personnel (such as a licensed electrician) should perform the battery and DC wiring installation. Risk of electrical shock exists. This section explains how to install system batteries, fuses, and cables. An electrician who is familiar with battery installations and applicable building and electrical codes should install the batteries.
- Page 15 A qualified electrician familiar with battery systems and required precautions must install and service the batteries. Any battery used with this unit shall comply with the applicable requirements for batteries in the standard for emergency lighting and power equipment, UL 924 (Canada’s National Building Code). Cabinets are design to be used with, and batteries must be replaced with, manufacturer battery number BAT-CG12105 for some models and battery number BAT-CG12205 for other models or a manufacturer approved equivalent (see the battery wiring diagram that came with the...
-
Page 16: Before Installing The Batteries
Before Installing the Batteries Tools CAUTION Always use insulated tools when you work with batteries. Always torque connections to the manufacturer’s recommendations. When you work with system batteries, you need the following tools. The tools must be insulated so they do not short battery terminals to the cabinet. Wear the safety equipment required by local code whenever the doors are open and whenever you are working on batteries. -
Page 17: Installing And Connecting The Batteries
Installing and Connecting the Batteries Battery Wiring Diagram You should have received a battery-wiring diagram with your system. This battery-wiring diagram shows how you should install the batteries, make terminal, and fuse connections. Use the diagram as you follow the steps below. Location Before you start installing the batteries, you must install the system and any battery cabinets in their permanent location. - Page 18 Making the Equipment Ground Connection Each battery cabinet ground (or earth) must be connected to the system’s chassis ground. You can make this connection at the ground terminals inside the system and the battery cabinet as follows. CAUTION All grounding conductors should be insulated. If you are using non-insulated grounding conductors, take special care to make sure that the grounding conductors cannot accidentally contact live wires or the batteries.
- Page 19 Interconnect Connections between Battery Cabinets Systems that split a battery string between 2 battery cabinets (50.0 kW system): Find the battery cable that connects to the fuse block. At the bare end of the cable, strip off 0.5” (1.3 cm) of insulation. Insert the cable into the fuse block. Tighten the connection as shown on the battery-wiring diagram.
- Page 20 Table 6.1 Battery Torque Battery Type Torque BAT-CG12105 or SL-12105 Torque to 120 in lbs. (13.6 Nm) BAT-CG12105A or SL-12105M Torque to 120 in lbs. (13.6 Nm) BAT-CG12105B Torque to 55 in lbs. (6.5 Nm) BAT-CG12105E or 12AVR100-3ET Torque to 100 in lbs. (11.3 Nm) BAT-CG12105G Torque to 100 in lbs.
-
Page 21: Replacing The Batteries
CAUTION If you do not verify that voltage and current direction are correct, the equipment may fail. Connecting the Negative Battery Cable(s) to the Battery String(s) Remove the insulation from the cable that was put on in step 2 of “Electronics cabinet battery block connections”. -
Page 22: Starting The Unit
CHAPTER 7 ETTING THE UTOMATIC YSTEM ARAMETERS Several parameters in the system software determine when and how your system conducts the automatic monthly and annual tests. Refer to “Program Functions” in the “Front Panel Display” chapter of the system user’s Guide for a description of each test. Starting the Unit Before you can set the parameters, you must start the system. - Page 23 Figure 7.0 Battery Fuse, DC Pre-charge Switch & Installation Switch 114201I – System Installation Manual...
-
Page 24: Front Panel Display
RONT ANEL ISPLAY The Front Panel Display consists of a 2 x 20 alpha numeric LCD display with LED back lighting, 5 status LED indicators and a 4 x 4 keypad for user interface. Control Panel Keypads Table 7.1 Keypad Functions Key Name Description Meter (Blue) -
Page 25: Program Functions
Program Functions All program functions are password protected. The password for user level is 1234. When the PROGRAM Keypad is pressed, the display will prompt the user for the password. After the password is entered (1234 + ENTER key), the user can change the Date, Time, Month Test Date, Month Test Time, Yearly Test Date and Yearly Test Time, Load Reduction Fault, Low VAC Alarm, High VAC Alarm, Ambient Temp Alarm and Near Low Battery settings. - Page 26 If you would like to change the setting of any of the above parameters, (see table 7.3) follow these steps: (i.e. setting the Time). See Figure 7.3 for Keypad location. 1. Press the PROGRAM keypad, enter the user password (1234), press the ENTER keypad.
-
Page 27: Completing The Installation
Completing the Installation Close the doors and lock the cabinet(s). You have finished installing the system. Follow the steps in the Startup and Warranty Validation form to test the installation and startup the system for the first time. After you complete this form, return it to the manufacturer to validate the warranty. - Page 28 114201I – System Installation Manual...
