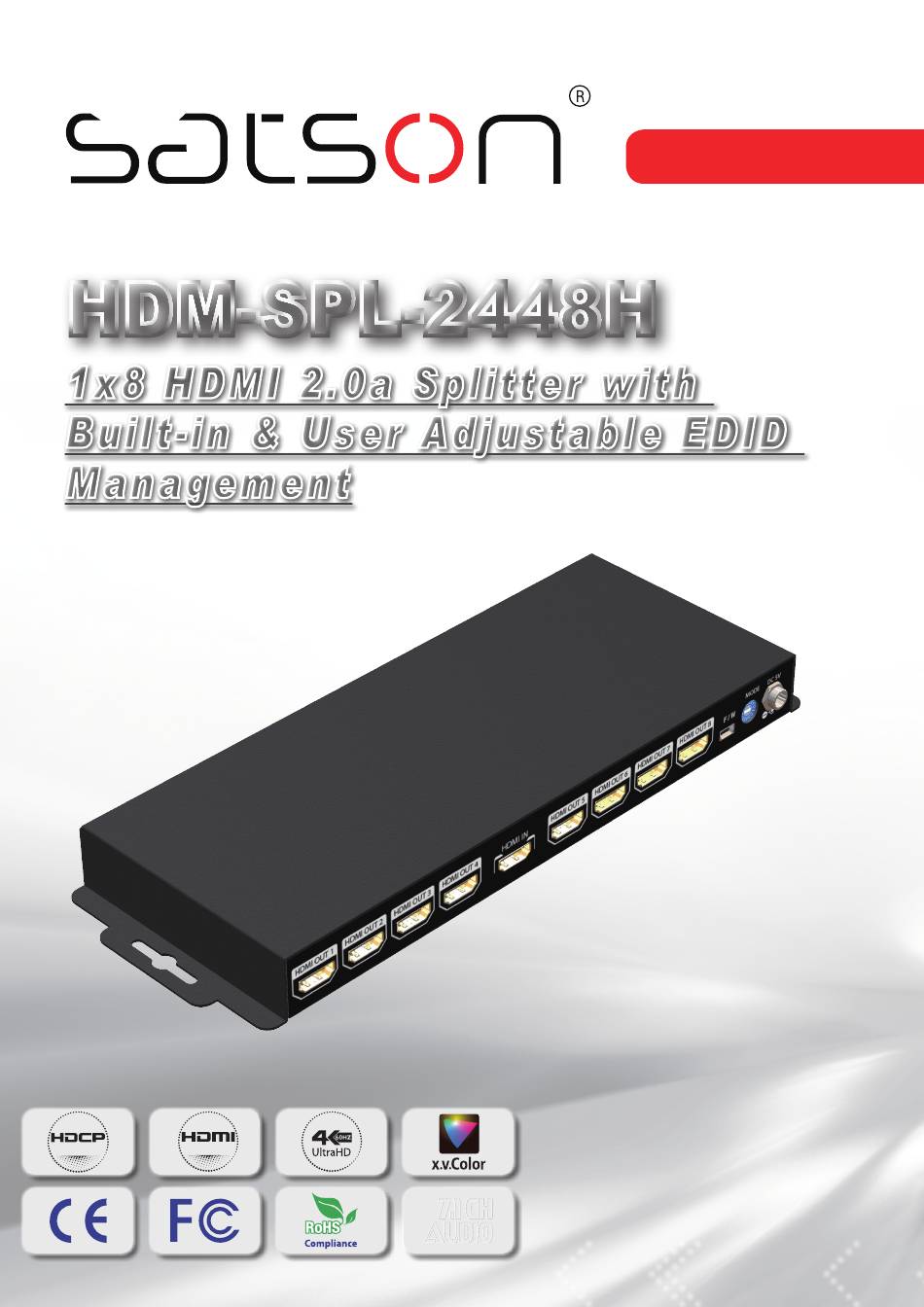

- Page 1 User Manual HDM-SPL-2448H HDM-SPL-2448H 1x8 HDMI 2.0a Splitter with Built-in & User Adjustable EDID Management 7.1 CH 7.1 CH rev: 170725 AUDIO AUDIO Made in Taiwan...
-
Page 2: Table Of Contents
Safety and Notice The HDM-SPL-2448H 1x8 HDMI 2.0a Splitter with Built-in & User Adjustable EDID Management has been tested for conformance to safety regulations and requirements, and has been certified for international use. However, like all electronic equipments, the HDM- SPL-2448H should be used with care. -
Page 3: Introduction
With built-in USB firmware update mechanism, the compatibility among countless HDMI sources and receivers can be further guaranteed. With the upmost HDR/4K2K@60 4:4:4 8bits and high definition audio support, HDM-SPL-2448H is suitable for high quality HDMI broadcasting, digital signage and education applications! FEATURES ●... -
Page 4: Specifications
SPECIFICATIONS Model Name HDM-SPL-2448H Technical Role of usage 1x8 Distribution Amplifier (Splitter) HDMI compliance HDMI 2.0a DVI compliance DVI 1.0 HDCP compliance HDCP 2.2 Video bandwidth Single-link 600MHz [18Gbps] Video support HDR 4K2K@60 (4:2:0 10bits) / 4K2K@60 (4:4:4 8bits) DTS-HD Master Audio, Dolby TrueHD Dolby Digital,... -
Page 5: Panel Descriptions
PANEL DESCRIPTIONS Front Panel Signal LED: Signal LED indicator Power LED: Lights on when device is ready Rear Panel HDMI OUT1-8:HDMI outputs to HDMI displays HDMI IN: Connect to a HDMI input source :For technical support only [firmware update] Mini-USB MODE: 0 - F/W update mode 1 - EDID Ultra-HD(4K2K@60) - 24bit 2D video &... -
Page 6: Connection Diagram
CONNECTION DIAGRAM HARDWARE INSTALLATION Broadcasts HDMI signal to 8 HDMI displays! 1. Switch off all devices, including monitors. Connect to the displays. Connect an HDMI source (such as a Blu-ray Disc player) to the HDMI In. Make sure the rotary switch is NOT at “MODE 0” Plug in 5V DC power supply. -
Page 7: Notice
NOTICE 1. While connecting a new monitor to the splitter under mode D (auto EDID) & mode E and F (EDID learning), experiencing a short period of time without displaying might be expected. The splitter will do Automatic EDID learning which analyzes the newly connected monitor to see if the EDID for the HDMI input is necessary to update! 2. -
Page 8: Limited Warranty
The SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the HDM-SPL-2448H features and specifications is subject to change without further notice.
