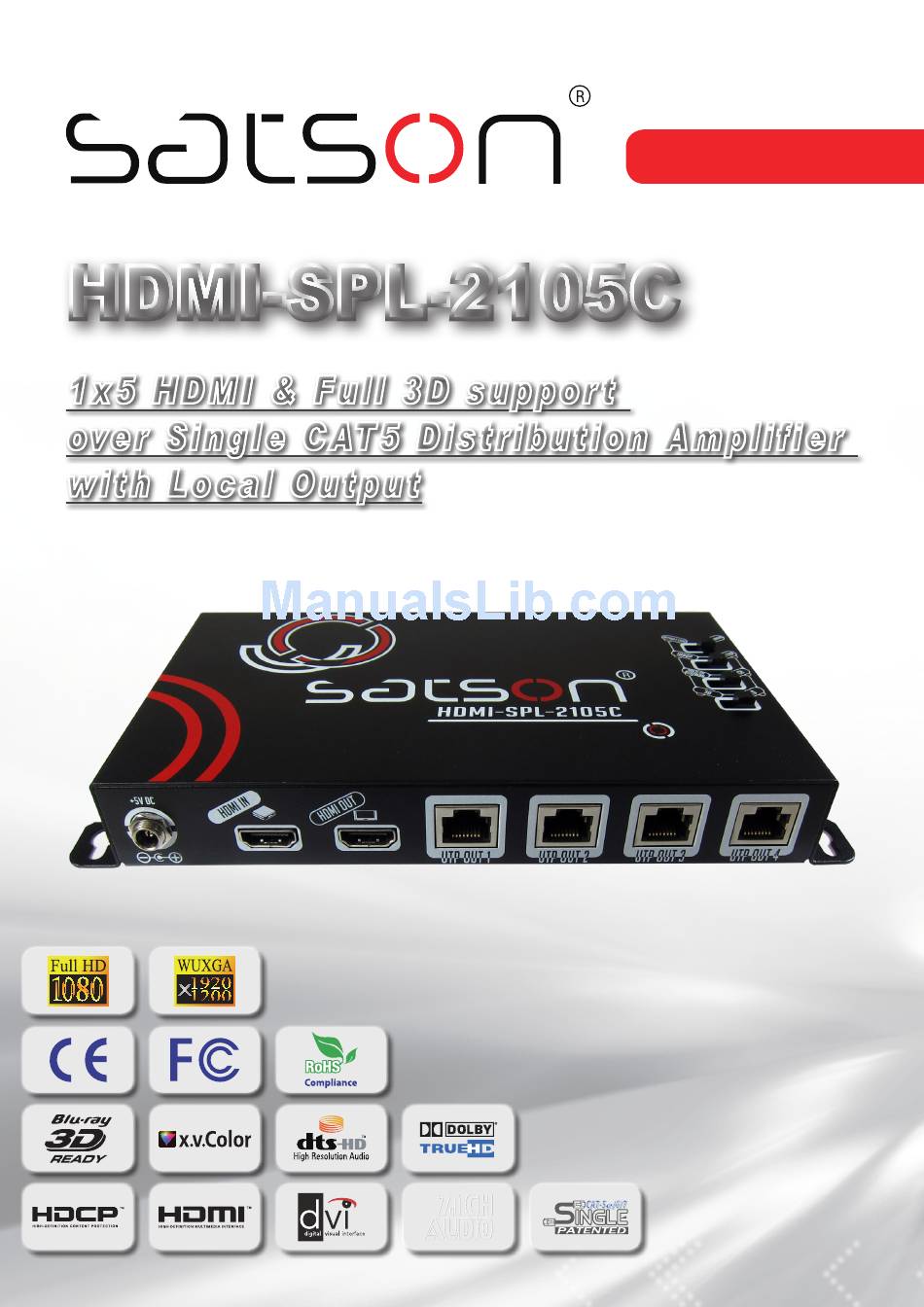

- Page 1 User Manual HDMI-SPL-2105C HDMI-SPL-2105C 1x5 HDMI & Full 3D suppor t over Single CAT5 Distribution Amplifier with Local Output 7.1 CH 7.1 CH rev: 111027 AUDIO AUDIO Made in Taiwan...
-
Page 2: Table Of Contents
Safety and Notice The HDMI-SPL-2105C 1x5 HDMI & Full 3D support over Single CAT5 Distribution Amplifier with Local Output has been tested for conformance to safety regulations and requirements, and has been certified for international use. However, like all electronic equipments, the HDMI- SPL-2105C should be used with care. -
Page 3: Introduction
The length depends on the characteristics and quality of the cables. Higher resolutions and longer transmission distances require low skew cables (<25ns/100m) for best performance. Unshielded CAT6 with metal RJ-45 connectors is recommended. PACKAGE CONTENTS ● 1x HDMI-SPL-2105C ● 1x DC 5V 4A wall wart ● 1x User Manual... -
Page 4: Specifications
SPECIFICATIONS Model Name HDMI-SPL-2105C Technical Role of usage 1x5 Distribution Amplifier Transmitter [TX] HDMI compliance HDMI Deep Color & full 3D HDCP compliance Video bandwidth Single-link 225MHz [6.75Gbps] Video support 480i / 480p / 720p / 1080i / 1080p60 up to 36-bit color... -
Page 5: Panel Descriptions
PANEL DESCRIPTIONS Front Panel POWER: bright - power on; dark - power off. SIGNAL: bright - HDMI source signal is detected; dark - no HDMI signal. Rear Panel +5V DC power: connect to 5V 4A DC interlocking power adapter HDMI IN: connected to HDMI source HDMI OUT: HDMI output for local monitor UTP OUT 1~4: CAT output... -
Page 6: Switch Setting
TOP Panel SW1: EDID Mode SW2: EDID - Full HD/HD Selection SW3: EDID - Audio Selection SW4: EDID - 3D/2D Selection SWITCH SETTING Left Position Right Position Default EDID EDID Learning Full HD Audio - Multi Channel Audio - 2 Channel The instant switching enables only when the video and audio setting of the source has been adjusted to "Auto"... -
Page 7: Edid Learning
EDID LEARNING 1. Power up the HDMI-SPL-2105C. Connect to HDMI OUT with the display you want the HDMI-SPL- 2105C to learn its EDID. 2. To learn the display's EDID for source device connected to HDMI OUT, Set SW1 to Right Position. -
Page 8: Connection Diagram
CONNECTION DIAGRAM Cat.x cable HDMI cable... -
Page 9: Pin Definition
PIN DEFINITION Type A (Receptacle) HDMI Pin 1 TMDS Data2+ Pin 8 TMDS Data0 Shield Pin 15 Pin 2 TMDS Data2 Shield Pin 9 TMDS Data0– Pin 16 Pin 3 TMDS Data2– Pin 10 TMDS Clock+ Pin 17 DDC/CEC Ground Pin 4 TMDS Data1+ Pin 11... -
Page 10: Notice
NOTICE 1. If the DVI or HDMI device requires the EDID information, please use EDID Reader/Writer to retrieve and provide DVI or HDMI display EDID information. 2. All HDMI over CAT5 transmission distances are measured using Belden 1583A CAT5e 125MHz UTP cable and ASTRODESIGN Video Signal Generator VG-859C &...
