Page 1: User Manual

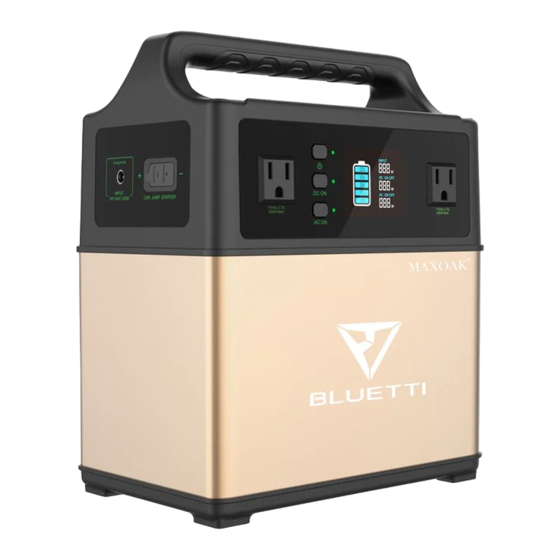

Portable Solar Power Generator (PPS) User Manual Thank you for using our product! Please strictly follow all warnings and instructions on this manual and the unit. Make sure to take good care of this manual. Do not operate until you have read all the safety and operation instructions. -
Page 2: Table Of Contents
Contents Product Overview............1 LCD DISPLAY............1 LCD battery symbol and failure code......2 Safety Instructions............2 Operation Guidance...........3 FAQ(Frequently Asked Questions)......6 Unpacking..............6 Technical specification..........7 Trouble Shooting............9 Contact us..............10... -
Page 3: Product Overview
Product Overview 1. PV/Adapter Charging port 8. LCD Display 2. CAR Jump Starter Port 9. AC Outputs 3. Main power On/Off Button 10. USB 5V Output ports(6mm) 4. DC Power On/Off Button 11. 12V/5A Output port 5. AC Outputs 12. Type-C QC3.0 Output port 6. -
Page 4: Lcd Battery Symbol And Failure Code
LCD battery symbol and failure code The LCD Battery Display indicates the Battery level. There are 5 segments of the battery, approximately 20%-40%-60%-80%-100% capacity. During using, segments will disappear from the display. When charging your PPS, you will notice a battery segment blink at 1 second interval, which indicates the current charge status and the number under INPUT shows the real-time charging power. -
Page 5: Operation Guidance
11. Charging plug must be connected to charging socket. Don't connect charging plug to discharging socket. Use in low temperature environment Cold weather can influence battery capacity. In sub-zero temperature (<0°C), you may be able to discharge the product, but you should not charge it. - Page 6 the power indicator and LCD screen will be lit up. When the main power switch key is turned on, the product can be charged and the AC/DC key can be turned on. 2. After the main power button is turned on, you must turn on the AC/DC key when using this product to power your device.
- Page 7 abundant sunshine. The solar panel open-circuit voltage should be 14-40v.The maximum charging power of this product is 125W. Connect the solar panel and the product using solar charging cable. Make sure that the solar charging cable is correctly connected and forming a solid contact with the input port of the product.
-
Page 8: Faq(Frequently Asked Questions)
FAQ(Frequently Asked Questions) Q1.How do I know if my PPS is charged? To check the charging state of your portable power supply, refer to the LCD Battery Display. When lit up, you will see a battery outline with five segments, indicating the current charge level. -
Page 9: Technical Specification
Car charging cable Solar charging cable 12V/10A output to car charging cable Type-C to type-C cable Car jump-starting cable User Manual Warranty card Technical specification Model EB40(JP&UL) EB40(EU) Battery Battery Material Lithium-ion Rechargeable Cell Battery model Samsung INR18650-29E Battery rated voltage 11.1V(3S14P) Battery capacity 400Wh(36Ah*11.1V) - Page 10 Output voltage range 10~12.6V 10~12.6V 12V/5A output Rated output power port(7909) Overload protection power >65W >65W Communication protocol type QC3.0 QC3.0 3.6~12V(default 3.6~12V(default Output voltage range Type-C output port 5V/2.5A, 9V/2A, 5V/2.5A, 9V/2A, Rated output current 12V/1.5A 12V/1.5A Overload protection current >3A >3A USB output...
-
Page 11: Trouble Shooting
Trouble Shooting This product has been fully tested prior to shipping. If you meet any difficulty during operation of the generator, read this manual carefully. If any failure occurs, please refer to this trouble shooting form. If still can’t solve, please contact our customer service. During a call, please provide us with the following information: Serial NO.,describe details what error is happening, input and output information. -
Page 12: Contact Us
E12 Inverter Over Current Protection Check if the AC output overload or short circuit E13 Inverter Over Load Protection Check if the AC output overload E14 Inverter Short-Circuit Protection Check if the AC output overload or short circuit Check if the input voltage excess the max E16 Charging Over Voltage protection input voltage 12V6A Output Over Current...
