Safran MorphoAccess SIGMA Series Quick User Manual
Hide thumbs
Also See for MorphoAccess SIGMA Series:
- Administration manual (517 pages) ,
- Installation manual (81 pages) ,
- Administration manual (478 pages)
Table of Contents
Advertisement
Quick Links
®
MorphoAccess
SIGMA Series
Quick User Guide
All descriptions illustrations, and specifications in this brochure should be considered approximate and may relate to optional equipment or feature
Morpho, They must not be copied or communicated to a third party
without the prior written authorization of Morpho.
Advertisement
Table of Contents
Related Manuals for Safran MorphoAccess SIGMA Series
Summary of Contents for Safran MorphoAccess SIGMA Series
- Page 1 ® MorphoAccess SIGMA Series Quick User Guide All descriptions illustrations, and specifications in this brochure should be considered approximate and may relate to optional equipment or feature This document and the information therein are the property of Morpho, They must not be copied or communicated to a third party without the prior written authorization of Morpho.
- Page 2 Table of Contents Color Step Content Overview Wiring Three Communication Four ACP or SDAC Five Administration Software Seven Enrollment This document and the information therein are the property of 2014_0000000530-V6 Morpho, They must not be copied or communicated to a third party without the prior written authorization of Morpho.

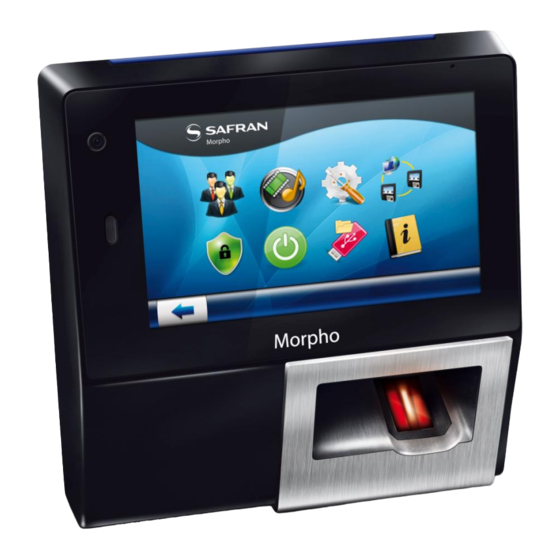

- Page 3 MorphoAccess® SIGMA Overview ® The MorphoAccess SIGMA terminal has a Optional Wi-Fi™ simple and ergonomic man-machine interface Status LED USB adaptor designed for access control and Time & Attendance, with fingerprint recognition, (plugged at the back of the terminal) contactless card authentication and PIN authentication options.
- Page 4 Indoor & Weather Resistant (WR) Checklist Product packaging checklist: ITEM ® MorphoAccess SIGMA terminal Micro SD card installed in the terminal Wall Mount Plate Battery POE module Protection Accessory (WR* product only) Micro SD card must be installed in the Flat screw driver 0.4 x 2.0 terminal at start up (storage area for internal Quick Installation Guide...
- Page 5 MorphoAccess® SIGMA Series The MorphoAccess® SIGMA Series contains the following product variants: Contactless Smart card reader ® MIFARE Biometrics Water Product designation ® ® ® iCLASS DESFire Prox (Fingerprint) Resistant (*) MA SIGMA MA SIGMA WR ...
- Page 6 MorphoAccess® SIGMA terminal implementation ® To secure an access, Morpho recommends installing the MorphoAccess SIGMA Series terminal as a part of a typical Access Control system, this consists of the components described below. ® The MorphoAccess SIGMA Series terminal NON SECURED SECURED AREA AREA...
- Page 7 MorphoAccess® SIGMA Access Control Modes The terminal can be configured in one of the modes described in the table below Identification Authentication Multifactor Proxy Access Application that runs Application that runs Application that runs Remote application control on the terminal when on the terminal when on the terminal when that controls the...
- Page 8 Deployment Environments -20°to + 60 °C (- 4°to 140°F) Operating temperature Operating humidity 10 % < RH < 80 % (non condensing) - 25°to + 70 °C (-13° to 158°F) Storage temperature Storage humidity 5% < RH < 95 % IP65 rated for WR(*) products (once wall-mounted) IP code WR units must be installed according to installation guidelines on Quick Installation Guide...
- Page 9 Wiring Overview Power supply from electrical source shall be switched off before starting the installation. Before proceeding, make sure that the person in charge of installation and connections, is properly connected to earth, in order to prevent Electrostatic Discharges (ESD). All connections of the terminal are of SELV (Safety Electrical Low Voltage) type.
- Page 10 Power Wiring External Power Supply: 12-24 Volts (regulated and filtered) 1 Amp min @12V, CEE/EEC EN60950 standard compliant. A12 Volts power supply compliant with SIA's Wiegand standard will also be suitable. If sharing power between devices, each unit must receive 1A (e.g. two units would require a 12vDC, 2A supply) A battery backup or uninterrupted power supply (UPS) with built-in surge protection is recommended.
- Page 11 Power Over Ethernet & Battery Battery • Installation : the engraved side, the positive side (+), must face upwards. • protects the date and time in case of power failure or switch off • lifetime is limited : at least 350 hours at 25°C, when power is off: •...
- Page 12 RS-485 Communication RS-232 to RS-232 RS-485 RS-485 to from the converter 1200m (4000ft) Com Port For RS-485 installations, the cable should be run in a daisy-chain configuration (i.e. converter > position 1 > position 2 > position 3, etc.). Choose a RS-232 to RS-485 converter that supports Sense Data to switch from Send to Receive mode.
- Page 13 RS-422 Communication RS-232 to RS- RS-232 422 converter RS-422 to from the 1200m (4000ft) Com Port For RS-422 installations, the cable should be run in a point to point configuration (i.e. PC > converter > terminal) Use CAT-5 UTP (or better) cable (shielded recommended) with a impedance of 120 .
- Page 14 Ethernet and Wireless LAN IP address Parameter Factory value RJ-45 Ethernet connection (recommended) Mode Ethernet connection to the terminal is made through a Terminal IP address 192.168.1.10 standard RJ-45 connector on the back of the terminal. Gateway IP address 192.168.1.254 ...
- Page 15 Wiegand Communication Wiegand IN 0 Wiegand In Wiegand IN 1 Wiegand OUT 0 Wiegand Out Wiegand OUT 1 Wiegand LED 1 LED Out Wiegand LED 2 Three-conductor wire (shielded recommended) is required for Data 0, Data 1, and WGND. Use 18-22 AWG cable in a homerun configuration from each unit to the Access Control Panel (ACP). ...
- Page 16 Wiegand Communication (continued) Important Example Format Information By default, the Wiegand output format is not enabled. Type: Standard 26-bit Wiegand output must be configured before connecting Alt Site Code and Fail Site Code Range: 0-255 to the ACP. Template ID Number Range: 1-65535 Note ...
- Page 17 SINGLE DOOR ACCESS CONTROL (SDAC) Single Door Access Control (SDAC) wiring sample : with Push Button GPO0 Push Button GPI0 Relay_NO Deadbolt / Door strike Relay_Com Power supply GPI1 Door contact Power supply GPO1 Warning • Please check next page for important information about internal relay rating •...
- Page 18 Internal Relay Wiring (Normally open) Snubber Diode Warning Power supply This applies only for small VCC < 30V or stand-alone applications Imax < 2A where access control panels are not available. Deadbolt / Door strike In this mode it is strongly recommended to monitor the Tamper Detection of Push Button...
- Page 19 Local Administration - First Boot Assistant The First Boot Assistant (FBA) helps the administrator to Main settings managed by FBA configure all the devices fundamental settings. Date & Time Configuration: date & time, time zone It is automatically launched at first terminal startup, but can also be launched on demand, though administration Language Configuration: user interface language menu (i.e.
- Page 20 Local Administration – Using Touch Screen Menu Frequently used icons Exit or Go Validation or Home confirmation Back (and Cancel or Cancel) refuse For security reasons, it is highly recommended to change the + password (default: 12345) devices default password to a custom password. User Multimedia Terminal...
- Page 21 Administration with MorphoBioToolBox application Terminal administration with MorphoBioToolBox (MBTB) application ® The MorphoAccess SIGMA Series terminal can be configured using a dedicated (Windows) application : MorphoBioToolBox Please note that this application has an embedded User Guide (Help menu). North and South America : E-mail cscenter@morpho.com with your name, phone number, serial number of your MASIGMA and...
- Page 22 Administration with Embedded Web Server Terminal administration with a standard web browser The terminals embedded Web server enables easy configuration of the devices using a web browser on a Desktop PC, Laptop, Tablet or smart phone. The connection to the embedded Webserver, through LAN or WLAN, requires the terminals IP address (available with local administration)
- Page 23 Software for Terminal Remote Administration MorphoAccess® SIGMA Series terminals are fully compatible with: MorphoManager application(version 1.0 or later) When Legacy Morpho mode enabled, the terminal is compatible with: MEMS (version 7.3.1 or later), The limitations in Morpho Legacy mode are described in the following document: ...
- Page 24 Local Enrolment Process on MorphoAccess® SIGMA A new user can easily be added by using the administration ® menu of the MorphoAccess SIGMA terminal. This “local enrolment” is recommended only for small or stand alone installations or testing purposes. For professional systems enrollment should be performed remotely with an enrolment station, which is a PC with a dedicated application such as MorphoManager.
- Page 25 Fingerprint Capture Basics 1/3 Region of Interest Recommended Fingers Acquisition troubleshooting Middle Finger Finger to capture Ring Finger the fingerprint area must be free of Fore Finger any occlusion (if not, select another aining finger to capture, such as the 2 enrolled finger in case of authentication or identification) ...
- Page 26 Fingerprint Capture Basics 2/3 Ideal Finger Position Incorrect Position: • Do not place the finger tip : on the bottom of the sensor, Finger or in the middle of the sensor Height Correct Position: • Align centre of finger tip with sensor centre Incorrect Position: •...
- Page 27 Fingerprint Capture Basics 3/3 Ideal Finger Position Incorrect Position: • Do not leave the finger in the air Finger • Do not bend finger upward or downward Inclination Correct Position: • Finger is parallel to sensor surface IDEAL POSITION Incorrect Position: •...
- Page 28 Contactless Card Position – PIN input Contactless Card Position Input PIN This action is required once during the user enrolment process (generation / encoding of a user RF card), and at each authentication. Place user’s RF card in front of embedded contactless When defined by terminal settings, the user is required card reader which is located to enter his PIN code, once during enrolment process,...
- Page 29 Recommendations The manufacturer cannot be held responsible in case of non-compliance with the following recommendations or incorrect use of the terminal. Repair and Accessories ® • Do not attempt to repair the MorphoAccess SIGMA Series terminal yourself. The manufacturer cannot be held responsible for any damage/accident that may result from attempts to repair components.
- Page 30 Documentation Bibliography Ref. 2016_2000022505 - MorphoAccess® 5G Series Bibliography This document gives document’s references for MorphoAccess® 5G Series terminals. This document is in English. Release note : for each firmware version, a release note is published describing the new features, the supported products, the potential known issues, the upgrade / downgrade limitations, the recommendations, the potential restrictions…...
- Page 31 Notes This document and the information therein are the property of 2014_0000000530-V6 Morpho, They must not be copied or communicated to a third party without the prior written authorization of Morpho.
- Page 32 Contacts Technical Support and Hotline North America Mail: cscenter@safrangroup.com Tel: +1 888 940 7477 India: South America Mail: support.morphoindia@safrangroup.com Mail: cscenter@safrangroup.com Tel: 0120-4699900 Tel: +1 714 575 2973 Europe and rest of the world: South Africa Mail: hotline.biometrics@safrangroup.com Mail: sec.san.bio.support@morpho.com Tel: +33 1 30 20 30 40 Tel: + 27 11 286 5855 For the latest firmware, software, document releases, and news, please check our websites :...
