Safran MorphoAccess VP-Bio User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

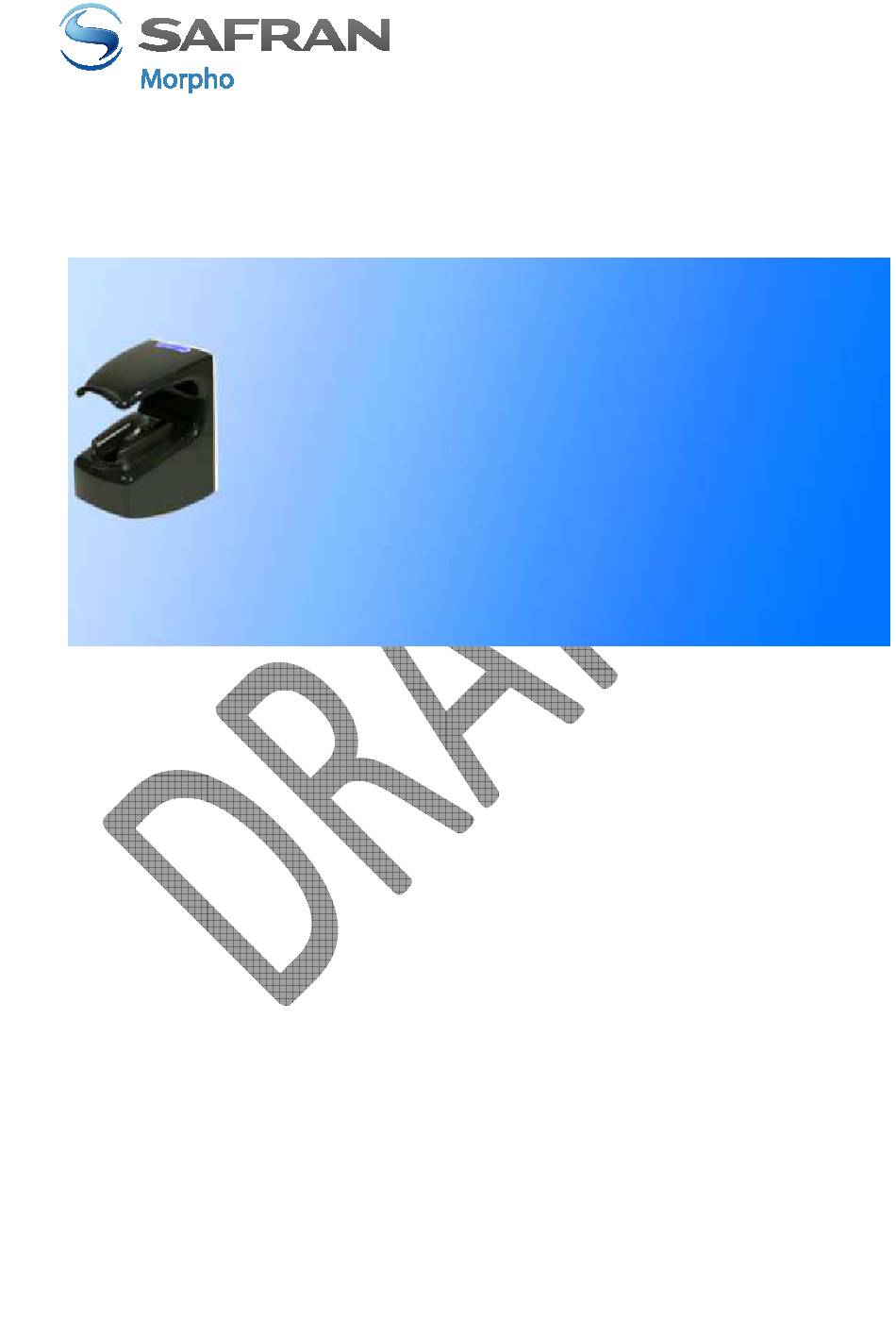

MorphoAccess® VP Series
Copyright© 2011 Morpho
Osny, France
MorphoAccess® VP Series - User Guide
SSE-0000082427-01
User Guide
January 2011

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MorphoAccess VP-Bio and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Safran MorphoAccess VP-Bio

Summary of Contents for Safran MorphoAccess VP-Bio

  • Page 1 MorphoAccess® VP Series User Guide Copyright© 2011 Morpho Osny, France MorphoAccess® VP Series - User Guide January 2011 SSE-0000082427-01...
  • Page 2 MorphoAccess® VP Series - User Guide Warning Warning Copyright 2002-2011Morpho, All rights reserved. Information in this document is subject to change without notice and does not represent a commitment on the part of Morpho. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying or recording, for any purpose without the express written permission of Morpho.
  • Page 3 MorphoAccess® VP Series - User Guide Revision History Revision History The table below contains the history of changes made to the present document. Version Date Description January 11 Creation of the present document SSE-0000082427-01 ORPHO DOCUMENT EPRODUCTION AND ISCLOSURE ROHIBITED January 2011...

  • Page 4: Table Of Contents

    MorphoAccess® VP Series - User Guide Table of contents < Table of contents Table of contents ..........................4 Table of figures ..........................6 Section 1: Introduction ........................7 MorphoAccess® VP Terminal ........................8 Scope of the document ........................... 9 Safety instructions..........................10 About Biometrics ...........................
  • Page 5 MorphoAccess® VP Series - User Guide <Table of contents Authentication process specified by User’s card ................... 69 Allowed format for User’s identifier ..................... 71 Section 8: Multi-factor mode......................76 Multi-factor mode ..........................77 Section 9: Proxy (or slave) Mode ....................79 Description ............................

  • Page 6: Table Of Figures

    MorphoAccess® VP Series - User Guide of figures Table Table of figures Figure 1: Minutiae are classified in two categories: ridge ending and bifurcation ........12 Figure 2: Vascular pattern image processing .................... 13 Figure 3: areas of interest ......................... 16 Figure 4: Cross section of the acquisition area ..................

  • Page 7: Section 1: Introduction

    MorphoAccess® VP Series - User Guide Section 1: Introduction Section 1: Introduction SSE-0000082427-01 ORPHO DOCUMENT EPRODUCTION AND ISCLOSURE ROHIBITED January 2011...

  • Page 8: Morphoaccess® Vp Terminal

    MorphoAccess® VP Series - User Guide Introduction Section 1: MorphoAccess® VP Terminal Congratulations for selecting the MorphoAccess® VP Series, first ever Physical Access Control terminals to integrate the state of the art multimodal technology combining finger vein and fingerprint biometrics. These terminals bring to access control systems the strong assets of the finger vein/fingerprint multimodality: •...

  • Page 9: Scope Of The Document

    MorphoAccess® VP Series - User Guide Section 1: Introduction Scope of the document This guide deals with the use of the MorphoAccess® VP Series, which is made up of following list of products. Contactless Smartcard Reader Multimodal MorphoAccess® VP Series Biometrics MIFARE™...

  • Page 10: Safety Instructions

    MorphoAccess® VP Series - User Guide Introduction Section 1: Safety instructions The installation of this product should be made by a qualified service Person and should comply with all local regulations. It is strongly recommended to use a class II power supply at 12V ±5% and 1A min according with Safety Electrical Low Voltage (SELV).
  • Page 11 MorphoAccess® VP Series - User Guide Section 1: Introduction interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna.

  • Page 12: About Biometrics

    MorphoAccess® VP Series - User Guide Introduction Section 1: About Biometrics About fingerprint biometrics Fingerprints are permanent and unique. They are formed before birth and last throughout one's life. Classification and systematic matching of fingerprints for different purposes have been in use since the late 19th century. Figure 1: Minutiae are classified in two categories: ridge ending and bifurcation Present on your fingers is skin, which is different from that on other areas of your body.

  • Page 13: Figure 2: Vascular Pattern Image Processing

    MorphoAccess® VP Series - User Guide Section 1: Introduction About finger vein biometrics Vascular pattern recognition is a relatively recent activity in the field of biometrics. The reason is that only recently has one been able to observe the vascular pattern of a living human being in a convenient, non-invasive way.
  • Page 14 MorphoAccess® VP Series - User Guide Introduction Section 1: Multimodality and its advantages Performances in terms of accuracy (characterized by the FRR @FAR ratio) remain one of the main challenges of the biometric industry. But once a biometric technology has reached maturity, time and efforts in research required to carry out improvements to the performances (e.g.
  • Page 15 MorphoAccess® VP Series - User Guide Section 1: Introduction • matching accuracy is increased, reducing the probability to reject genuine individuals and to accept impostors. Thanks to low False Reject Rates even for very demanding False Acceptance Rates (@ FAR=10 , multimodal FRR is ten times lower than the one of the best modality), MorphoAccess®...

  • Page 16: Acquisition Principles

    MorphoAccess® VP Series - User Guide Introduction Section 1: Acquisition principles Areas of interest As regards fingerprint, the area containing the most relevant biometric data is usually located in the centre of the first phalanx. As regards blood vessel pattern, the area of interest is usually located between the first and the third phalanxes.

  • Page 17: Figure 4: Cross Section Of The Acquisition Area

    MorphoAccess® VP Series - User Guide Section 1: Introduction The vein pattern imaging process requires finger’s second phalanx not to be in contact with the device. A finger root guide (3) has been designed to hold finger into a flat position in order to avoid any contact inside the vein imaging active area.
  • Page 18 MorphoAccess® VP Series - User Guide Introduction Section 1: Enrollment process The level of care taken during enrollment phase will impact all the next steps of the biometric recognition chain. So it is absolutely necessary to teach individuals how to use properly the device according to the rules stated below, in order to acquire the best image quality.

  • Page 19: Section 2: Morphoaccess® Vp Series Terminal Presentation

    MorphoAccess® VP Series - User Guide Section 2: MorphoAccess® VP Series terminal presentation Section 2: MorphoAccess® VP Series terminal presentation SSE-0000082427-01 ORPHO DOCUMENT EPRODUCTION AND ISCLOSURE ROHIBITED January 2011...

  • Page 20: Interfaces Description

    MorphoAccess® VP Series - User Guide MorphoAccess® VP Series terminal presentation Section 2: Interfaces description Introduction MorphoAccess® VP Series Installation Guide document describes precisely each interface and connection procedure. Note that all connections of the MorphoAccess® VP Series terminal described hereafter are of SELV (Safety Electrical Low Voltage) type.
  • Page 21 MorphoAccess® VP Series - User Guide Section 2: MorphoAccess® VP Series terminal presentation Power supply interface (see figure 7) The terminal can be powered by two different ways: • Either by the two wires block +12V DC/GND • Or by the Power Over Ethernet function, using the RJ45 connector, or the 5-wires block.

  • Page 22: Figure 7: Morphoaccess® Vp Series Terminal Rear View (Connectors)

    MorphoAccess® VP Series - User Guide MorphoAccess® VP Series terminal presentation Section 2: Figure 7: MorphoAccess® VP Series terminal rear view (connectors) SSE-0000082427-01 ORPHO DOCUMENT EPRODUCTION AND ISCLOSURE ROHIBITED January 2011...

  • Page 23: Figure 8: Morphoaccess® Vp Series Terminal Front View, Without Bottom Cover

    MorphoAccess® VP Series - User Guide Section 2: MorphoAccess® VP Series terminal presentation Figure 8: MorphoAccess® VP Series terminal front view, without bottom cover SSE-0000082427-01 ORPHO DOCUMENT EPRODUCTION AND ISCLOSURE ROHIBITED January 2011...
  • Page 24 MorphoAccess® VP Series - User Guide MorphoAccess® VP Series terminal presentation Section 2: Access control systems interface (see figure 8) The terminal provides several interfaces for an easy integration into a global access control system. Sending of a message at the end of local access control The terminal is able to send a message to a distant system when local checks are completed.

  • Page 25: Usb Port Usage

    MorphoAccess® VP Series - User Guide Section 2: MorphoAccess® VP Series terminal presentation USB port usage Plugging a USB Mass storage key The front USB port of the MorphoAccess® terminal is dedicated to the connection of a USB Mass Storage key, to configure the terminal with command scripts. This feature is described in the “Setting up IP parameters with a USB Mass Storage Key”...

  • Page 26: Figure 10: Morphoaccess® Vp Series Terminal Usb Port With A Wi-Fi™ Adapter

    MorphoAccess® VP Series - User Guide MorphoAccess® VP Series terminal presentation Section 2: Plugging a USB Wi-Fi™ adapter The front USB port of the MorphoAccess® VP Series terminal is dedicated to the connection of a Wi-Fi™ USB adapter. The bottom cover must be removed to allow the access to the USB port. Figure 10: MorphoAccess®...

  • Page 27: Section 3: Connecting A Morphoaccess® To A Pc

    MorphoAccess® VP Series - User Guide Section 3: Connecting a MorphoAccess® to a PC Section 3: Connecting a MorphoAccess® to a PC SSE-0000082427-01 ORPHO DOCUMENT EPRODUCTION AND ISCLOSURE ROHIBITED January 2011...

  • Page 28: Introduction

    MorphoAccess® VP Series - User Guide Connecting a MorphoAccess® to a PC Section 3: Introduction Why connecting a MorphoAccess® terminal to a PC The MorphoAccess® VP Series terminal is designed to be able to run in standalone mode, it means without any connection to a master system. But sometimes, a connection with a PC is useful to perform tasks like: •...

  • Page 29: Point To Point Ethernet Connection

    MorphoAccess® VP Series - User Guide Section 3: Connecting a MorphoAccess® to a PC Point to Point Ethernet Connection The MorphoAccess® terminal can be connected directly to a PC by an Ethernet cable. But there are some limits: • if the PC Ethernet port doesn’t support the Auto-MDIX feature, then a crossover Ethernet cable is mandatory.

  • Page 30: Connection Through Only One Ethernet Switch

    MorphoAccess® VP Series - User Guide Connecting a MorphoAccess® to a PC Section 3: Connection through only one Ethernet switch The MorphoAccess® terminal can be connected to a PC through an Ethernet switch. This is useful when no crossover cable is available, but instead, one Ethernet switch and two Ethernet standard cables are available.

  • Page 31: Connection Through A Lan

    MorphoAccess® VP Series - User Guide Section 3: Connecting a MorphoAccess® to a PC Connection through a LAN Description The MorphoAccess® terminal can be connected to a PC through a Local Area Network (LAN). The MorphoAccess® terminal required for a connection is specified by its IP address or by its host name, if it can be added to the DNS Server database.
  • Page 32 MorphoAccess® VP Series - User Guide Connecting a MorphoAccess® to a PC Section 3: LAN without DNS Server This section is about LAN without DNS Server, or with DNS Server but the MorphoAccess® terminal host name cannot be added to the DNS Server base. In that case the PC is not able to establish a connection with a MorphoAccess®...

  • Page 33: Setting Up Ip Parameters With A Usb Mass Storage Key

    MorphoAccess® VP Series - User Guide Section 3: Connecting a MorphoAccess® to a PC Setting up IP parameters with a USB Mass Storage Key The IP configuration parameters can be set by using a USB mass storage key. No wired connection with a PC is required. This operation requires a standard USB Mass Storage key (FAT16 or FAT32 formatted, and 8 Gbyte maximum), and a dedicated PC application: USB Network Configuration...

  • Page 34: Figure 15: Build A Setting File On A Usb Mass Storage Key

    MorphoAccess® VP Series MorphoAccess® VP Series - User Guide Connecting a MorphoAccess® to a PC Connecting a MorphoAccess® to a PC Section 3: First select either DHCP mode select either DHCP mode (IP address allocated dynamically), or s (IP address allocated dynamically), or static mode (static IP address).

  • Page 35: Wi-Fi™ Network Configuration

    MorphoAccess® VP Series - User Guide Section 3: Connecting a MorphoAccess® to a PC Wi-Fi™ Network configuration Requirements Wi-Fi™ connection is available under the following mandatory conditions: • a Morpho Wi-Fi™ USB adapter must be plugged in the front USB port of the terminal (the bottom cover must be removed to give access to this port).

  • Page 36: Section 4: Morphoaccess® Terminal Configuration

    MorphoAccess® VP Series - User Guide MorphoAccess® Terminal Configuration Section 4: Section 4: MorphoAccess® Terminal Configuration SSE-0000082427-01 ORPHO DOCUMENT EPRODUCTION AND ISCLOSURE ROHIBITED January 2011...

  • Page 37: Morphoaccess® Configuration Parameters

    MorphoAccess® VP Series - User Guide Section 4: MorphoAccess® Terminal Configuration MorphoAccess® configuration parameters Presentation The name and the value of the MorphoAccess® terminal parameters (also named "configuration keys") are located into different files composed of several sections, to group configuration keys by affinity. For example a file named "app.cfg"...

  • Page 38: Configuring A Connected Morphoaccess® Terminal

    MorphoAccess® VP Series - User Guide MorphoAccess® Terminal Configuration Section 4: Configuring a connected MorphoAccess® terminal Introduction A MorphoAccess® terminal can be managed by a PC connected to the terminal, using an application such as MEMS, Configuration Tool, MATM, or MorphoEnroll. The remote operations available are mainly: •...

  • Page 39: Figure 18: Morphoaccess® Configuration Tool Main Window

    MorphoAccess® VP Series - User Guide Section 4: MorphoAccess® Terminal Configuration Configuration Tool PC application The Configuration Tool application is able to read and modify any MorphoAccess® terminal parameter. Figure 18: MorphoAccess® configuration tool main window Please refer to MorphoAccess® Configuration Tool User Guide document for further information about this PC application.
  • Page 40 MorphoAccess® VP Series - User Guide MorphoAccess® Terminal Configuration Section 4: SSL securing The TCP link used for remote management can be secured using SSL protocol. Please refer to SSL Solution for MorphoAccess® document for further details. SSE-0000082427-01 ORPHO DOCUMENT EPRODUCTION AND ISCLOSURE ROHIBITED...

  • Page 41: Upgrading The Firmware

    MorphoAccess® VP Series - User Guide Section 4: MorphoAccess® Terminal Configuration Upgrading the firmware When required, the MorphoAccess® terminal firmware can be upgraded from a PC, through an IP link (either Ethernet or Wi-Fi™) or using a USB mass storage key. The last MorphoAccess®...

  • Page 42: Morphoaccess® Terminal Database Management

    MorphoAccess® VP Series - User Guide MorphoAccess® Terminal Configuration Section 4: MorphoAccess® terminal database management Introduction The management of the MorphoAccess® terminal internal biometric database can be done remotely by an Enrolment Station, typically with a PC with MorphoEnroll application, or with MEMS application, or with an application developed with ActivMaci library.

  • Page 43: Morphoaccess® Terminal License Management

    MorphoAccess® VP Series - User Guide Section 4: MorphoAccess® Terminal Configuration MorphoAccess® terminal license management Definition of a license A license unlocks the additional features of the MorphoAccess® terminal. The MorphoAccess® VP Series terminal supports two licenses: • MA 10K USERS, •...
  • Page 44 MorphoAccess® VP Series - User Guide MorphoAccess® Terminal Configuration Section 4: Please refer to document MorphoAccess® Terminal License Management for more information). SSE-0000082427-01 ORPHO DOCUMENT EPRODUCTION AND ISCLOSURE ROHIBITED January 2011...

  • Page 45: Section 5: Access Control

    MorphoAccess® VP Series - User Guide Section 5: Access Control Section 5: Access Control SSE-0000082427-01 ORPHO DOCUMENT EPRODUCTION AND ISCLOSURE ROHIBITED January 2011...

  • Page 46: Access Control Presentation

    MorphoAccess® VP Series - User Guide Access Control Section 5: Access control presentation Typical architecture of an access control system Typical access control system architecture includes: • one MorphoAccess® terminal per area to protect • an Enrollment Station dedicated to user enrollment, and database synchronization with all MorphoAccess®...
  • Page 47 MorphoAccess® VP Series - User Guide Section 5: Access Control Typical access control process 1. All allowed user must be enrolled by the enrolment station. It means that the enrolment station creates a record for each allowed user. This record includes the biometric data of two of the user’s fingers.

  • Page 48: Morphoaccess® Terminal Operating Modes

    MorphoAccess® VP Series - User Guide Access Control Section 5: MorphoAccess® terminal operating modes Standalone mode or Slave mode The MorphoAccess® terminal supports two exclusive operating modes: • The Standalone Mode: the MorphoAccess® terminal manages the access control alone, or with the help of a central access controller. •...

  • Page 49: Figure 20: Recognition Mode Synthesis

    MorphoAccess® VP Series - User Guide Section 5: Access Control How to select the standalone access control process The chart below describes the different processes available and the related configuration keys. Figure 20: Recognition mode synthesis Identification and one authentication processes can be activated at the same time, as described in Section 8: Multi-factor mode section.

  • Page 50: Access Control Result

    MorphoAccess® VP Series - User Guide Access Control Section 5: Access control result Information for the user The MorphoAccess® terminal communicates the result to the user, by a local audible and visible signal. These signals are described in the Section 11 Man Machine Interface section.

  • Page 51: Figure 21: Access Control Result = Access Granted

    MorphoAccess® VP Series - User Guide Section 5: Access Control Access granted Figure 21: Access control result = access granted Access denied Figure 22: Access control result = Access denied SSE-0000082427-01 ORPHO DOCUMENT EPRODUCTION AND ISCLOSURE ROHIBITED January 2011...

  • Page 52: Section 6: Access Control By Identification

    MorphoAccess® VP Series - User Guide Access Control by Identification Section 6: Section 6: Access Control by Identification SSE-0000082427-01 ORPHO DOCUMENT EPRODUCTION AND ISCLOSURE ROHIBITED January 2011...

  • Page 53: Identification Mode Description

    MorphoAccess® VP Series - User Guide Section 6: Access Control by Identification Identification mode description Identification process The identification process consists in retrieving the identity of an unknown person, by comparison of a personal data with a base which contains the same type of personal data of known persons.
  • Page 54 MorphoAccess® VP Series - User Guide Access Control by Identification Section 6: Compatibility with Access Control Systems When the identification mode is activated, the MorphoAccess® terminal supports the optional features listed below: • Internal relay activation when the access is granted, as described in Internal Relay activation on Access Granted result section...

  • Page 55: Figure 23: Identification Mode

    MorphoAccess® VP Series - User Guide Section 6: Access Control by Identification User Interface In this mode, the MorphoAccess® terminal waits for the placement of a finger on the biometric sensor. This state is displayed to the user by a specific signal, as described in Terminal states section.

  • Page 56: Section 7: Access Control By Authentication

    MorphoAccess® VP Series - User Guide Access control by Authentication Section 7: Section 7: Access control by Authentication SSE-0000082427-01 ORPHO DOCUMENT EPRODUCTION AND ISCLOSURE ROHIBITED January 2011...

  • Page 57: Authentication Process

    MorphoAccess® VP Series - User Guide Section 7: Access control by Authentication Authentication process Introduction The MorphoAccess® terminal offers an authentication mode designed to works with contactless smart cards used as personal cards. Then this section relates to only MorphoAccess® terminals equipped with a contactless smartcard reader (see section Scope of the document).
  • Page 58 MorphoAccess® VP Series - User Guide Access control by Authentication Section 7: When it is required, the biometric check compares the biometric data of the finger placed on the sensor with the reference biometric data of two fingers of the user, acquired during enrollment process.
  • Page 59 MorphoAccess® VP Series - User Guide Section 7: Access control by Authentication Manual bypass of biometric control The default configuration of authentication mode requires a biometric control. But the biometric check can be disabled by the MorphoAccess® terminal administrator. When this is done, the MorphoAccess®...
  • Page 60 MorphoAccess® VP Series - User Guide Access control by Authentication Section 7: Selection of user’s contactless card type (MIFARE™ or DESFire™) Contactless Card type As MorphoAccess® terminals are equipped with a contactless smartcard reader compatible with MIFARE™ and DESFire™ cards (see section Scope of the document), it is possible to specify the type of card to be supported by the terminal: •...

  • Page 61: Biometric Check, Biometric Data On User's Card

    MorphoAccess® VP Series - User Guide Section 7: Access control by Authentication Biometric check, biometric data on user’s card Description In this mode, each user's card contains an identifier and the biometric data of two different fingers of the user. The terminal compares the biometric data of the finger placed on the biometric sensor, with the biometric data found on the user’s card.

  • Page 62: Figure 25: Authentication With User's Fingerprints On Contactless Card

    MorphoAccess® VP Series - User Guide Access control by Authentication Section 7: User interface The authentication process starts when the user presents his contactless card in front of the terminal. If the terminal found the required data on the user’s card, then the user is invited to place his finger on the biometric sensor, for biometric authentication.

  • Page 63: Biometric Check, Biometric Data In Local Database

    MorphoAccess® VP Series - User Guide Section 7: Access control by Authentication Biometric check, biometric data in local database Description In this mode, each user's card contains only an identifier. The biometric data of two different fingers of the user are stored in the internal database, with the same user’s identifier as the one on the user’s card.

  • Page 64: Figure 26: Authentication With Biometric Check And Database

    MorphoAccess® VP Series - User Guide Access control by Authentication Section 7: User Interface The authentication process starts when the user presents his contactless card in front of the terminal. If the terminal found the required data on the user’s card (the user’s identifier), it search for the user’s record, in the internal database.

  • Page 65: No Biometric Check, No User Id Check

    MorphoAccess® VP Series - User Guide Section 7: Access control by Authentication No biometric check, no user id check Description This authentication mode is the version of the “Biometric check, biometric data on user’s card authentication mode with biometric check disabled. The terminal searched only for the user’s identifier on the user’s card.

  • Page 66: Figure 27: Authentication Without Biometric Check, And Without User Id Check

    MorphoAccess® VP Series - User Guide Access control by Authentication Section 7: User Interface The authentication process starts when the user presents his contactless card in front of the terminal. Figure 27: Authentication without biometric check, and without User ID check The authentication process succeeds if the user’s identifier is found.

  • Page 67: No Biometric Check, But User Id Check

    MorphoAccess® VP Series - User Guide Section 7: Access control by Authentication No biometric check, but User ID check Description This authentication mode is the version of the “Biometric check, biometric data in local database” authentication mode, when biometric check is disabled. The user’s identifier is the only data read on user’s card.

  • Page 68: Figure 28: Authentication Without Biometric Check, And Without User Id Check

    MorphoAccess® VP Series - User Guide Access control by Authentication Section 7: User Interface The authentication process starts when the user presents his contactless card in front of the terminal. Figure 28: Authentication without biometric check, and without User ID check The user’s identifier is read on the user’s card and searched in the local database.

  • Page 69: Authentication Process Specified By User's Card

    MorphoAccess® VP Series - User Guide Section 7: Access control by Authentication Authentication process specified by User’s card Description When this mode is enabled, the access rights check to perform is specified by a dedicated data on user’s card. It means that the same terminal can execute a different process according to a data found on the user’s card: •...

  • Page 70: Figure 29: Authentication Process Specified By User's Card

    MorphoAccess® VP Series - User Guide Access control by Authentication Section 7: User Interface Start The authentication process starts when the user presents his contactless card in front of the MorphoAccess® terminal. The terminal searches on the user’s card, for the data that indicates if the biometric check is mandatory or disabled.

  • Page 71: Allowed Format For User's Identifier

    MorphoAccess® VP Series - User Guide Section 7: Access control by Authentication Allowed format for User’s identifier TLV structured data The user’s identifier is stored in ASCII within a TLV structure. User’s identifier stored in TLV format app/contactless/data format = 0 TLV structure app/contactless/data length=0.0 Automatic size...
  • Page 72 MorphoAccess® VP Series - User Guide Access control by Authentication Section 7: ISO14443 type A UID Description The MorphoAccess® terminal is able to use the ISO 14443 type A Card UID, as user’s identifier. This Card UID is available from any MIFARE™ cards and from any DESFire™ cards.
  • Page 73 MorphoAccess® VP Series - User Guide Section 7: Access control by Authentication Binary data Description The MorphoAccess® terminal is able to use as user’s identified, a binary value to read on specific location on user’s card. This binary value could be the serial number of the card, as explained in the Example: MIFARE™...

  • Page 74: Figure 30 : Sample Of User's Identifier Which Is Included In A Wiegand Frame

    MorphoAccess® VP Series MorphoAccess® VP Series - User Guide Access control by Authentication Access control by Authentication Section 7: bytes].[additional bits] bytes].[additional bits] identifier (15 bytes maximum) identifier (15 bytes maximum) app/contactless/data type app/contactless/data type Byte read acquisition acquisition method: either little or big endian.
  • Page 75 MorphoAccess® VP Series - User Guide Section 7: Access control by Authentication app/contactless/data length = 4.0 Size = 4 bytes app/contactless/data offset = 0.4 User’s identifier begins at bit 4 of the first byte of the block specified below app/contactless/B = 46 Read at block #46 (first block of sector #15) It is possible to configure the MorphoAccess®...

  • Page 76: Section 8: Multi-Factor Mode

    MorphoAccess® VP Series - User Guide Multi-factor mode Section 8: Section 8: Multi-factor mode SSE-0000082427-01 ORPHO DOCUMENT EPRODUCTION AND ISCLOSURE ROHIBITED January 2011...

  • Page 77: Multi-Factor Mode

    MorphoAccess® VP Series - User Guide Section 8: Multi-factor mode Multi-factor mode Description When the identification mode and one of the contactless card authentication modes are activated, then the terminal is in “multi-factor” mode. User Interface It means that the user is allowed to choose the access right control to be processed by the terminal: •...
  • Page 78 MorphoAccess® VP Series - User Guide Multi-factor mode Section 8: Activation of multi-factor mode app/bio ctrl/identification =1 Enabled app/bio ctrl/authent card mode = 1 Enabled app/bio ctrl/authent ID contactless = 1 Enabled app/bio ctrl/authent PK contactless = 1 Enabled SSE-0000082427-01 ORPHO DOCUMENT EPRODUCTION AND ISCLOSURE...

  • Page 79: Section 9: Proxy (Or Slave) Mode

    MorphoAccess® VP Series - User Guide Section 9: Proxy (or slave) Mode Section 9: Proxy (or slave) Mode SSE-0000082427-01 ORPHO DOCUMENT EPRODUCTION AND ISCLOSURE ROHIBITED January 2011...

  • Page 80: Description

    MorphoAccess® VP Series - User Guide Proxy (or slave) Mode Section 9: Description Scope The Proxy mode is an operating mode where the access control main application is located in a distant system. This is not a standalone mode like Identification and Authentication modes.

  • Page 81: Figure 33: Proxy Sample With A Remote Identification Process

    MorphoAccess® VP Series - User Guide Section 9: Proxy (or slave) Mode Local signals When the terminal is waiting for a command from the distant system, there is none local signal: the status LED is off, the sensor backlight is off, the buzzer is off. But when a command is in progress the terminal emits the signals related to the function.
  • Page 82 MorphoAccess® VP Series - User Guide Proxy (or slave) Mode Section 9: Proxy mode activation The proxy mode is automatically enabled when the identification mode and all authentication modes are disabled. Proxy mode (all local standalone access control application are inhibited) app/bio ctrl/identification = 0 Disabled app/bio ctrl/authent card mode = 0...

  • Page 83: Section 10: Morphoaccess® Terminal Customization

    MorphoAccess® VP Series - User Guide Section 10: MorphoAccess® Terminal Customization Section 10: MorphoAccess® Terminal Customization SSE-0000082427-01 ORPHO DOCUMENT EPRODUCTION AND ISCLOSURE ROHIBITED January 2011...

  • Page 84: Number Of Biometric Check Attempts

    MorphoAccess® VP Series - User Guide MorphoAccess® Terminal Customization Section 10: Number of biometric check attempts Description In order to reduce the False Rejection Rare, the terminal allows the user to place again his finger on the sensor for a 2 try, when the initial biometric check fails.

  • Page 85: Setting Up Matching Threshold

    MorphoAccess® VP Series - User Guide Section 10: MorphoAccess® Terminal Customization Setting up matching threshold Description The performances of a biometric system are mainly characterized by two values: • The False Reject Ratio (FRR) : number of wrongly rejected allowed users, divided by the number of access requests •...
  • Page 86 MorphoAccess® VP Series - User Guide MorphoAccess® Terminal Customization Section 10: Matching threshold values are detailed in the table below: Value FAR value Lowest threshold value: the number of false rejects is very low, but the number of false acceptances is too high for a secure usage. It is strongly advised to don’t use this value, because the terminal becomes too tolerant.

  • Page 87: Anti-Tamper And Anti-Pulling Switches

    MorphoAccess® VP Series - User Guide Section 10: MorphoAccess® Terminal Customization Anti-tamper and anti-pulling switches Description The MorphoAccess® VP Series terminal is able to detect two kinds of unusual events: • the front glass is removed, by monitoring anti-tamper switches •...
  • Page 88 MorphoAccess® VP Series - User Guide MorphoAccess® Terminal Customization Section 10: Please refer to the MorphoAccess® VP Series Installation Guide for more information about the anti-tamper and the anti-pulling switches. Configuration keys The action(s) to be performed by the MorphoAccess® terminal is defined by a unique dedicated configuration key.
  • Page 89 MorphoAccess® VP Series - User Guide Section 10: MorphoAccess® Terminal Customization Example 1: send alarm message in Wiegand, and output local alarm signal In case of anti-tamper or anti-pulling detection, the terminal must: • Send an alarm message to a distant system, using Wiegand protocol. The identifier (error code) of the alarm message is 62221.

  • Page 90: Multimodal Security Level

    MorphoAccess® VP Series - User Guide MorphoAccess® Terminal Customization Section 10: Multimodal Security level Description The MorphoAccess® VP Series terminals allow to select the security level of the multimodal biometrics. Configuration key The multimodal biometrics security level is selected by only one configuration key. Multimodal biometrics security level app/bio ctrl/security level = 0 Standard security level (default value)

  • Page 91: Section 11: Compatibility With An Access Control System

    MorphoAccess® VP Series - User Guide Section 11: Compatibility with an Access Control System Section 11: Compatibility with an Access Control System SSE-0000082427-01 ORPHO DOCUMENT EPRODUCTION AND ISCLOSURE ROHIBITED January 2011...

  • Page 92: Internal Relay Activation On Access Granted Result

    MorphoAccess® VP Series - User Guide Compatibility with an Access Control System Section 11: Internal Relay activation on Access Granted result Description If the result of the access rights check is successful, the internal relay may be optionally activated, for example, to directly trigger a door switch. The duration of the activation of the internal relay can be modified by a specific configuration key.
  • Page 93 MorphoAccess® VP Series - User Guide Section 11: Compatibility with an Access Control System The default state of the relay can also be defined. Relay default state app/relay/relay default state = 0 Open (default) app/relay/relay default state =1 Close SSE-0000082427-01 ORPHO DOCUMENT EPRODUCTION AND ISCLOSURE...

  • Page 94: Internal Relay Activation By External Button

    MorphoAccess® VP Series - User Guide Compatibility with an Access Control System Section 11: Internal Relay activation by external button Description This feature enables to activate the internal relay of the MorphoAccess® terminal using the LED1 signal input, in addition to normal activation on access granted result. It means either a successful recognition or a signal on LED1 activate the internal relay.

  • Page 95: Access Request Result Log File

    MorphoAccess® VP Series - User Guide Section 11: Compatibility with an Access Control System Access request result log file Description When enabled, the terminal creates a record for each access request in a local log file. Each record includes: • the date and the time of record creation (when access control result is known), •...
  • Page 96 MorphoAccess® VP Series - User Guide Compatibility with an Access Control System Section 11: Activation key The creation of a record for each access request is enabled (and disabled), by only one configuration key. Enabling recording of all access request results in the internal log file app/log file/enabled = 1 Enabled app/log file/enabled = 0...

  • Page 97: Sending The Access Control Result To A Distant System

    MorphoAccess® VP Series - User Guide Section 11: Compatibility with an Access Control System Sending the access control result to a distant system Presentation After access control rights check, the MorphoAccess® terminal can send a message which contains the result of the control, to a distant device (such as a Central Security Controller).
  • Page 98 MorphoAccess® VP Series - User Guide Compatibility with an Access Control System Section 11: Wiegand protocol The Wiegand frame includes only the user identifier (which must be a numeric value). By default, the access control result message is sent only when the user is identified or authenticated.
  • Page 99 MorphoAccess® VP Series - User Guide Section 11: Compatibility with an Access Control System Ethernet port Protocol selection The protocol used to send the message through the Ethernet link, must be only one of these protocols: UDP or TCP or SSL. UDP protocol Same comment as for RS485 protocol.
  • Page 100 MorphoAccess® VP Series - User Guide Compatibility with an Access Control System Section 11: Note about terminal clock deviation The message send through IP and RS485 includes the date/time of access control result. The terminal clock has a +/- 4 sec per day typical time deviation at +25°C. At 50°C, the time deviation may be up to -8 sec per day.

  • Page 101: Led In Feature

    MorphoAccess® VP Series - User Guide Section 11: Compatibility with an Access Control System LED IN feature Description When this feature is activated, the terminal waits for an answer from a distant system, before granting the access. If no answer is received the access is denied even of the biometric check is positive.
  • Page 102 MorphoAccess® VP Series - User Guide Compatibility with an Access Control System Section 11: Then to reduce the user wait time, the value of the wait time for GND1/GND2 signal must be defined to value a little bit greater than maximum controller answer delay. Using LED1 and LED2 signals When the controller provides a relay contact for each possible answer, then: •...

  • Page 103: Time Mask Feature

    MorphoAccess® VP Series - User Guide Section 11: Compatibility with an Access Control System Time mask feature Description The MorphoAccess® terminal provides a feature that enables to deny the access to a normally authorized user, on the base of time of access request. One typical application is to allow the access during regular working hours, and to deny the access to the same user during closed hours (night, week end).

  • Page 104: Section 12 Morphoaccess® Vp Series Terminal Sound And Light Interface

    MorphoAccess® VP Series - User Guide ® VP Series terminal sound and light Interface Section 12 MorphoAccess Section 12 MorphoAccess® VP Series terminal sound and light Interface SSE-0000082427-01 ORPHO DOCUMENT EPRODUCTION AND ISCLOSURE ROHIBITED January 2011...

  • Page 105: Light And Sound Signals

    MorphoAccess® VP Series - User Guide Section 12 MorphoAccess® VP Series terminal sound and light Interface Light and sound signals Light signal description Intermittent "Pulse": 1 second OFF and 0.5 second ON Sample Intermittent blue "Pulse" Fast intermittent "Pulse": 0.5 second OFF and 0.5 second ON. Sample Fast Intermittent yellow "Pulse"...
  • Page 106 MorphoAccess® VP Series - User Guide ® VP Series terminal sound and light Interface Section 12 MorphoAccess Signals table Terminal status Status Biometric Status LED Buzzer Sensor Waiting for a finger Waiting for a badge BLUE Waiting for a finger or a card BLUE Bad finger placement Intermittent...
  • Page 107 MorphoAccess® VP Series - User Guide Section 12 MorphoAccess® VP Series terminal sound and light Interface Terminal states Identification or Authentication - Waiting for a finger on the sensor The identification mode is activated, and the MorphoAccess® terminal is waiting for the placement of a finger on the biometric sensor.
  • Page 108 MorphoAccess® VP Series - User Guide ® VP Series terminal sound and light Interface Section 12 MorphoAccess Multi-factor mode - waiting for user’s finger or user’s card The identification mode, and one of the authentication modes are activated, and the MorphoAccess®...
  • Page 109 MorphoAccess® VP Series - User Guide Section 12 MorphoAccess® VP Series terminal sound and light Interface Proxy mode - waiting for distant system command When the proxy mode is enabled and when the terminal is expecting for a command from the distant system, there is no local signal Biometric Sensor backlight...
  • Page 110 MorphoAccess® VP Series - User Guide ® VP Series terminal sound and light Interface Section 12 MorphoAccess Maintenance: Biometric Sensor firmware update This signal is emitted when the biometric Sensor firmware update is in progress. This update occurs only at first start up of the terminal after a terminal firmware update. Biometric Sensor backlight...

  • Page 111: The User Is Recognized And The Access Is Allowed

    MorphoAccess® VP Series - User Guide Section 12 MorphoAccess® VP Series terminal sound and light Interface Access request result Identification or Authentication - Access granted The user is recognized and the access is allowed. Biometric Sensor Not significant backlight Status LED Green 1s flash 1 second high –...
  • Page 112 MorphoAccess® VP Series - User Guide ® VP Series terminal sound and light Interface Section 12 MorphoAccess Finger removed too earlier The terminal emits this signal if the finger is removed too earlier, while the finger biometric data acquisition is in progress. Biometric Sensor backlight...

  • Page 113: Section 13: Compatible Accessories, Software Licenses And Software Applications

    MorphoAccess® VP Series - User Guide Section 13: Compatible Accessories, Software Licenses and Software Applications Section 13: Compatible Accessories, Software Licenses and Software Applications SSE-0000082427-01 ORPHO DOCUMENT EPRODUCTION AND ISCLOSURE ROHIBITED January 2011...

  • Page 114: Compatible Accessories & Software Licenses

    MorphoAccess® VP Series - User Guide Compatible Accessories, Software Licenses and Software Applications Section 13: Compatible accessories & software licenses The following items can be ordered directly toMorpho or official distributor, so as to enjoy all the features of your MorphoAccess® VP Series terminal: •...

  • Page 115: Compatible Software Applications

    MorphoAccess® VP Series - User Guide Section 13: Compatible Accessories, Software Licenses and Software Applications Compatible software applications MorphoAccess® VP Series terminals are fully compatible with: • MorphoAccess® Enrolment & Management System (MEMS) application • Morpho Integrator’s Kit (MIK) software development kit •...

  • Page 116: Appendix 1: Finger Placement Rules

    MorphoAccess® VP Series - User Guide Finger placement rules Appendix 1: Appendix 1: Finger placement rules SSE-0000082427-01 ORPHO DOCUMENT EPRODUCTION AND ISCLOSURE ROHIBITED January 2011...

  • Page 117: Finger Placement Recommendations

    MorphoAccess® VP Series - User Guide Appendix 1: Finger placement rules Finger placement recommendations SSE-0000082427-01 ORPHO DOCUMENT EPRODUCTION AND ISCLOSURE ROHIBITED January 2011...
  • Page 118 MorphoAccess® VP Series - User Guide Finger placement rules Appendix 1: To ensure a good acquisition quality, please leave the finger on the biometric sensor until the backlight is turned off. Finger condition The following recommendations regarding finger condition will also help to get optimal quality at acquisition: •...

  • Page 119: Appendix 2: Bibliography

    MorphoAccess® VP Series - User Guide Appendix 2: Bibliography Appendix 2: Bibliography SSE-0000082427-01 ORPHO DOCUMENT EPRODUCTION AND ISCLOSURE ROHIBITED January 2011...

  • Page 120: Morphoaccess® Terminal Bibliography

    MorphoAccess® VP Series - User Guide Bibliography Appendix 2: MorphoAccess® terminal bibliography How to get latest version of the documents The last version of the documents below is available on a CD/ROM package from our factory, or downloadable on our web site at the address below: www.biometric-terminals.com (Login and password required).
  • Page 121 MorphoAccess® VP Series - User Guide Appendix 2: Bibliography MorphoAccess® Remote Messages Specifications, ref. SSE-0000062580 Details how the MorphoAccess® terminal sends the access control result to a distant system. MorphoAccess® Contactless Card Specification, ref. SSE-0000062610 This document describes the format and the localization on contactless card, of the data required by the authentication modes of the MorphoAccess®...

  • Page 122: Appendix 3: Support

    MorphoAccess® VP Series - User Guide Support Appendix 3: Appendix 3: Support SSE-0000082427-01 ORPHO DOCUMENT EPRODUCTION AND ISCLOSURE ROHIBITED January 2011...

  • Page 123: Troubleshooting

    MorphoAccess® VP Series - User Guide Appendix 3: Support Troubleshooting Terminal IP address is unknown or terminal is not reachable Use USB Network Tool to set a valid network address in your terminal. Refer to USB Network Tool User Guide. Biometric Sensor backlight is off Verify that the base contents at least one record.

  • Page 124: Customer Service

    MorphoAccess® VP Series - User Guide Support Appendix 3: Customer service Repair center Morpho SAV Terminaux Biométriques Boulevard Lénine BP428 76805 Saint Etienne du Rouvray FRANCE Phone: +33 2 35 64 53 52 Hotline and customer assistance Morpho Support Terminaux Biométriques 18, Chaussée Jules César 95520 OSNY FRANCE...
