- Page 1 4-179-821-01 (1) Camera Adaptor Instructions for Use Before operating the unit, please read this manual thoroughly and retain it for future reference. CMA-D2MDCE © 2010 Sony Corporation...
- Page 2 To avoid electrical shock, do not (controlled EMC environment, ex. TV open the cabinet. Refer servicing to qualified personnel only. studio). For the customers in Europe The manufacturer of this product is Sony WARNING Corporation, 1-7-1 Konan, Minato-ku, THIS APPARATUS MUST BE EARTHED. Tokyo, Japan.
- Page 3 This unit can not be used in the patient environment. * Patient Environment. 3. Do not touch the patient simultaneously while you are contacting with this equipment. 4. For this particular equipment, all accessory equipment connected as noted above, must be connected to mains via an additional isolation transformer conforming with the construction requirements of IEC60601-1 and...
- Page 4 Important EMC notices for use in the medical environments • The CMA-D2MDCE needs special precautions regarding EMC and needs to be installed and put into service according to the EMC information provided in this instructions for use. • The portable and mobile RF...
- Page 5 Guidance and manufacturer’s declaration-electromagnetic emissions The CMA-D2MDCE is intended for use in the electromagnetic environment specified below. The customer or the user of the CMA-D2MDCE should assure that it is used in such an environment. Emission test Compliance Electromagnetic environment-guidance...
- Page 6 Guidance and manufacturer’s declaration - electromagnetic immunity The CMA-D2MDCE is intended for use in the electromagnetic environment specified below. The customer or the user of the CMA-D2MDCE should assure that it is used in such as environment. Immunity test IEC 60601 test...
- Page 7 Guidance and manufacturer’s declaration - electromagnetic immunity The CMA-D2MDCE is intended for use in the electromagnetic environment specified below. The customer or the user of the CMA-D2MDCE should assure that it is used in such as environment. Immunity test IEC 60601 test...
- Page 8 CMA-D2MDCE The CMA-D2MDCE is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the CMA-D2MDCE can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (Transmitters) and the CMA-D2MDCE as recommended below, according to the maximum output power of the communications equipment.
- Page 9 If you lose the CD-ROM disc or you cannot read it for some reason, you can purchase a Manual new CD-ROM disc. Contact your nearest Sony dealer. The supplied CD-ROM includes manuals for this imager (in English, French, German, Italian, Spanish, Dutch, Portuguese, Danish,...
-
Page 10: Table Of Contents
Before operating the unit, please read this Table of Contents manual thoroughly and retain it for future reference. About this manual Overview ..........11 This manual applies to CMA-D2MDCE. Precautions on Use ......12 Safety Precautions ......12 Signal system Handling Precautions ....12 CMA-D2MDCE CCIR standards, PAL Location and Function of Parts ..13... -
Page 11: Overview
Overview The CMA-D2MDCE camera adaptor is designed to be used with the Sony video cameras. Video monitor CMA-D2MDCE Video signal DC power, sync signal and video Video camera signal Video Video monitor CMA-D2MDCE signal DC power, sync signal and video... -
Page 12: Precautions On Use
In case of malfunctions If you notice any unusual sound, smell or smoke, turn off the power immediately, disconnect the power supply and contact your Sony dealer. Handling Precautions Location Do not store or use the unit under any of the following conditions. -
Page 13: Location And Function Of Parts

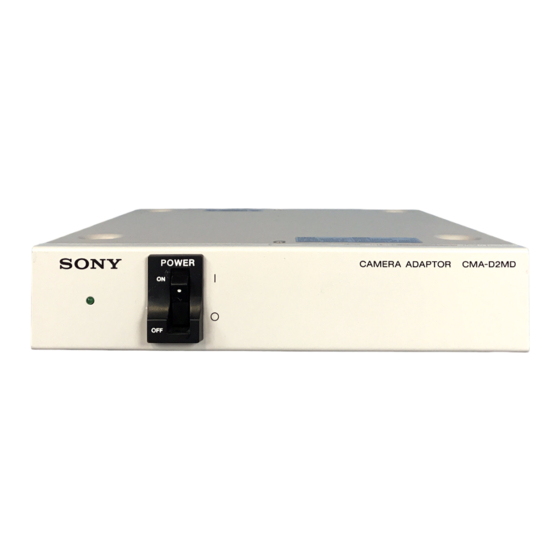

Location and Function of Parts Front panel Connector panel Location and Function of Parts... - Page 14 7 MODE switch Front panel In most cases, set the switch to the upper position “1”. 1 POWER indicator You may have to set the switch to the Lights when you set the POWER switch lower position “2” depending on the "...
-
Page 15: Connections
Connections General About applicable cameras You can connect the Sony video cameras to the unit. Usable camera cable The following two camera cables can be used to connect the unit to a video camera. • CCXC-12P02N/05N/10N/25N (12-pin connectors) • CCDC-5/10/25/50A/100A (12-pin and 4-... -
Page 16: Connection Examples
When supplying DC power and inputting the sync signal Video monitor, VTR Composite video Y/C separated output signal (VBS) output signal External sync signal (VBS or BS) CMA-D2MDCE 12-pin connector AC power cord CAMERA Video camera (supplied) (12-pin) Camera cable... - Page 17 When supplying DC power only Video monitor, VTR 75-ohm coaxial cable Video input connector Video output connector CMA-D2MDCE 12-pin connector AC power Video camera cord CAMERA (supplied) (4-pin) Camera cable CCDC-5/ 10/25/50A/100A Connections...
-
Page 18: Operation
Operation Specifications General Power requirements: POWER switch 100 to 240 V AC (-), 50/60 Hz DC output 13 V DC ( ), 1.3A Peak inrush current (1) Power ON, current probe method: 25 A (240 V) (2) Hot switching inrush current, measured in accordance with European standard EN55103-1: 8 A (230 V) - Page 19 Design and specifications are subject to change without notice. Note Always verify that the unit is operating properly before use. SONY WILL NOT BE LIABLE FOR DAMAGES OF ANY KIND INCLUDING, BUT NOT LIMITED TO, COMPENSATION OR REIMBURSEMENT ON ACCOUNT...
- Page 20 Sony Corporation Printed in Japan...
