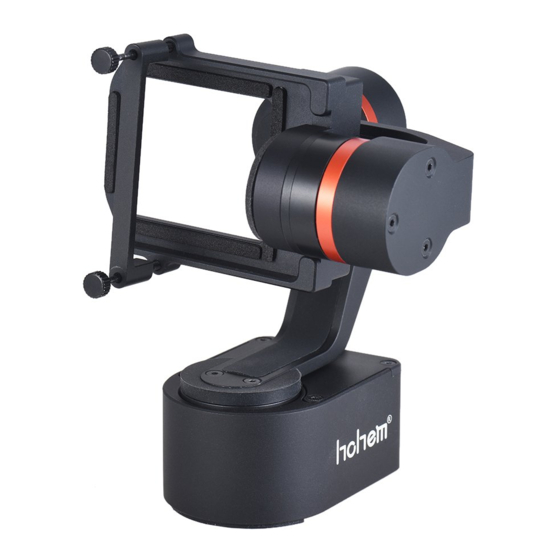

Hohem XG1 Quick Start Manualline

Product Overview

Roll Axis
Tilt Axis
*No need additional counter weight.Without power on, the gimbal can get the best self-balance status by setting the right position of
Quick Installation
the motors and camera placements.
GoPro Hero 5
The lens next to
the tilt motor
GoPro Hero 3/4/YI CAM/
SJCAM Or other action camera
of similar size
(The lens is opposite to
the tilt motor)
XG1
Quick Start Guideline V1.0
Tilting 320
Panning 320
Web www.hohem-tech.com
Email service@hohem-tech.com
Tel +86-0755-86573216
Rolling 320
Put the tilt motor to the RIGHT side, place GoPro Hero5
closely to the back clip as picture and tighten the knob to
secure its position. Double tighten by the 2 long screws
against violent movement.
Place GoPro 4/3/YI/SJCAM etc. closely to the clip as
picture show and tighten the knob to secure its
position.Double tighten by the 2 long screws against
violent movement.
Copyright: Hohem Technology Co., Ltd.
Accessories List
Stabilizer*1 Handbag*1 USB Cable*1
