～ Read Me First ～
CUB-43PCI-LP Setup Guide
■ Please check the bundled items.
Make sure that there is an accessory attached with the product.

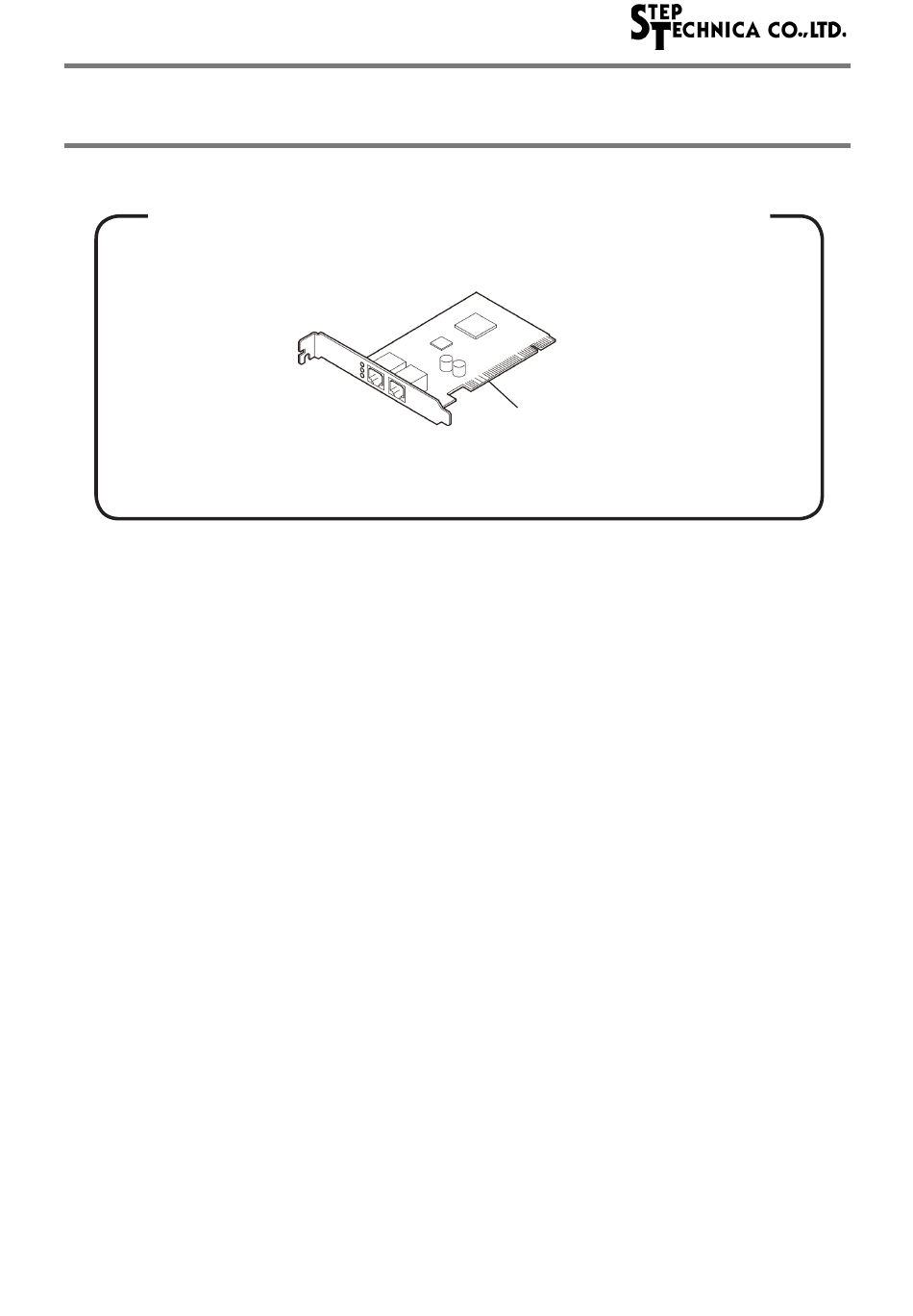

● Interface board (with Low profile bracket)・・・1 pc
CUB-43PCI-LP
Terminal contact ＊
＊ Do not touch the terminal contacts with your hands. It may cause the malfunction.
■ How to download the device driver and CUeditor43J_PCI
Download the device driver and CUeditor43J_PCI from StepTechnica website.
URL：https://www.steptechnica.com/en/download/index.html
