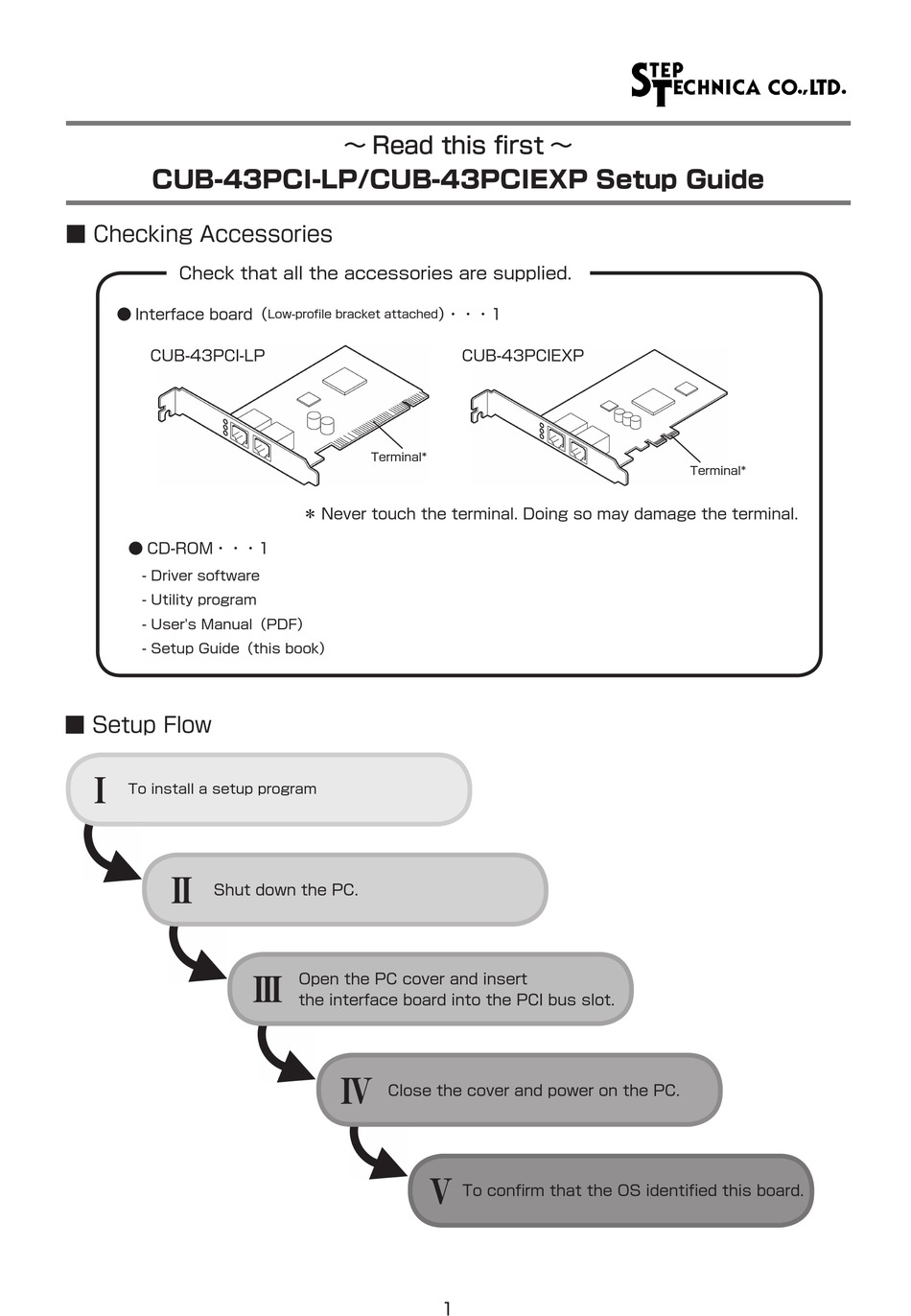

CUB-43PCI-LP/CUB-43PCIEXP Setup Guide
■ Checking Accessories
Check that all the accessories are supplied.
● Interface board（
CUB-43PCI-LP
● CD-ROM・・・1
- Driver software
- Utility program
- User's Manual（PDF）
- Setup Guide（this book）
■ Setup Flow
Ⅰ
To install a setup program
Ⅱ
Shut down the PC.
～ Read this first ～
Low-profile bracket attached
Terminal*
＊ Never touch the terminal. Doing so may damage the terminal.
Ⅲ
Open the PC cover and insert
the interface board into the PCI bus slot.
Ⅳ
Close the cover and power on the PC.
Ⅴ
） ・・・1
CUB-43PCIEXP
To confirm that the OS identified this board.
1
Terminal*
