～ Read Me First ～
HLSB-36PCI-LP Setup Guide

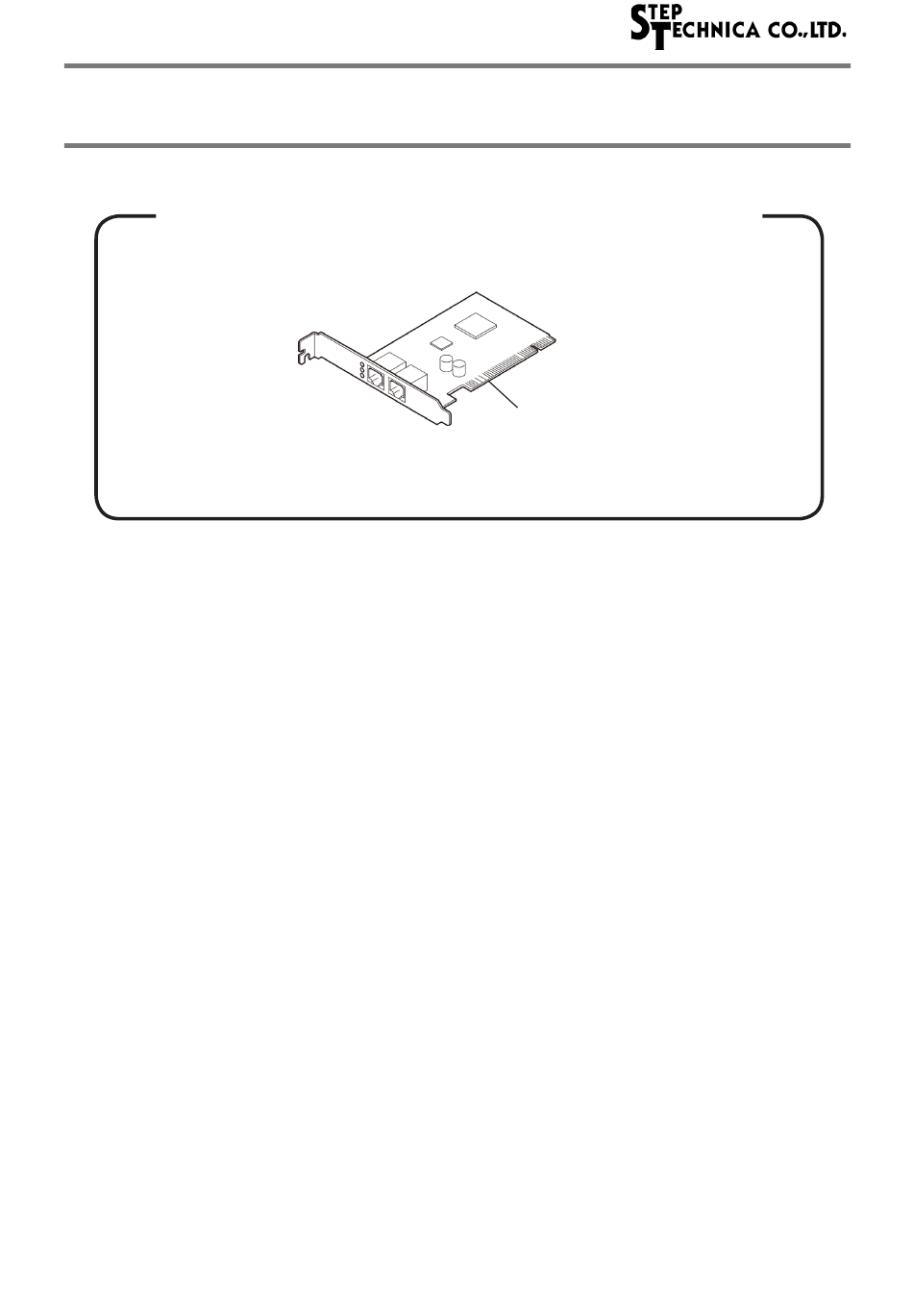

■ Please check the bundled items.
Make sure that there is an accessory attached with the product.
● Interface board (with Low profile bracket)・・・1 pc
HLSB-36PCI-LP
Terminal contact ＊
＊ Do not touch the terminal contacts with your hands. It may cause the malfunction.
■ How to download the device driver and HLSB-36PCI-LP / EXP Editor.
Download the device driver for HLSB-36PCIEXP and HLSB-36PCI-LP / EXP
Editor from StepTechnica website.
URL：https://www.steptechnica.com/en/download/index.html
Advertisement
Table of Contents
Related Manuals for Step Technica HLSB-36PCI-LP
Summary of Contents for Step Technica HLSB-36PCI-LP
- Page 1 Terminal contact ＊ ＊ Do not touch the terminal contacts with your hands. It may cause the malfunction. ■ How to download the device driver and HLSB-36PCI-LP / EXP Editor. Download the device driver for HLSB-36PCIEXP and HLSB-36PCI-LP / EXP Editor from StepTechnica website.
-
Page 2: Driver Installation
1. Driver installation ■ Driver can be manually installed from downloaded driver file. The configuration of downloaded driver file is shown in the table below. Driver installer storage location Windows 7/ 8/ 8.1 64-bit version Driver_V3000\Win7_Win8.1\x64\dpinst_x64.exe Windows 7/ 8/ 8.1 32-bit version Driver_V3000\Win7_Win8.1\x86\dpinst_x86.exe Windows 10 ... -
Page 3: Hardware Installation
2. Hardware installation ■ For how to put-on or remove a PC side panel and insert a PCI card to the PC slot, refer to your PC manual. ① . Power-off the PC. ② . Remove the PC side panel. (Refer to the PC manual for how to remove the side panel.) ③... - Page 4 3. Check that the PCI card is correctly installed Open 'Device Manager' first to check the card has been correctly installed. For Windows 10 ① . Press 'Windows' and 'X' key to display 'Device Manager(M)' and click it. ② . Device Manager is displayed. Select and double-click 'HLS Devices' to show the devices listed in the context menu and check 'HLSB-36PCI-...
- Page 5 For Windows 8 / 8.1 ① . Press 'Windows' and 'X' key to display 'Device Manager(M)' and click it. ② . Device Manager is displayed. Select and double-click 'HLS Devices' to show the devices listed in the context menu and check 'HLSB-36PCI- LP Device' is in the list.
- Page 6 For Windows 7 ① . Open 'Device Manager' from the 'control panel'. ② . Device Manager is displayed. Select and double-click 'HLS Devices' to show the devices listed in the context menu and check 'HLSB-36PCI- LP Device' is in the list.
- Page 7 ① . Execute 'HLSB-36PCI-Editor ＼ setup.exe' in setup disk. ② . Select 'Yes' in the user account control dialog box. ③ . Select 'OK' in 'HLSB-36PCI-LP/EXP Editor setup' dialog box to continue. ④ . Specify the install location of HLSB-36PCI-LP/EXP Editor.
- Page 8 ⑤ . Click 'Continue' in HLSB-36PCI-L/EXP Editor- Choose Program Group' dialog box to continue. ⑥ . Click 'OK' button when the setup dialog box is displayed to finish the driver installation.
-
Page 9: Safety Precautions
Product Specifications Item Description HLS device MKY36 × 1 pc HLS communication method Full / Half-duplex HLS communication rate 12M/6M/3Mbps (Set in MKY36 register) HLS communication connector RJ45 type (8pin modular) × 2 pcs Supported bus PCI Ver2.2 supported, 32bit / 33MHz expansion bus 5V / 3.3V supported （Low profile supported） Owned resource 16KB serial memory area（Automatically allocated by PnP）...
