■ Please check the bundled items.
Make sure that there is an accessory attached with the product.

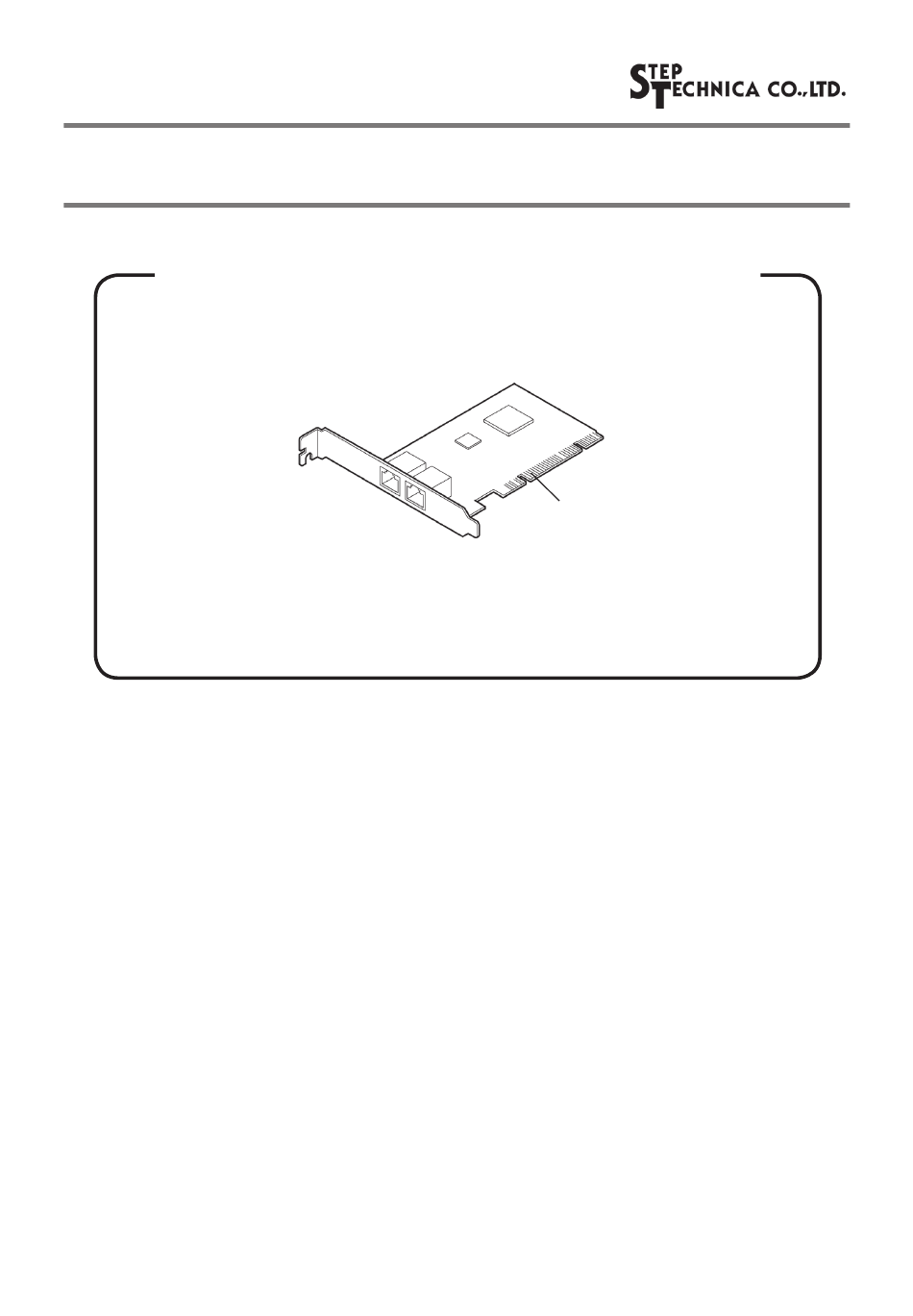

● Interface board (with Low profile bracket)・・・1 pc
CUB-43PCI1
＊ Do not touch the terminal contacts with your hands. It may cause the malfunction.
■ How to download the device driver and CUeditor43J_PCI
Download the device driver and CUeditor43J_PCI from StepTechnica website.
URL：https://www.steptechnica.com/en/download/index.html
～ Read Me First ～
CUB-43PCI1 Setup Guide
1
Terminal contact ＊
Advertisement
Table of Contents
Related Manuals for Step Technica CUB-43PCI1
Summary of Contents for Step Technica CUB-43PCI1
- Page 1 ～ Read Me First ～ CUB-43PCI1 Setup Guide ■ Please check the bundled items. Make sure that there is an accessory attached with the product. ● Interface board (with Low profile bracket)・・・1 pc CUB-43PCI1 Terminal contact ＊ ＊ Do not touch the terminal contacts with your hands. It may cause the malfunction.
- Page 2 1. Driver installation ■ Driver can be manually installed from downloaded driver file. The configuration of downloaded driver file is shown in the table below. Driver installer storage location Windows 7/ 8/ 8.1 64-bit version Driver_V1000\Win7_Win8.1\x64\dpinst_x64.exe Windows 7/ 8/ 8.1 32-bit version Driver_V1000\Win7_Win8.1\x86\dpinst_x86.exe Windows 10 ...
- Page 3 2. Hardware installation ■ For how to put-on or remove a PC side panel and insert a PCI card to the PC slot, refer to your PC manual. ① . Power-off the PC. ② . Remove all cables connected to the PC. ③...
- Page 4 3. Check that the PCI card is correctly installed Open 'Device Manager' first to check the card has been correctly installed. For Windows 10 ① . Press 'Windows' and 'X' key to display 'Device Manager(M)' and click it. ② . Device Manager is displayed. Select and double-click 'CUB Devices' to show the devices listed in the context menu and check 'CUB43PCI1...
- Page 5 For Windows 8 / 8.1 ① . Press 'Windows' and 'X' key to display 'Device Manager(M)' and click it. ② . Device Manager is displayed. Select and double-click 'CUnet Devices' to show the devices listed in the context menu and check 'CUB43PCI1 Device' is in the list.
- Page 6 4. How to install CUeditor43J for CUB-43PCI1 editor software ■ Driver can be manually installed from downloaded CUeditor43J folder. ① . Execute 'setup.exe' in 'CUeditor43J'. Select 'Yes' in the user account control dialog box. ② . Select 'OK' in 'CUeditor MKY43 PCI Setup' dialog box to continue.
- Page 7 ⑤ . Click 'Continue' in 'CUeditor MKY43PCI - Choose Program Group' dialog box to continue. ⑥ . Click 'OK' button when the setup dialog box is displayed to finish the driver installation.
- Page 8 Product Specifications Item Description CUnet device MKY43 × 1 pc CUnet communication method Half-duplex CUnet communication rate 12M/6M/3Mbps (Set in MKY43 register) CUnet communication connector RJ45 type (8pin modular) × 2 pcs Supported bus Based on PCI Ver 2.2, 32-bit, 33MHz expansion bus, 5.0V/3.3V supported Owned resource 16KB serial memory area（...
