How to Setup HD2 Dome With Local SIM
Injector
Published: January 23rd, 2019

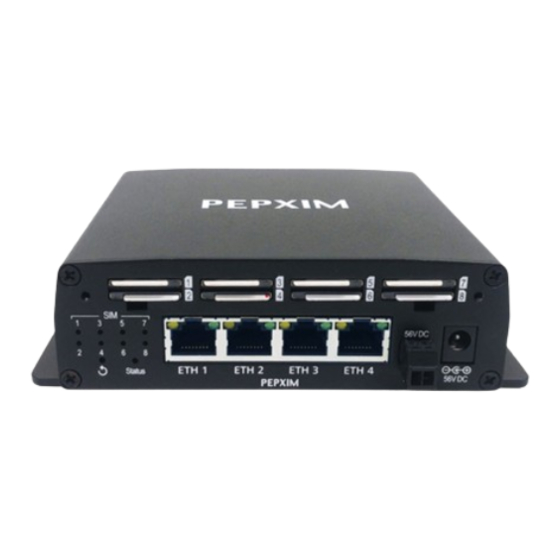

Together, the HD2 Dome and SIM Injector enable deployments where the router can be strategically
placed for the best signal (such as a rooftop of the mast of a ship). At the same time, the SIM cards can
be conveniently located in the office, passenger area, or bridge for easy changing. For full details on
the benefits and use cases of these products, the datasheet is available at:
http://download.peplink.com/resources/pepwave_MAX_HD2_IP67_DOME_datasheet.pdf
For this document, the HD2 Dome is installed on the rooftop of the truck, and an Ethernet cable
connects between the indoor SIM Injector and outdoor HD2 dome.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAX HD2 Dome and is the answer not in the manual?

Questions and answers

Related Manuals for peplink MAX HD2 Dome

Summary of Contents for peplink MAX HD2 Dome

  • Page 1 For full details on the benefits and use cases of these products, the datasheet is available at: http://download.peplink.com/resources/pepwave_MAX_HD2_IP67_DOME_datasheet.pdf For this document, the HD2 Dome is installed on the rooftop of the truck, and an Ethernet cable...
  • Page 2 Firmware Requirement Product Firmware Version Firmware Download Link MAX HD2 Dome 7.1.1s137 https://download.peplink.com/firmware/plb1/fw-b1_210hw4_ 310hw4_br1ent_transit_m700hw3_hd2mini_hd4-7.1.1s137- build4102.bin SIM Injector 1.0.29 https://download.peplink.com/firmware/simbank/fw-simbank -1.0.29.bin If the SIM Injector is running firmware version 1.0.24 or older, you need to upgrade to the following 1.0.25 first before upgrading to 1.0.29.
  • Page 3 b. Then, go to the Client List in Web Admin of HD2 Dome (Status > Client List), and find the IP address of the SIM Injector according to MAC address 3. Login to the SIM Injector a. Login via http://<The SIM Injector IP address you found in the last step>, (in this example, the URL of SIM Injector is ​...
  • Page 4 d. To upgrade the SIM Injector, please go to Settings > Firmware Upgrade...
  • Page 5 4. Configure the HD2 Dome to Use the SIM cards on the SIM Injector. a. To enable SIM Injector discovery, please go to Advanced > Remote SIM Management Enable “Auto LAN Discovery”, and “Save” Then, apply the changes...
  • Page 6 b. To connect to the SIM Injector from the HD2 Dome, press the “details” button next to Cellular WAN 1 from the Dashboard. Choose “Use Remote SIM Only”, and “Scan nearby remote SIM server” Choose the SIM Injector and update the settings and save the changes.
  • Page 8 If you repeat the steps from 4b) on Cellular 2, both cellular WANs will use the SIM cards from the SIM Injector. c. If you want to select a specific SIM, in the Cellular Settings, type “:” and then the number of the SIM slot.
