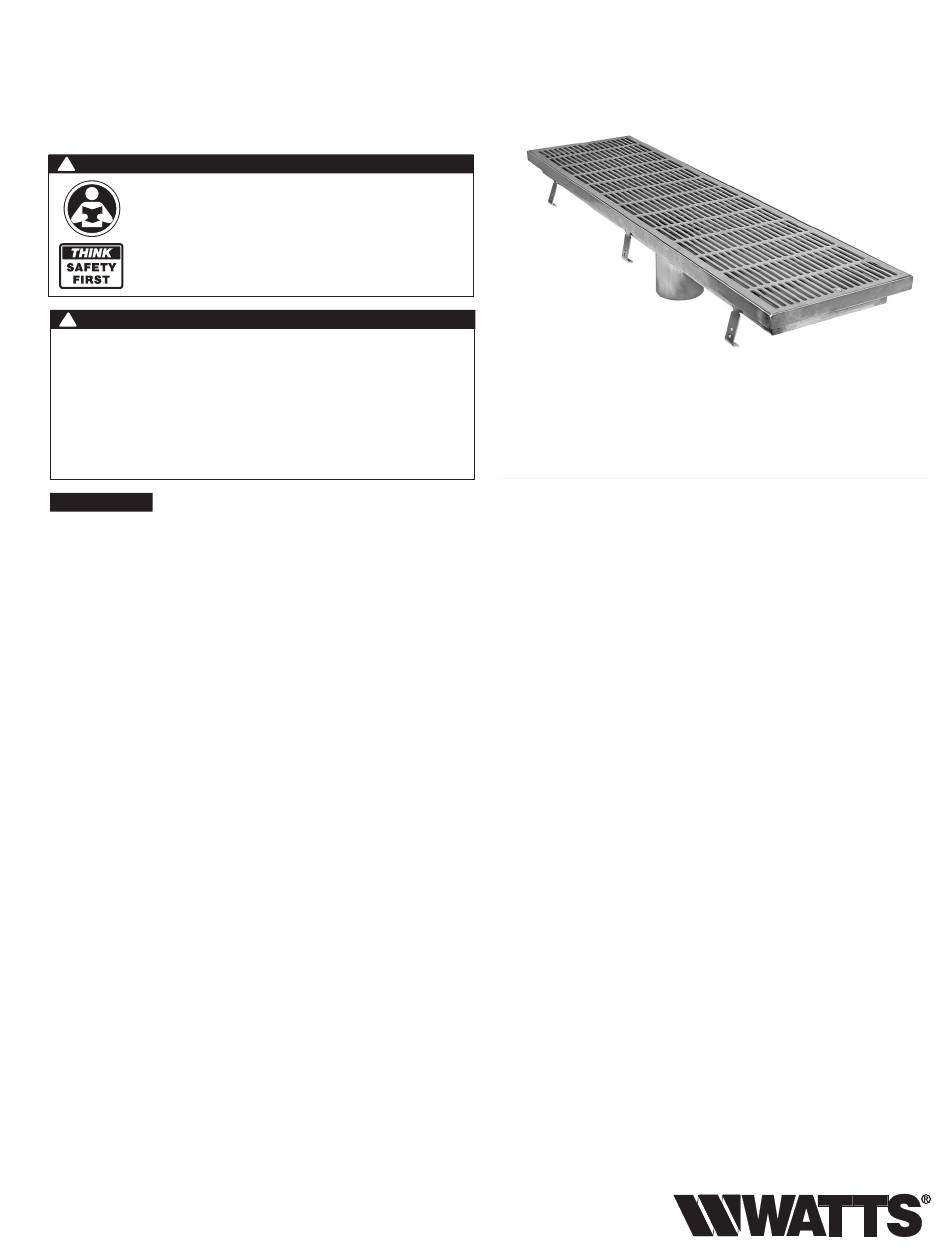

Instructions for Installing TD-300
Elevator Channel Drain
WARNING
!
Read this Manual BEFORE using this equipment.
Failure to read and follow all safety and use information
can result in death, serious personal injury, property
damage, or damage to the equipment.
Keep this Manual for future reference.
WARNING
!
Local building or plumbing codes may require modifica-
tions to the information provided. You are required to
consult the local building and plumbing codes prior
to installation. If the information provided here is not
consistent with local building or plumbing codes, the
local codes should be followed. This product must be
installed by a licensed contractor in accordance with
local codes and ordinances.
NOTICE
Follow the guidelines listed here for proper installation,
operation, and maintenance.

Installation Guidelines

General Note: Please consult all local plumbing codes before installing
Watts channel drains.
Introduction
Watts TD-300 Elevator Channel Drain is designed with safety and aesthetics in
mind. Our channel drain is engineered to withstand heavy foot traffic, as well as
heavy loads without compromising style and design. The stainless steel surface area
provides durability and safe integration in outdoor to indoor transitions and in elevator
and building thresholds. The TD-300 is heel proof, wheelchair accessible and ADA
compliant. It complies with 2013 California Building Code 403.6.1, 403.6.2, 3007.4,
3008.4, and SFFC Section 511.1.4 for a flow rate of 100 GPM.
Benefits Of Elevator & Threshold Drains
Low profile offers a smooth integration between outdoor and indoor areas
Available in lengths from 36" min. to 96" max.
12 ga. 304 stainless steel is engineered for both durability and style
Removable grating allows for low maintenance and easy installation
TD-300 offers superior flow rates while maintaining a shallow depth
IS-WD-TD-300-CAN
