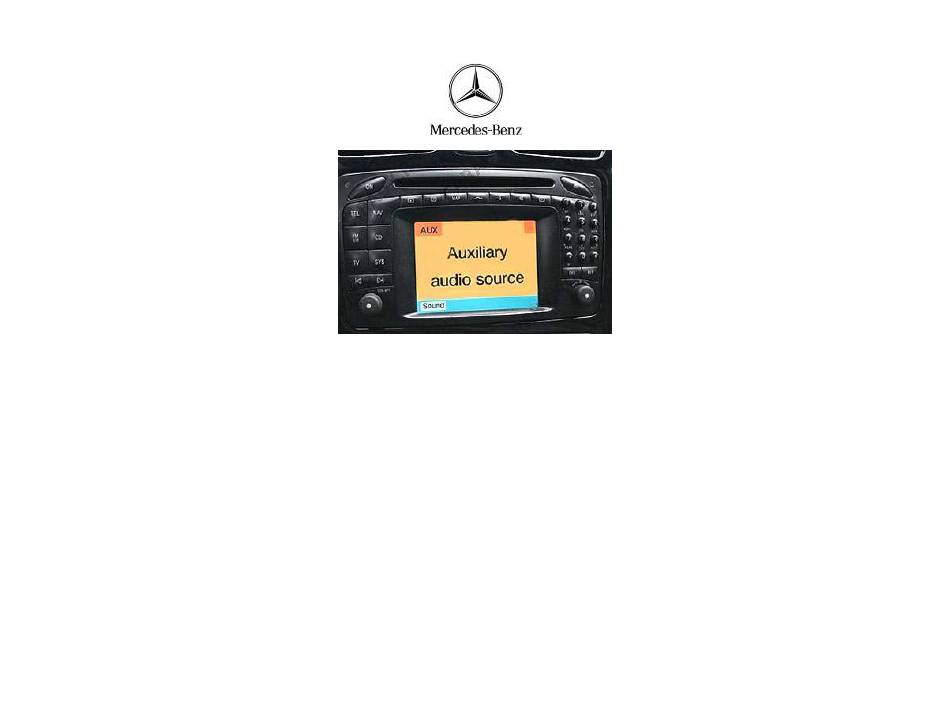

- Page 1 Courtesy of:DiscountCarStereo.com IL-CMD Quick Start Installation Guide for Mercedes COMAND 2.0 Not for MCS or COMAND 2.5 Created October 10, 2015 Revised June 29, 2019...
-
Page 2: Installation
Apple latest products, this jack just won’t cut it. Enter the iL-CMD. The iL-CMD replaces factory AUX jack with Apple Lightning connector to play and charge any Apple Lightning device including iPhone 5-X, iPod Touch (5G), iPod Nano(7G), iPad(4G), iPad Mini(1G), iPad Mini with Retina etc. - Page 3 Fig. 4 Installing adapter Terminals: Insert all 4 terminals (See Fig. 5) from Adapter into 18-way contact Fig. 3 carrier slots vacated in step 3 as follows: C2 contact carrier Red – to slot 4 (See Fig. 6) Vehicles with factory AUX Jack or pre-wired (Vehicles without White –...
- Page 4 6. Connect A plug removed in step 5 to mating connector on adapter power harness (See Fig. 8) 7. Connect remaining plug on adapter power harness to A connector on Radio vacated in step 5. Fig. 8 Fig. 6 Power Harness 18-pin carrier 8.
-
Page 5: Test Operation
Test Operation: Frequent asked questions Connect Lightning Plug to Apple device and turn COMAND2.0 Radio “ON” Does this work in Bose systems? 2. Apple device will begin charging YES; works in Bose and non-Bose applications 3. Switch COMAND2.0 Radio to “AUX” Mode 2. - Page 6 Fig. 10 Mercedes MCS Radio Disclaimer • This product has no affiliation with Mercedes Benz or Apple • There are no warranties expressed or implied by purchase of this product • We’re not liable for misuse of this product. •We recommend professional installation. email support@discountcarstereo.com ©...
