Summary of Contents for REED R5009

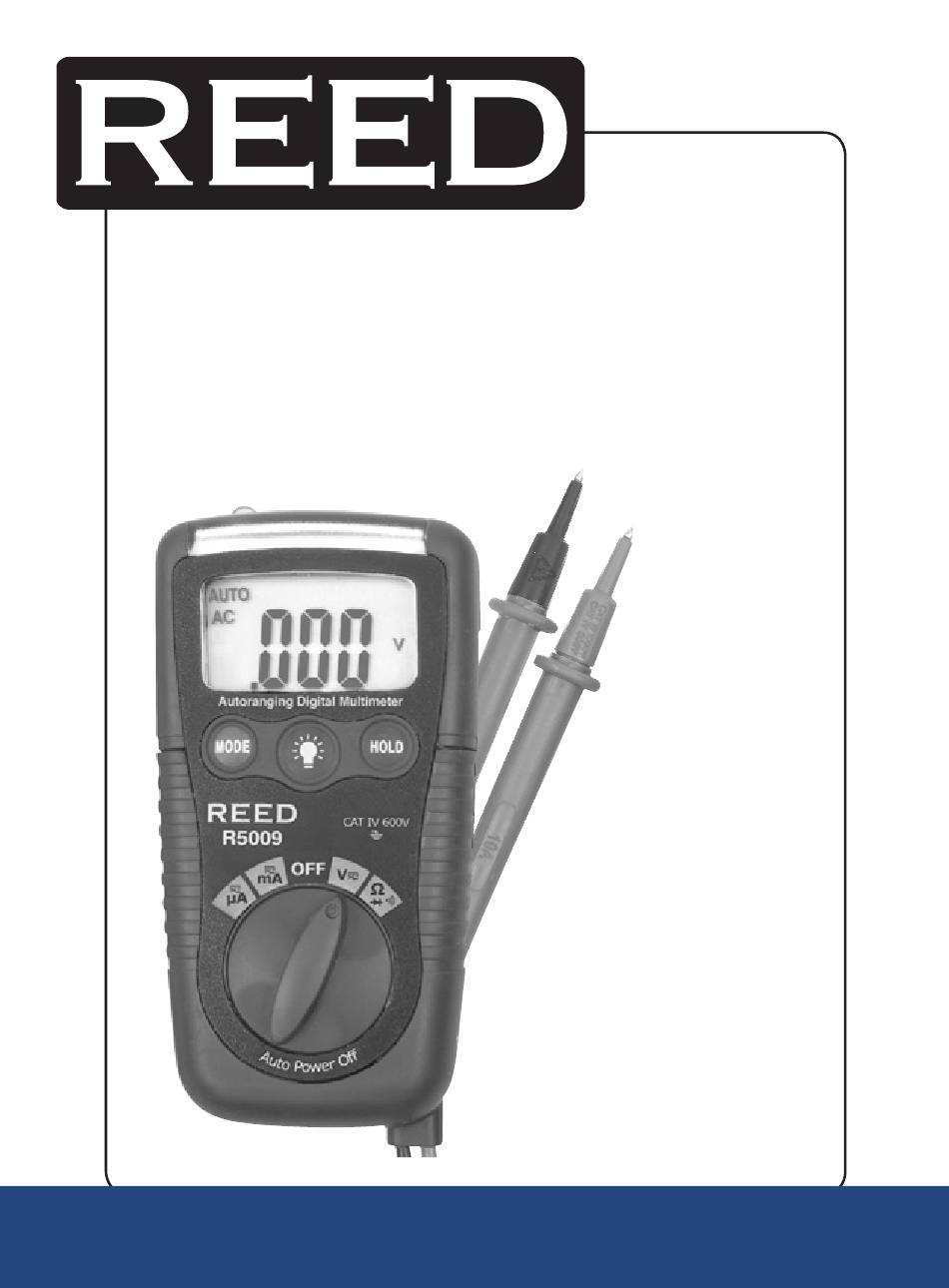

- Page 1 INSTR R5009 Model 3-in-1 Pocket Autoranging Digital Multimeter INSTR Instruction Manual REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
-
Page 2: Table Of Contents
4. Do not exceed the maximum rated input limits. Input LImIts Function maximum Input V DC or V AC 600V DC/AC µA, mA AC/DC 200mA/500V fast acting Resettable Fuse Resistance, Diode & Continuity Test 600V DC/AC continued ... REED Instruments INSTRUMENTS 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 3: Safety
2. Non-contact AC voltage indicator light 3. 3 1/2 Digit (2000 count) MODE button Function switch 6. Flashlight 7. Flashlight button 8. Data Hold button 9. Battery Cover 10. Test leads REED Instruments INSTRUMENTS 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 4: Specifications
Operating Temperature: 32 to 104°F (0 to 40°C) Storage Temperature: 14 to 122°F (-10 to 50°C) Dimensions: 4.1 x 2.2 x 1.3" (104 x 55 x 32.5 mm) Weight: 5.2 oz (145 g) REED Instruments INSTRUMENTS 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 5: Operating Instructions
6. Apply power to the circuit. 7. Read the current in the display NOTE: 0.2A/500V fast acting resettable fuse current inputs and overload protection on mA, µA ranges. No replacement required. continued ... REED Instruments INSTRUMENTS 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 6: Resistance Measurement
3. Touch the test probes to the diode under test. Forward voltage will typically indicate 0.400 to 0.700V. Reverse voltage will indicate “OL”. Shorted devices will indicate near 0V and an open device will indicate “OL” in both polarities. continued ... REED Instruments INSTRUMENTS 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 7: Battery Replacement
The auto off feature will turn the meter off after 15 minutes. Battery Replacement 1. Make sure the meter is turned off. 2. Remove the bottom cover and screw. 3. Replace old battery with new batteries. 4. Replace the bottom cover and screw. REED Instruments INSTRUMENTS 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 8: Fuse Replacement
7. Align the center board with the connectors and gently press into place. 8. Replace and secure the rear cover and screw. For service or information on this or any other REED product, contact REED Instruments at info@reedinstruments.com. REED Instruments INSTRUMENTS 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
