Computherm Q7RF Operating Instructions Manual page 7

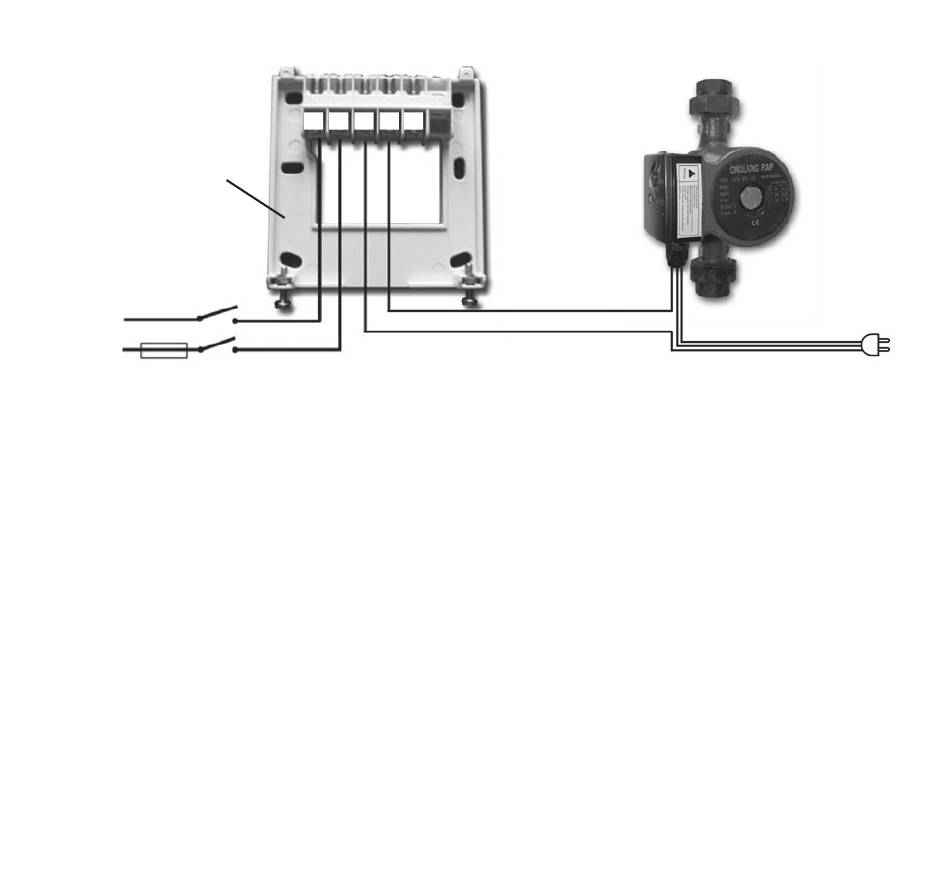

Rear panel of
the receiver
unit
230 V AC
50-60 Hz
N
L
(phase)
If you want to control several gas convectors by using a
single room thermostat then you need a
wireless room thermostat (it already comprises a receiving
unit), and as many
controllers as the number of gas convectors to be controlled
and one less
receiving units. The figure below shows control of two gas
convectors with a single wireless room thermostat. In case
of more than two gas convectors a similar arrangement
can be implemented by additional receiving units and
COMPUTHERM
COM
NO NC
N L 1 2 3
COMPUTHERM
COMPUTHERM
KonvekPRO gas convector controllers.
Pump (heater / infrapanel etc.)
KonvekPRO gas convector
Q7RF (RX) supplementary
- 7 -
230 V AC, 50-60 Hz
COMPUTHERM
