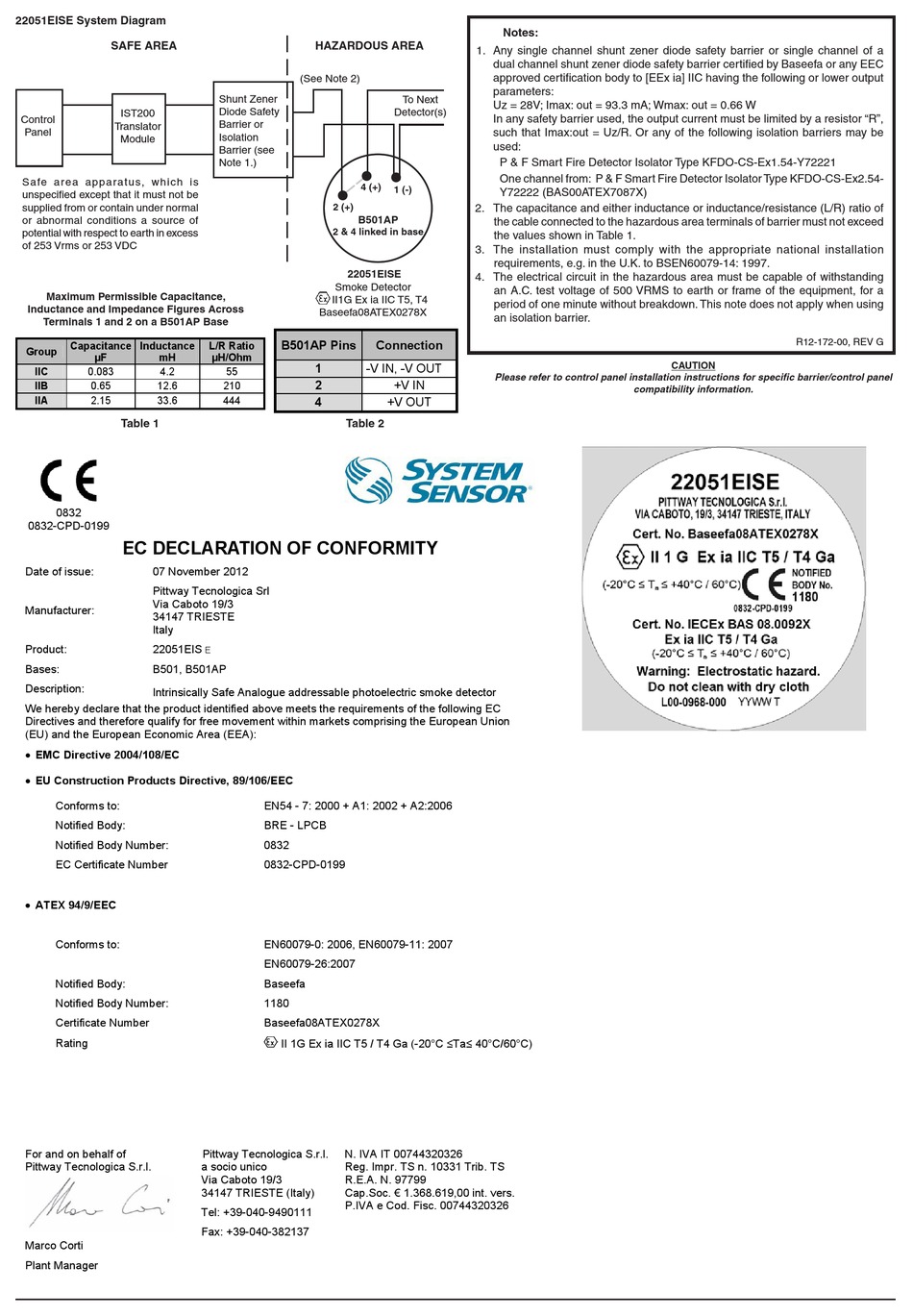

Ec Declaration Of Conformity - System Sensor 22051EISE Installation And Maintenance Instructions

22051EISE System Diagram
SAFE AREA
IST200
Control
Translator
Panel
Module
Safe area apparatus, which is
unspecified except that it must not be
supplied from or contain under normal
or abnormal conditions a source of
potential with respect to earth in excess
of 253 Vrms or 253 VDC
Maximum Permissible Capacitance,
Inductance and Impedance Figures Across
Terminals 1 and 2 on a B501AP Base
Capacitance Inductance
Group
µF mH
IIC
0.083 4.2
IIB
0.65 12.6
IIA
2.15 33.6
Table 1
0832
0832-CPD-0199

EC DECLARATION OF CONFORMITY

Date of issue: 07 November 2012
Pittway Tecnologica Srl
Via Caboto 19/3
Manufacturer:
34147 TRIESTE
Italy
Product: 22051EIS
Bases: B501, B501AP
Description:
Intrinsically Safe Analogue addressable photoelectric smoke detector
We hereby declare that the product identified above meets the requirements of the following EC
Directives and therefore qualify for free movement within markets comprising the European Union
(EU) and the European Economic Area (EEA):
 EMC Directive 2004/108/EC
 EU Construction Products Directive, 89/106/EEC
Conforms to:
Notified Body:
Notified Body Number:
EC Certificate Number
 ATEX 94/9/EEC
Conforms to:
Notified Body:
Notified Body Number:
Certificate Number
Rating
For and on behalf of
Pittway Tecnologica S.r.l.
Marco Corti
Plant Manager
HAZARDOUS AREA
(See Note 2)
Shunt Zener
Diode Safety
Barrier or
Isolation
Barrier (see
Note 1.)
4 (+)
2 (+)
B501AP
2 & 4 linked in base
22051EISE
Smoke Detector
II1G Ex ia IIC T5, T4
Baseefa08ATEX0278X
B501AP Pins
L/R Ratio
µH/Ohm
1 -V IN, -V OUT
55
2
210
444 4
Table 2
E
EN54 - 7: 2000 + A1: 2002 + A2:2006
BRE - LPCB
0832
0832-CPD-0199
EN60079-0: 2006, EN60079-11: 2007
EN60079-26:2007
Baseefa
1180
Baseefa08ATEX0278X
II 1G Ex ia IIC T5 / T4 Ga (-20°C ≤Ta≤ 40°C/60°C)
Pittway Tecnologica S.r.l. N. IVA IT 00744320326
a socio unico Reg. Impr. TS n. 10331 Trib. TS
Via Caboto 19/3 R.E.A. N. 97799
34147 TRIESTE (Italy) Cap.Soc. € 1.368.619,00 int. vers.
P.IVA e Cod. Fisc. 00744320326
Tel: +39-040-9490111
Fax: +39-040-382137
Notes:
1. Any single channel shunt zener diode safety barrier or single channel of a
dual channel shunt zener diode safety barrier certified by Baseefa or any EEC
approved certification body to [EEx ia] IIC having the following or lower output
parameters:
To Next
Uz = 28V; Imax: out = 93.3 mA; Wmax: out = 0.66 W
Detector(s)
In any safety barrier used, the output current must be limited by a resistor "R",
such that Imax:out = Uz/R. Or any of the following isolation barriers may be
used:
P & F Smart Fire Detector Isolator Type KFDO-CS-Ex1.54-Y72221
One channel from: P & F Smart Fire Detector Isolator Type KFDO-CS-Ex2.54-
1 (-)
Y72222 (BAS00ATEX7087X)
2. The capacitance and either inductance or inductance/resistance (L/R) ratio of
the cable connected to the hazardous area terminals of barrier must not exceed
the values shown in Table 1.
3. The installation must comply with the appropriate national installation
requirements, e.g. in the U.K. to BSEN60079-14: 1997.
4. The electrical circuit in the hazardous area must be capable of withstanding
an A.C. test voltage of 500 VRMS to earth or frame of the equipment, for a
period of one minute without breakdown. This note does not apply when using
an isolation barrier.
Connection
Please refer to control panel installation instructions for specific barrier/control panel
+V IN
+V OUT
R12-172-00, REV G
CAUTION
compatibility information.
