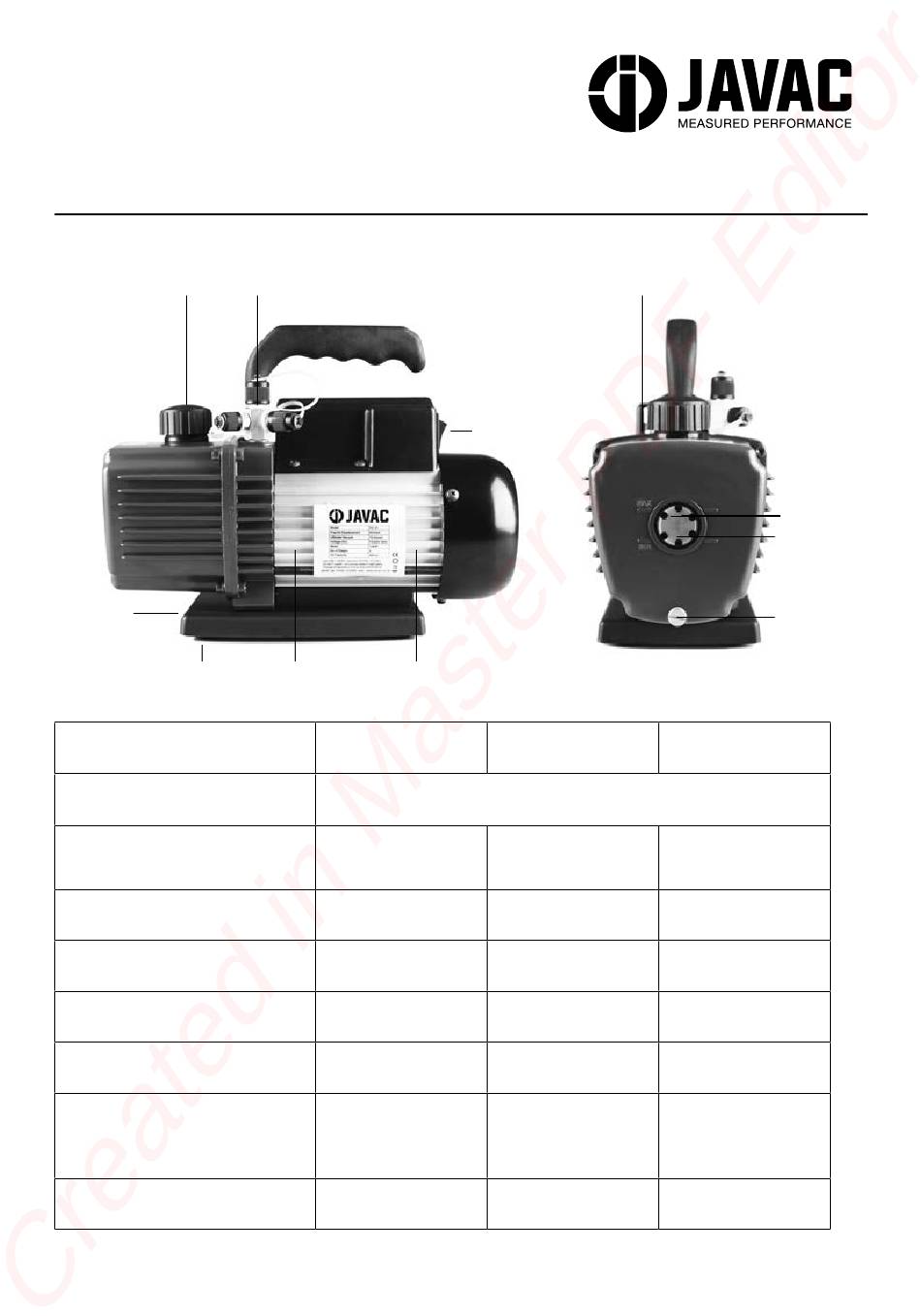

2.0 PUMP COMPONENTS

Exhaust
fitting
Board
Base
Plate
MODEL
VOLTAGE
FREE AIR DISPLACEMENT
(CFM / L/M)
ULTIMATE VACUUM
MOTOR
MOTOR SPEED
OIL CAPACITY
DIMENSIONS
NET WEIGHT
Intake
fitting
Motor Fan Cover
CC-31
1.4 / 40
15 Microns
1/4 HP
1440 r/m
380 ml
330 x 135 x 255
mm (130" x 53"
x 100")
9.8 Kg (21.6 lbs)
Gas
Ballast
Power
Switch
CC-141
110 V / 240 V 50 Hz
5.3 / 140
15 Microns
1/3 HP
2880 r/m
450 ml
350 x 135 x 255
mm (138" x 53" x
100")
12 Kg (21.6 lbs)
3
Sight Glass
Oil Tank
Oil Drain
CC-231
9, 225
12 Microns
2/3 HP
2880 r/m
500 ml
380 x 160 x 285
mm (150" x 63" x
112")
15.5 Kg (34 lbs)
