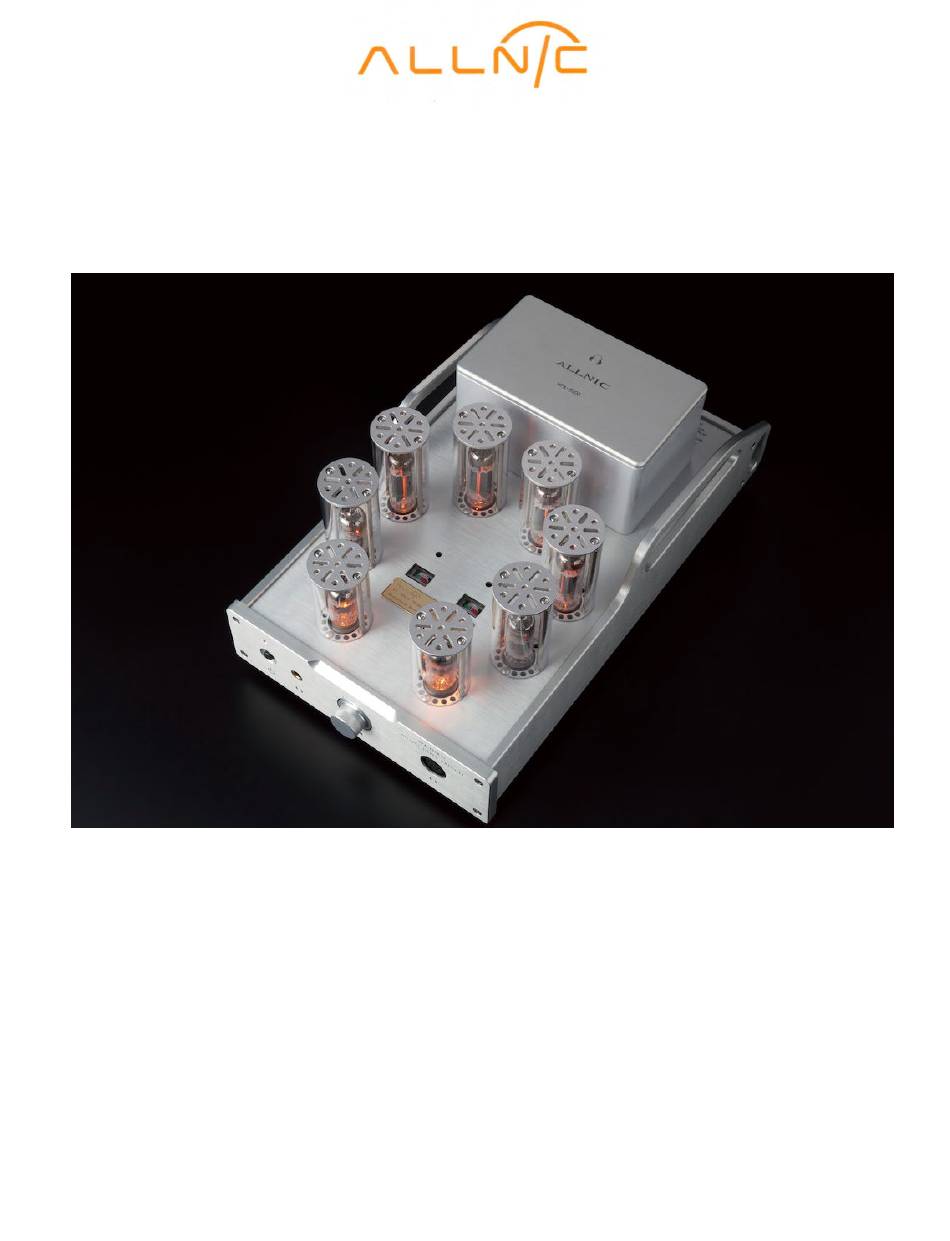

- Page 1 ALLNIC AUDIO HPA-5000 XL STEREO OTL/OCL HEADPHONE AMPLIFIER OWNER’S MANUAL...
- Page 2 HPA-5000 XL STEREO OTL/OCL HEADPHONE AMPLIFIER Thank you for purchasing this Allnic Audio HPA-5000 XL Stereo OTL/OCL Headphone Amplifier. We are certain your trust in Allnic Audio and its dealers worldwide, as well as your appreciation for the sound of this high-quality device, will be rewarded by its excellent operation for years to come.
-
Page 3: Table Of Contents
OPERATION TUBES TUBE BIAS SPECIFICATIONS WARRANTY FIGURES Please read about SAFETY before you attempt to use the HPA-5000 XL - we care about our customers and the equipment, and we want you to enjoy this product for a long time! -
Page 4: Introducing The Hpa-5000 Xl Stereo Otl/Ocl
HPA-5000 XL in your system. Be sure the HPA-5000 XL is labeled for the AC voltage of your location (110/120 – 60 Hz, or 220/230 – 50 Hz). If it is not, DO NOT connect the HPA-5000 XL to your AC mains. Contact your Allnic dealer. -
Page 5: Safety
INITIAL SET-UP LOCATION, LOCATION, LOCATION Like all audio products using tubes, the Allnic Audio HPA-5000 XL needs to be placed on a solid stand in a location that provides good air circulation around the Headphone Amplifier. DO NOT cover the top of the HPA-5000 XL Headphone Amplifier or tube chimneys. Make sure the •... -
Page 6: Power Connection
POWER CONNECTION The HPA-5000 XL uses a standard three prong male IEC connection for AC input. You need to use a power cord with a female three prong IEC connector at one end (See Figure 1). The HPA-5000 XL power supply you have purchased is set internally. There is no way to change this to another AC setting without return of the unit to the factory for re-wiring, at the owner’s cost, including... -
Page 7: Initial Power On
Once you have your HPA-5000 XL in place and all connections have been made to your source, you are ready to turn on the power for your HPA-5000 XL. Before you power up the HPA- 5000 XL, though, be sure you have: removed ALL the cushion materials from inside the tube chimneys. -
Page 8: Specifications
SPECIFICATIONS FOR: THE ALLNIC AUDIO HPA-5000 XL STEREO OTL/OCL HEADPHONE AMPLIFIER One (1) pair Unbalanced (RCA). One (1) pair Balanced (XLR) Inputs: One (1) one-quarter inch (1/4”). One (1) four-pin Balanced Headphone Output: (XLR) 20Hz ~ 20KHz (±0.3db) Frequency Response:... -
Page 9: Warranty
Date of purchase is the date indicated on the invoice for the product issued by Allnic Audio or its authorized representative. For the warranty to be valid, a defective product must be returned to Allnic Audio’s authorized representative for service prior to any unauthorized attempt to repair. - Page 10 Figure 2 – HPA-5000 XL Front Panel View Figure 3 – HPA-5000 XL Top View...
