Linear Tube Audio Z10 User Manual

Z10 Integrated User Guide
WARNING: For safety, the cover of this ampli3ier should be secured at all times. DC
voltages as high as 450V and peak AC voltages as high as 800V are present inside. The
service information contained in this manual is intended only for trained service
personnel.
The Linear Tube Audio Z10 Integrated, or Z10i, is a full size and function, high
quality, Class AB integrated preampli;ier, headphone and speaker ampli;ier utilizing
ZOTL (Zero-hysteresis Output Transformer-Less) technology. There are 5 inputs (4
single ended RCAs and 1 XLR Balanced), 2 preampli;ier outputs, a remote control
and front panel controls, and a front panel dimmable LED display. There will be an
optional phono preamp in the future.

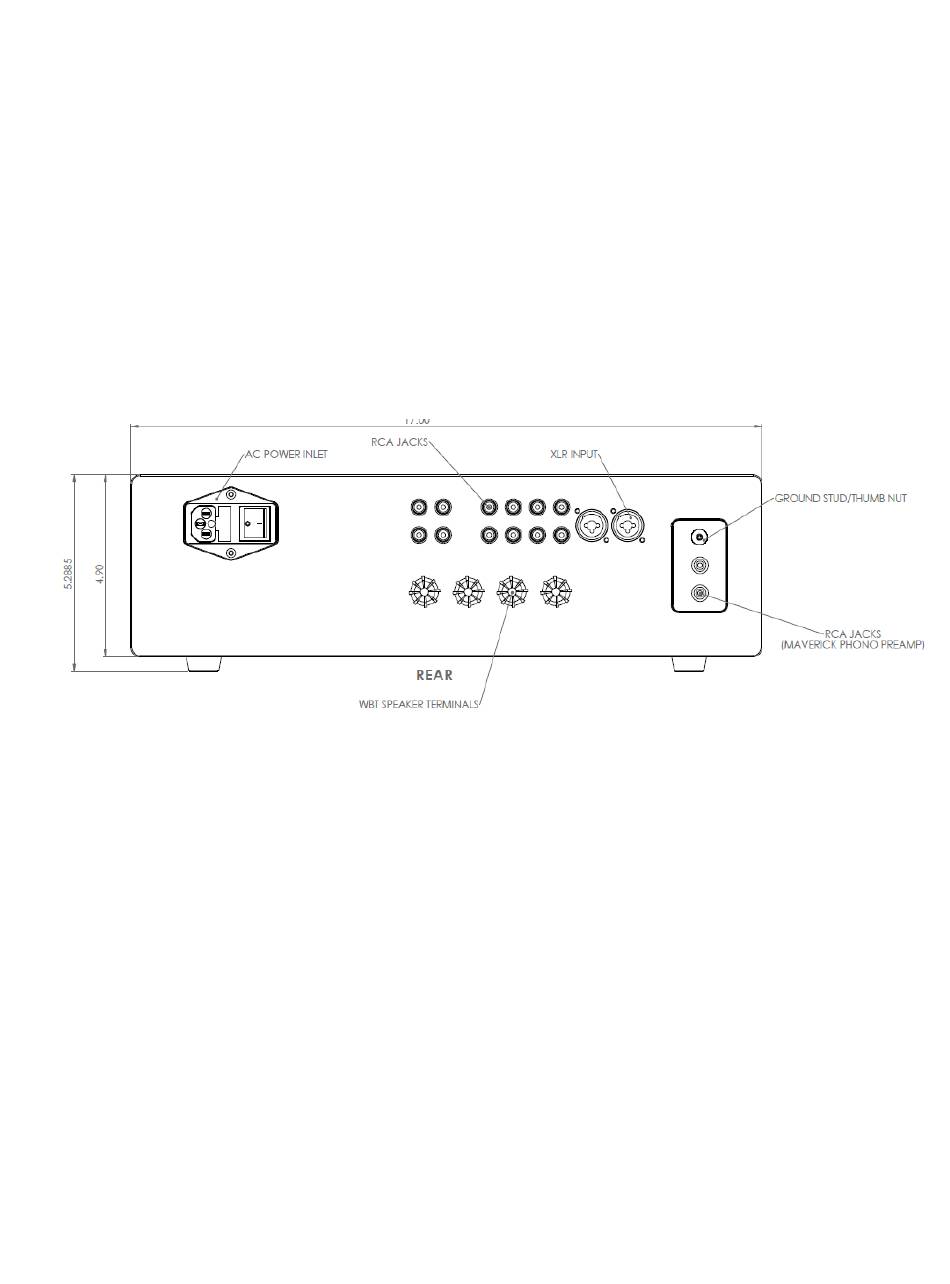

Rear Panel Connections:
Power In: The unit operates in both 115V 60hz and 220-240V 50Hz, but has to be
con;igured at the factory. The unit should be wired for your country when you
receive your unit from the factory.
Inputs: There are 5 inputs to the Z10 Integrated. Four are single ended RCA stereo
pairs. One is a true balanced dual XLR stereo pair. Connect your DAC, CD player,
Phono Preamp or other line level device to these inputs.
Tape Monitor In and Out: Whatever Input (1 thru 5) is selected is always present at
the Tape Out connector. This is true even when listening to the Tape In. The Tape
Monitor switch selects whatever is being sent to the Tape In connector. This is
typically a Tape Recorder playback output, but can be used with any device's line
level output.
