Godox V1F Instruction Manual

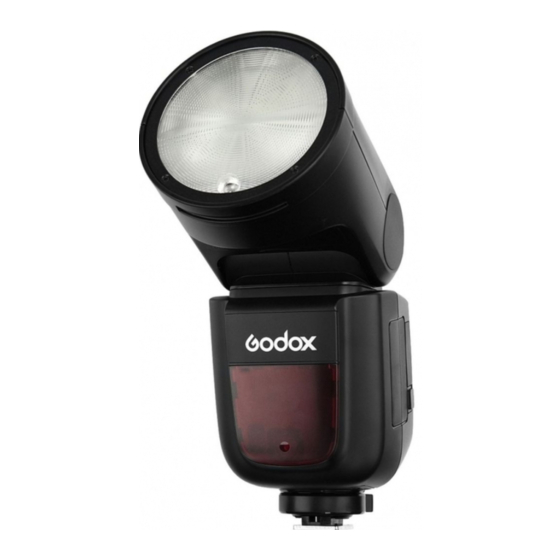

Ttl li-ion round head camera flash
Hide thumbs Also See for V1F:
Table of Contents

Advertisement

Quick Links

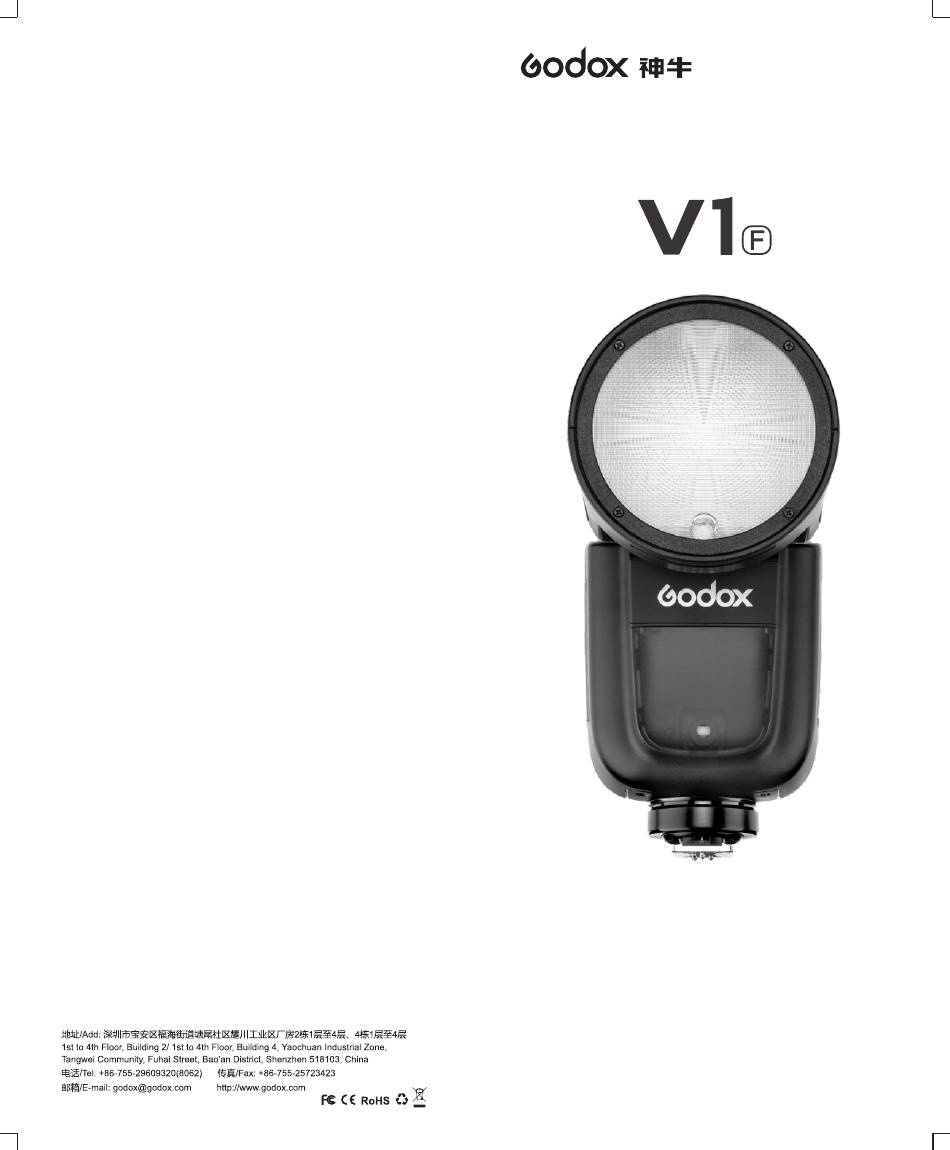

深圳市神牛摄影器材有限公司
GODOX Photo Equipment Co., Ltd.
705-V1F000-00
Made In China
TTL
锂电圆头机顶闪光灯
TTL Li-ion Round Head Camera Flash
INSTRUCTION MANUAL
说明手册
在使用本产品之前：
请先仔细阅读本手册，以确保您能安全使用。请保存好本手册以备将
来查询参考。
Before using this product:
Please read this user manual carefully in order to ensure your safety
and the proper operation of this product. Keep for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V1F and is the answer not in the manual?

Questions and answers

Related Manuals for Godox V1F

Summary of Contents for Godox V1F

  • Page 1 INSTRUCTION MANUAL 说明手册 在使用本产品之前： 深圳市神牛摄影器材有限公司 请先仔细阅读本手册，以确保您能安全使用。请保存好本手册以备将 GODOX Photo Equipment Co., Ltd. 来查询参考。 Before using this product: Please read this user manual carefully in order to ensure your safety and the proper operation of this product. Keep for future reference. 705-V1F000-00...
  • Page 2 Always keep this product dry. Do not use in rain or in damp conditions. This V1F camera flash applies to FUJIFILM series cameras and is Do not disassemble. Should repairs become necessary, this compatible with TTL autoflash. With this TTL compatible flash, your product must be sent to an authorized maintenance center.

  • Page 3: Table Of Contents

    Warning Name of Parts Body Control Panel Dot-matrix LCD Panel LCD Panel in Three Modes What's in the Box of V1F Kit? Separately Sold Accessories Battery LED Modeling Lamp Attaching to a Camera Power Management Flash Mode — TTL Autoflash...

  • Page 4: Lcd Panel

    ● LCD Panel Name of Parts (1)TTL Autoflash : zoom display (Page 51) Zoom : Automatic Focus length (Page 1) : Manual(Page 41) : High-speed sync (Page 40) : TTL autoflash Distance indicator display Flash exposure compensation amount ● The display will only show the settings currently applied. ●...

  • Page 5: Lcd Panel In Three Modes

    ● What’s in the Box of V1F Kit? (4) Radio Transmission Shooting 1. Flash Unit 2. Lithium Battery 3. USB Battery Charger ● Master Unit 4. USB Cable 5. Charger 6. Mini Stand Flash mode 7. Protection Case 8. Instruction Manual...

  • Page 6: Battery

    Battery LED Modeling Lamp Press the Modeling Lamp Setting button to set the modeling lamp. ● Features Short press the Set Button to turn on or off the modeling lamp. When 1. This flash unit uses Li-ion battery which has long runtime. The turning the modeling lamp on, turn the select dial to set its brightness.

  • Page 7: Flash Mode-Ttl Autoflash

    High-Speed Sync C.Fn Disabling Auto Power Off function is recommended when High Speed Sync (Hss flash) enables the flash to synchronize with the flash is used off camera. (C.Fn-STBY, Page 52) all camera shutter speeds. This is convenient when you want to use C.Fn Slave Auto Power Off Timer is set to 60 minutes by aperture priority for fill-flash portraits.

  • Page 8: M: Manual Flash

    M: Manual Flash Multi: Stroboscopic Flash The flash output is adjustable from 1/1 full power to 1/256th power With stroboscopic flash, a rapid series of flashes is fired. It can be in 1/10th stop increments. To obtain a correct flash exposure, use a used to capture a multiple images of a moving subject in a single hand-held flash meter to determine the required flash output.

  • Page 9: Wireless Flash Shooting: Radio (2.4G) Transmission

    The V1F attach to the camera is called the master unit, and a V1F that is wirelessly controlled is called the slave unit. ● You can also wirelessly control the V1F set as the slave unit with the transmitter X1T-F or XProF (sold separately). For details on setting the master unit functions, see the transmitter’s instructions.

  • Page 10: Wireless Settings

    4. Wireless ID Settings 1. Wireless Settings You can switch between normal flash and wireless flash. For normal Change the wireless channels and wireless ID to avoid interference for it can only be triggered after the wireless IDs and channels of the flash shooting, be sure to set the wireless setting to OFF.
  • Page 11 Slave Unit Setting Using Automatic Wireless Flash with Multiple Slave Units ● Set the other camera flash When stronger flash output or as the wireless slave Unit. more convenient lighting operation is needed, increase the number of Check the communication slave units and set it as a single channel.

  • Page 12: M: Wireless Flash Shooting With Manual Flash

    7. M: Wireless Flash Shooting with Manual Flash Other Applications This describes wireless (multiple shooting) using manual flash. You can shoot with a different flash output setting for each slave unit Sync Triggering (firing group). Set all parameters on the master unit. The Sync Cord Jack is a Φ2.5mm plug.

  • Page 13: Bounce Flash

    Bounce Flash C.Fn: Setting Custom Functions By pointing the flash head toward a wall or ceiling, the flash will bounce off the surface before illuminating the subject. This can The following table lists the available and unavailable custom soften shadows behind the subject for a more natural-looking shot. functions of this flash.

  • Page 14: Protection Function

    Protection Function Technical Data 1. Over-Temperature Protection Model ● To avoid overheating and deteriorating the flash head, do not fire Compatible Cameras FUJIFILM cameras (TTL autoflash) more than 30 continuous flashes in fast succession at 1/1 full Power 76Ws power. After 30 continuous flashes, allow a rest time of at least 10 (1/1 output) minutes.

  • Page 15: Troubleshooting

    The Camera Flash does not fire. ● As the firmware upgrade needs the support of Godox G3 ● The camera flash is not attached securely to the camera. software, please download and install the "Godox G3 firmware →Attach the camera’s mounting foot securely to the camera.
  • Page 16 FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
