- Page 1 ILT2400 Op cal “Light” Meter Opera on Manual 代理美国International Light辐照计http://www.testeb.com/yiqi/ilt/zhaoduji.html 深圳市格信达科技 电话18823303057 QQ：2104028976...
-
Page 2: Table Of Contents
16. Files 17. Light Calc 18. Sleep 19. Survey 20. Info 21. Upgrades 22. Using ILT2400 with Datalight II on Windows 7, 8 or 10 PC 23. Care and Handling 24. Warranty ILT2400 INSTRUMENTATION MANUAL REV 1, 4/16 2 OF 19... -
Page 3: Introduc On

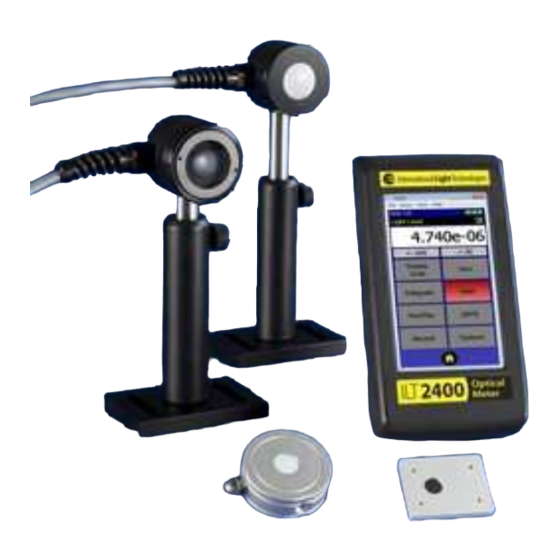

Thank you for choosing the ILT2400. This instrument is a high precision, compact, hand held light measurement instrument designed to be at home in the lab and in the field. The ILT2400 internal Datalight so ware was designed to be simplis"c enough for easy touch screen opera"on and advanced enough to meet the needs of researchers and scien"sts. - Page 4 To assure proper connec"on is maintained during tes"ng, "ghten screws on each side of sensor connector. Note: The ILT2400 is also compa"ble with ILT1400 sensors, however in order to make the connec"on a new connector or converter cable is required. Please contact ilsales@intl-ligh+ech.com to purchase one of the following op"ons for using an ILT1400 L connector with the ILT2400:...
- Page 5 Place the un-covered sensor in the test loca"on. Cover the test light source, or turn it off. Press Zero. The ILT2400 will take a measurement and subtract that value from all future readings un"l zero is pressed again.
-
Page 6: Internal Ba+Ery Pack
3.0 device. A full charge is obtained in approximately 12 - 14 hours. Meter will charges the fastest when the power bu*on is in the off posi"on. The ILT2400 circuit is design to prevent over charge. The ILT2400 has a low power indicator that will advise when the ba*ery needs recharging. -
Page 7: Usb Ports
• Micro: Inside the ILT2400 is a 4 Gb memory device for saving data. The Micro USB is used to download stored data and to erase data from the memory device. This port can also be used the charge the ba*ery. -
Page 8: Current Measurement And Limita Ons
SED240, SED220 & SED185 Vacuum Phototubes (UV measurements) 50 pA to 1 µA • To determine the opera"ng range for a specific sensor when used with the ILT2400, the formula is to divide the Min and Max current measurement ranges, as noted above, by the sensors calibra"on factor from the ILT calibra"on cer"ficate. -
Page 9: Sample Time And Limita Ons
10. Reverse Bias: The ILT2400 can supply -5V or -9V to the detector through the D sub connector. The 5V bias can be used on silicon sensors to increase the response "me. (I.E. the SED033 and SED100 silicon sensors are o en biased when used for flash measurements). -
Page 10: Display Content
Zero reading. When measuring small light or current levels, it is a good prac"ce to zero in the environment of the tes"ng and perform period zero valida"on or re-zero when ILT2400 INSTRUMENTATION MANUAL REV 1, 4/16 10 OF 19 代理美国International Light辐照计http://www.testeb.com/yiqi/ilt/zhaoduji.html 深圳市格信达科技 电话18823303057 QQ：2104028976... -
Page 11: Se8Ngs
fluctuate(temperature, noise, ambient ligh"ng) 14C. Integrate: Is used to measure dosage or exposure. When toggled on, the ILT2400 will take the present reading and add it to the previous value, once per second, crea"ng a sum of light measurements over "me. - Page 12 15D. Auto Gain Range: On or off. The ILT2400 has 3 relays that it cycles through when auto ranging from the lowest signals in the Pico amp range to the higher signals in the micro amp to 1 milli amp range.
- Page 13 .001 W/cm2, and 2e+2 lux becomes 200 lux. Note. The Display on the ILT2400 allows up to 3 digits a er the decimal place. When using scien"fic nota"on on, the device can display readings as low as e-13 with two decimal places, ie 6.23e-13.
- Page 14 Calibra on Cer ficate from ILT are N.I.S.T. traceable and are performed in our ISO17025 accredited lab by trained and experienced technicians. Use of altered calibra on factors can void traceability. 15Q.1. Factor Number: Numbers range from 1-20. The ILT2400 stores up to 20 calibra"on ILT2400 INSTRUMENTATION MANUAL REV 1, 4/16 14 OF 19 代理美国International Light辐照计http://www.testeb.com/yiqi/ilt/zhaoduji.html 深圳市格信达科技...
-
Page 15: Files
16B. Downloading Stored Readings: When the ILT2400 is connected to the computer using the USB micro cable, the computer will register the ILT2400 as a device with removable storage, allowing access into the Files folder. To access saved Files using a PC, click on Start, Computer and then click double click on the “... -
Page 16: Light Calc
3. To choose and exis"ng address: Use the scroll bar to highlight the address. Touch the address to apply. The address will not show in the Select Loca"on box. Note: Addresses can also be imported into the ILT2400, by crea"ng a custom Survey-loca"ons.txt and uploading through the USB micro port. -
Page 17: Info
22. Using ILT2400 with Datalight II on windows 7, 8 or 10 PC: The ILT2400 can be connected to a computer via the USB mini port and be controlled by the external so ware as if you were using an ILT1000, ILT5000 or ILT6000 device. Datalight II so ware is available for download on the ILT website: h*p://www.intl-ligh*ech.com/support/so... -
Page 18: Care And Handling
Trend detects and displays the data for the first device found. If no devices are available an error message will appear advising you to connect your device and the so ware will close. (Assure the ILT2400 power bu*on is in the ON and the USB charging light is on indica"ng a good USB connec"on). -
Page 19: Warranty
The display should be cleaned with low moisture lens cleaning cloths to prevent scratching. Use care near the edges to assure moisture does not seep into the housing. 23E Submersion: The ILT2400 housing is not rated for submersion. 23F Calibra on: ILT typically recommends an annual calibra"on for all equipment. Per ISO17025, the customer may, through their own QC process, create their own calibra"on cycle.
