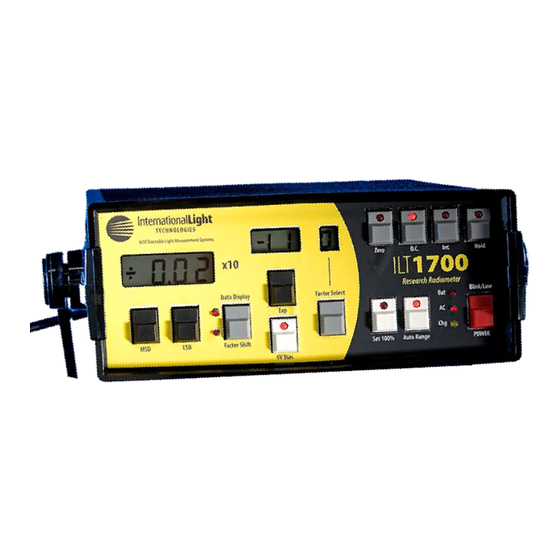

ILT1700 INSTRUCTION MANUAL
Revised:1107 jmf

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ILT1700 and is the answer not in the manual?

Questions and answers

Related Manuals for International Light Technologies ILT1700

Summary of Contents for International Light Technologies ILT1700

  • Page 1 ILT1700 INSTRUCTION MANUAL Revised:1107 jmf 代理美国International Light辐照计http://www.testeb.com/yiqi/ilt/zhaoduji.html 深圳市格信达科技 电话18823303057 QQ：2104028976...
  • Page 2 Requests should be made through the publisher. Technical Publications Dept. International Light Technologies 10 Technology Drive Peabody, MA 01960 Printed in the United States of America...

  • Page 3: Table Of Contents

    Contents 1. Quick Reference Guide 1.1 Rear Panel Set Up: ......................6 1.1.1 International Power Settings ..................6 1.1.2 Power Cord ......................6 1.1.3 Select AC Power Source ..................6 1.1.4 Plug In Detector ...................... 6 1.1.5 For More Information ....................6 1.2 Front Panel Set Up: .......................
  • Page 4 3.2.4 Percent Mode ....................... 11 3.2.5 Readout (Scientific Notation) ................12 3.2.6 Darkroom Readings ..................... 12 3.3 Integration Measurements ..................12 3.3.1 Integration Zero ....................13 3.3.2 Long term integration .................... 13 3.3.3 Flash measurements..................... 13 3.3.4 Averaging ......................13 3.3.5 Readout (Scientific Notation) ................
  • Page 5 10.1 Preventive Maintenance ..................27 10.2 Battery Caution……....................27 10.3 Board Replacement....................27 10.4 Computer Reinitialization Procedure ............... 28 10.5 ILT1700 Handle Operation ..................28 10.6 Fuse Replacement ....................28 10.7 Schematic ………………… ..................28 11. One Year Warranty 12.

  • Page 6: Quick Reference Guide

    1. Quick Reference Guide NOTE: The Accessory input/ouput connector may be marked ‘ACCESSORY INTPUT”, However, This connector is actually an input/output connector. Please refer to section 4.2 for further information. 代理美国International Light辐照计http://www.testeb.com/yiqi/ilt/zhaoduji.html 深圳市格信达科技 电话18823303057 QQ：2104028976...

  • Page 7: International Power Settings

    1.3.1 Install Detector lithium batteries will automatically recharge whenever the Plug a detector into the Sensor Input. Select the ILT1700 is plugged into an external power supply. The appropriate calibration factor for that sensor combination rechargeable Batteries(NICAD ONLY) must initially be using the factor select button.

  • Page 8: Controls

    2. Controls If you cover up the detector and press the ‘ZERO’ button, the unit will take a reading of this low level and subtract that reading from all future readings, thereby establishing the ‘ZERO’ reference condition. This ‘ZERO’ can be any reference level, such as the ambient room illumination.

  • Page 9: Factor Selector

    2.2.2 AC Voltage selects ‘AUTO RANGE’. If you are over-ranged and wish to The ILT1700 will come with the AC switch set to re-establish a new level, you must toggle the function into 115VAC, it is very important that you check the switch prior ‘AUTO RANGE’, then turn off the ‘AUTO RANGE’...

  • Page 10: Usb

    AC power. We provide a cable with an American type of plug on it. You may have to The ILT1700 can operate from seven different sources of cut this plug off and replace it with one which is acceptable in power as follows: your area.

  • Page 11: Ac Power

    12 volt lantern battery or car battery) can be hooked up to the well to seal all light leaks, and then you must wait the full ILT1700 to run the unit for about three weeks at 9 hours a 10 seconds before the system settles down to the lowest day.

  • Page 12: Range Selection

    By selecting the right factor, you can make the instrument also read 150 for that desired magnitude. The 3.2.3 Programming ILT1700 can then be used for a subsequent quality control The Radiometer performs subtraction, as mentioned in check to adjust production units to have the same nominal the zeroing section (3.2.1).

  • Page 13: Readout (Scientific Notation)

    The ILT1700 is capable of integrating energy in a flash of light transmission plot of the sample filter. A 100% reading must at microsecond speeds as well as int egrating for over eighteen be established at each wavelength since the source/ years, and everything in between.(with some limitations).

  • Page 14: Integration Zero

    Any integration longer than one second is considered As mentioned above on the subject of multiple flashes, long term integration. In this state, the ILT1700 keeps up the system can be used to find the average of many flashes. with the incoming signals, and presents an updated readout This is done by integrating throughout many flashes.

  • Page 15: Readout (Scientific Notation)

    3.4.2 Flash Bias 3.3.5 Readout (Scientific Notation) Detector bias has the most significant effect on system The display reads the total dose in scientific notation performance in flash measurements. Semiconductor devices (see section 3.2.5 for an explanation). When integrating, the gain in three ways when placed in a reverse biased readout is a summation of light over a period of time.

  • Page 16: Outputs

    4. Outputs 4.2.1 Voltage Range The voltage is designed to be compatible with most strip chart and X-Y recorders, and yet provide a large enough signal to avoid excessive noise pickup. For these reasons, 4.1 LCD Displays we have selected a range from 0 to 1.0 volt (1000 There are actually 12 positions that are computer millivolts).

  • Page 17: Output Impedance

    4.2.6 Word String Format negative reading will be sent out to the recorder. From the The ILT1700 sends out a string of serial words plot it is fairly easy to determine that the reading is negative, (characters) to transfer the displayed data to other since the curve comes back up after it hits zero.

  • Page 18: New Usb And Rs232

    ILT to obtain a copy. After you install your COM PORT drivers (4.5.1) you will Upon plugging the ILT1700 into a USB port on a PC, the need to install the complimentary Virtual ILT1700-USB computer’s operating system will detect the instrument and program.

  • Page 19: Inputs

    5.1 Light Sensors the ILT1700. The dynamic range of a thermopile is limited to 4 decades (2e to 5e watts per square cm), but the The primary purpose of the ILT1700 is to measure light.

  • Page 20: Accessory Input

    The ILT1700 has been designed to minimize problems When the ILT1700 is ready to integrate, it will pull pin 9 due to improper operation of the instrument. From our 40 to a voltage level less than 0.8 volts (assuming the current...

  • Page 21: Applications

    (about 5 seconds). The input will also survive device is biased correctly. For this reason the ILT1700 is a voltages of approximately plus or minus 15 volts for a similar short time durations.

  • Page 22: Flux Density Measurements

    ILT recommends using lux, since the SI units are recognized groove made by the intersection of this diffuser assembly world wide. The ILT1700 can be used to measure in any of and the next optical element. This groove is located 6.5 these units just by reprogramming to a new sensitivity factor.

  • Page 23: Flux Measurements

    Since the ILT1700 is capable of integrating, you can obtain effective reference plane for each particular combination of energy readings directly in absolute units, to control elements.

  • Page 24: Wide Beam Flux Measurements

    The sensitivity factor that is dialed into the ILT1700 sphere combination in units of Amperes per Lumen (A/lm). is in Amperes per Watt (A/W) at the laser wavelength.

  • Page 25: Health Hazard Measurements

    This is the zone of the fovea where we analyze an the original number. In addition to the ILT1700 and an image. For this reason it has become very important to...

  • Page 26: Specular Reflectance

    The display on the reflections in a multi-baffle array. Also, black velvet is ILT1700 then reads the diffuse reflectance relative to the excellent for dividing off test areas from the rest of the standard reflectance.

  • Page 27: Uniform Receiver Sensitivity

    8.10.1 Low Duty Cycle (fast pulse) 8.9.4 Uniform Receiver Sensitivity The ILT1700 can measure a single fast pulse as long as the pulse rise time is generally greater than 5 microsecond, As mentioned in section 8.3, the best receiver for and the peak detector current is less than 2.0 milliamps.

  • Page 28: General Specifications

    400-960 - plus or minus 3.0% of I.L. working 10.3 Board Replacement standards (+/- .31% for N.I.S.T. transfer) The ILT1700 has been designed so that each of the four 970-1000- plus or minus 4.5% of I.L. working printed circuit boards can be exchanged without affecting the standards (+/- .58 for N.I.S.T.

  • Page 29: Computer Reinitialization Procedure

    It is wise to rub a pencil eraser across the board the ILT1700. To change th e fuse, follow the steps listed in contacts before reinserting them back into the unit. Contact 10.2 Board replacement above.
  • Page 30 ILT1700 Detector & Accessory Connector Pinout Addendum ACCESSORY PORT 1. GROUND A. GROUND 2. +11 B. +9 3. +5 C. AUX (AUXILARY POWER) 4. NO CONNECTION D. SPARE 5. NO CONNECTION E. SPARE 6. SPARE F. NO CONNECTION 7. SPARE H.
  • Page 31 代理美国International Light辐照计http://www.testeb.com/yiqi/ilt/zhaoduji.html 深圳市格信达科技 电话18823303057 QQ：2104028976...
  • Page 32 12. Sample basic program (for reference only, note : baud rate 1400 in older system , 2800 in newer systems) 10 ’ THIS PROGRAM IS CALLED “MANUAL SCAN” 20 ’ THE RS232 PORT OF THE IL1700 IS USED TO SEND DATA INTO A 30 ’...
  • Page 33 Development System. The a pplication is a fully compiled, run -time version of the VI driver. Users can run the program, obtain data from an ILT1700 meter and save it into a file. The program is available for Windows 2000, XP and VISTA.

  • Page 34: Photo Sensitive Device Wiring

    Before you begin, cover the detector connected to the ILT1700 with the black cap or an opaque object for about 10 seconds, (or disconnect the sensor from the back of the ILT1700 ) and press the zero button on the front of the ILT1700. Wait until the zero light shuts off and the DC light illuminates.
  • Page 35 These displays will change values based on the features you select using the DC, SET 100%, and INT buttons. If you need to do a software zero, cover the detector connected to the ILT1700 with the black cap and press the Zero button .
