Summary of Contents for Simpson 505

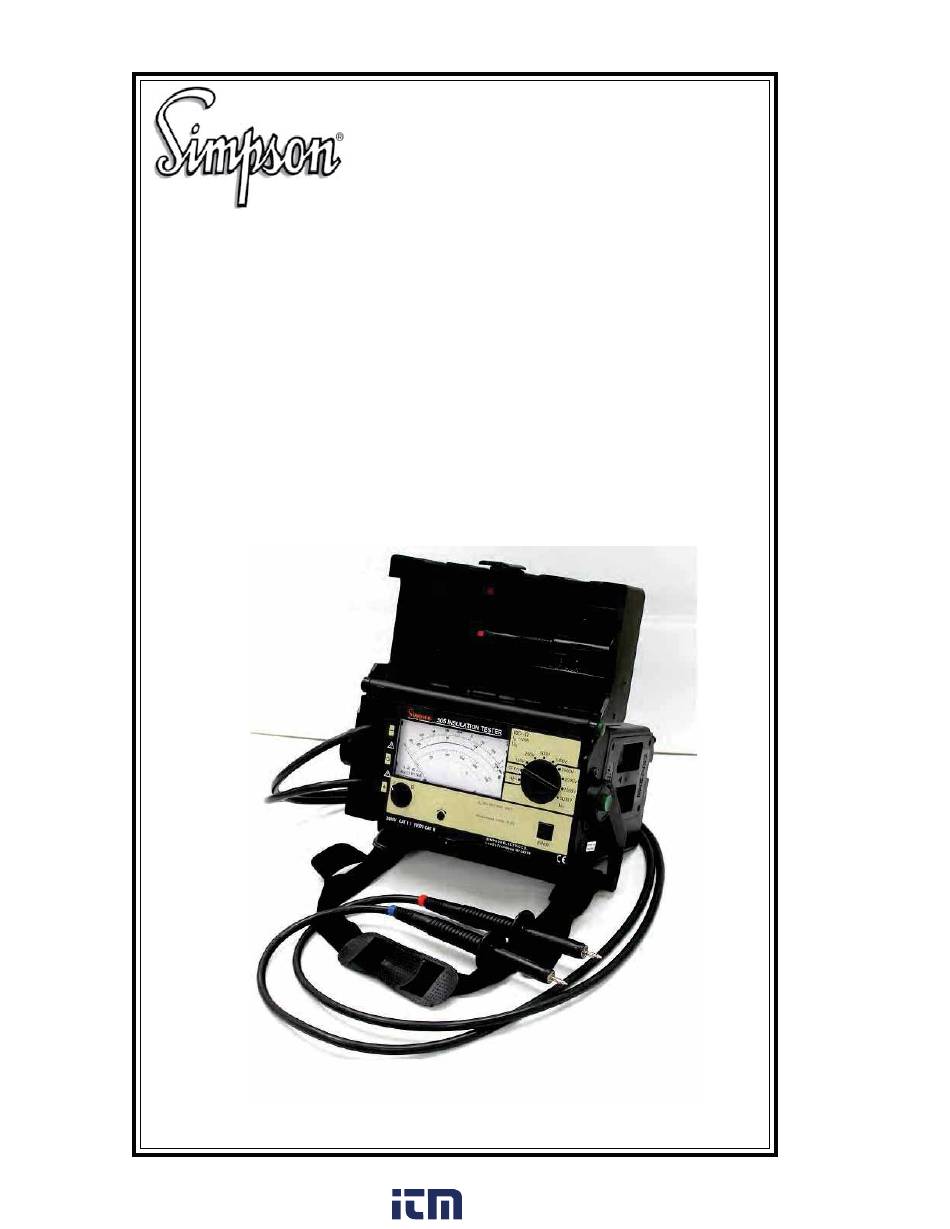

- Page 1 High Voltage Insulation Tester INSTRUCTION MANUAL 1.800.561.8187 information@itm.com www. .com...
- Page 2 This warranty shall not apply to any instrument or other article of equipment which shall have been repaired or altered outside the SIMPSON ELECTRIC COMPANY factory or authorized service centers, nor which has been subject to misuse, negligence or accident, incorrect wiring by others, or installation or use not in accord with instructions furnished by the manufacturer.
- Page 3 This manual represents your meter as manufactured at the time of publication. It assumes standard software. Special versions of software may be fitted, in which case you will be provided with additional details. The apparatus has been designed and tested in accordance with EN 61010-1, “Safety Requirments for Electrical Equipment for Measurement, Control and Labo- ratory Use.”...
-
Page 4: Table Of Contents
Contents 1. CONTROLS AND INDICATORS ............5 2. SAFETY PRECAUTIONS ..............5 2.1 Repair and Parts Replacement ............. 5 2.2 Errors and Extraordinary Strains ............6 2.3 Safety Symbols ..................6 APPLICATIONS................. 6 4. INITIAL START-UP ................7 4.1 Battery Installation .................. 7 4.2 Testing the Batteries ................ -
Page 5: Controls And Indicators
10. Test Probe Positive (+) Measurement Cable 11. Guard Cable Connector Jack 12. Battery Module SAFETY PRECAUTIONS Simpson’s 505 Insulation Tester is manufactured and tested in accordance with the following standards: IEC 1010-1/EN 61010-1, IEC 61557/EN 61557 In order to maintain flawless technical safety conditions and to assure safe use, read the operating instructions carefully before using your instrument. -
Page 6: Errors And Extraordinary Strains
Safety symbols are shown and explained on inside front cover of this manual. APPLICATIONS The MODEL 505 Insulation Tester complies with regulation IEC 61557/EN 61557 “Measuring and Monitoring Equipment for the Testing of Electrical Safety in Sys- tems with Nominal Voltages of up to AC 1000 V and DC 1500 V”. -
Page 7: Initial Start-Up
The tester is also equipped with a 2000 V measuring range for direct and alter- nating voltages. This is especially advantageous for testing for the absence of voltage, and for discharging of capacitive units under test. INITIAL START-UP Battery Installation Before opening the battery compartment (side panel) be sure that the Function Selector switch is set to the “V”... -
Page 8: Analog Display
Analog Display Logarithmic representation of the upper resistance scale allows for quick recog- nition of the magnitude involved. In order to achieve the required accuracy for testing of protective measures, the RANGE key allows for switching to the ex- panded lower limit measuring range of 100 k ... -
Page 9: Insulation Resistance Measurement
INSULATION RESISTANCE MEASUREMENT Be certain that the device under test (DUT) is voltage-free before preforming measurements; see paragraph 5. If voltage is present see paragraph 6.05. For measurements over 10 G , the guard cable (cat. No 45065) is recommended; see paragraph 6.3. 6.05 DISCHARGING THE DEVICE UNDER TEST The function selector switch must be switched from back to V, in order to... -
Page 10: Measurement Procedure
Measurement Procedure Set Function Selector switch to position, in order to activate test voltage. A range of either 10 k ...1 T or 100 k ... 100 M can be pre-selected with the RANGE key. Select the required nominal voltage of 100 V, 250 V, 500 V, 1000 V, 1500 V, 2000 V, 2500 V, or 5000 V with the Range Selector switch depending upon the nominal voltage of the D U T . -
Page 11: Measurements With The Guard Cable
Measurements with the Guard Cable The measurement of very high impedance resistances presupposes extremely small measurement currents, and problems can occur due to influences such as electromagnetic fields, moisture or surface currents. For this reason, the mea- surement set-up must be accurate. For measurements over 10 G , the guard cable (cat. -
Page 12: Specifications
Direct and Alternating Voltage … … Protective Devices – — — – — t s i – t s i polarity protection with — diodes voltage limiting in battery charger (optional) t s i Specifications Display: Movement core-magnet moving-coil mechanism Scale Length 111.5 mm (longest scale) Reference Conditions:... -
Page 13: Maintenance
Ambient Conditions: Operating Temp. 32° F (0° C) to 104° F (40° C) Relative Humidity Max. 45%, no accumulation of moisture Elevation to 2000 m Electrical Safety: Protection Class Test Voltage 5.4 kV Overvoltage Category Contamination Level Interference Emission EN 50 081-1: 1992 Interference Immunity EN 50 082-1: 1992 Mechanical Design:... -
Page 14: Repair
If repair of an open, live instrument is unavoidable, instrument must be repaired by trained personnel who are familiar with the risks involved. TECHNICAL ASSISTANCE SIMPSON ELECTRIC COMPANY offers assistance Monday thru Friday 8:00 am to 4:30 pm Central Time. Contact Technical Support or Customer Service at (715) 588-3311.
