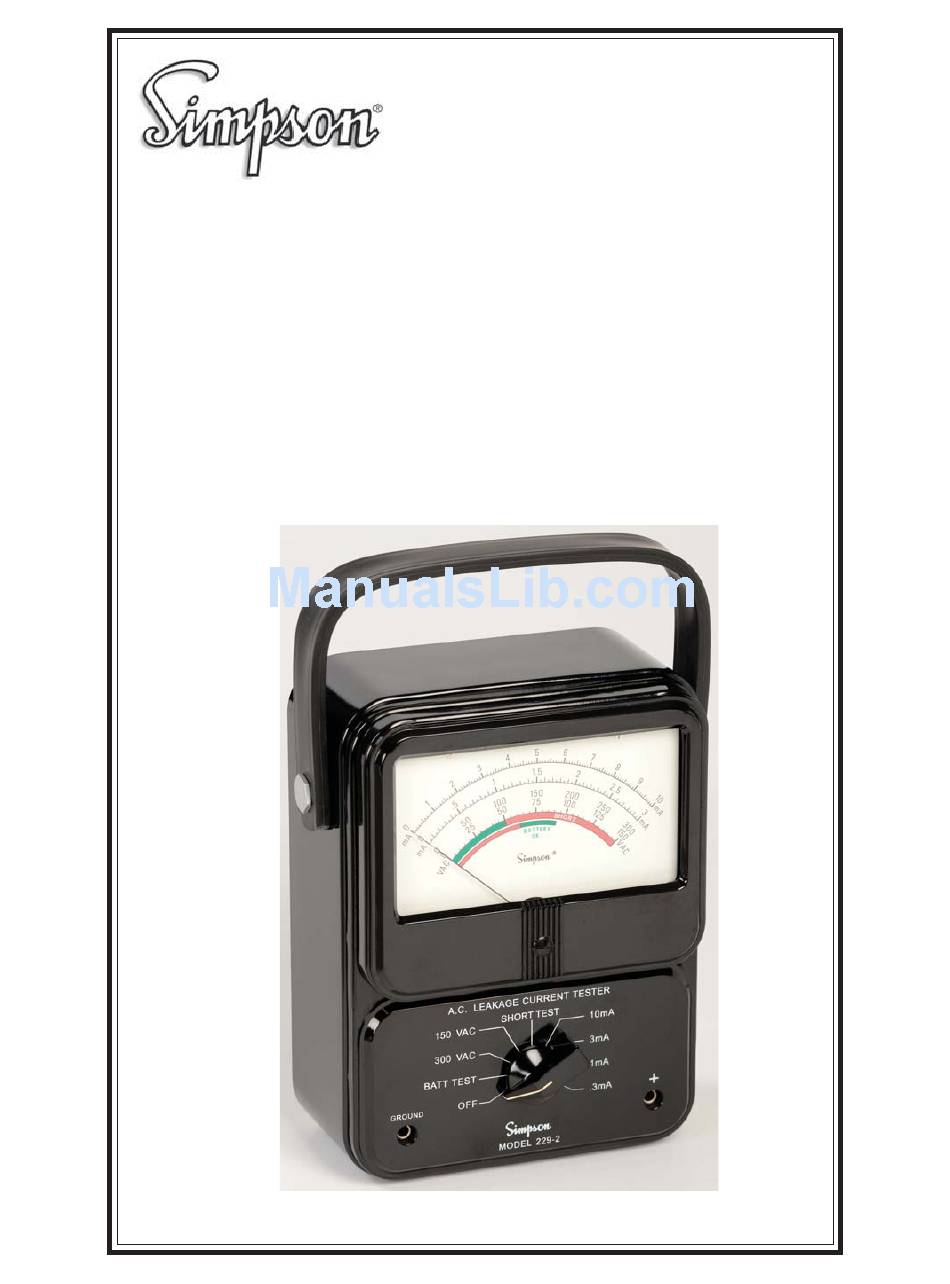

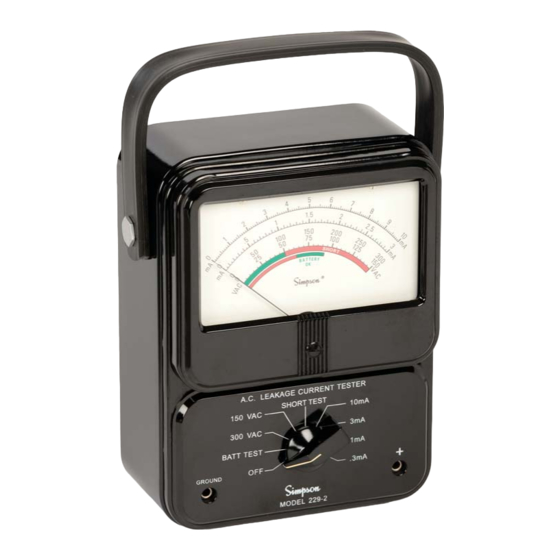

- Page 1 Model 229 Series 2 Leakage Current Tester OPERATOR’S MANUAL...
- Page 2 Support or Customer Service at (715) 588-3311. Internet: http://www.simpsonelectric.com Warranty and Returns SIMPSON ELECTRIC COMPANY warrants each instrument and other ar- ticles manufactured by it to be free from defects in material and workmanship under normal use and service, its obligation under this warranty being limited...
- Page 3 0.15 microfarad capacitor connected between the terminals of the measuring instrument. The leakage current is that portion of the current that flows through the resistor. The Simpson Model 229-Series 2 AC Leak- age Current Tester is designed around the ANSI C39.5 requirement for the measurement of AC leakage current.
-
Page 4: Table Of Contents
Contents 1. INTRODUCTION .................. 5 Why Measure Leakage Current? ............6 Threshold Of Perception ..............6 Technical Data ................... 6 Items And Accessories ............... 7 2. OPERATION ..................8 Safety Precautions ................8 Operating Instructions ................ 9 3. MAINTENANCE ................10 Warranty ...................10 Shipping ...................10 Battery Replacement ................ -
Page 5: Introduction
The 229-2 is designed only for measuring leakage current of appliances oper- ating from 120 or 240 power line circuits. The current ranges of the 229-2 have an insertion impedance of 1500 ohms, resistive with a parallel capacitance of 0.15 F. -
Page 6: Why Measure Leakage Current
The 229-2 is battery operated and completely insulated for user protection. Solid-state circuitry permits a current sensitivity to be as high as 300 A full scale (minor divisions of 5 A). Two voltage ranges of 0-150V AC and 0- 300V AC provide a convenient means of measuring the open circuit voltage (between the accessible parts and ground) to determine whether leakage current need be measured. -
Page 7: Items And Accessories
Input Resistance On Voltage Ranges 500K on the 150V VAC range 1MEG on the 300V VAC range Accuracy @ 60 Hz, Sine Wave: 3% on voltage and current ranges. Frequency Response: Approximates Dalziel’s Percentile 50 (Current Ranges) Threshold of Perception Curve. Reference Conditions: 23°C 1°C, 30% to 60% relative humidity. -
Page 8: Operation
Model 229-2 in a safe and proper manner. Safety Precautions The Model 229-2 is designed to be used only by personnel qualified to recog- nize shock hazards and trained in the safety precautions required to avoid possible injury. Refer to SHOCK HAZARD definition which is located on page 3 of this manual. -
Page 9: Operating Instructions
De-energize the equipment to be tested. Turn the function selector switch to the SHORT TEST position. Connect Model 229-2 Leakage Current Tester, as shown in the figure 2. Disconnect protective grounding connection (3rd wire) -
Page 10: Maintenance
The Model 229-2 will withstand 300V AC (50/60 Hz) on short test for approxi- mately 10 seconds. If the pointer is deflected into the green area, the leakage current may be measured more accurately by turning the selector switch clockwise until best reading is obtained. -
Page 11: Calibration
Remove the old battery from the connector and insert the new battery into the holder Calibration The Simpson 229-2 is a FACTORY SERVICE ONLY Instrument. If it is sus- pected that the Instrument is not performing within rated accuracy specifica- tions send Instrument to Simpson Electric Co. for service. Contact Simpson Technical Support if you are uncertain about performance specifications or operation of this Instrument. - Page 12 SIMPSON ELECTRIC COMPANY 520 Simpson Avenue Lac du Flambeau, WI 54538-0099 (715) 588-3311 FAX (715) 588-3326 Printed in U.S.A. Part No. 05-115705 Edition 12 07/17 Visit us on the web at: www.simpsonelectric.com...
