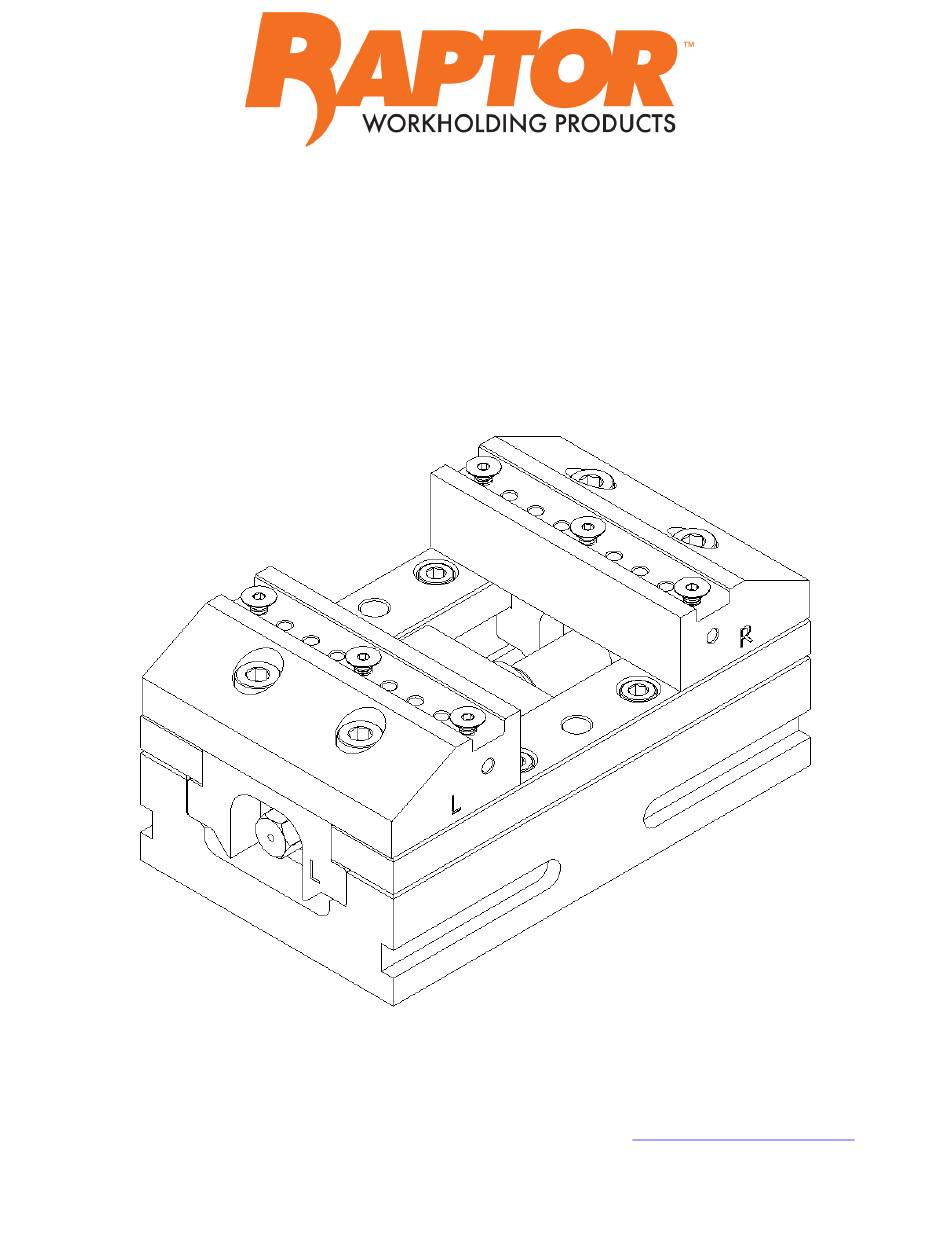

- Page 1 5-AXIS SELF-CENTERING VISE OPERATION MANUAL Model No. RWP-502 (REV B, LOT# 052516) 901 N . L ake S t. B urbank, C A 9 1502 1-‐800-‐824-‐8333 info@RaptorWorkholding.com RaptorWorkholding.com...
-
Page 2: Specifications
The RWP-502 is a 100mm self-centering vise: designed to provide reliable, consistent workholding for your manufacturing needs. Raptor vises are shipped complete, assembled, and ready to use. VISE SPECIFICATIONS: Vise M odel N o. RWP-‐502 Weight -‐ k g ( lbs) ... -
Page 3: Jaw Inserts
JAW INSERTS: There are a variety of jaw inserts available to hold workpieces in place as illustrated below. Additional product information is available on our website: raptorworkholding.com. ACCESSORIES & REPLACEMENT PARTS: Accessories & replacement parts are available, please visit our website for additional information: raptorworkholding.com. - Page 4 This vise design has two options for securing the product for use: 1) Using two Loc-Down Screws for mounting to an adapter/riser, which Raptor has available in it’s product line. 2) Utilizing the side clamping slots for use with clamps, strap clamps recommended.
- Page 5 RELATED ADAPTERS / RISER PLATES TO BE USED WITH LOC-DOWN SCREWS The following adapters and riser plates were designed specifically with the RWP-502 100 mm mounting interface when utilizing Loc-Down Screws and Dowel Pins. There are multiple options to chose from and will mount to most rotary tables / pallets.
- Page 6 & aptor is recommended to and prevent lockup Cleaning materials needed: aluminum oxide pad (ie: like Scotch Brite), WD-40 and a clean lint free cloth. The cleaning process is simple: 1. Coat build-up 3. With a clean lint free cloth, throughly to remove residue build up/rust.
