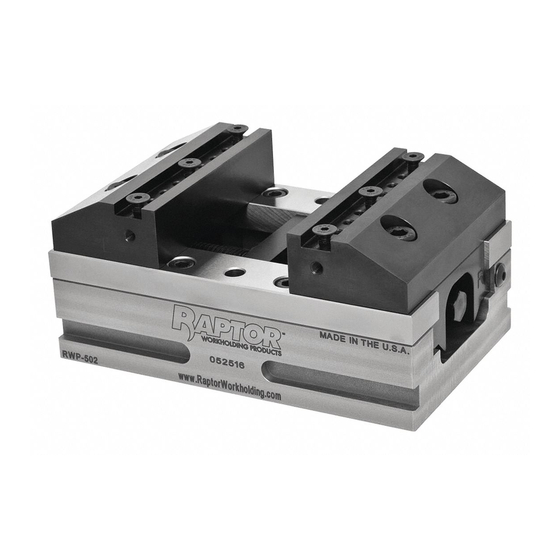

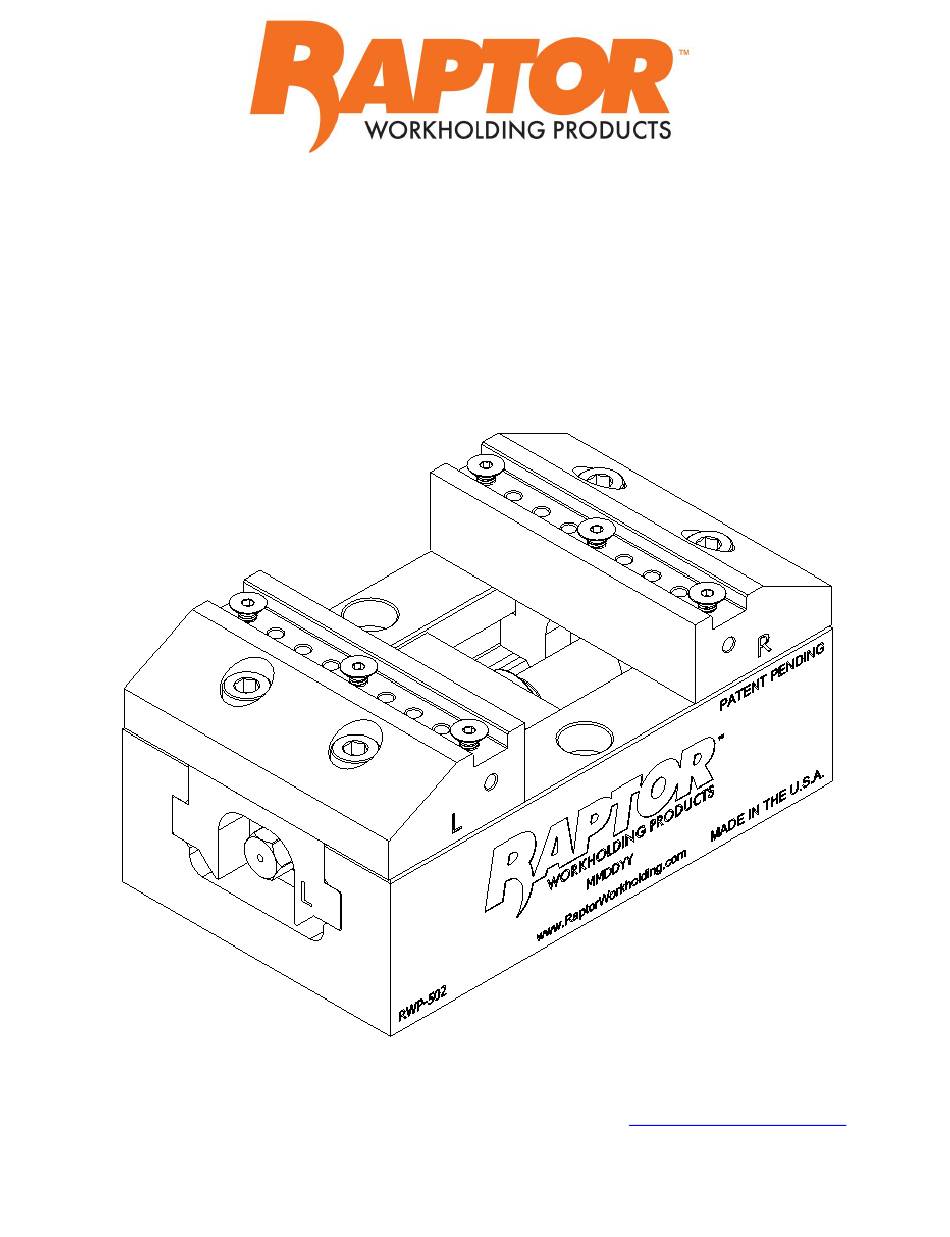

- Page 1 REV C – 7/1/18 5-AXIS SELF-CENTERING VISE OPERATION MANUAL Model No. RWP-502 (100MM) & RWP-505 (150MM) 100 Quinter Farm Rd. Union, OH 45042 1-800-543-4071 info@RaptorWorkholding.com RaptorWorkholding.com...
-
Page 2: Optional Mounting
REV C – 7/1/18 The Raptor self-centering vise: designed to provide reliable, consistent workholding for your manufacturing needs. All RAPTOR vises are shipped complete, assembled, and ready to use. UNPACKING: When unpacking, be sure not to damage or lose any of the components. Each vise will include... - Page 3 The grid and Fig 2., illustrate the bottom of 100 & 150 mm vise with the appropriate tapped and reamed hole placement Vise Model No. A – mm (in) B – mm (in) C – mm (in) RWP-502 (100MM) 80 (3.15) 50 (1.97) 50.8 (2.00) FOR M8 SHCS RWP-505 (150MM) 120 (4.72)
- Page 4 REV C – 7/1/18 MAINTENANCE, CLEANING, & REPAIR: Like any piece of quality equipment, the RAPTOR vise will need periodic cleaning and maintenance, a routine maintenance schedule should be administered to prevent lock-up and ensure maximum efficiency. The entire slide segment of the vise can be easily removed and replaced.
-
Page 5: Replacement Parts
REV C – 7/1/18 JAW INSERTS: RAPTOR vises can be equipped with a variety of jaw inserts for part work holding See Jaw Configuration Options below: REPLACEMENT PARTS / ACCESSORIES: Replacement parts/accessories available upon request, contact Raptor for details. For further technical information please visit our website at www.raptorworkholding.com...
