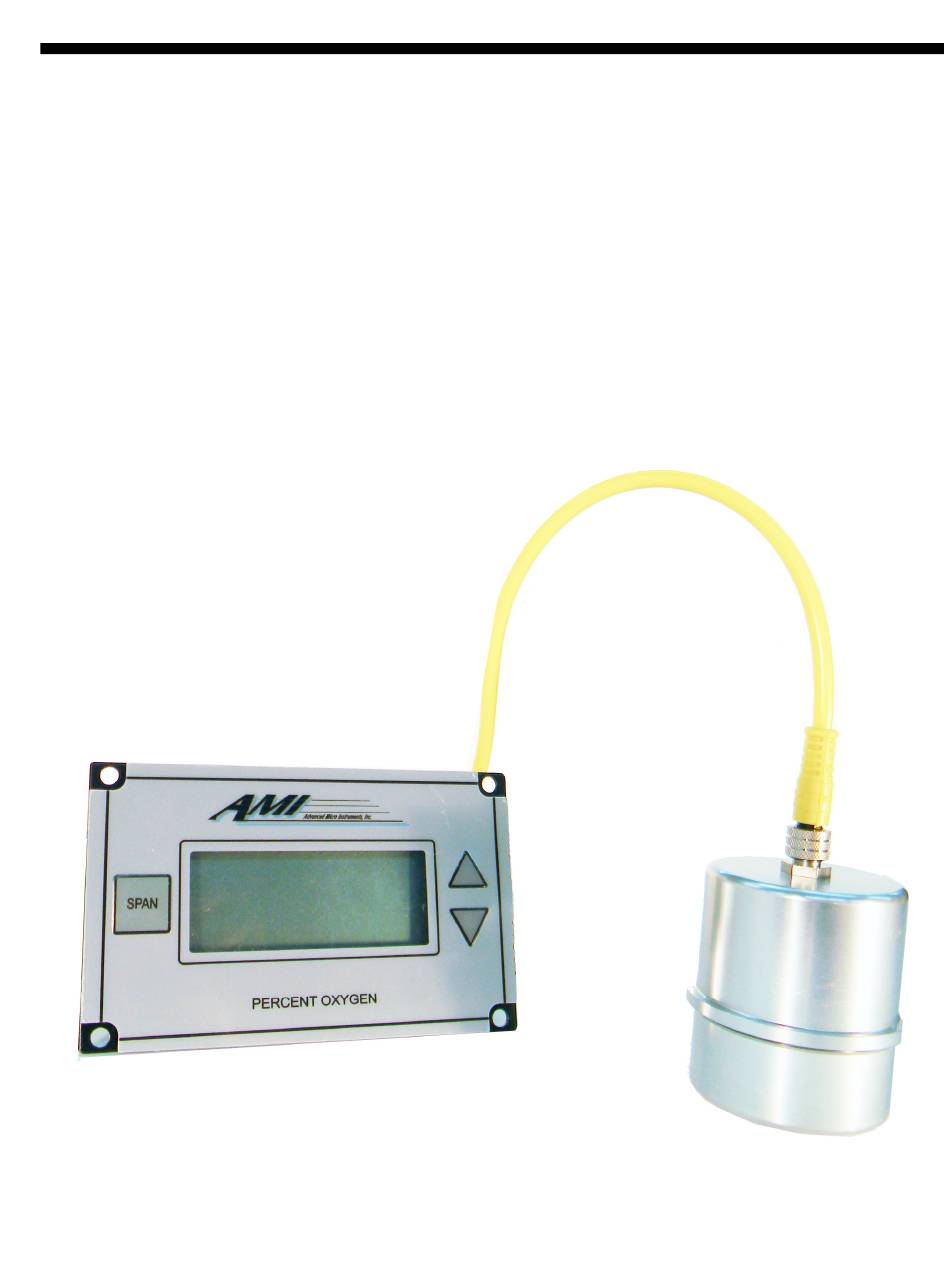

- Page 1 Oxygen Analyzer Manual Model 60 Probe AMI, Costa Mesa, CA...
-
Page 2: Table Of Contents
Contents Preface The AMI story Caution Address The AMI Oxygen Probe Analyzer Introduction Features: Options: Oxygen sensor: Sensor Warranty: Instrument Warranty: Installation and Operation Receiving the analyzer Precaution Installation Location: Probe connection: Display unit option: Display unit connections: Initial test:... - Page 3 Emergency and first aid procedures Handling information Sensor type P2 Product Identification Physical and chemical data Fire and explosion hazard data Reactivity data Emergency and first aid procedures Health hazard data Handling information AMI Analyzer Manual • • • • 2...
-
Page 4: Preface
Every effort is made to ensure that AMI products provide reliable, effective performance. However there are many pitfalls in achieving correct oxygen analysis, particularly at low ppm levels, and AMI stands ready to provide a complete solution to the analysis problem, from sample system design to on-site troubleshooting and problem analysis. -
Page 5: The Ami Oxygen Probe Analyzer
• Oxygen sensor: AMI uses an industry standard electrochemical sensor. This measures the concentration of oxygen in a gas stream, using an oxygen specific chemistry. It generates an output current in proportion to the amount of oxygen present, and has zero output in the absence of oxygen, thus avoiding any requirement to zero the analyzer. -
Page 6: Sensor Warranty
The sensor is warranted to operate for a period determined by its class. If the sensor ceases to operate correctly before this time has elapsed, contact AMI for a return authorization for evaluation. If there is any evidence of defective material or workmanship the sensor will be replaced free of charge. -
Page 7: Installation And Operation
If the display unit is used, connect it to a suitable power supply (12 –24V DC), and connect the output if desired to a suitable monitoring system. Figure 1. Probe showing preferred mounting AMI Analyzer Manual • • • • 6... -
Page 8: Probe Connection
16AWG to about 26 AWG. Wire Color Connection Brown +12 to +24VDC, 5 to 55mA Black Ground/Return Blue +5V, 50ma max White Voltage output AMI Analyzer Manual • • • • 7... -
Page 9: Display Unit Option
Display unit option: Figure 5. Back Panel Connections Figure 3. Display unit showing mounting hole dimension 2.78 2.35 Figure 6. Display unit panel cut out AMI Analyzer Manual • • • • 8... -
Page 10: Display Unit Connections
IMPORTANT: CONNECT THE POWER SUPPLY TO THE CHANNEL DISPLAY. THE PROBE WILL GET POIWER THROUGH THE DISPLAY. The first four connections are connections to the probe; the second four are user connections. Back Panel Model 60 Wires / Connections Connections (+) Power for... -
Page 11: Sensor Installation
The output of the sensor will vary by about +/- 20% between units, in other words air will make the output come to somewhere between about and on a nominally output unit. The following section is intended to provide tips on performing calibration. AMI Analyzer Manual • • • • 10... - Page 12 3. If the sensor chosen has a time constant of 13 seconds, the calibration routine should allow at least 65 seconds for the reading to stabilize. 4. If the system performs an automatic calibration, some means of alerting the user to calibration failure must be made. AMI Analyzer Manual • • • • 11...
-
Page 13: Maintenance And Troubleshooting
Maintenance and troubleshooting Maintenance: The AMI oxygen probe is virtually maintenance free other than for periodic calibration and occasional sensor replacement. Sensor Replacement: This should be done on a regular schedule, rather than as a response to a dead sensor. See the chart below for recommended sensor replacement. -
Page 14: Sensor Replacement Cautions
Sensors usually contain lead which is toxic, and should generally not be thrown into ordinary trash. Refer to the MSDS to learn about potential hazards and corrective actions in case of any accident. Figure 4. Inserting sensor in probe AMI Analyzer Manual • • • • 13... -
Page 15: Sensor Replacement Procedure
3. If using a calibration gas, read the value on the gas bottle label. 4. Adjust the system gain until the reading on the system display corresponds to the value on the gas bottle. AMI Analyzer Manual • • • • 14... -
Page 16: Periodic Calibration
The sensor life typically ends when you run out of span adjustment. AMI Analyzer Manual • • • • 15... -
Page 17: Specifications And Disclaimer
Response times: 90% of full scale < 13 seconds Outputs: 0-2.5V nominal (un-calibrated). Power requirements: Between 12 and 24 VDC, <10 mA Dimensions: 2.15 Dia x 2" high (not including fittings or leads). Weight less than 1 lbs. AMI Analyzer Manual • • • • 16... -
Page 18: Disclaimer
The AMI analyzer is not designed as a primary safety device, that is to say it is not to be used as the primary means of assuring personnel safety. In particular it is not designed to act as a medical instrument, monitoring breathing air for correct oxygen concentration, and should not be used as such when it is the only safety device on the gas system. -
Page 19: Material Safety Data Sheets (Msds)
The contents of the sensor are not flammable. There are no fire or explosion hazards associated with the sensor. Potential for reactivity: The sensor is stable under normal conditions of use. Avoid contact between the sensor electrolyte and strong acids and oxidizing agents. AMI Analyzer Manual • • • • 18... -
Page 20: Health Hazard Data
Handling information NOTE: Oxygen sensors are sealed and under normal circumstances their contents do not present a health hazard. The following information is given as a guide in the event of a leak. AMI Analyzer Manual • • • • 19... -
Page 21: Sensor Type P2
The sensor body is made of metal and glass-epoxy GR4 circuit board material, with a Mylar covering. It contains the following substances (other than various plastics): Common name Formula Concentration CAS number Potassium hydroxide solution 15%; 1-5ml 1310-58-3 Lead pure, 3-20 g 7439-92-1 AMI Analyzer Manual • • • • 20... -
Page 22: Fire And Explosion Hazard Data
Give large amounts of cold water. Do not induce vomiting. Seek medical attention. Do not administer liquids to an unconscious person. Inhalation: Liquid inhalation is unlikely. If it occurs, remove to fresh air and seek immediate medical attention. AMI Analyzer Manual • • • • 21... -
Page 23: Health Hazard Data
IARC: lead is classified as a class 2B carcinogen - possibly carcinogenic to humans. Other health hazards: Lead is a chemical known to the state of California to cause birth defects or other reproductive harm. AMI Analyzer Manual • • • • 22... -
Page 24: Handling Information
NOTE: The above information is derived from the supplier's MSDS. This information is believed to be correct, but is not necessarily inclusive and should be used only as a guide. Advanced Micro Instruments shall not be held liable for any damage arising out of using or abusing this product. AMI Analyzer Manual • • • • 23...
