AMI 210BR Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

AMI
Oxygen Analyzer Manual
Model 210BR
Costa Mesa, CA
08/31/2018
Made in the USA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 210BR and is the answer not in the manual?

Questions and answers

Related Manuals for AMI 210BR

Summary of Contents for AMI 210BR

  • Page 1 Oxygen Analyzer Manual Model 210BR Costa Mesa, CA 08/31/2018 Made in the USA...
  • Page 2 Contents  i AMI Analyzer Manual...

  • Page 3: Table Of Contents

    Contents Preface Thank you! Caution Address Model 210BR Oxygen Analyzer Introduction Features: Oxygen sensor: Sensor Warranty: Instrument Warranty: Receiving the analyzer Important: Points to consider first! Location: Safety Considerations: Installation Procedure Analyzer Description Basic description: Drawings: General Information Basic knowledge about oxygen measurement...
  • Page 4 Security: Communications Advanced Features Maintenance and troubleshooting Maintenance: Periodic Calibration: Sensor Replacement: Sensor replacement cautions: Sensor replacement procedure: Troubleshooting Basics of oxygen troubleshooting Accessories Specifications and Disclaimer Specifications: Disclaimer Contents  iii AMI Analyzer Manual...

  • Page 5: Preface

    Please verify that the analyzer was not damaged in transit. If so please contact the shipper as well as AMI. Caution Read and understand this manual fully before attempting to use the instrument.

  • Page 6: Introduction

    Model 210BR Oxygen Analyzer Introduction The Advanced Micro Instruments Oxygen Analyzer Model 210BR provides the latest in high precision oxygen measurement. It is specifically designed for use with flammable gases in hazardous areas, and includes a number of features that make it particularly suitable for this application. It is approved by CSA to UL standards for Class 1 Div.

  • Page 7: Oxygen Sensor

    The sensor is warranted to operate for a period determined by its class. If the sensor ceases to operate correctly before this time has elapsed, contact AMI for a return authorization for evaluation. If there is any evidence of defective material or workmanship the sensor will be replaced free of charge.

  • Page 8: Important

    Sample conditions – if your sample is hot and wet, you will need to keep water from condensing in the sample line or analyzer. The AMI demister brings hot and wet gases back to ambient temperature and allows the condensation and entrained liquids to fall back into the pipeline (no draining is necessary, unlike a coalescing filter which requires routine maintenance).

  • Page 9: Location

    (consider using the solar panel if one is used as the sunshield). Mount it at a suitable viewing level. Important:  6 AMI Analyzer Manual...

  • Page 10: Safety Considerations

    If so, the area MUST be declassified first. The sample vent should be brought to a safe place – don’t let it vent a flammable sample inside a meter/analyzer building. Important:  7 AMI Analyzer Manual...

  • Page 11: Installation Procedure

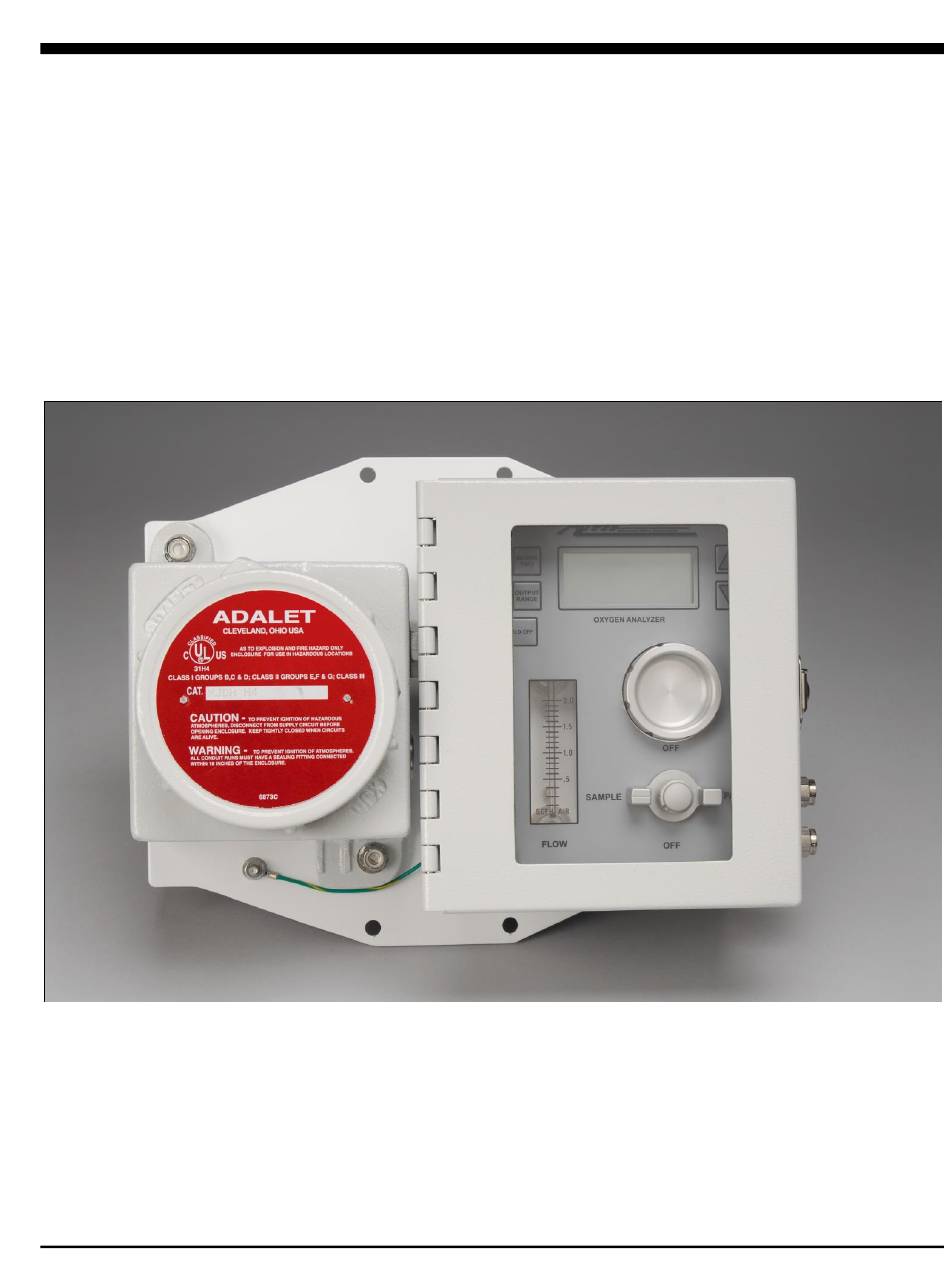

    Installation Procedure Figure 2. The 210BR 1. Mount analyzer in a shelter if possible, at a convenient eye level, not too close to the right wall.
  • Page 12 – has to be completely replaced by the gas flowing before you get a representative reading. If the sample pressure is high, the volume is effectively increased because more gas is packed into the tubing. AMI can provide a version of the Liquid Rejection Probe with a built-in regulator that can handle pressures up to 1500psig.
  • Page 13 The Flow Control Valve is the metering valve in the middle of the Sample/Span/Off valve. It is a sensitive needle valve – so don’t try to use it to shut off the flow. Turn the main valve to the OFF position for this. Installation Procedure  10 AMI Analyzer Manual...
  • Page 14 12. Connect power, relay contacts, analog output and RS485 if desired. Run the power and alarms in one conduit, and the analog output and RS485 in the other. Note that you MUST use rigid conduit Installation Procedure  11 AMI Analyzer Manual...
  • Page 15 Also make sure you have a way of removing power from the analyzer nearby, per the code. And don’t drill any holes in the enclosure! This will violate the safety approval, and may cause a fire or explosion resulting in serious injury or loss of life. Installation Procedure  12 AMI Analyzer Manual...
  • Page 16 Installation Procedure  13 AMI Analyzer Manual...
  • Page 17 10,000 Ohm load. Either will saturate at more than 125% of the nominal full scale range. Using AMI software you can set the output to 4mA, 12mA and 20mA (or 1V, 3V and 5V), and adjust the internal settings to calibrate these values so as to get the most accurate possible transfer of information to a recording or computing device.
  • Page 18 If you press the DOWN button by itself, the LCD will show the temperature of the cell block in degrees Fahrenheit. 16. Optional: This section talks about using the laptop to make more advanced choices. Installation Procedure  15 AMI Analyzer Manual...
  • Page 19 Connect the analog output terminals to an appropriate measuring device – preferably the flow computer or similar monitoring device you are going to be using with this analyzer. Installation Procedure  16 AMI Analyzer Manual...
  • Page 20 Arrange that you can readily see the reading given by this device. iii. On the AMI User Interface, check the “Zero” check box under SETUP in the ANALYZER SETUP section. iv. Observe the response of the monitoring device, and adjust the number in the box next to the Zero label until the monitoring device shows what it considers to be zero (which should correspond with either 1V or 4mA).
  • Page 21 20 seconds before you tighten it. It is preferable to use the AMI special flexible non-diffusive tubing with its O-ring sealed fittings so that you don’t destroy the span inlet fitting on the analyzer. This can be purchased from AMI as an option.
  • Page 22 Rotate the valve back to the Sample position. The analyzer is now set up and calibrated. It is normally good practice to give it a day or two and recheck the calibration. Installation Procedure  19 AMI Analyzer Manual...

  • Page 23: Analyzer Description

    Figure 6. Analyzer without lid The 210BR measures oxygen in a flammable (or inert) gas stream down to under 0.1%. It is approved for use in hazardous areas when properly installed. It consists of two major parts mounted on a common back plate. The enclosure on the right contains the gas handling components including the oxygen sensor, and also the controls and analytical circuitry.

  • Page 24: Drawings

    Drawings: Figure 7. Outline Drawing Figure 8. Flow schematic Analyzer Description  21 AMI Analyzer Manual...
  • Page 25 Figure 9. Control drawing – AC unit Figure 10. Control drawing – DC unit Analyzer Description  22 AMI Analyzer Manual...

  • Page 26: General Information

    As a consequence of this, the integrity of the oxygen analyzer sample system is critical. AMI analyzers are designed around a patented “Cell block” that integrates all of the sample handling elements into one solid chunk of metal, resulting in much fewer leak sources and therefore much greater reliability, as well as lower cost.

  • Page 27: Analyzer Operation

    The span gas pressure should also be held below 100psig. AMI recommends that you use a length of their flexible tubing with O ring seals on its fittings so that you don’t damage the analyzer fittings by making and breaking them too often.
  • Page 28 Fist put a suitable regulator on the span gas tank. Connect the regulator to the analyzer with a flexible line such as that provided by AMI, and leak check the connection with “Snoop™” or similar leak detection fluid. Purge the line for several minutes with a small flow of gas prior to doing this, and leave the gas flowing while you make the connection to the analyzer.

  • Page 29: Using The Analyzer

    Communications The 210BR supports both a USB link to a local PC, and RS485 over a network. Only one of these can be active at a time, and the unit automatically turns off the RS485 if it detects a computer plugged into the USB connection.

  • Page 30: Advanced Features

    Advanced Features The analyzer has many advanced features that are only accessible through the AMI User Interface. For details see the User Interface manual. The features include a data log, a calibration log, power failure log, and many other detailed bits of data. Most of these features are also available over the ModBus link.

  • Page 31: Maintenance And Troubleshooting

    Maintenance and troubleshooting Maintenance: The model 210BR is virtually maintenance free other than for periodic calibration and occasional sensor replacement. Periodic Calibration: The analyzer should be calibrated about once every month to obtain the best accuracy. The sensor typically declines in sensitivity by about 1% per month, so a monthly calibration is usually satisfactory. Use in a particularly aggressive environment may degrade the sensor faster: in this case calibrate more often.

  • Page 32: Sensor Replacement Cautions

    9. Replace the cell cap. 10. Screw it down tightly but only hand-tight. 11. Dispose of the old sensor in an environmentally appropriate way. It is similar to a lead-acid battery in terms of environmental hazard. Maintenance and troubleshooting  29 AMI Analyzer Manual...

  • Page 33: Troubleshooting

    And remember that it is always possible for the gas supplier to make a mistake. Incidentally, the air calibration is quite accurate, and you can leave it like that with confidence. Maintenance and troubleshooting  30 AMI Analyzer Manual...
  • Page 34 6. Water may have shorted out the contacts on the back of the sensor. If so, use a Liquid Rejection Probe with an AMI demister or coalescing filter to make sure that condensation does not occur within the analyzer.
  • Page 35 Amps in air (at 70ºF). This will take a few minutes to stabilize as the sensor consumes oxygen dissolved in its electrolyte. Replace the sensor if it does not read this amount. See sensor replacement instructions under Maintenance. Maintenance and troubleshooting  32 AMI Analyzer Manual...
  • Page 36 3. If spanning on air, verify that the air source is free of water vapor (humid air will contain about 3% less oxygen than expected, depending on temperature), and if relevant that air from a tank does actually contain 20.9% oxygen. Manufactured air often does not! Maintenance and troubleshooting  33 AMI Analyzer Manual...

  • Page 37: Accessories

    Pump module Power requirements: 12VDC @ 700mA. NEMA 4X Enclosure allows for our heated Model 210BR, 210BR and 3010BR to be quickly and easily mounted in place for use in extreme cold, wet and windy weather conditions down to -40° F.
  • Page 38 In addition, the plastic tubing is filled with a Kevlar fiber making it virtually non-diffusive and well suited for high pressure applications. This makes for a perfect choice Accessories  35 AMI Analyzer Manual...
  • Page 39 ¼" NPT inlet port. Calibration gas regulator AMI User Interface Program. Allows complete access to all advanced features of the 210BR analyzer. CD and USB cable Contact AMI for information about any of these. Accessories  36 AMI Analyzer Manual...

  • Page 40: Specifications And Disclaimer

    Specifications and Disclaimer Specifications: 210BR Standard ranges: 0 – 1%, 0 – 5%, 0 – 10%, 0 –25% Sensitivity: 0.5% of full scale Repeatability: +/- 1% of full scale at constant temperature Operating temperature: -4C to 46C (25F - 115F); -29C to 46C (-20F - 115F) with optional heater Humidity: <...

  • Page 41: Disclaimer

    AMI’s obligation is expressly limited to the analyzer itself. The AMI analyzer is not designed as a primary safety device, that is to say it is not to be used as the primary means of assuring personnel safety. In particular it is not designed to act as a medical instrument, monitoring breathing air for correct oxygen concentration, and should not be used as such when it is the only safety device on the gas system.
  • Page 42 Class I, Division 1, Groups B, C and D: Series 2010BR and 210BR Oxygen Analyzers and series 3010BR Hydrogen Sulfide Analyzers, input rated 117Vac, 0.5A max, 50/60Hz or 12-24VDC, 1.7A max or 12-24VDC, 0.1A max; with output rated 1-5V or 4- 20mA;...
  • Page 43 Certificate: 1905645 Master Contract: 227773 Project: 70159520 Date Issued: November 28, 2017 APPLICABLE REQUIREMENTS CSA C22.2 No 0-10 General Requirements – Canadian Electrical Code, Part II – Tenth Edition CSA C22.2 No 30-M1986 (R 2007) Explosion-Proof Enclosures for Use in Class I Hazardous Locations Industrial Products –...
