HAWE Hydraulik PLVC 16 Series Manual

Programmable logic valve control

Advertisement

Quick Links

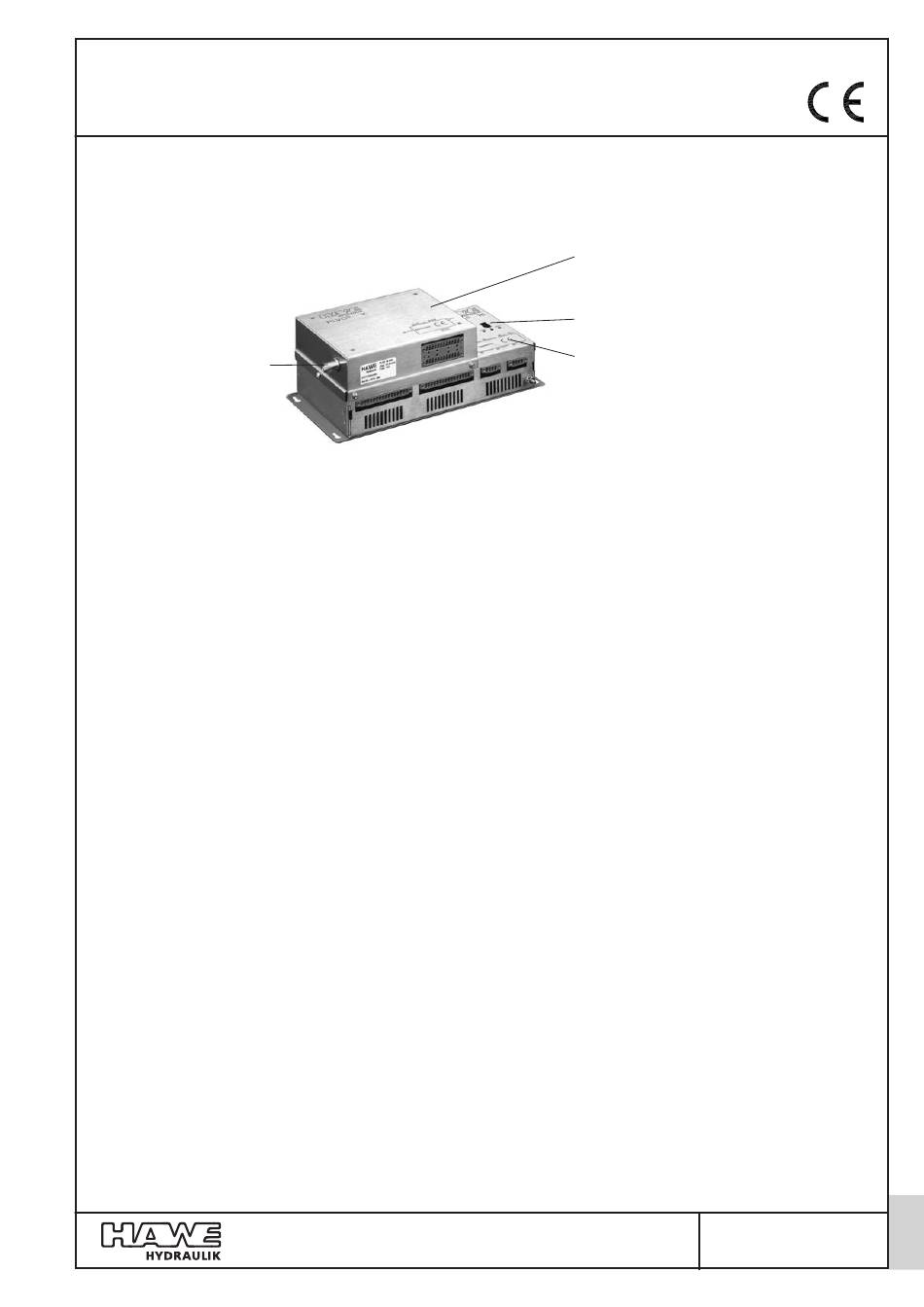

Programmable logic valve control
type PLVC 16
Antenna socket
for radio control
(optional)
1.

General information

The programmable logic valve control of type PLVC 16 consists of a complex PLC-enabled micro-control unit with integrated
amplifiers for mobile and stationary hydraulic applications.
The wide range of possible applications includes, among others:
' Cranes, crane systems
' Construction machines
' Complex hoisting equipment
' Logging equipment
' Hydraulic clamping systems for machine tools
' Presses
The various control tasks are realized through:
' A modular system with extension and supplementary modules

- Basic module

- Extension module (additional inputs/outputs, receiver for radio control) (optional)
- Text display for diagnosis, and parameterization (via CAN-Bus)
- Large display for diagnosis, and parameterization (via CAN-Bus)
- CAN-Bus controlled power relay
' Flexible programmability according to IEC 61131-3 standard (PLC-programming via instruction list (IL), function block diagram
(FBD) or structured text (ST))
' Various interfaces (RS232, CAN-Bus)
' Free parameterization of all outputs, as well as complete diagnosis capability and short-circuit protection
' Remote diagnosis via modem or mobile phone
' Combination of multiple PLVC's via CAN-Bus within one integrated unit for the control of complex systems
All relevant standards regarding personal safety, EMC, vibration- and shock-proofness are complied with.
The main performance parameters include furthermore:
(the values in brackets specify the performance range of the basic module)
' Input
- Max. 24 (8) digital inputs (for limit switches, pressure switches, push buttons, etc.)
- Max. 24 (8) analog inputs (for joysticks, potentiometers, sensors such as analog pressure sensors)
- Emergency-Stop signal (opto-decoupled)
- 4 (1) frequency inputs (for indexing switches, rev. counter, incremental encoder, etc.)
- Optionally integrated radio control module (receiver) incl. Emergency-Stop lock
- Power supply 10 ... 30 VDC, max. 16 A
' Output
- Max. 32 (16) outputs for prop. or ON/OFF valves
- 2 analog outputs 0 ... 10 VDC
- Emergency-Stop signal
- 2 programmable auxiliary voltage outputs (5, 8, 10, 12 VDC, max. 500 mA, e.g. for potentiometer supply)
- 3 Relay outputs
- 7- segment display on basic module for error detection
' Functional software features
- PLC programming via IL, FBD or ST
- Parameterization during runtime
- CAN-Bus integrated in the operating system
© 2000 by HAWE Hydraulik
HAWE HYDRAULIK SE
STREITFELDSTR. 25 • 81673 MÜNCHEN
See also other electronic valve controls/accessory:
Type PLVC 2
Type PLVC 4
Type PLVC-CAN
Extension module with
- Receiver unit of the radio control (optional)
- Additional inputs/outputs
Diagnosis display
Basic module with
- Interfaces for CAN-Bus, RS232
- Inputs/Outputs
- Hardware Emergency-Stop loop
Programmable logic
acc. to D 7845-2
acc. to D 7845-4
acc. to D 7845-Z
D 7845
5
valve control
February 2006-00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PLVC 16 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for HAWE Hydraulik PLVC 16 Series

  • Page 1: General Information

    - PLC programming via IL, FBD or ST - Parameterization during runtime - CAN-Bus integrated in the operating system D 7845 HAWE HYDRAULIK SE Programmable logic STREITFELDSTR. 25 • 81673 MÜNCHEN valve control February 2006-00 © 2000 by HAWE Hydraulik...
  • Page 2 D 7845 page 2 Available versions Basic module Order examples: PLVC 16 - G PLVC 16 - X - ABC Basic module Extension module, see sect. 2.2 General data Casing, protection class IP 20 acc. to DIN EN 60529 / IEC 60529 Temperature range -40°C to +80°C Power supply...
  • Page 3 D 7845 page 3 Block diagram for basic module 3x Relays Ubat out 1 ADC Protected Relays 1 Safety relays against: UL, CSA, TÜV Reverse polarity, load dump, under/ Relays 2 Emergency-Stop loop over voltage Emergency-Stop, in Emergency-Stop, out Relays 3 Emergency-Stop Monitoring: Short-circuit,...
  • Page 4 D 7845 page 4 Power specifications of connections Connector Function Description Parameters rail - Power supply Rated voltage U 10 VDC ... 30 VDC max. total current (power) 16 A - Proportional and/or ON/OFF outputs 100 ... 1200 mA 0 - 9 100 ...
  • Page 5 D 7845 page 5 Block diagram extension module Monitoring: Relays 1 Short-circuit, Emergency-Stop broken wire, range From Basic Module Extension module digital I/O Radio Control Receiver 16 digital Inputs 10 VDC...30 VDC Voltage monitoring Frequency input 2 Frequency input 3 Frequency input 4 2x Voltage Output 16 analog Inputs...
  • Page 6 D 7845 page 6 Accessories 2.3.1 Plug set The cable sets are provided for simple completion and start-up of the system Order coding: Plug set (Basic module) Part No. 6217 2010-00 Plug set (Extension module) Part No. 6217 2100-00 Software, programming, diagnosis Software The scope of delivery includes the following software package as standard: - Operating system ("C"-programmed real-time operating system) with integrated CAN-functionality as well as PLC-capability...
  • Page 7 D 7845 page 7 Dimensions Basic and extension module, type PLVC 16 Extension module Basic module 7-segment display Appendix Error message of 7-segment display There are three keys below the display Press left key: error number, unit of ten Press right key: error number, unit of one Example: cable break at analog port 17: No key:...
  • Page 8 The wiring has to comply with the respective standards and has to be galvanically separated from other circuits. The devices connected at the terminals have to be approved by HAWE Hydraulik GmbH & Co. KG and the signals fed have to comply with the specifications in this pamphlet. The device may be used in a temperature range (-40°C to +80°C).
