Connection Examples
Observe the connection notes on
page 4.

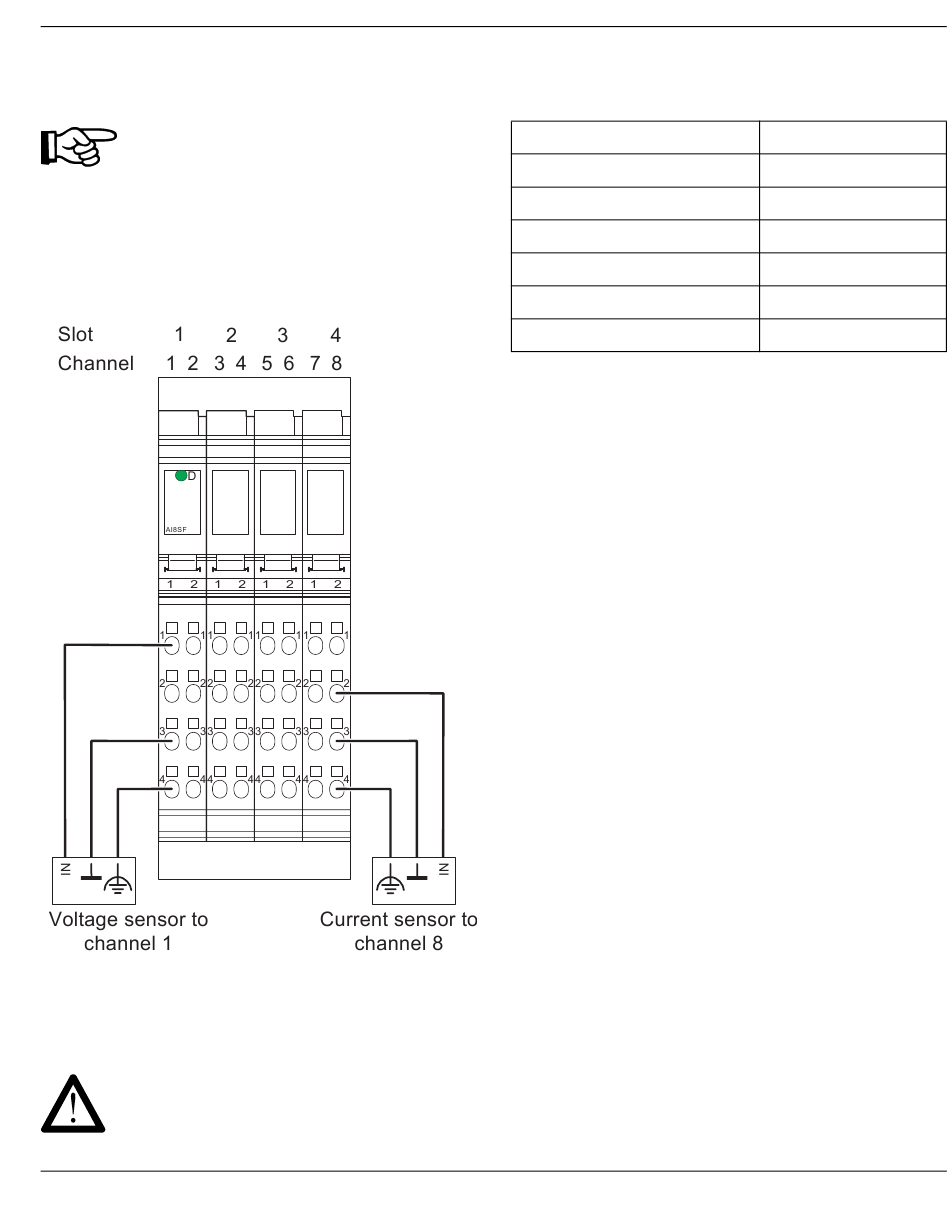

Figure 5 shows the connection schematically
(without shield connector).
Connection of Active Sensors
Figure 5
Connection of active sensors using
2-wire technology with shield
connection
The sensors have the same reference
potential.
6226B_GE
ANALOG IN 15 BIT VOLTAGE/CURRENT 8CH IC220ALG221
Programming Data
ID code
Length code
Process data channel
Input address area
Output address area
Parameter channel (PCP) 0 bytes
Register length (bus)
5F
(95
)
hex
dec
02
hex
32 bits
4 bytes
4 bytes
4 bytes
5
