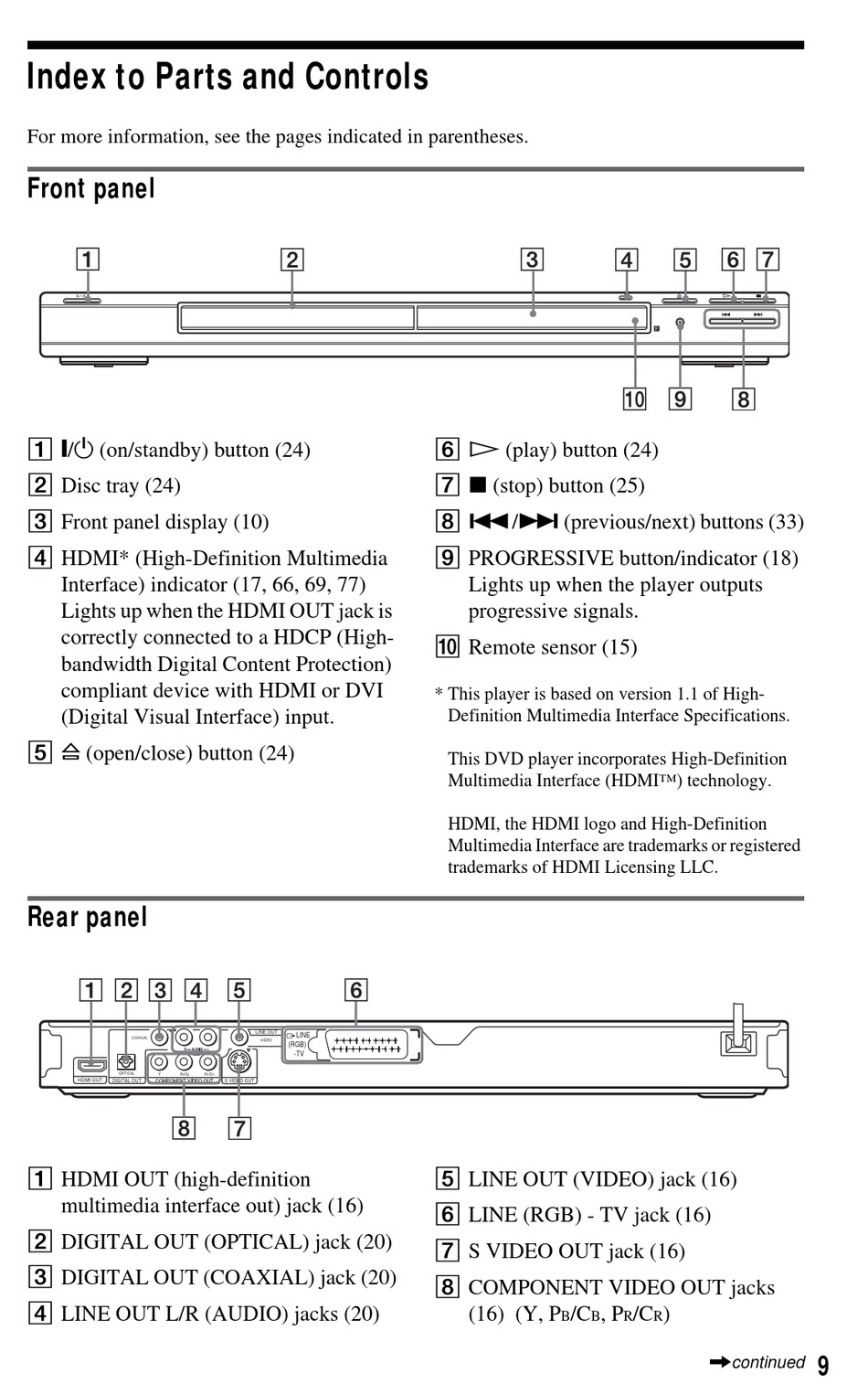

Index to Parts and Controls

For more information, see the pages indicated in parentheses.
Front panel
A [/1 (on/standby) button (24)
B Disc tray (24)
C Front panel display (10)
D HDMI* (High-Definition Multimedia
Interface) indicator (17, 66, 69, 77)
Lights up when the HDMI OUT jack is
correctly connected to a HDCP (High-
bandwidth Digital Content Protection)
compliant device with HDMI or DVI
(Digital Visual Interface) input.
E A (open/close) button (24)
Rear panel
COAXIAL
OPTICAL
Y P /C
B B
HDMI OUT
DIGITAL OUT
A HDMI OUT (high-definition
multimedia interface out) jack (16)
B DIGITAL OUT (OPTICAL) jack (20)
C DIGITAL OUT (COAXIAL) jack (20)
D LINE OUT L/R (AUDIO) jacks (20)
LINE OUT
LINE
VIDEO
(RGB)
L
-TV
P /C
R R
S VIDEO OUT
F H (play) button (24)
G x (stop) button (25)
H ./> (previous/next) buttons (33)
I PROGRESSIVE button/indicator (18)
Lights up when the player outputs
progressive signals.
J Remote sensor (15)
* This player is based on version 1.1 of High-
Definition Multimedia Interface Specifications.
This DVD player incorporates High-Definition
Multimedia Interface (HDMI™) technology.
HDMI, the HDMI logo and High-Definition
Multimedia Interface are trademarks or registered
trademarks of HDMI Licensing LLC.
E LINE OUT (VIDEO) jack (16)
F LINE (RGB) - TV jack (16)
G S VIDEO OUT jack (16)
H COMPONENT VIDEO OUT jacks
(16) (Y, P /C
B B
, P /C )
R R
,continued
