Sony DVP-NS777P Service Manual

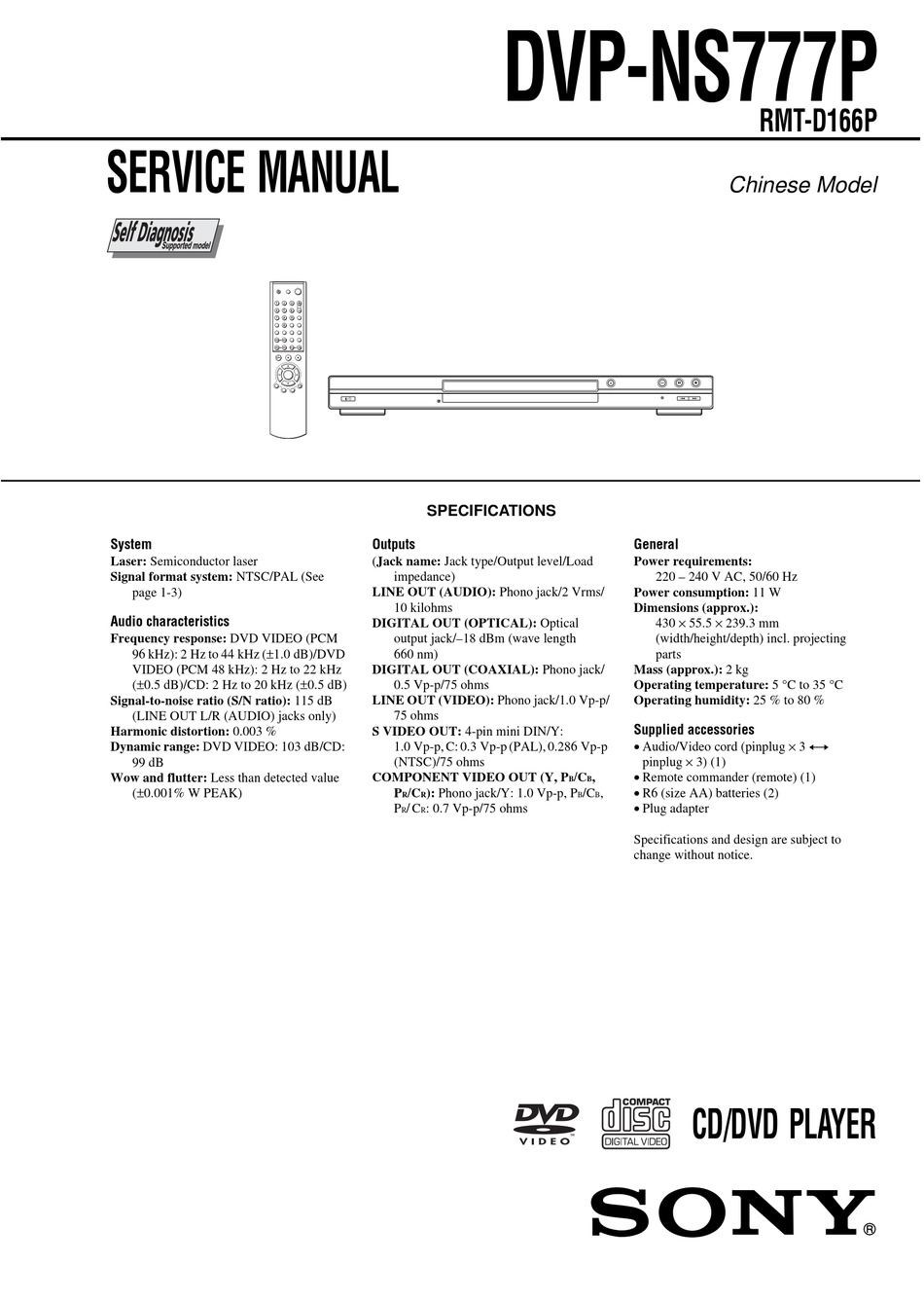

SERVICE MANUAL
System
Laser: Semiconductor laser
Signal format system: NTSC/PAL (See
page 1-3)
Audio characteristics
Frequency response: DVD VIDEO (PCM
96 kHz): 2 Hz to 44 kHz (±1.0 dB)/DVD
VIDEO (PCM 48 kHz): 2 Hz to 22 kHz
(±0.5 dB)/CD: 2 Hz to 20 kHz (±0.5 dB)
Signal-to-noise ratio (S/N ratio): 115 dB
(LINE OUT L/R (AUDIO) jacks only)
Harmonic distortion: 0.003 %
Dynamic range: DVD VIDEO: 103 dB/CD:
99 dB
Wow and flutter: Less than detected value
(±0.001% W PEAK)
DVP-NS777P
SPECIFICATIONS
Outputs
(Jack name: Jack type/Output level/Load
impedance)
LINE OUT (AUDIO): Phono jack/2 Vrms/
10 kilohms
DIGITAL OUT (OPTICAL): Optical
output jack/–18 dBm (wave length
660 nm)
DIGITAL OUT (COAXIAL): Phono jack/
0.5 Vp-p/75 ohms
LINE OUT (VIDEO): Phono jack/1.0 Vp-p/
75 ohms
S VIDEO OUT: 4-pin mini DIN/Y:
1.0 Vp-p, C: 0.3 Vp-p (PAL), 0.286 Vp-p
(NTSC)/75 ohms
COMPONENT VIDEO OUT (Y, P
P /C ): Phono jack/Y: 1.0 Vp-p, P
R R
P / C : 0.7 Vp-p/75 ohms
R R
Chinese Model
General
Power requirements:
220 – 240 V AC, 50/60 Hz
Power consumption: 11 W
Dimensions (approx.):
430 × 55.5 × 239.3 mm
(width/height/depth) incl. projecting
parts
Mass (approx.): 2 kg
Operating temperature: 5 °C to 35 °C
Operating humidity: 25 % to 80 %
Supplied accessories
• Audio/Video cord (pinplug × 3 y
pinplug × 3) (1)
• Remote commander (remote) (1)
/C ,
B B
• R6 (size AA) batteries (2)
/C ,
B B
• Plug adapter
Specifications and design are subject to
change without notice.
CD/DVD PLAYER
RMT-D166P
