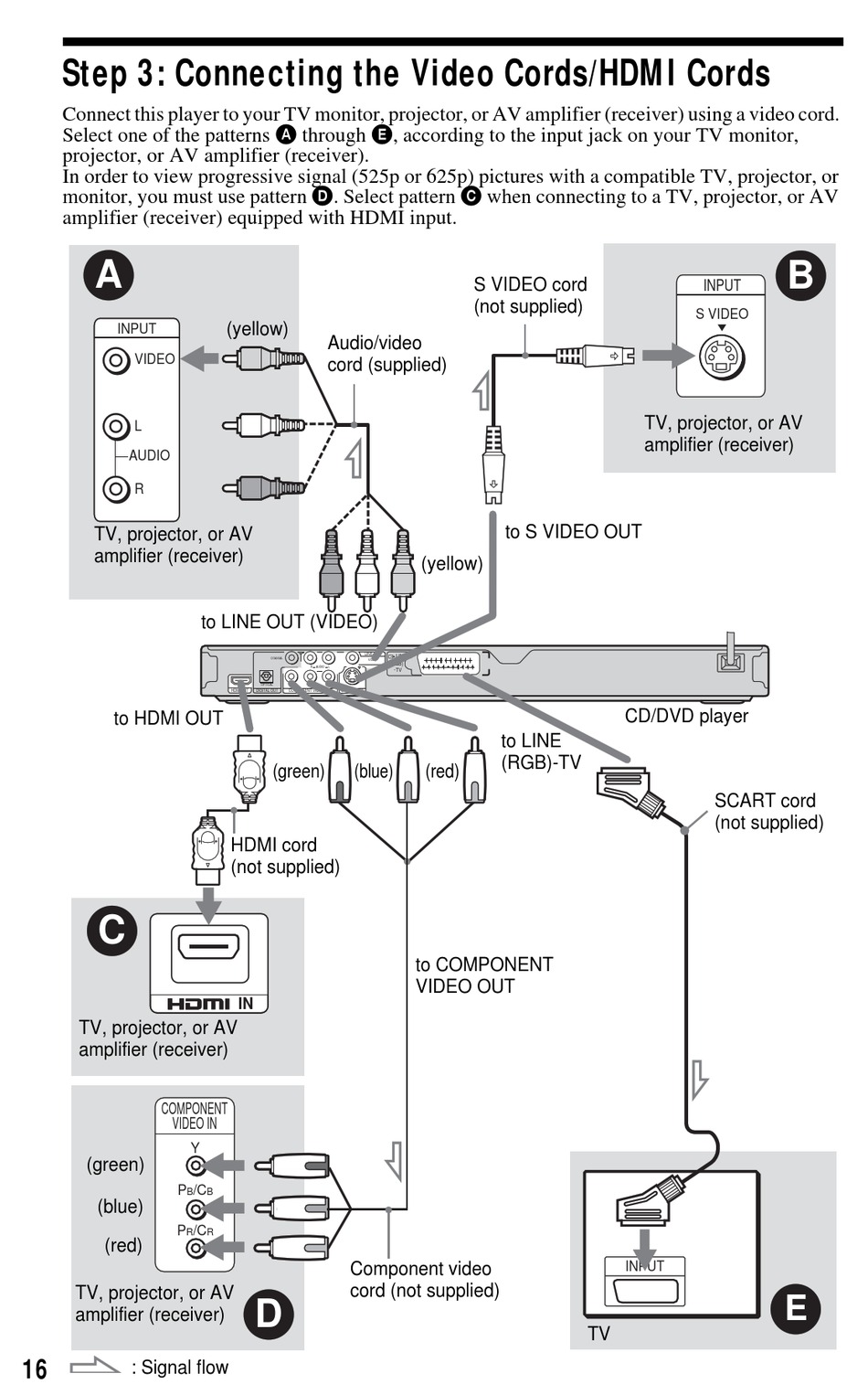

Step 3: Connecting the Video Cords/HDMI Cords

Connect this player to your TV monitor, projector, or AV amplifier (receiver) using a video cord.
Select one of the patterns A through E, according to the input jack on your TV monitor,
projector, or AV amplifier (receiver).
In order to view progressive signal (525p or 625p) pictures with a compatible TV, projector, or
monitor, you must use pattern D. Select pattern C when connecting to a TV, projector, or AV
amplifier (receiver) equipped with HDMI input.
