Menu Navigation - Using Menu Keys - HKC SW-1070 Installation Manual

Menu Navigation - Using Menu Keys

Key-in 4567 to access the Engineer Mode. This will need to be validated with a User
Code. To do this, key-in a valid User Code i.e. 1111 (or 1234 in the UK). You are now in
the Service Menu.
This section illustrates how to move around the menu structure in the SW-1070 control

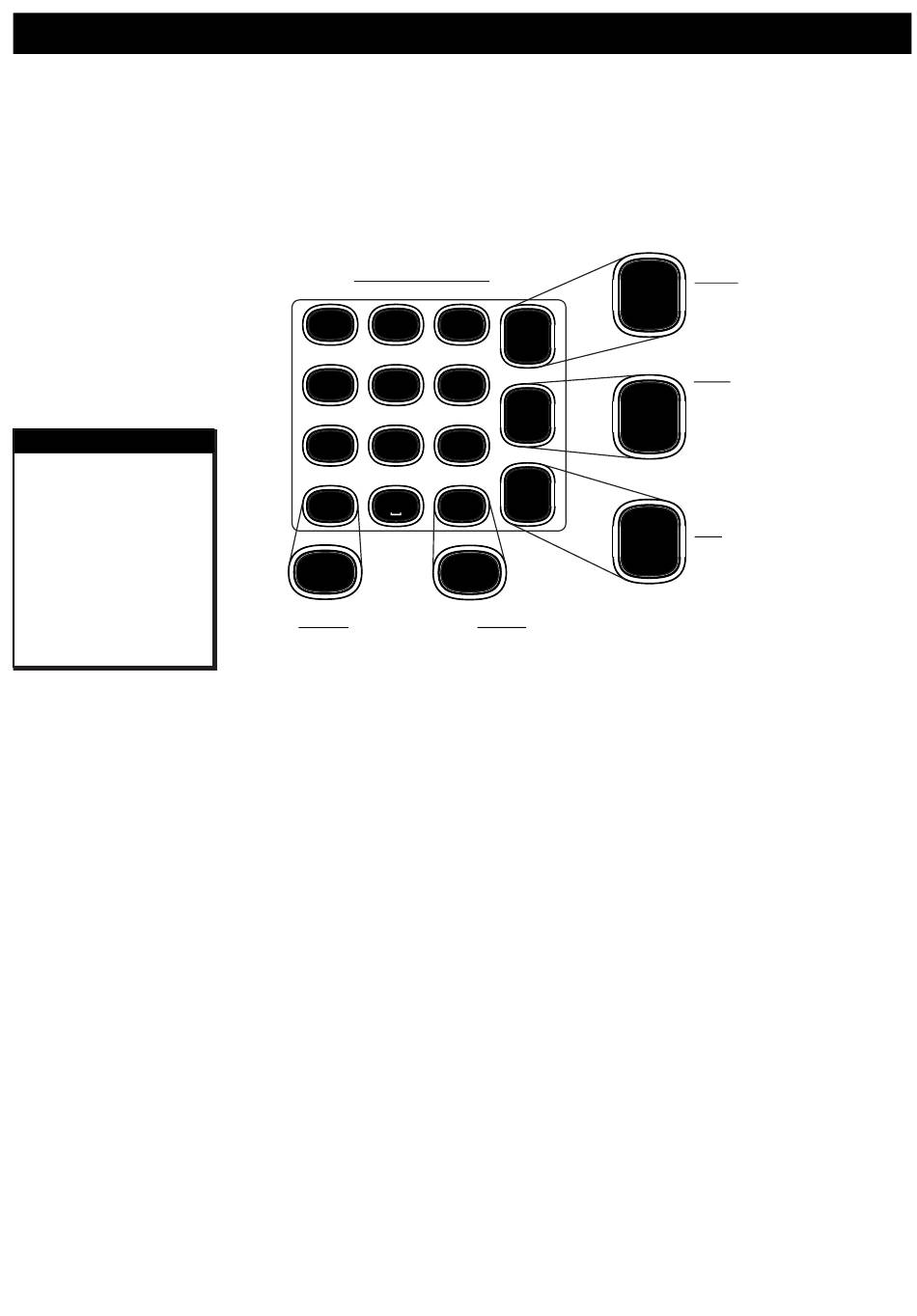

panel. There are five menu keys used for menu navigation. The following diagram
describes their functions...
When typing in zone
descriptions etc. the
cursor will move on to
the next letter after a
short period; just like
mobile phone texting.
CHARACTER SET
1 1 $ · ! % & * ( )
2 a b c A B C 2 + =
3 d e f D E F 3 ; ?
4 g h i G H I 4 < >
5 j k l J K L 5 ` /
6 m n o M N O 6 - =
7 p q r s P Q R S 7
8 t u v T U V 8 + =
9 w x y z W X Y Z 9
0 space . , ' : - 0 @ #
The next two pages contain the main areas of the programming menu...
8
Default Eng. Code - 4567
MENU KEYS
1 2
txt abc
4 5
ghi jkl
7 8
tuv
pqrs
* 0
prev
*
prev
PREV
Used to move to the
PREVIOUS item in a menu.
Default User Code - 1111 (Irl) 1234 (UK)
3
PLAY
def
QUIT
6
mno
REC
YES
9
wxyz
LIGHT
#
NO
next
#
next
NEXT
Used to move to the
NEXT item in a menu.
QUIT
PLAY
Used to exit a menu.
QUIT
YES
Used to enter a menu.
REC
Also used to enable an
YES
option.
LIGHT
NO
Used to disable an
NO
option.
